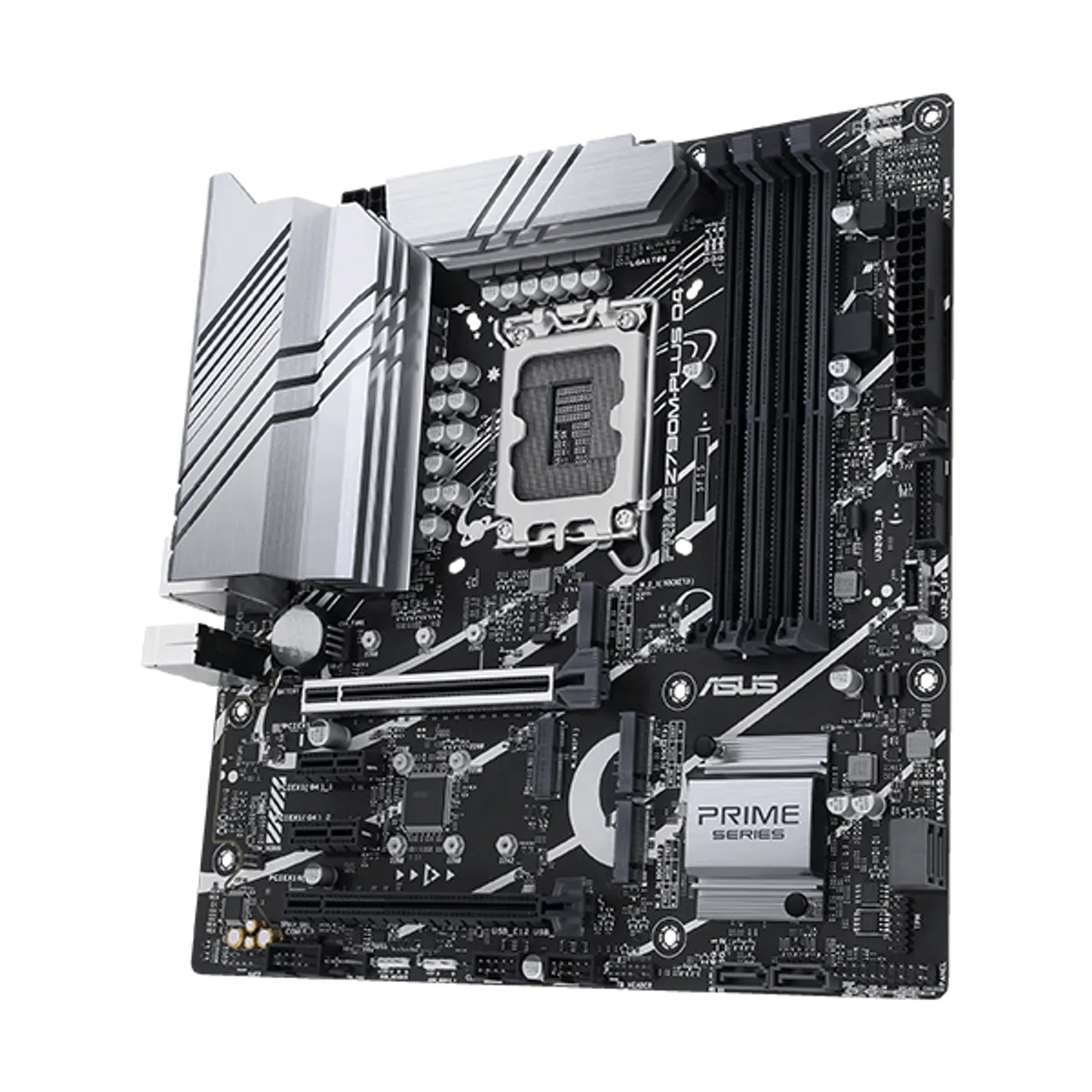

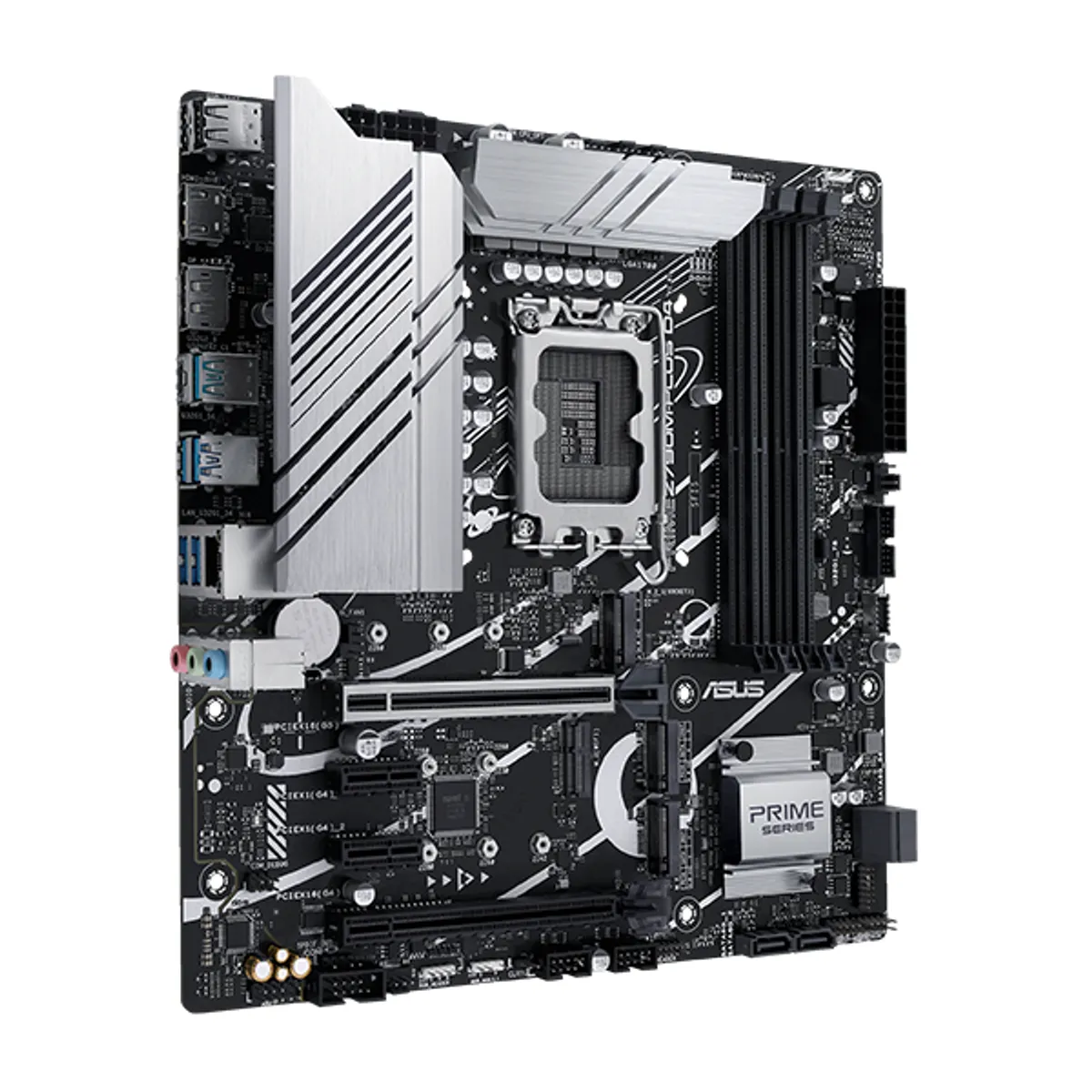

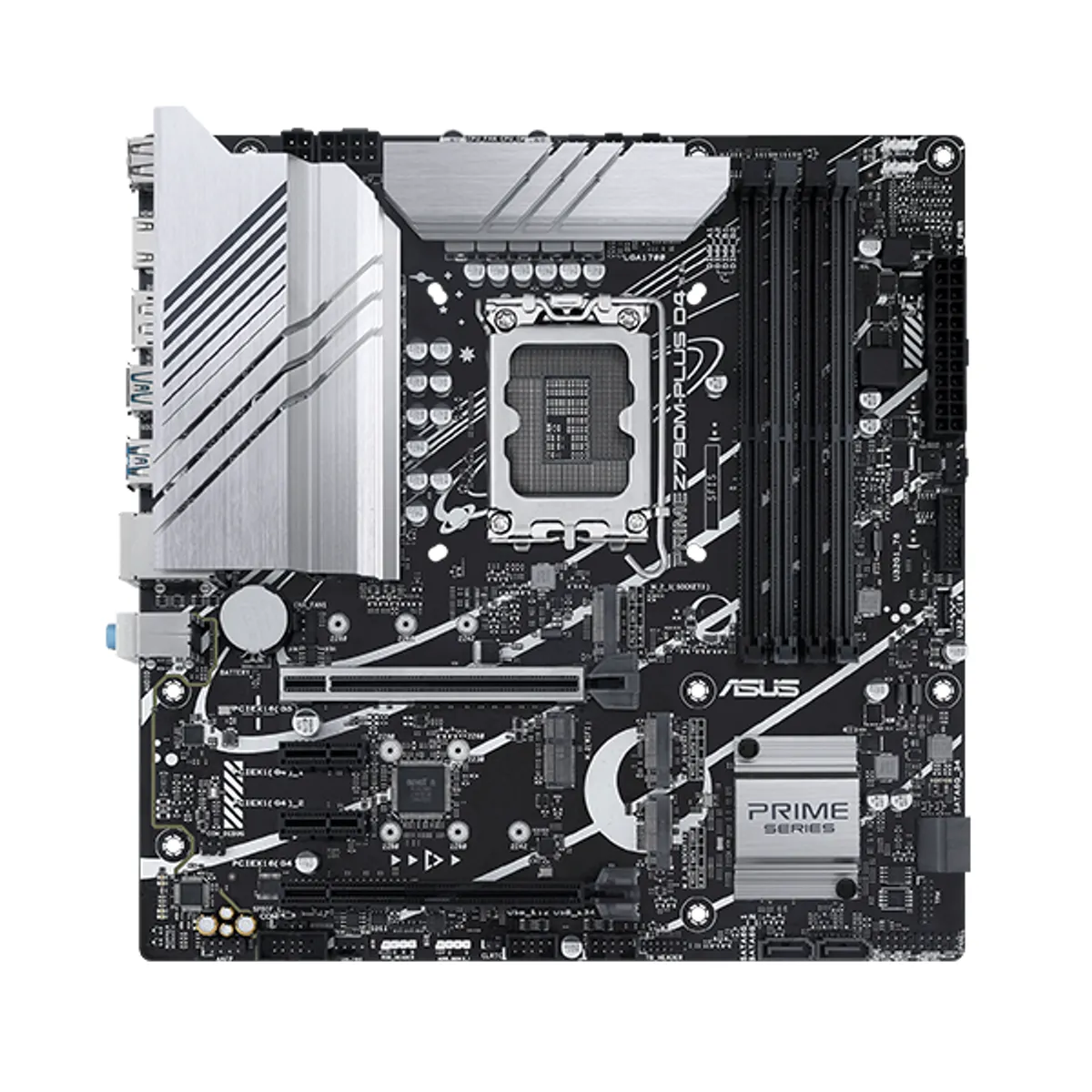

ASUS PRIME Z790M-PLUS D4 MOTHER BOARD | 90MB1D20-M0EAY0

• Chipset
  Intel® Z790 Chipset
• Ethernet
  1 x Intel® 1Gb Ethernet. ASUS LANGuard
• Wireless
  M.2 slot only (Key E, CNVi & PCIe) (Wi-Fi module is sold separately)
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR4; 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory (Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.). Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
• Internal I/O Connectors
  Fan and cooling related:- 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers. Power related:- 1 x 24-pin Main Power connector; 1 x 8-pin + 12V Power connector; 1 x 4-pin + 12V Power connector. Storage related:- 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports. USB:- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous:- 3 x Addressable Gen 2 header; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x M.2 slot (Key E); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header
• Expansion Slots
  Intel® 13th & 12th Gen Processors (Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)) 1 x PCIe 5.0 x16 slot. Intel® Z790 Chipset:- 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x1 slots. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

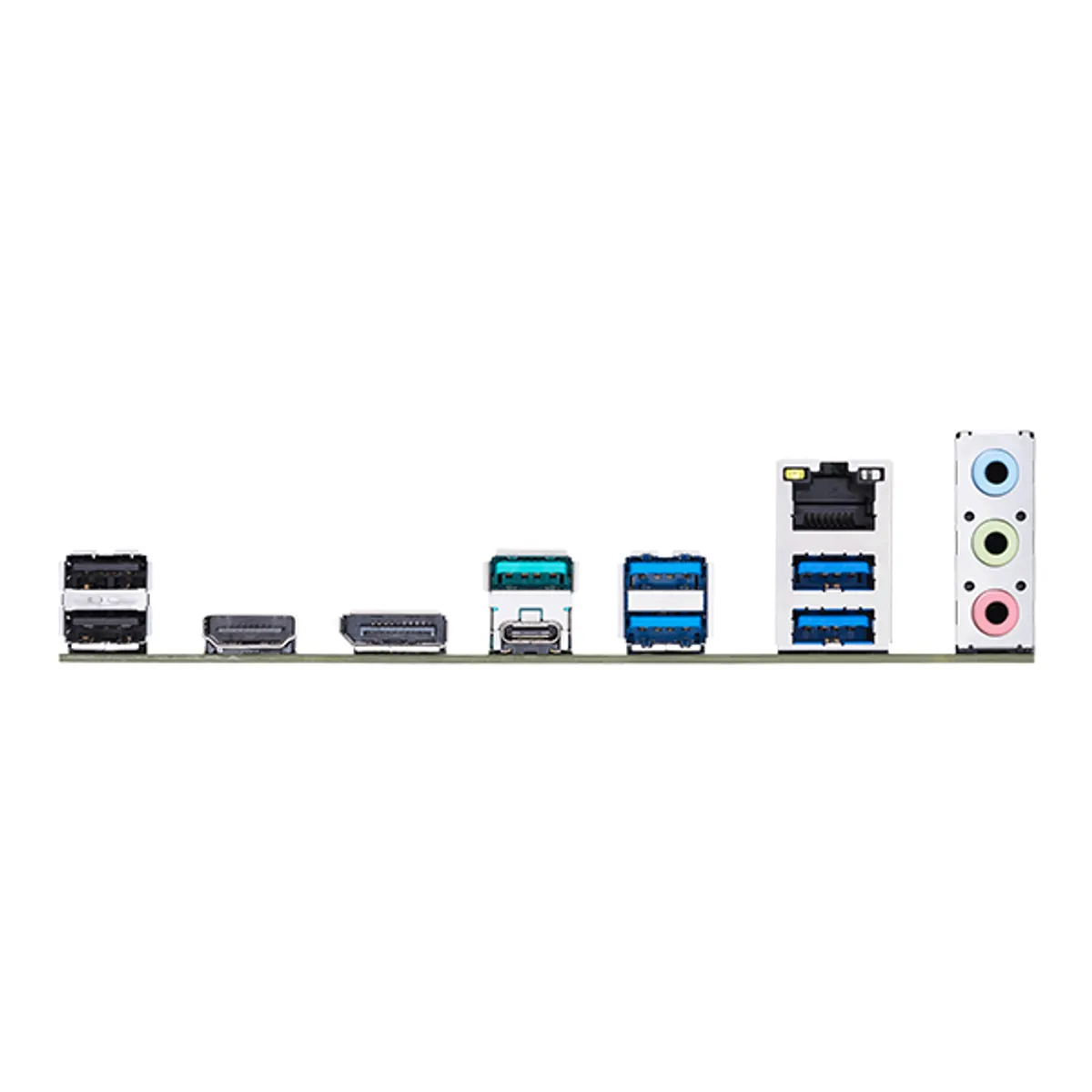

• Graphics Device
  1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.), 1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1.). *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC (A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.). - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback. Audio Features:- - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers.
• Operating System
  Windows® 11, Windows® 10 64-bit
• Form Factor

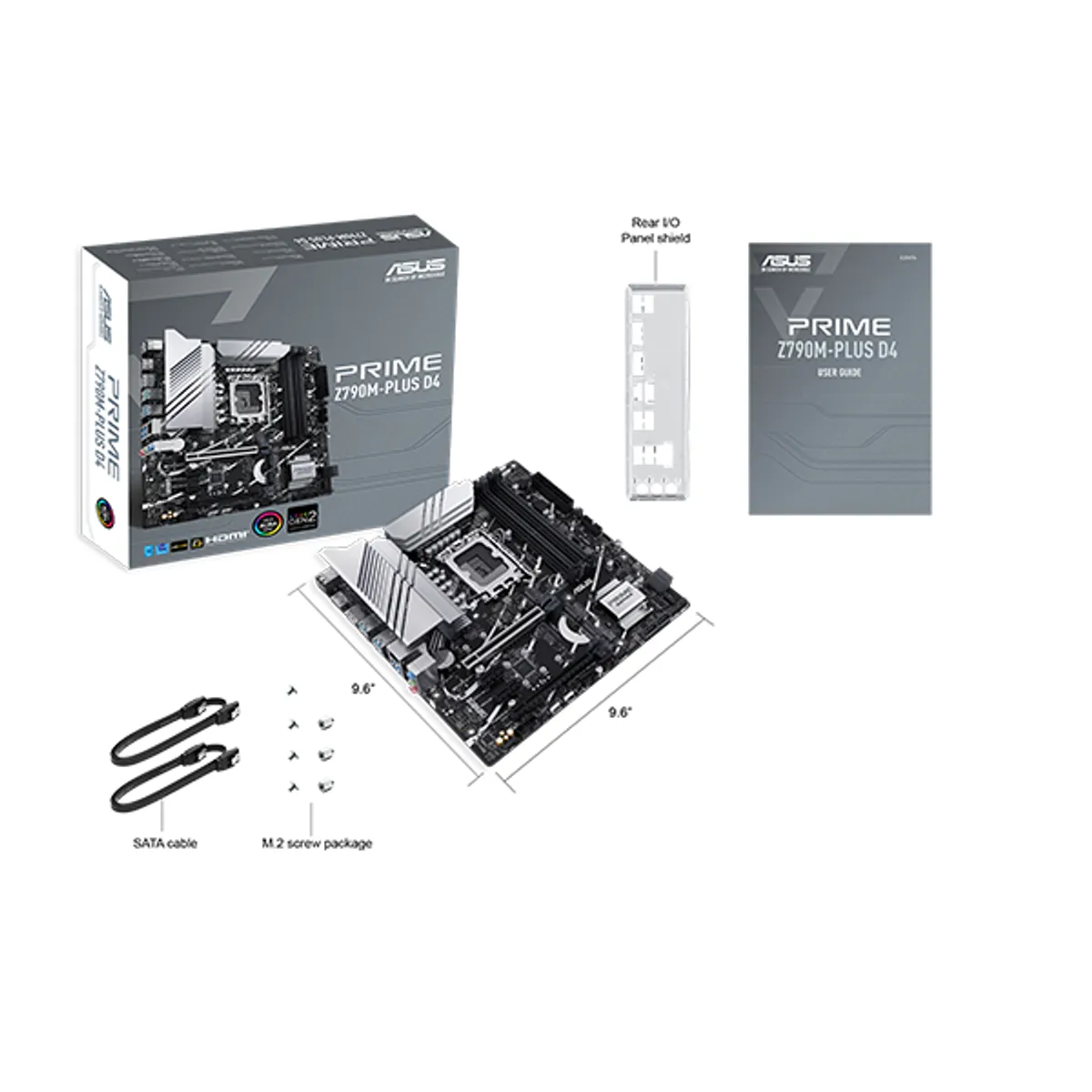

  mATX Form Factor. 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• Warranty
  2 Year Warranty
