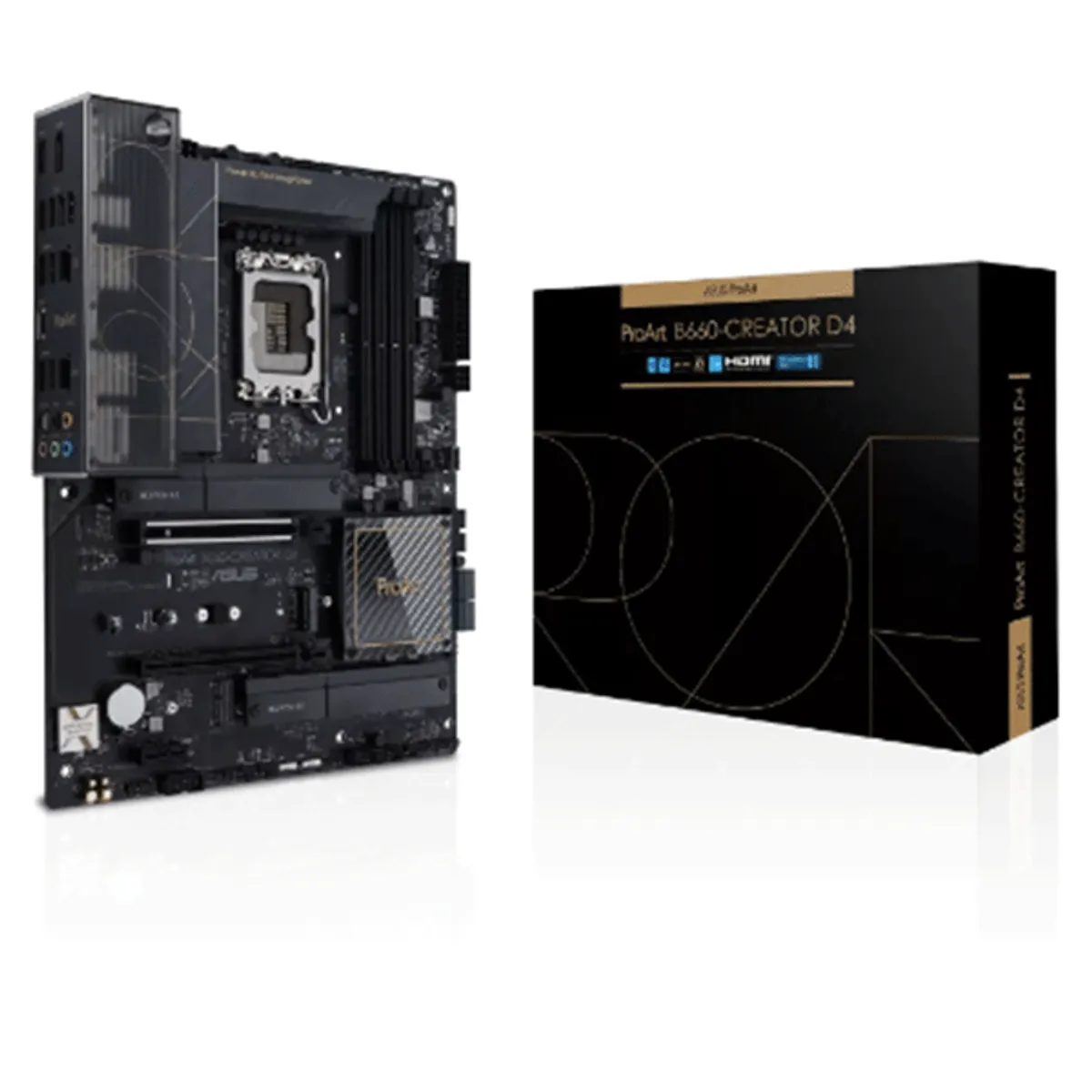

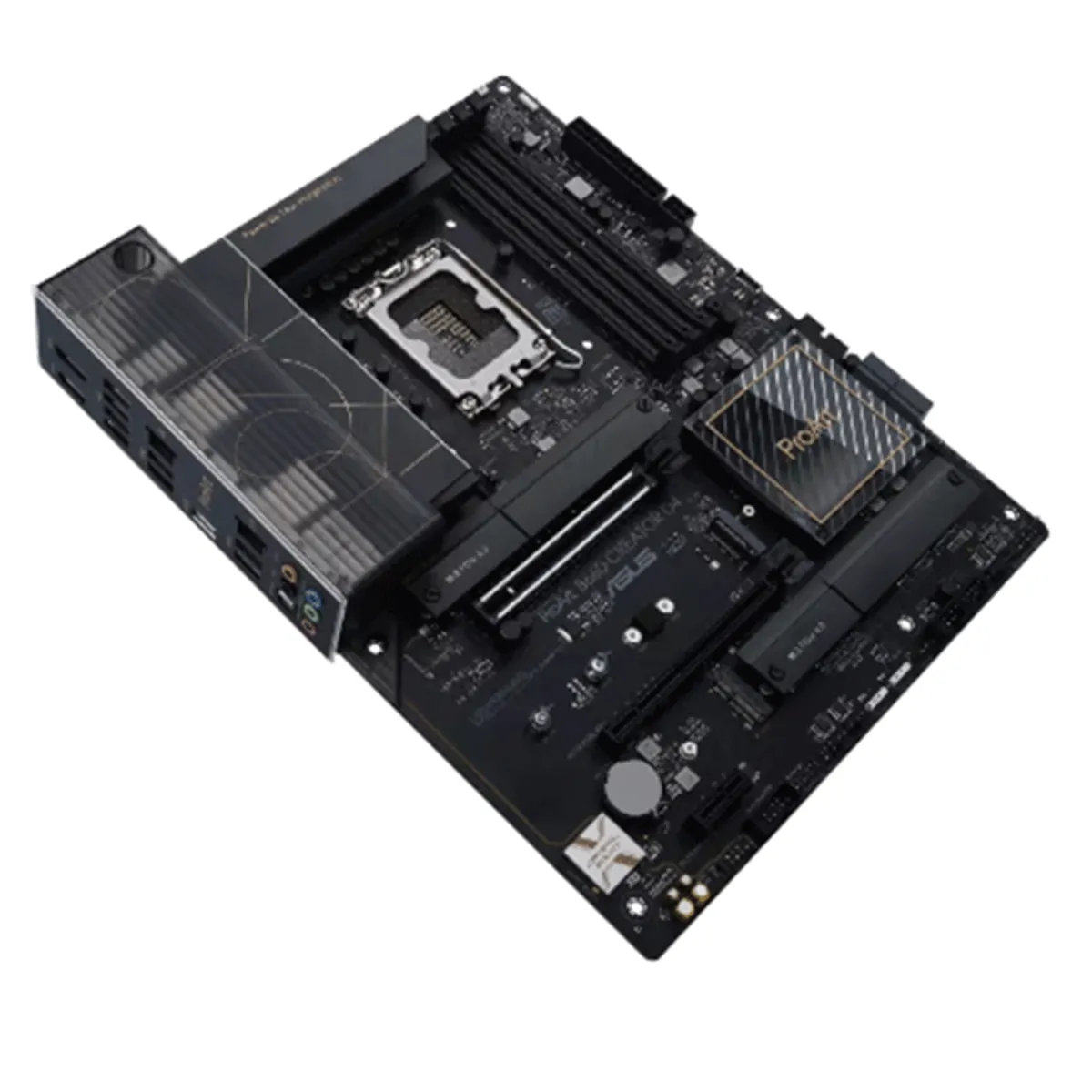

ASUS PROART B660 CREATOR D4 | 90MB19F0-M0EAY0

• Chipset
  Intel® B660 Chipset Intel® B660
• Ethernet
  1 x Realtek 2.5Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard
• Wireless
  M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately.
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Internal I/O Connectors
  Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers
• Expansion Slots
  Intel® 13th & 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot** * Supports Intel® Optane Memory H Series on PCH-attached PCIE slot ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
• Graphics Device
  1 x HDMI® port** 1 x USB Type-C port supports DisplayPort output*** 1 x DP IN that will have output through USB Type-C port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. **** A DisplayPort to DisplayPort cable is required for the USB Type-C® port at the back panel to output DisplayPort signal.
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
• Operating System
  Windows® 11, Windows® 10 64-bit
• Form Factor
  ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Warranty
  1 Year Warranty
