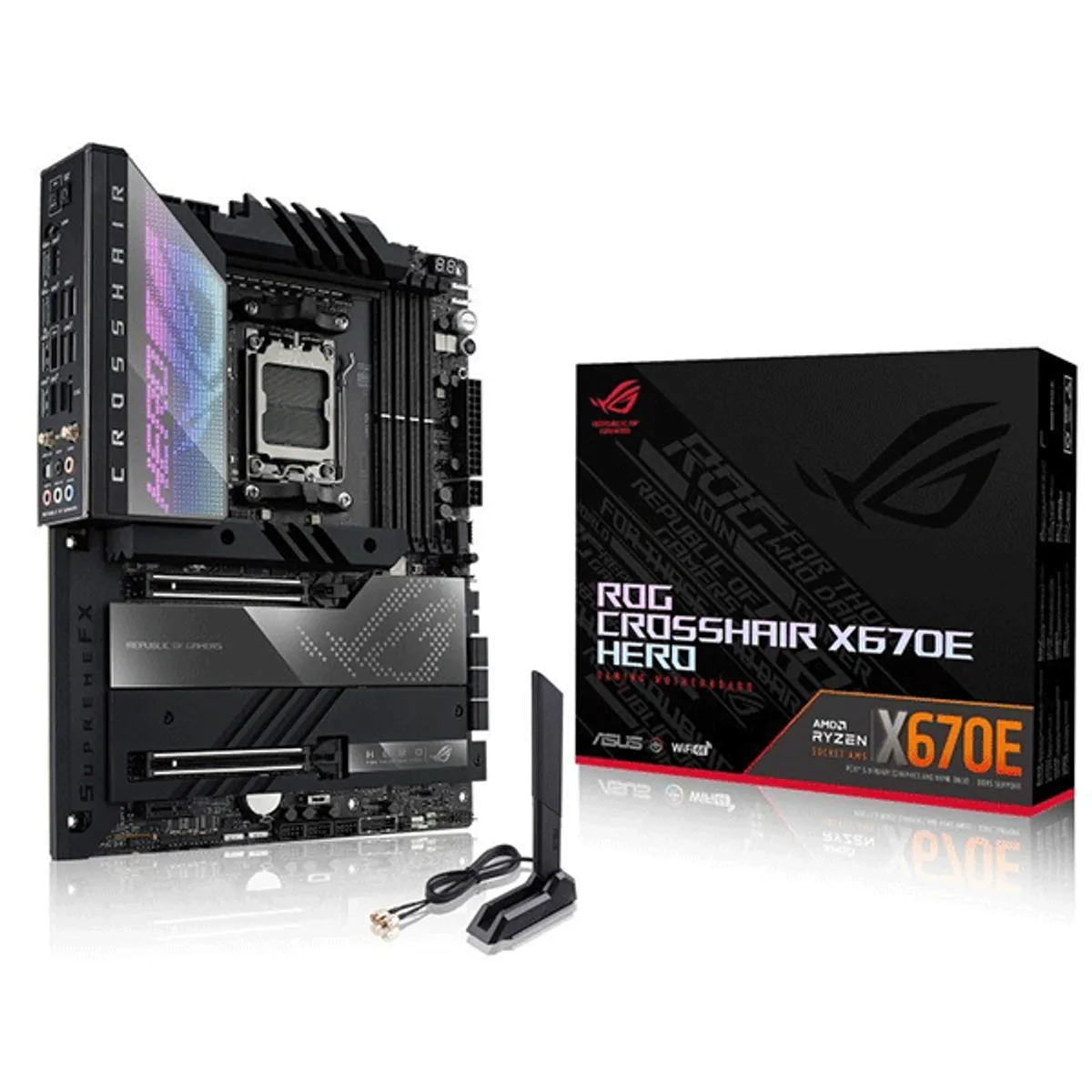

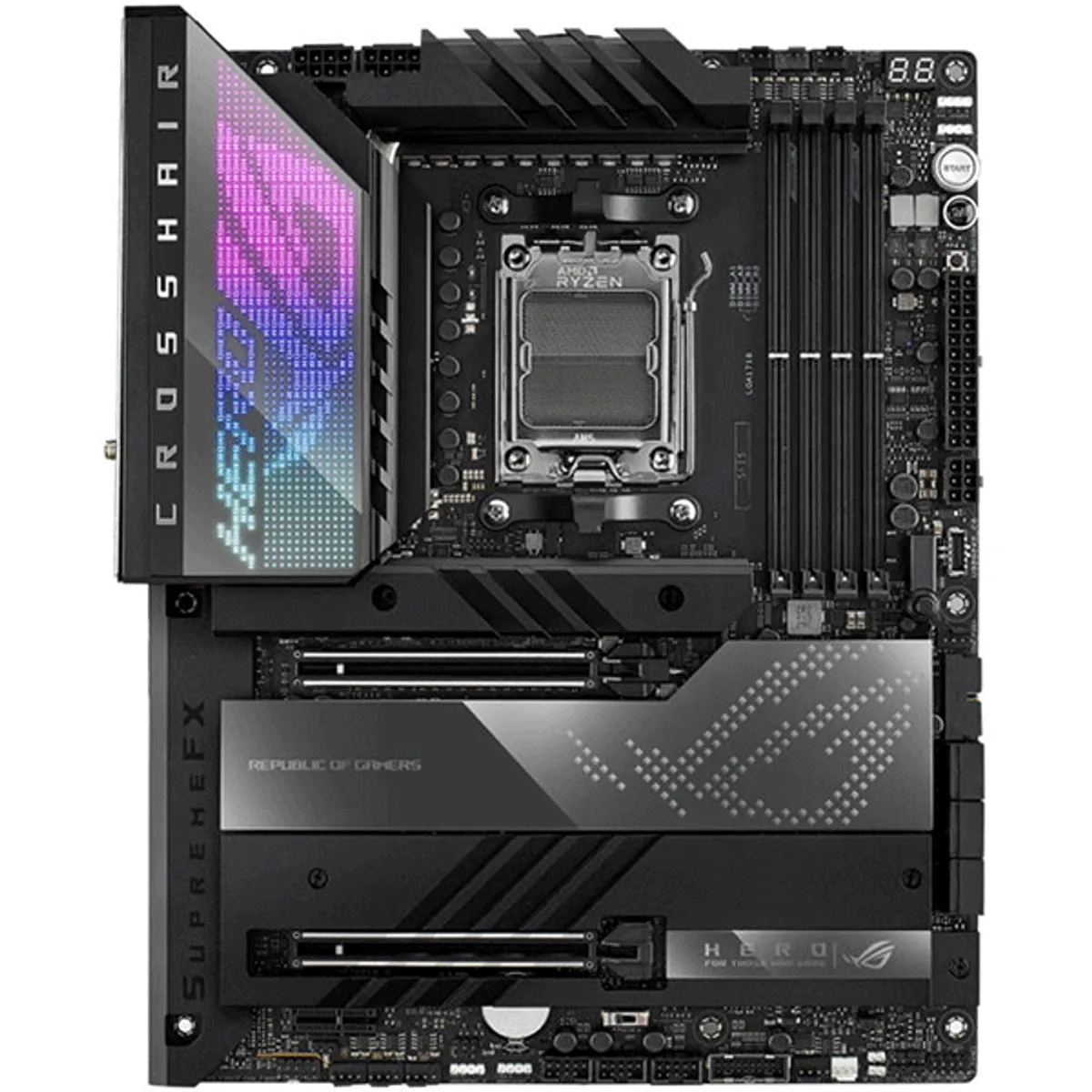

ASUS ROG CROSSHAIR X670E HERO MOTHER BOARD | 90MB1BC0-M0EAY0

• Chipset
  AMD X670 Chipset
• Ethernet
  1 x Intel® 2.5Gb Ethernet
• Wireless
  Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD® Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Internal I/O Connectors
  Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pinPCIe Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration Mode Switch 1 x Aura RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
• Expansion Slots
  AMD Ryzen™ 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)* AMD X670 Chipset 1 x PCIe 4.0 x1 slots * When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
• Graphics Device
  1 x HDMI® port* 2 xUSB4® ports support USB Type-C® display outputs** *Supports 4K@60Hz as specified in HDMI 2.1. **VGA resolution support depends on processors' or graphic cards' resolution.
• Sound
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - ESS® ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
• Operating System
  Windows® 11, Windows® 10 64-bit
• Form Factor
  ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Warranty
  1 Year Warranty
