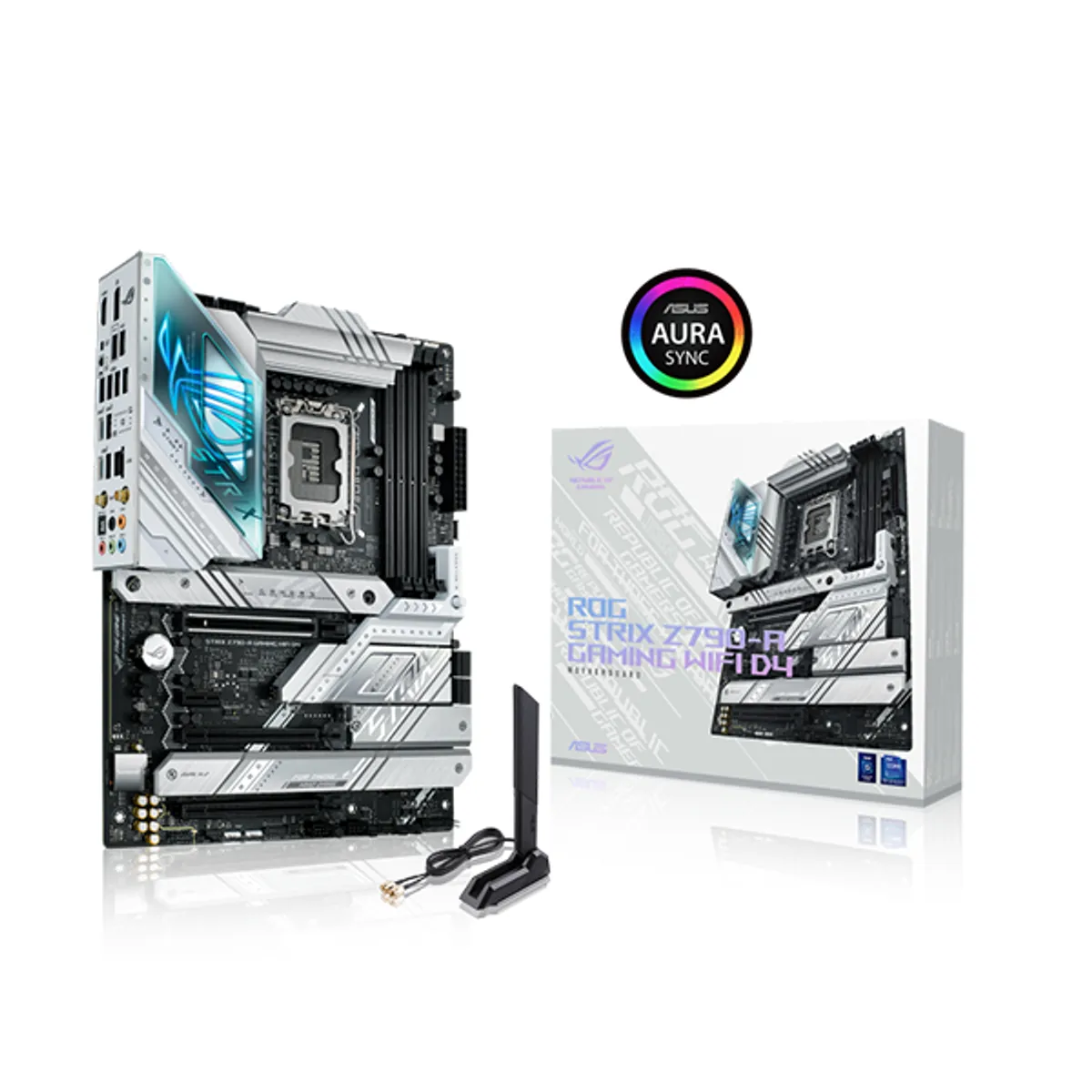

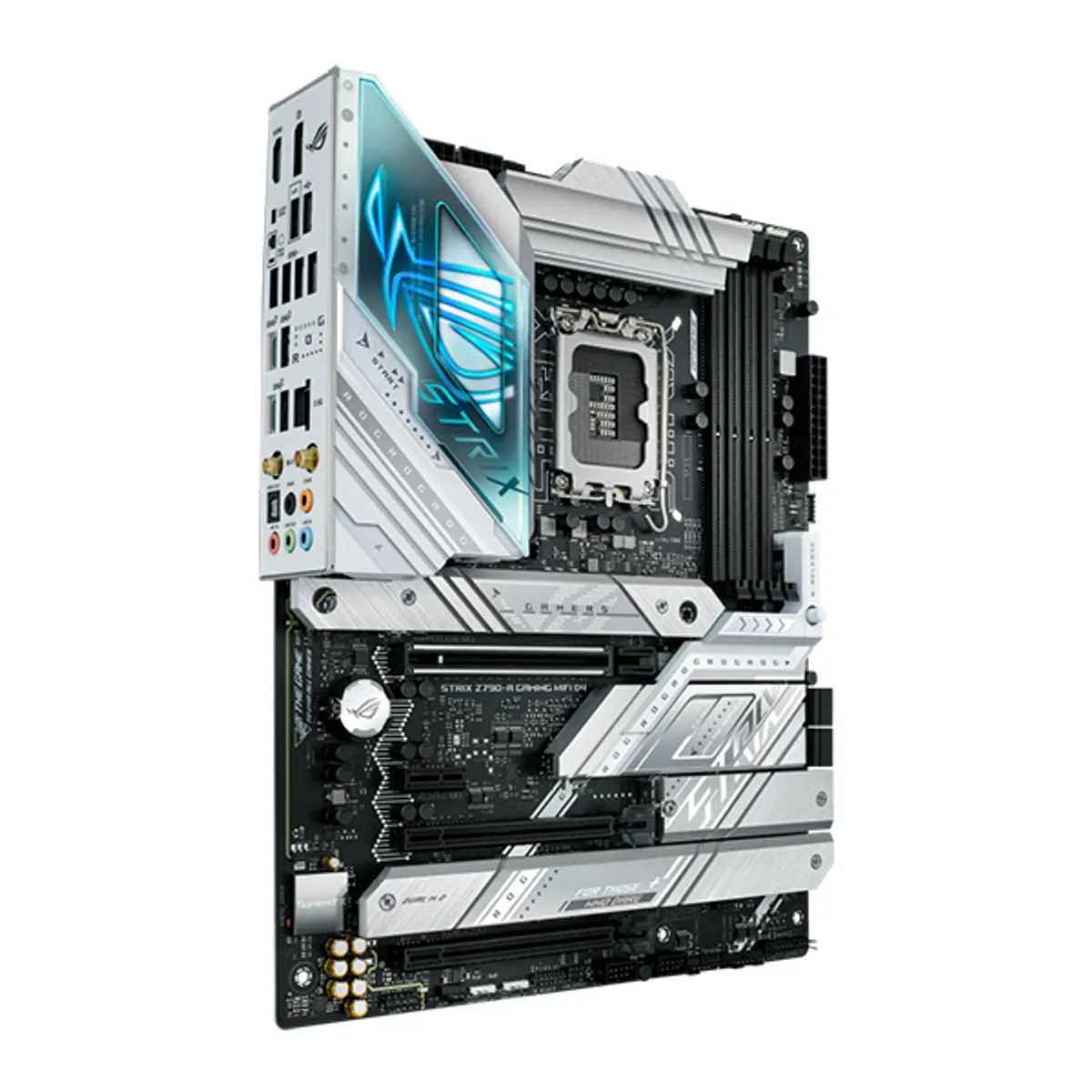

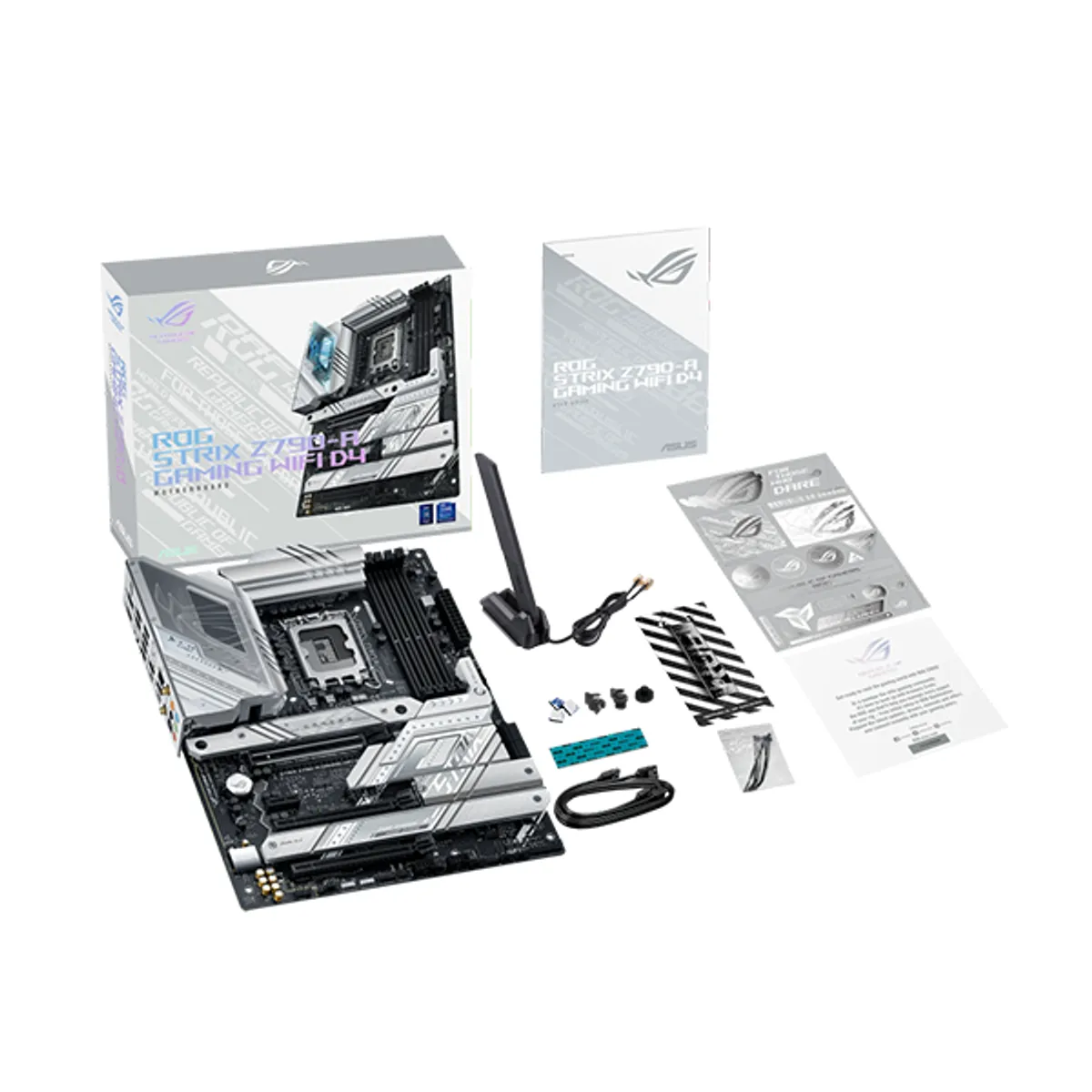

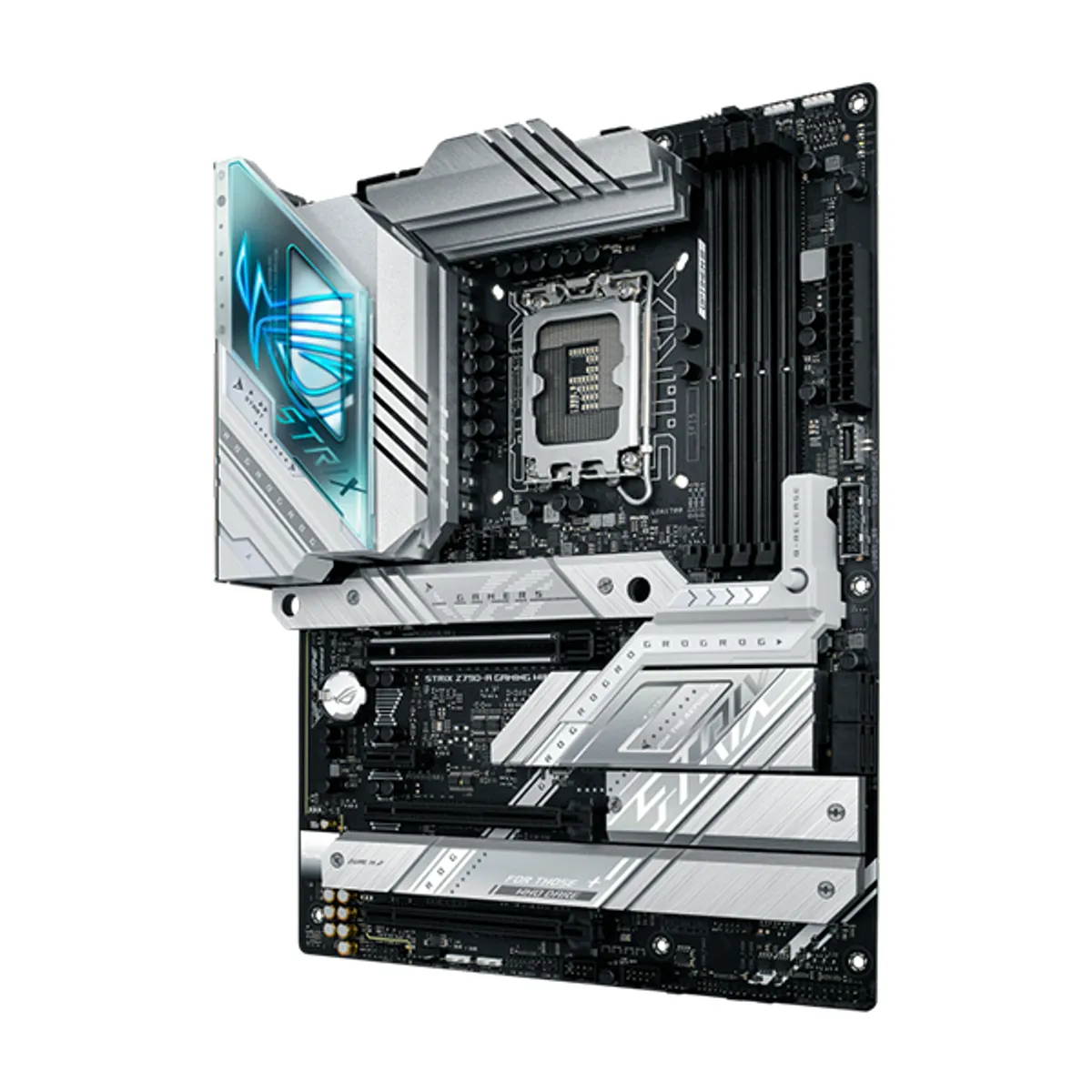

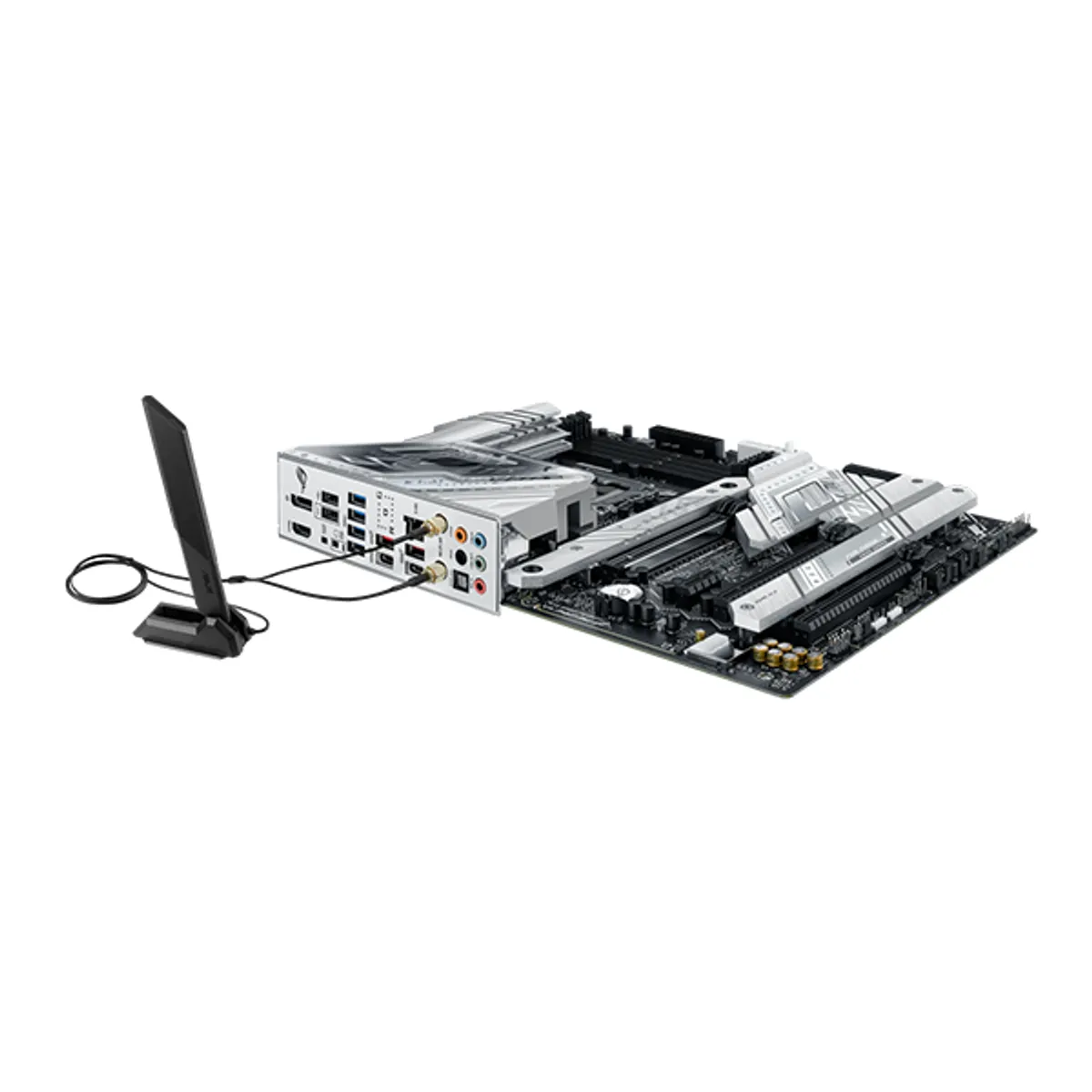

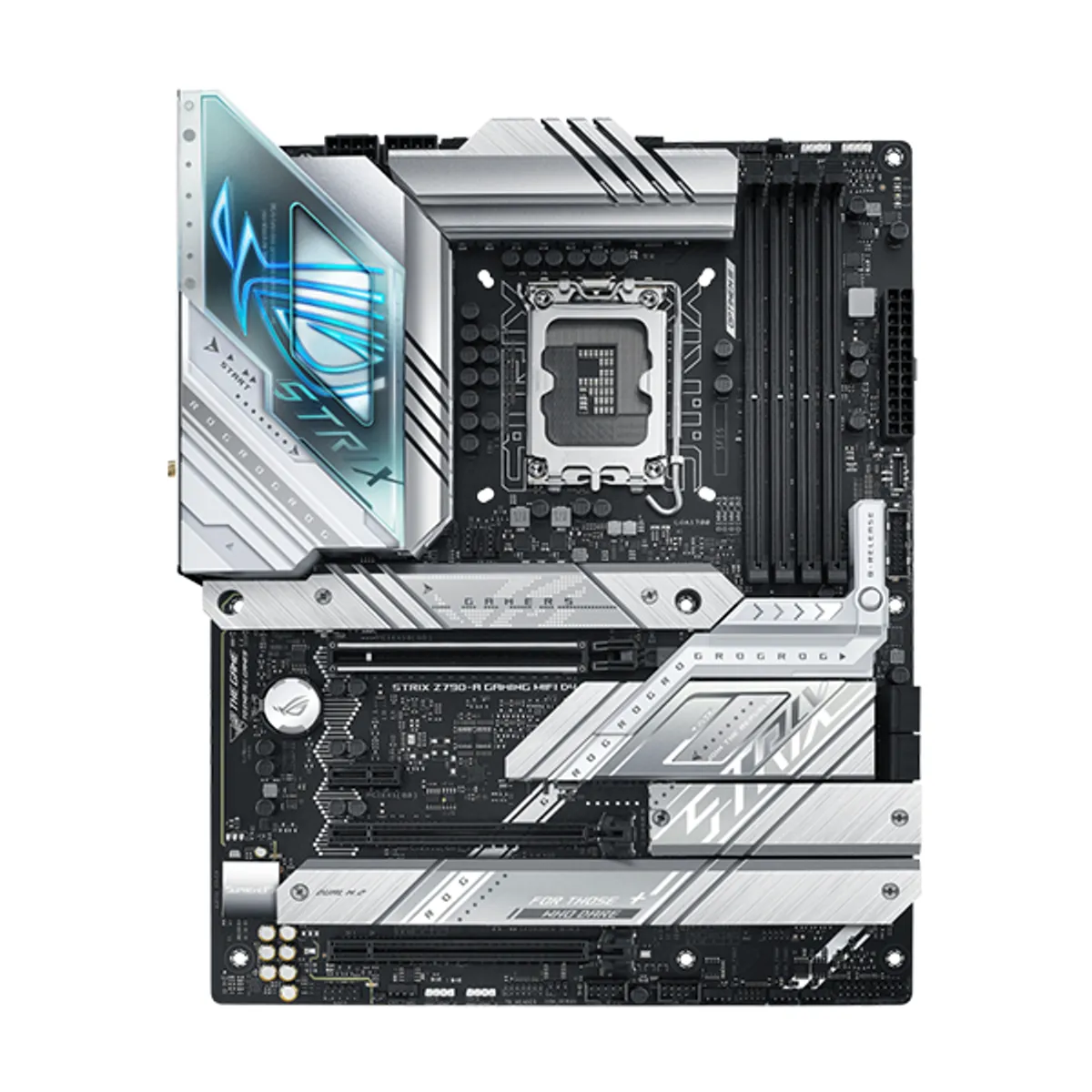

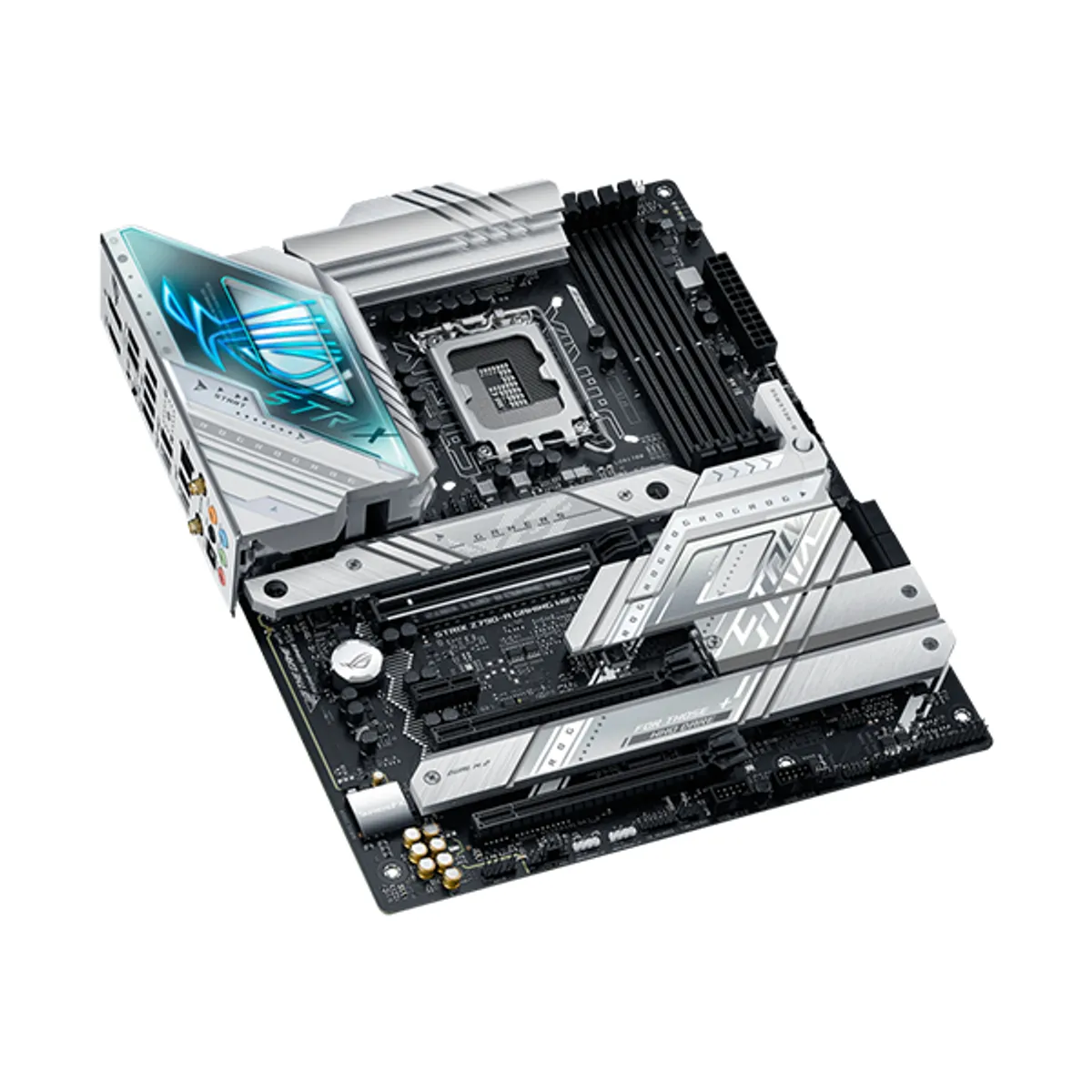

ASUS ROG STRIX GAMING Z790-A WIFI D4 MOTHER BOARD | 90MB1CN0-M0EAY0

• Chipset
  Intel® Z790 Chipset
• Ethernet
  1 x Intel® 2.5Gb Ethernet. ASUS LANGuard
• Wireless
  Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band (WiFi 6E 6GHz regulatory may vary between countries); Bluetooth® v5.3
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR4 DDR4, 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory( Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list); Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem III
• Internal I/O Connectors
  Fan and Cooling related:- 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers. Power related: 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors. Storage related:- 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports. USB:- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous:- 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header; 1 x Thunderbolt™ header
• Expansion Slots
  Intel® 13th & 12th Gen Processors:- 1 x PCIe 5.0 x16 slot. Intel® Z790 Chipset:- 2 x PCIe 4.0 x16 slots (support x4/x4 mode); 1 x PCIe 3.0 x1 slot. (To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals)
• Graphics Device

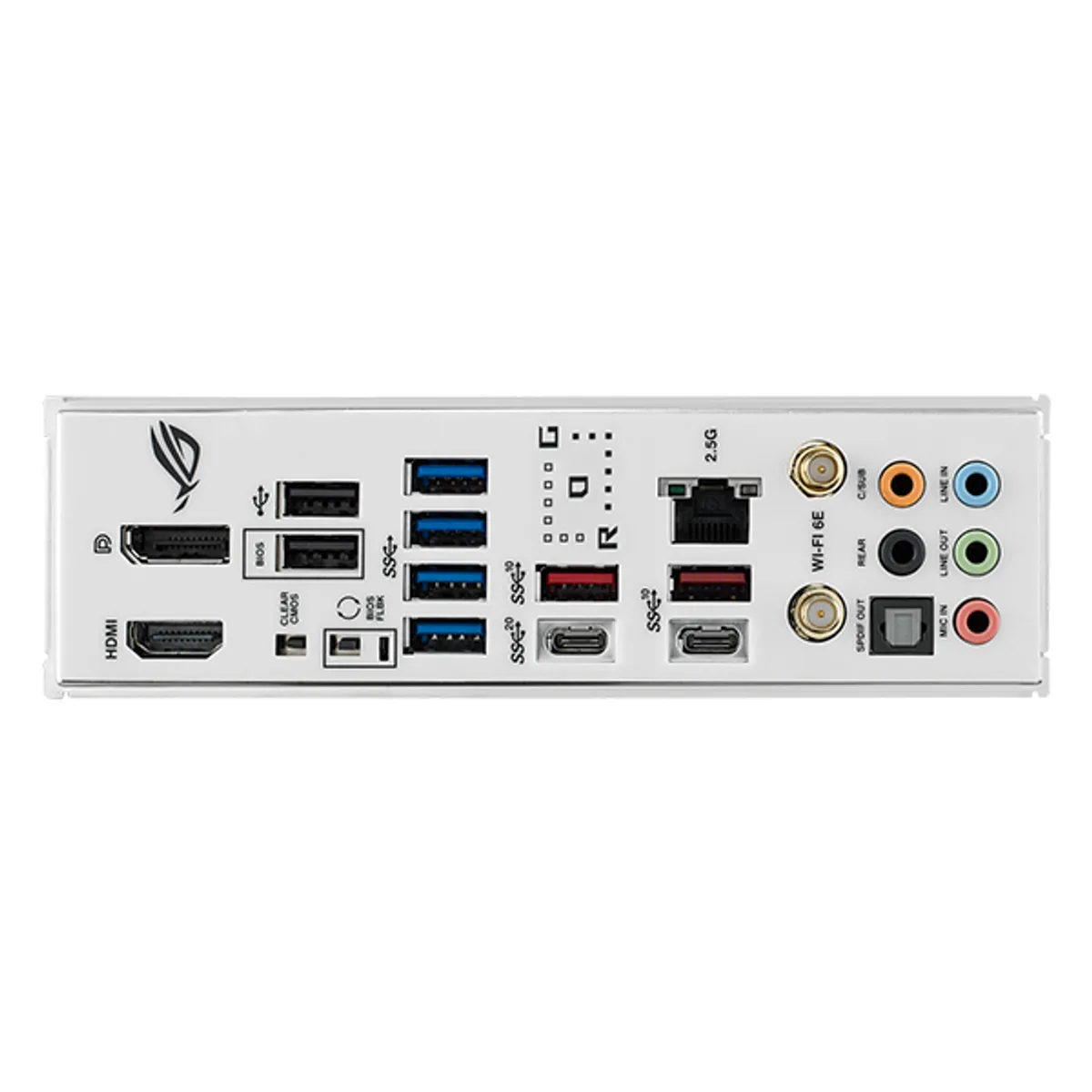

  1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4.); 1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1). (Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates; VGA resolution support depends on processors' or graphic cards' resolution)
• Sound
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080:- Impedance sense for front and rear headphone outputs; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; Supports up to 32-Bit/384 kHz playback. Audio Features:- SupremeFX Shielding Technology; Savitech SV3H712 AMP; Rear optical S/PDIF out port; Premium audio capacitors; Audio cover
• Operating System
  Windows® 11, Windows® 10 64-bit
• Form Factor
  ATX Form Factor. 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Warranty
  2 Year Warranty
