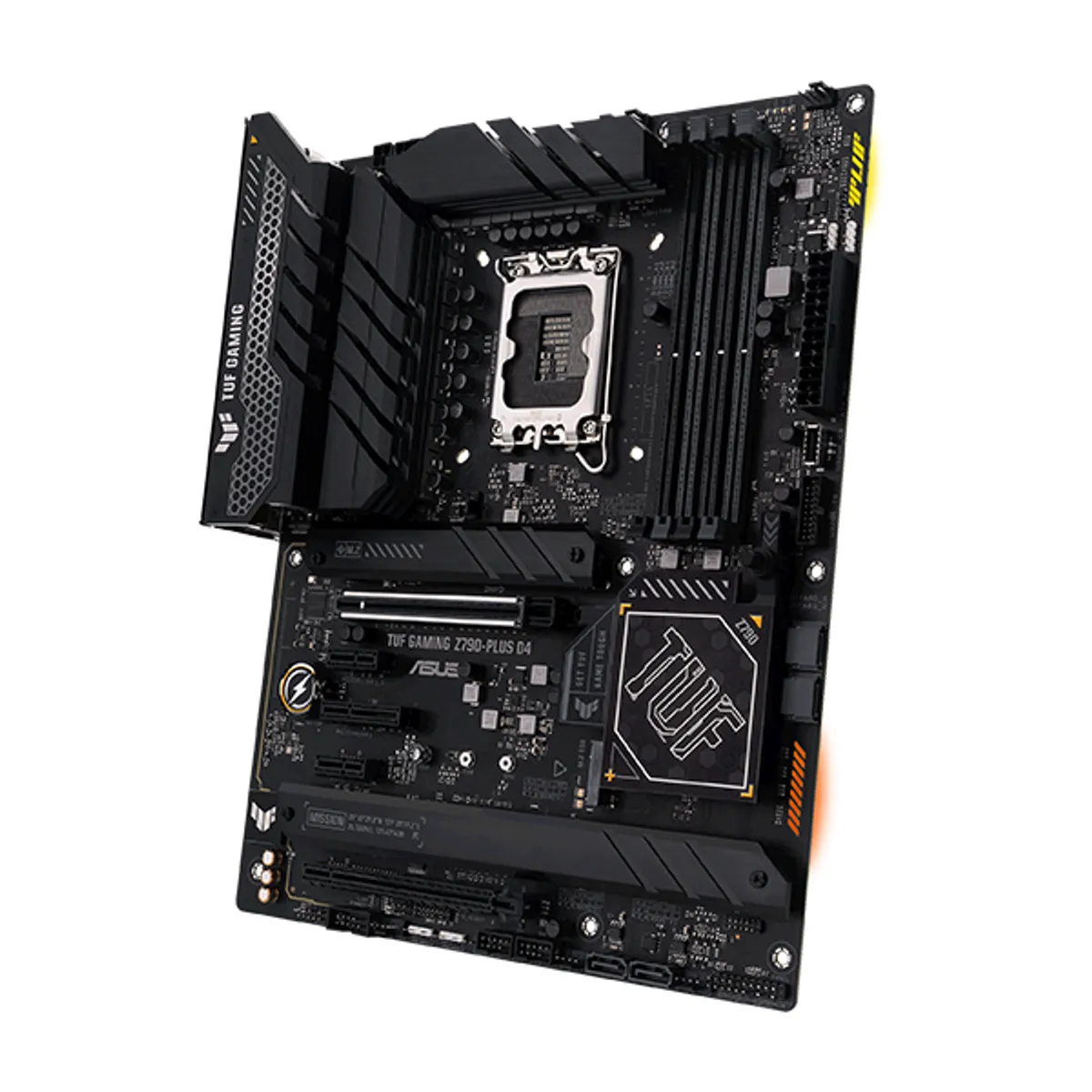

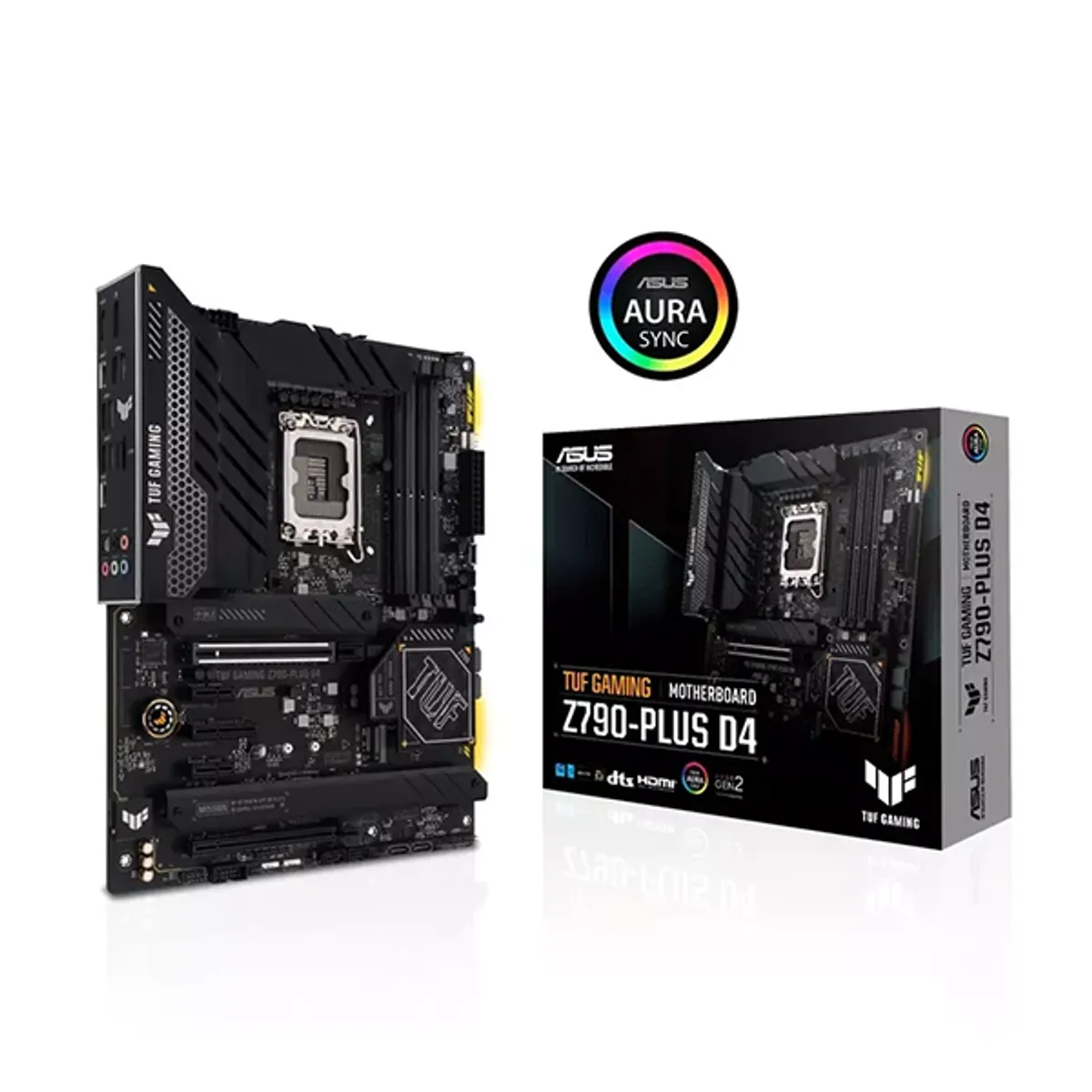

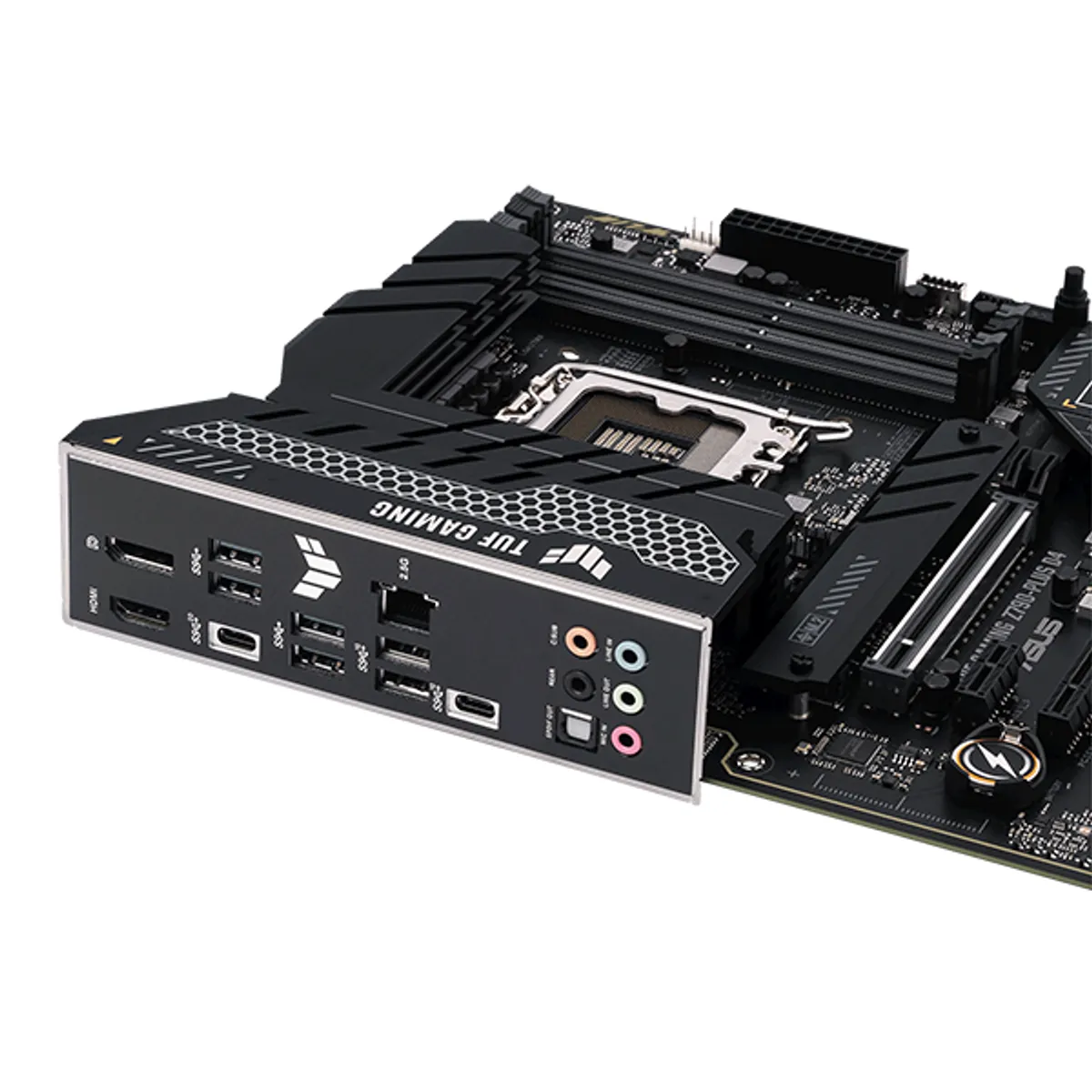

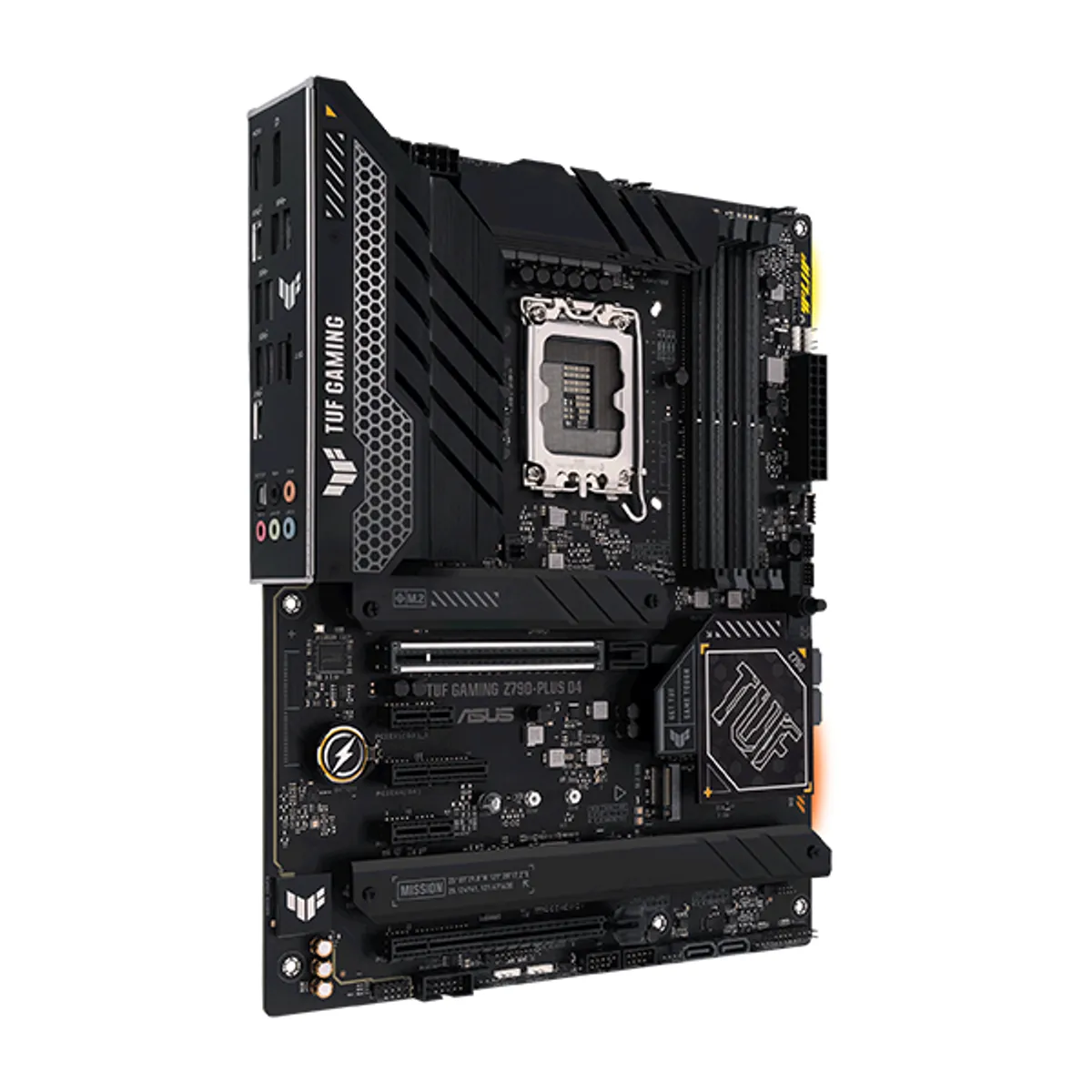

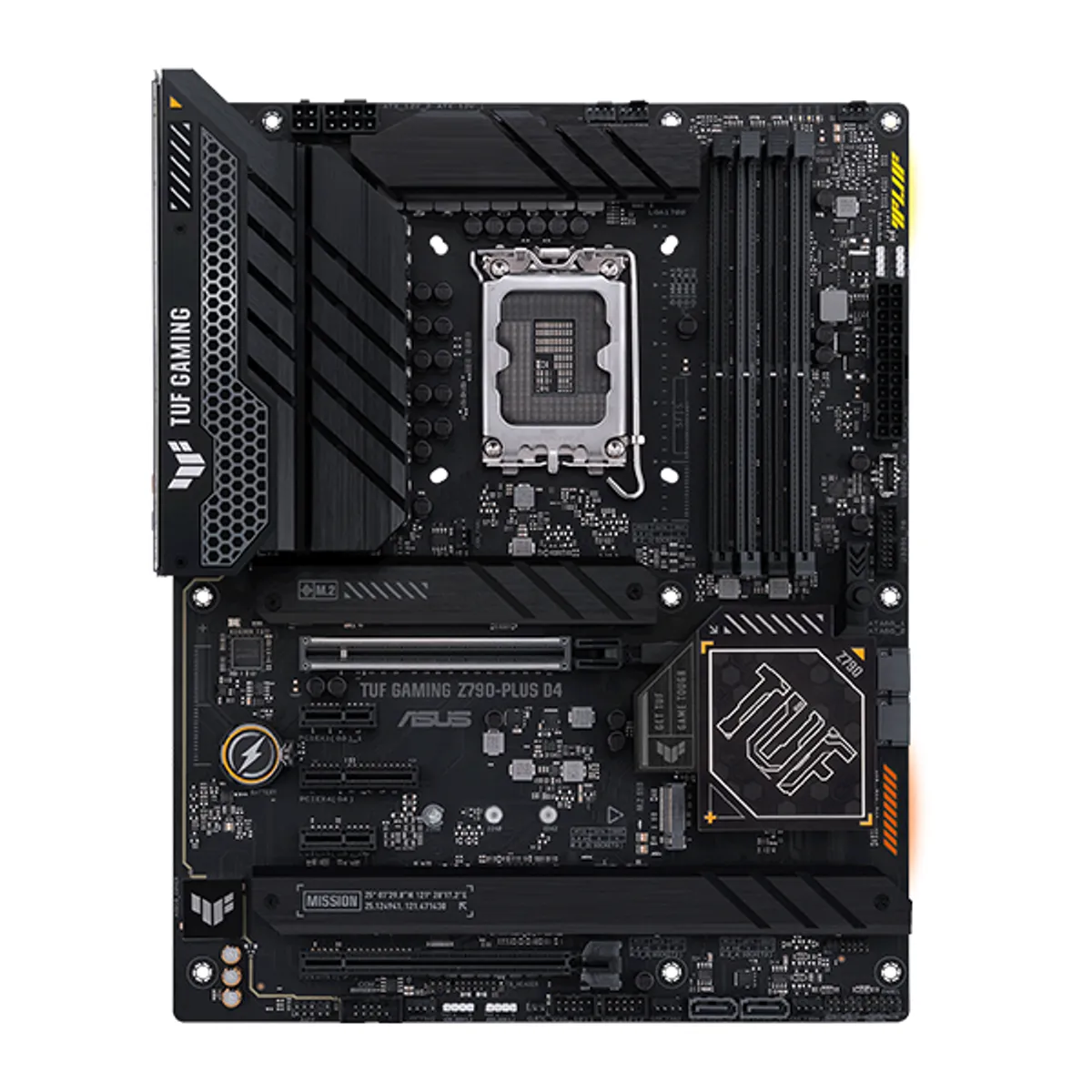

ASUS TUF Z790-PLUS GAMING D4 MOTHER BOARD | 90MB1CQ0-M0EAY0

• Chipset
  Intel® Z790 Chipset
• Ethernet
  1 x Intel® 2.5Gb Ethernet, TUF LANGuard
• Wireless
  Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band. Bluetooth® v5.2 (The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.)
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory (Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.). Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II
• Internal I/O Connectors
  Fan and Cooling related:- 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related:- 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports. USB:- 1 x USB 3.2 Gen 2 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports. Miscellaneous:- 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header
• Expansion Slots
  Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot; Intel® Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x4 slot; 2 x PCIe 3.0 x1 slots. (* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.)
• Graphics Device
  1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.); 1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1.); Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates; VGA resolution support depends on processors' or graphic cards' resolution.
• Sound
  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*"(Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio). Audio Features:- - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio Cover
• Operating System
  Windows® 11, Windows® 10 64-bit
• Form Factor
  ATX, 30.5cm x 24.4cm
• Warranty
  2 Year Warranty
