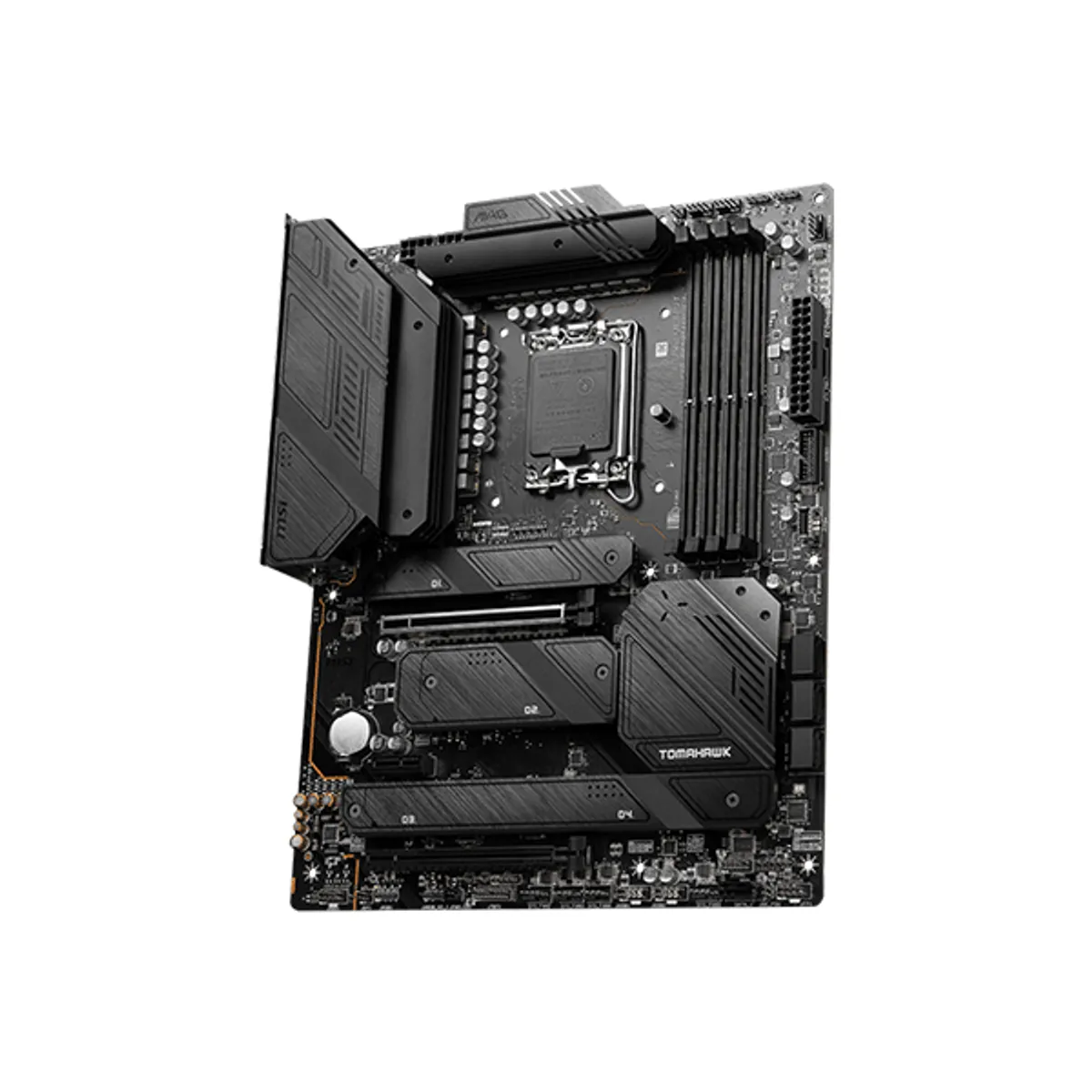

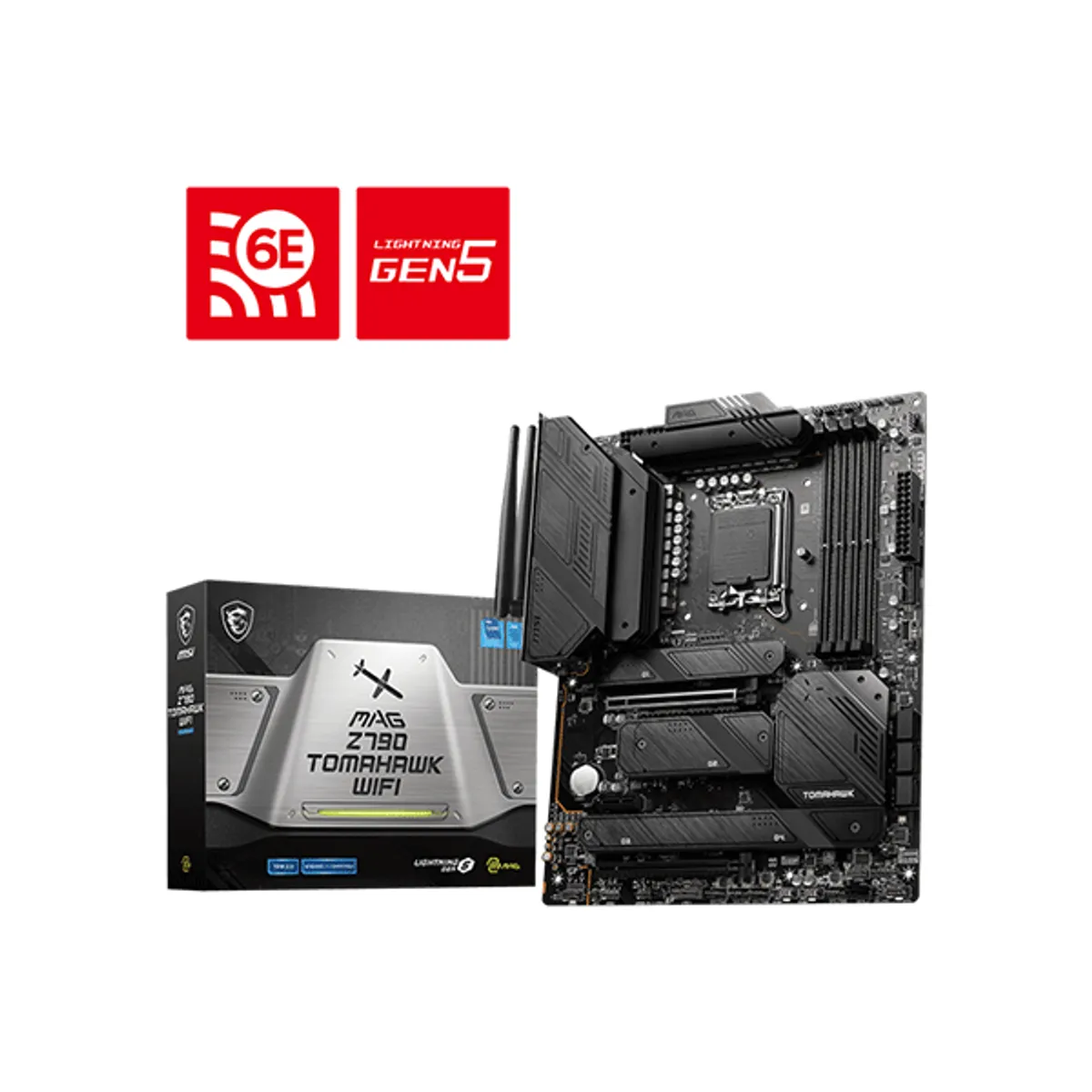

MSI MAG Z790 Tomahawk WiFi Intel LGA 1700 Motherboard| 911-7D91-019

• Chipset
  INTEL Z790
• Ethernet
  Intel® 2.5Gbps LAN
• Wireless
  Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA
• Memory slots Support
  4x DDR5, Maximum Memory Capacity 192GB, Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory
• Internal I/O Connectors
  1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
• Expansion Slots
  2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Graphics Device
  1x HDMI™, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*, 1x DisplayPort, Support DP 1.4, maximum resolution of 8K 60Hz*
• Sound
  Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, Supports S/PDIF output, Supports up to 32-Bit/384 kHz playback on front panel
• Operating System
  Support for Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  ATX 243.84mmx304.8mm
• Warranty
  1 Year Warranty
