Asus  |  SKU: 90MB1JW0-M0EAY0
18% off

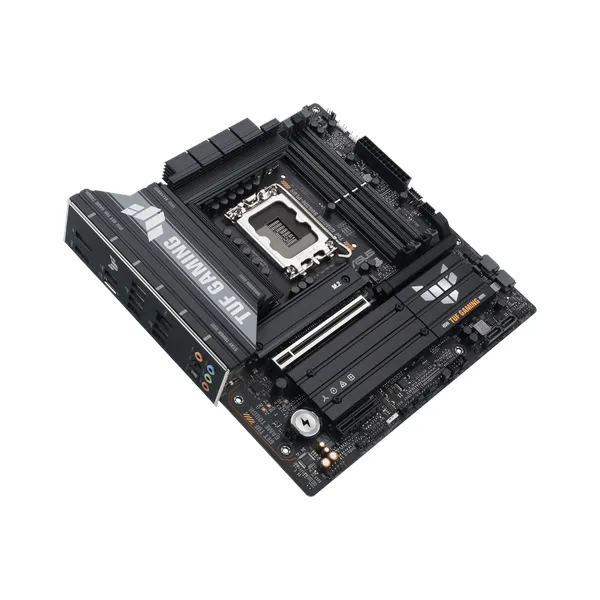

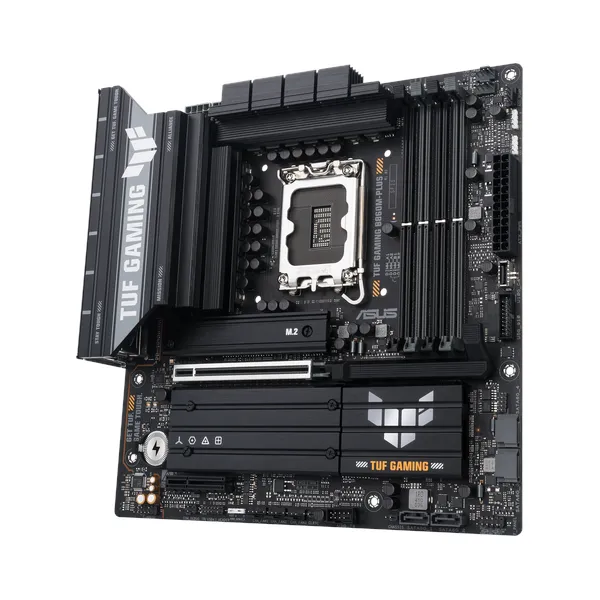

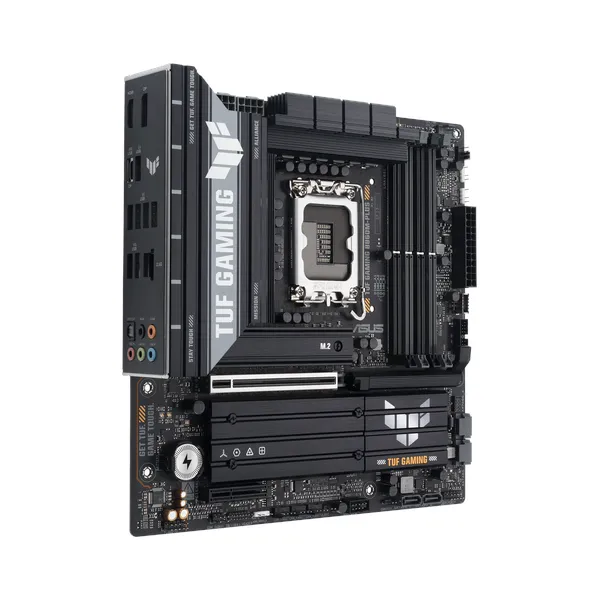

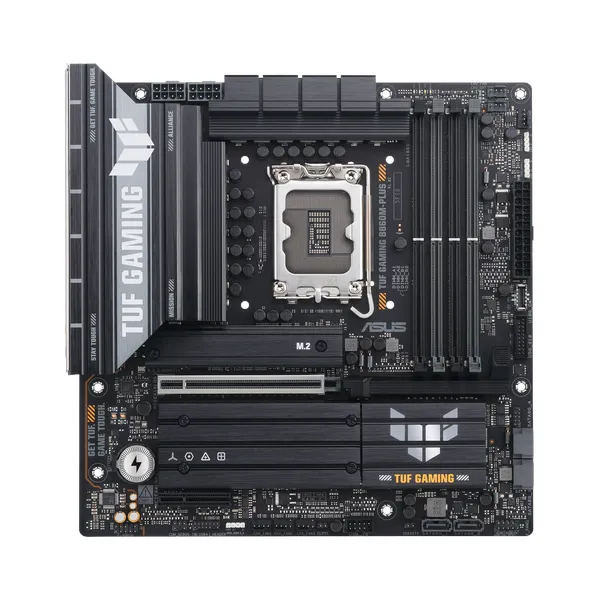

Asus TUF GAMING B860M-PLUS Motherboard, LGA 1851 Socket, micro-ATX Form Factor, DDR5 Ram, PCIe 5.0 With SafeSlot Core+, HDMI, DisplayPort, Thunderbolt 4, Realtek 2.5 GB Ethernet With TUF LANGuard, Aura Sync, 1 Year Warranty | 90MB1JW0-M0EAY0

Sale price AED 899.00 Regular price AED 1,099.00
Inclusive VAT

  • Socket: LGA 1851
  • Chipset: Intel B860 Chipset
  • Processor Support: Intel Core Ultra Processors (Series 2)
  • Ram: DDR5
  • Max Ram: 256 GB
  • Wireless: N/A
  • Ethernet: Realtek® 2.5 GB Ethernet
  • Form Factor: micro-ATX
  • PCIe x 16: Gen 5
  • 1 Year Warranty

Specifications

  • Wireless
    N/A
  • Chipset
    Intel® B860 Chipset
  • Internal I/O Connectors
    Cooling:
    1 x CPU Fan (4-pin),
    1 x CPU OPT Fan (4-pin),
    1 x AIO Pump (4-pin),
    3 x Chassis Fan (4-pin),
    Power:
    1 x 24-pin ATX,
    2 x 8-pin 12V,
    Storage:
    3 x M.2 (Key M),
    4 x SATA 6 GB/s,
    USB:
    1 x USB 10 GBps connector (supports USB Type-C®),
    1 x USB 5 GBps header (support 2 x USB 5 GBps),
    1 x USB 2.0 header (support 2 x USB 2.0),
    Misc:
    3 x Addressable Gen 2,
    1 x Clear CMOS,
    1 x Chassis Intrusion,
    1 x Front Audio (F_AUDIO),
    1 x System Panel (10-1 pin),
    1 x Thunderbolt™ (USB4®) header
  • Graphics Device
    1 x DisplayPort 1.4,
    1 x HDMI™ 2.1 port,
    1 x USB 20 GBps port (USB Type-C®)
  • Expansion Slots
    Expansion Slots:
    1 x PCIe 5.0 x16 slot,
    1 x PCIe 4.0 x4 slot,
    Storage:
    3 x M.2 slots,
    4 x SATA 6 GB/s ports
  • Memory Slots Support
    4 x DIMM slots, max. 256 GB, DDR5,
    Support up to 8800+MT/s (OC)
  • Sound
    Realtek 7.1 Surround Sound High Definition Audio CODEC

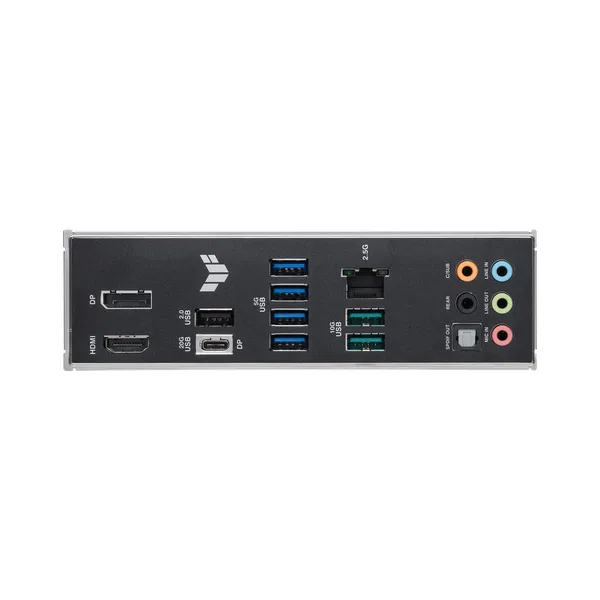

  • USB
    Rear USB (Total 8 ports):
    1 x USB 20 GBps port (1 x USB Type-C®),
    2 x USB 10 GBps ports (2 x Type-A),
    4 x USB 5 GBps ports (4 x Type-A),
    1 x USB 2.0 port (1 x Type-A),
    Front USB (Total 8 ports):
    1 x USB 10 GBps connector (supports USB Type-C®),
    1 x USB 5 GBps header (support 2 additional USB 5 GBps ports),
    1 x USB 2.0 header (support 2 additional USB 2.0 ports),
    USB Type-C® power delivery output: max. 5V/3A
  • Ethernet
    1 x Realtek 2.5 GB Ethernet,
    TUF LANGuard
  • Warranty
    1 Year Warranty
