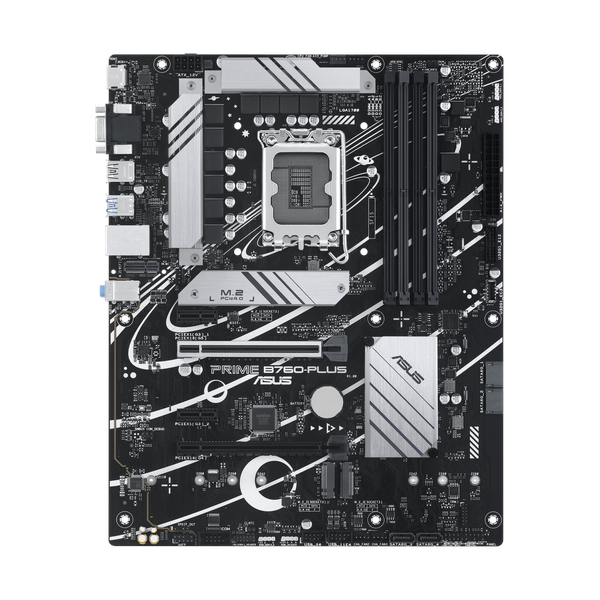

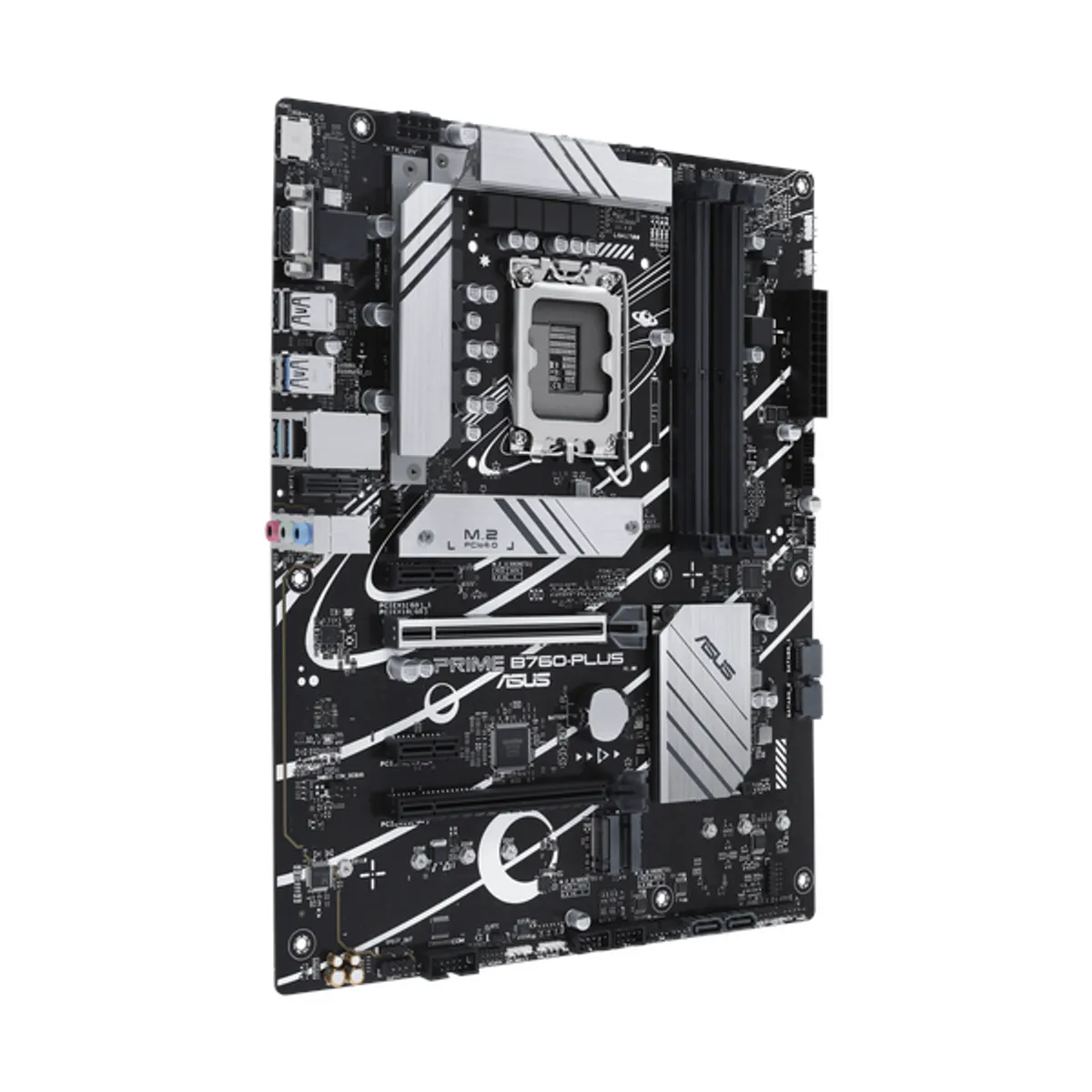

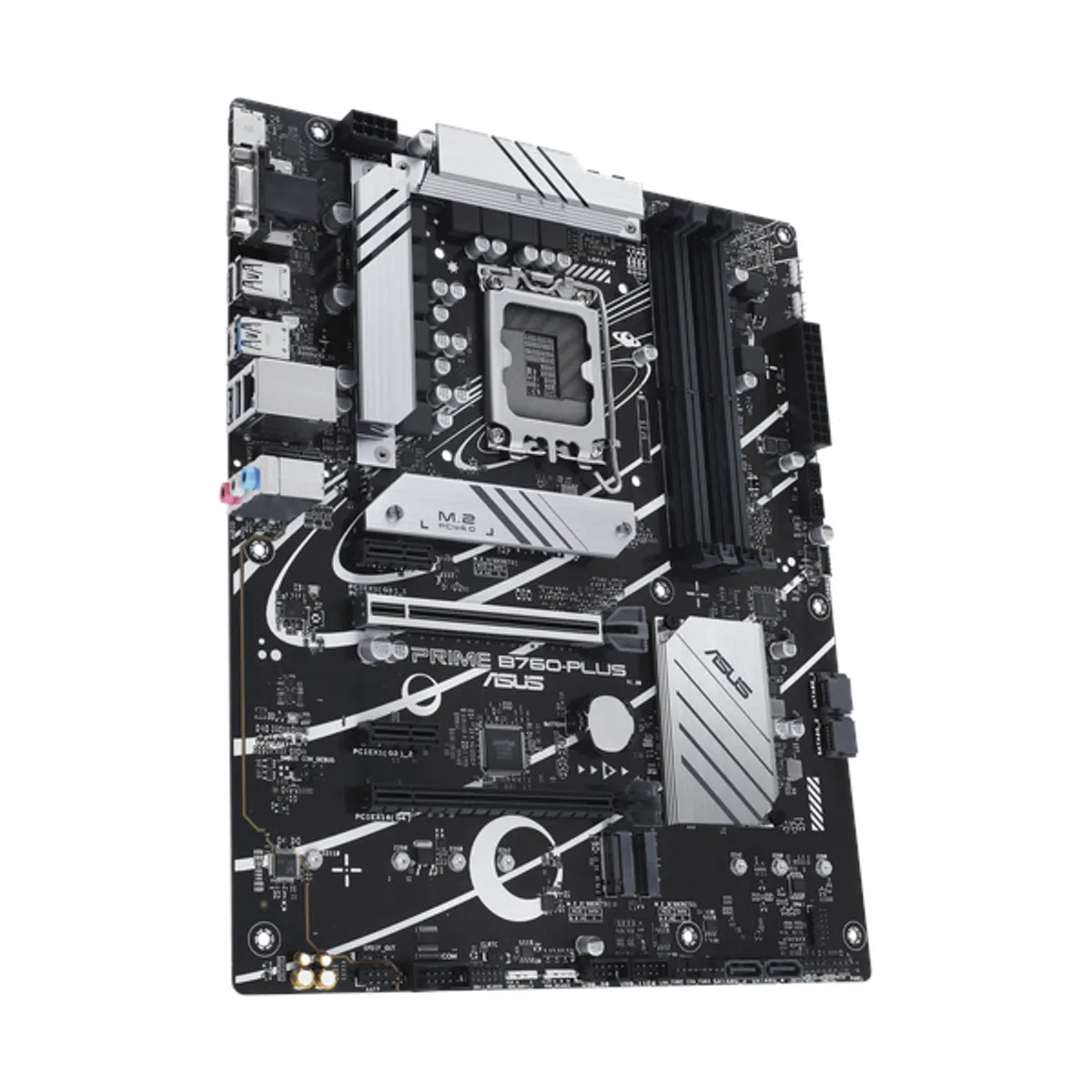

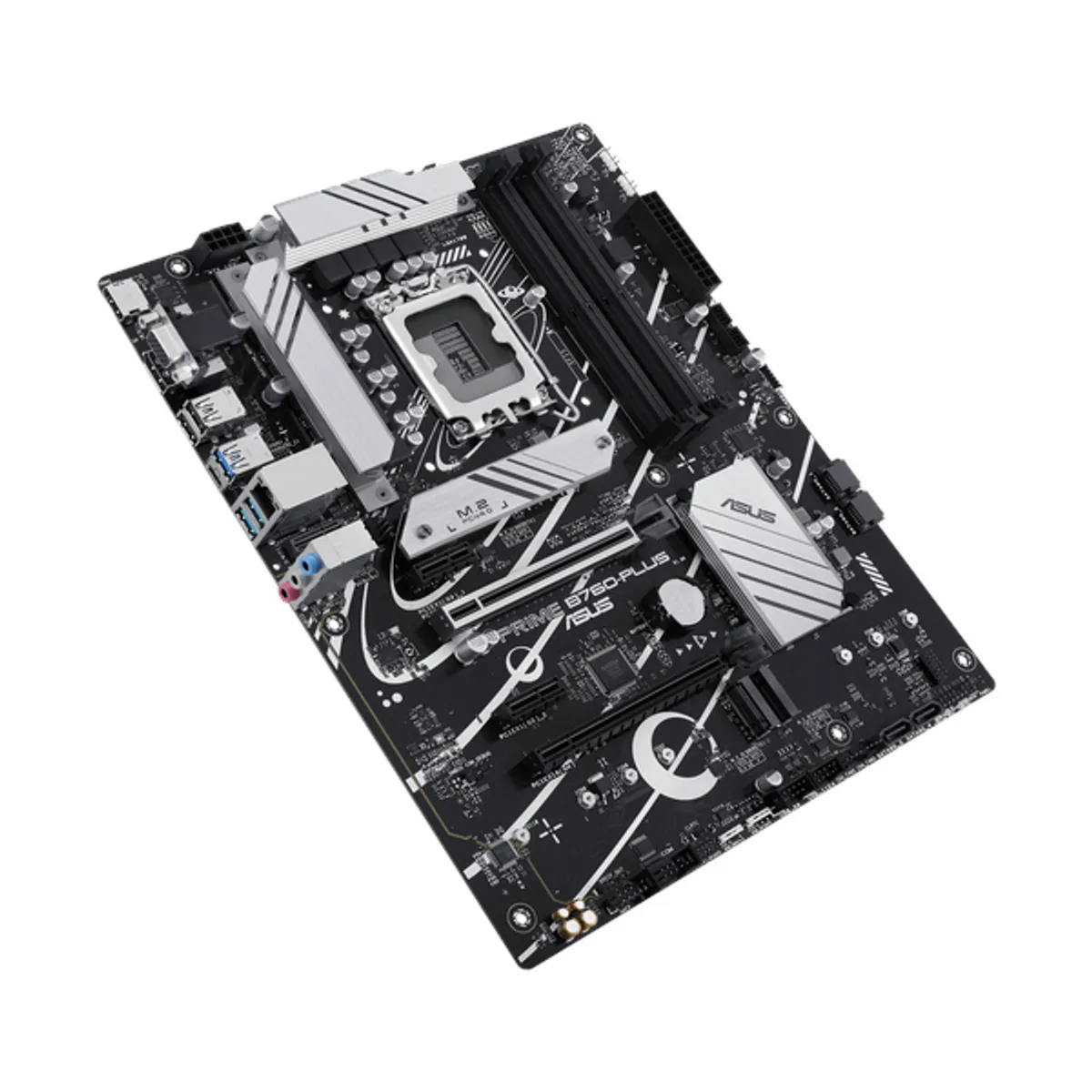

Asus PRIME B760-Plus Motherboard, LGA 1700 Socket, ATX Form Factor, DDR5 Ram, PCIe 5.0, USB 3.2 Gen 2, HDMI, DisplayPort, VGA, Realtek 2.5Gb Ethernet, Asus 5X Protection III, Aura Sync, 1 Year Warranty | 90MB1EF0-M1EAY0

• CPU
  Socket: LGA 1700, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Ethernet
  1 x Realtek 2.5Gb Ethernet
• USB

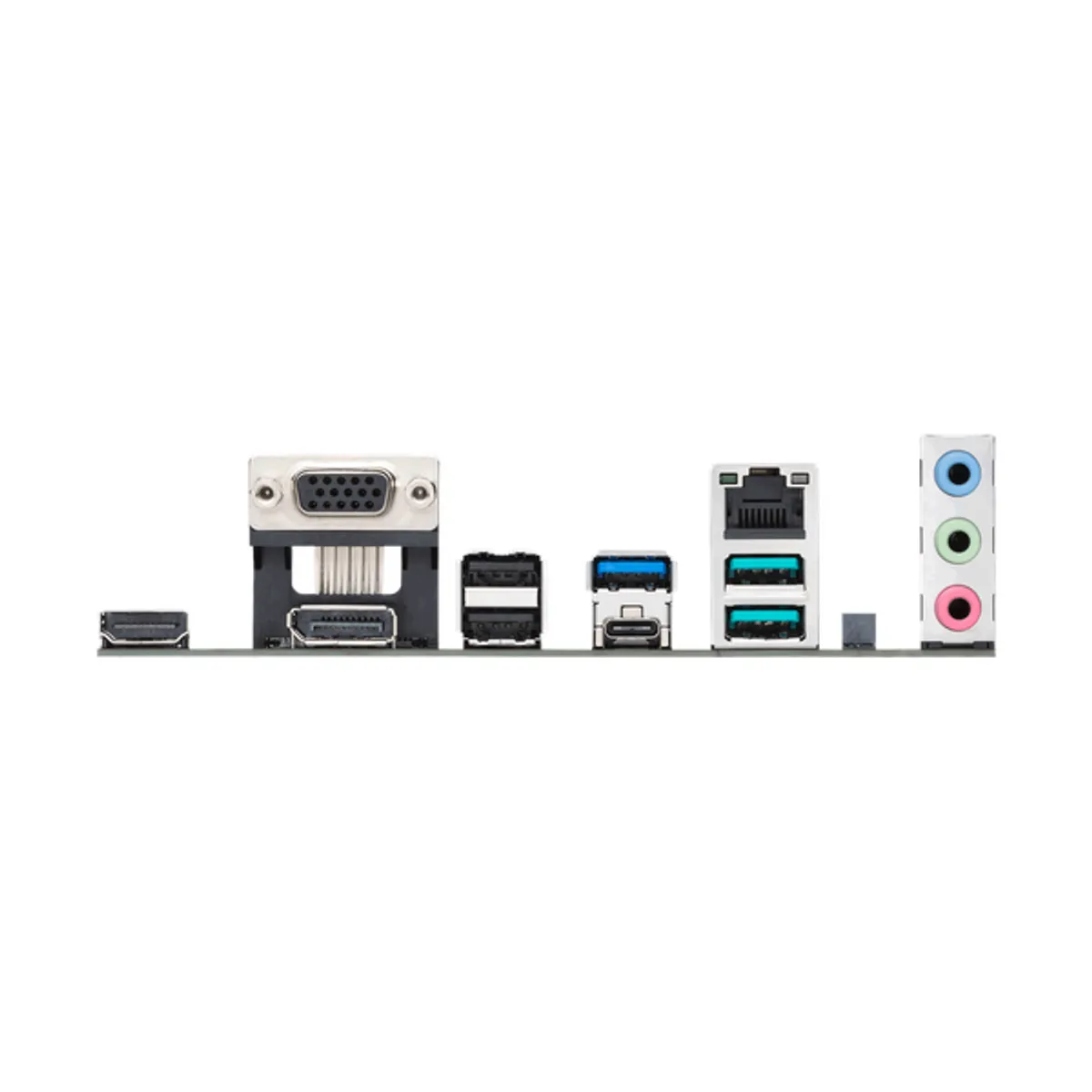

  Rear USB (Total 6 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Chipset
  Intel® B760 Chipset
• Wireless
  N/A
• Memory slots Support
  4 x DIMM, Max. 192GB, DDR5 7200+, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x AIO Pump (4-pin), 3 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 1 x 8-pin 12V, Storage: 3 x M.2 (Key M), 4 x SATA 6Gb/s, USB: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (supports 2x USB 3.2 Gen 1), 2x USB 2.0 headers (supports 4x USB 2.0), Misc: 3 x Addressable Gen 2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM, 1 x Front Audio (AAFP), 1 x S/PDIF Out, 1 x SPI TPM (14-1 pin), 1 x System Panel (20-3 pin with Chassis Intrude), 1 x Thunderbolt (USB4) header
• Expansion Slots
  Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots, Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x DisplayPort, 1 x VGA port, 1 x HDMI™ port
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC, 3 x Audio jacks
• Form Factor
  ATX, 12 x 9.6 in
• Warranty
  1 Year Warranty
