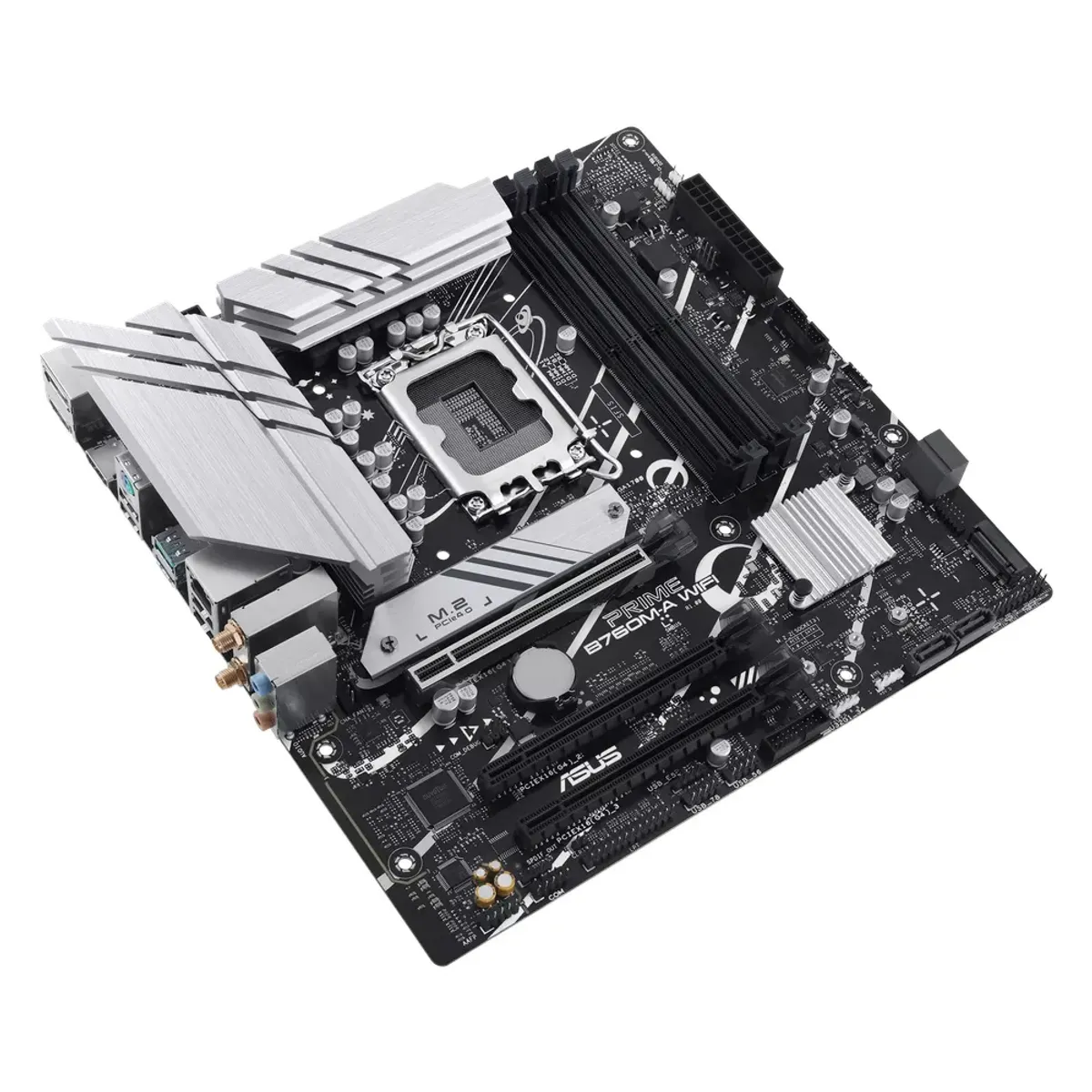

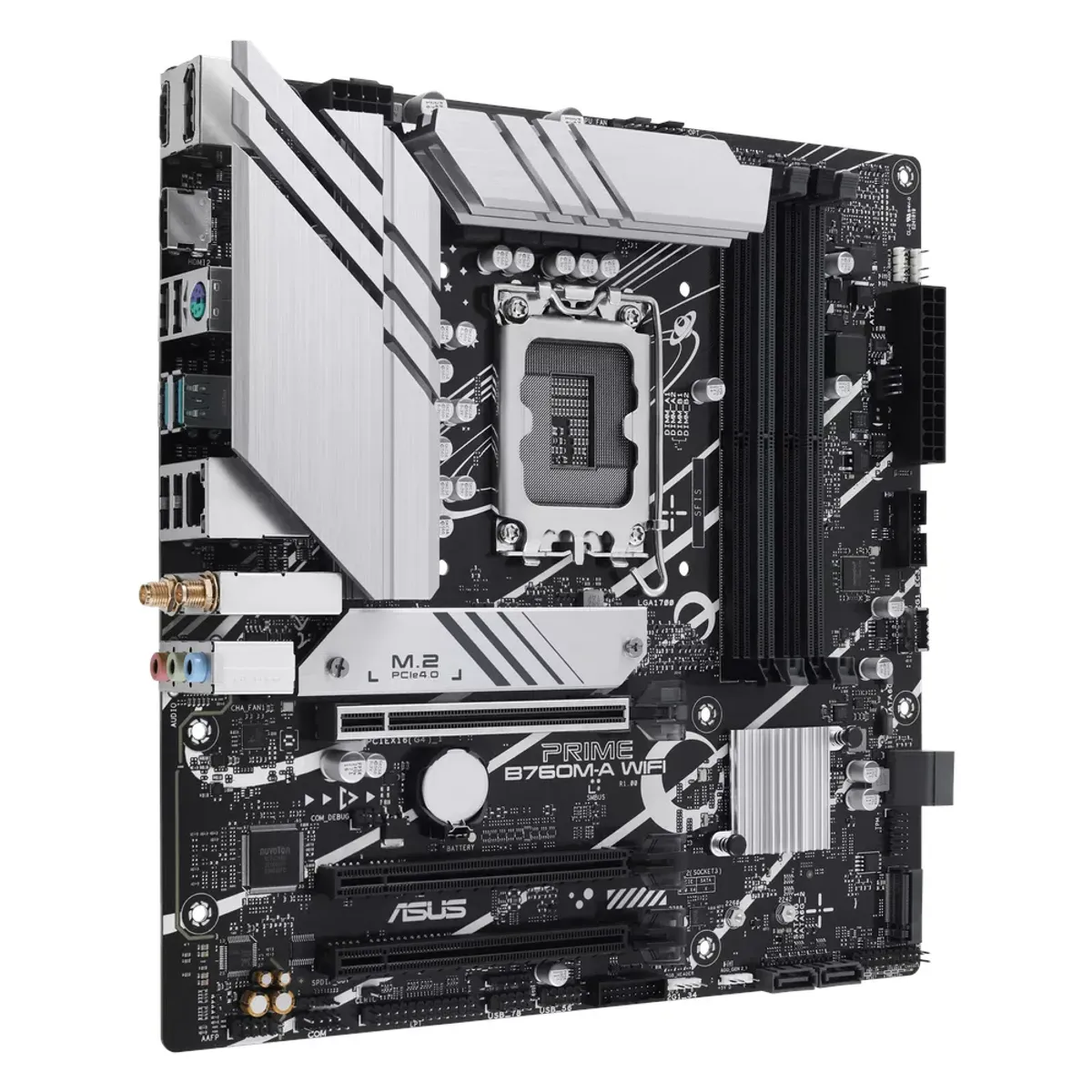

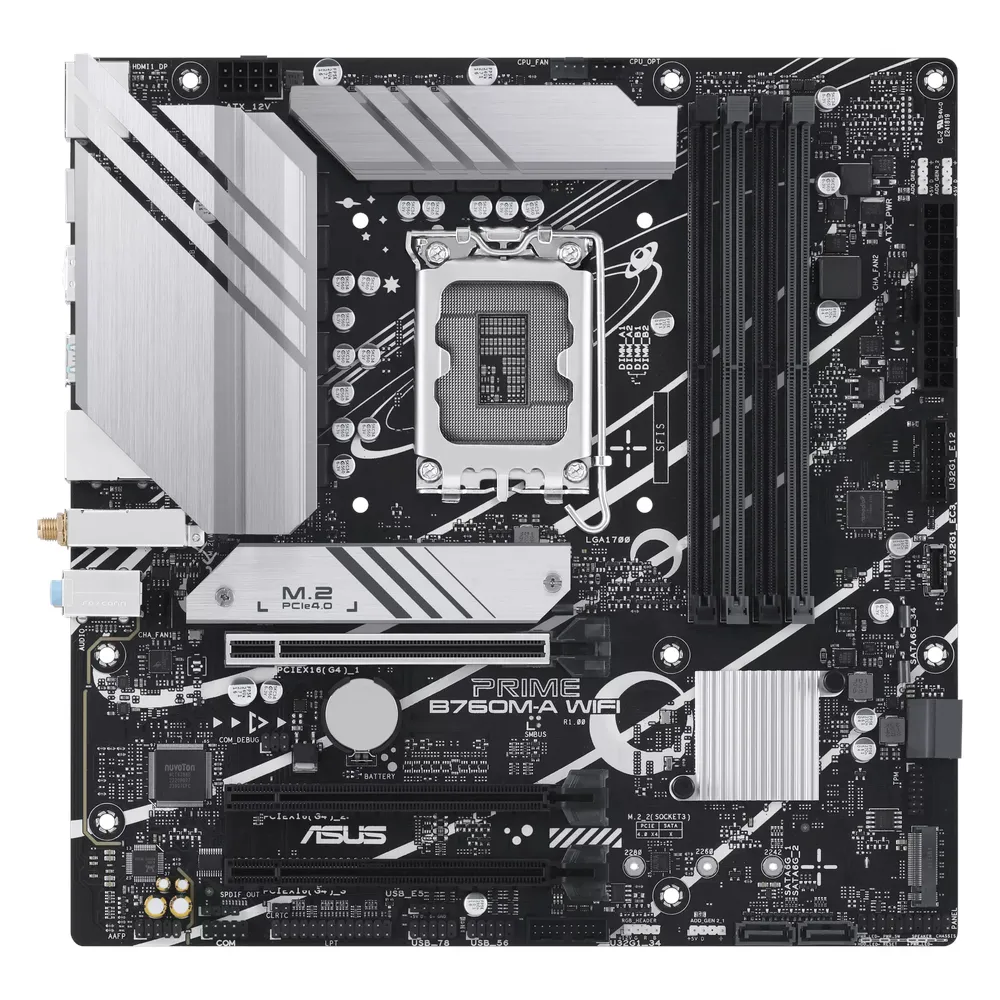

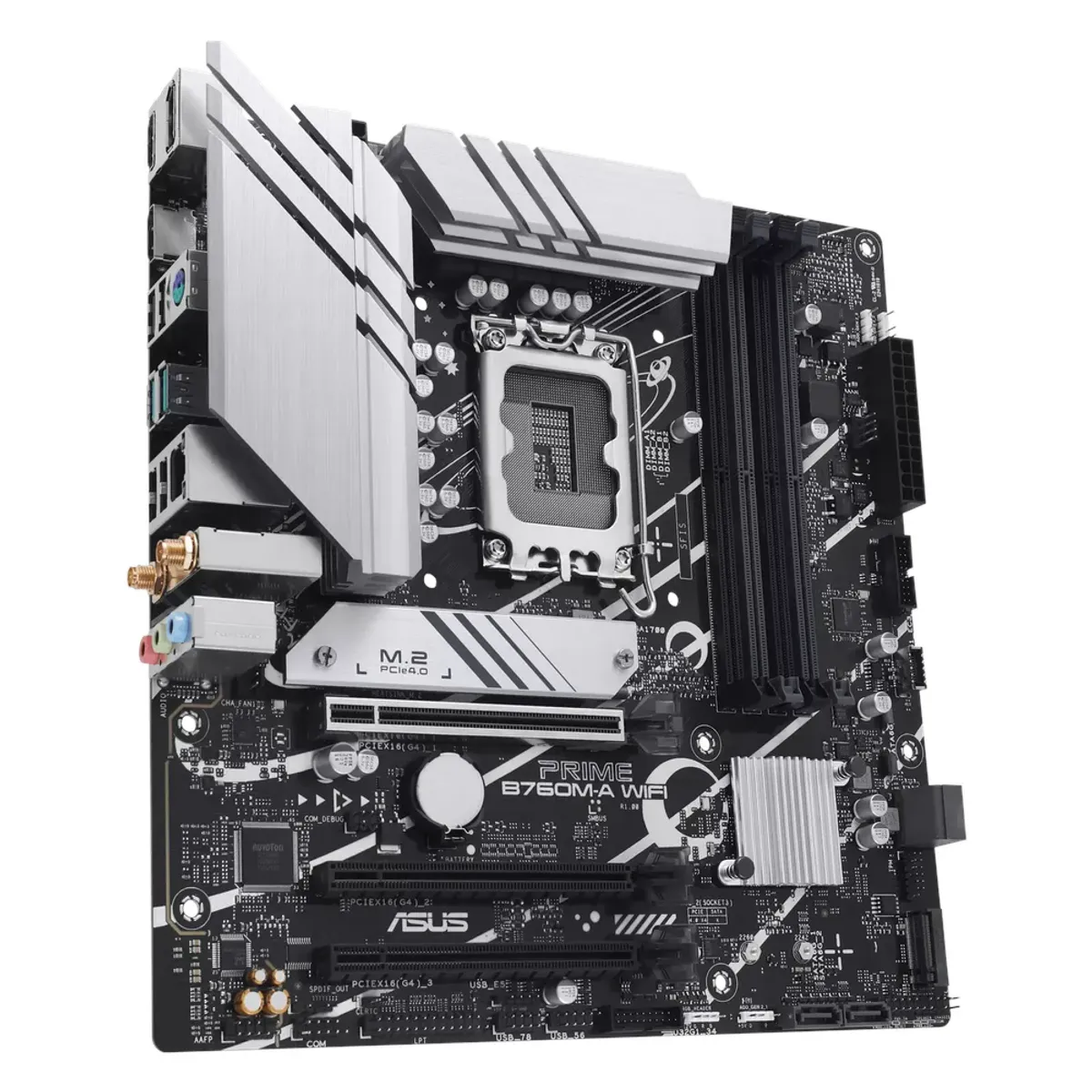

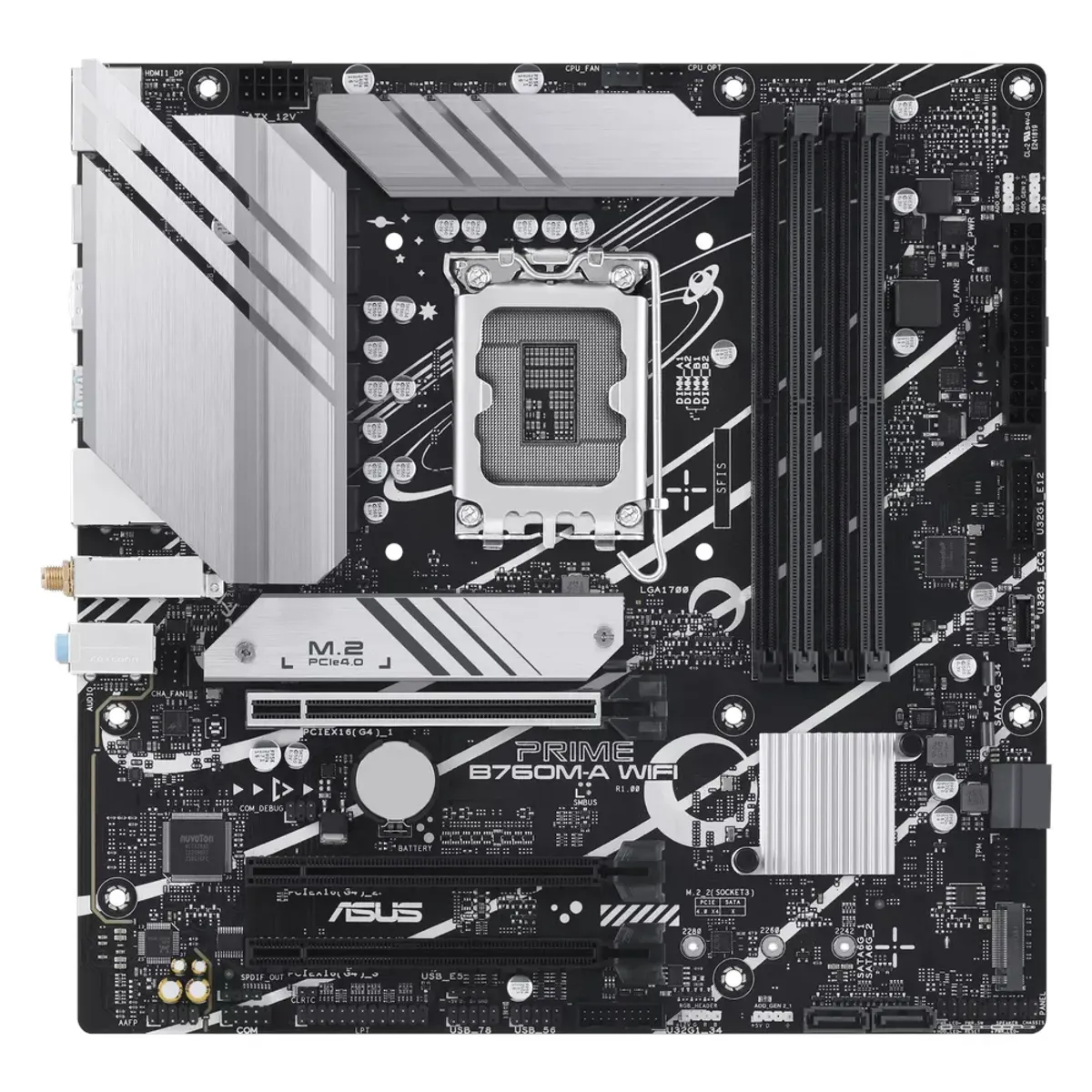

Asus PRIME B760M-A Gaming WiFi Motherboard, LGA1700 Socket, mATX Form Factor, DDR5 Ram, PCIe 4.0, HDMI, DP, Realtek 2.5Gb Ethernet, Aura Sync, 1 Year Warranty | 90MB1EL0-M1EAY0

• CPU
  Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Ethernet
  1 x Realtek 2.5Gb Ethernet
• USB
  2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Chipset
  Intel® B760 Chipset
• Wireless
  Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
• Memory slots Support
  4 x DIMM slots, Max. 192GB, DDR5 7200+, Dual Channel Memory Architecture
• Internal I/O Connectors
  1 x 4-pin CPU Fan Header, 1 x 4-pin CPU OPT Fan Header, 2 x 4-pin Chassis Fan Headers, 1 x 24-pin Main Power Connector, 1 x 8-pin +12V Power Connector, 2 x M.2 Slots (Key M), 4 x SATA 6Gb/s Ports, 4 x USB 3.2 Gen 1 Ports (via 2 x headers), 1 x USB 3.2 Gen 1 Connector (supports USB Type-C), 5 x USB 2.0 Ports (via 3 x headers), 3 x Addressable Gen 2 Headers, 1 x Aura RGB Header, 1 x Clear CMOS Header, 1 x COM Port Header, 1 x Front Panel Audio Header (AAFP), 1 x LPT Header, 1 x S/PDIF Out Header, 1 x SPI TPM Header (14-1pin), 1 x 20-3 pin System Panel Header (with Chassis intrude function),
• Expansion Slots
  1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode), Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device

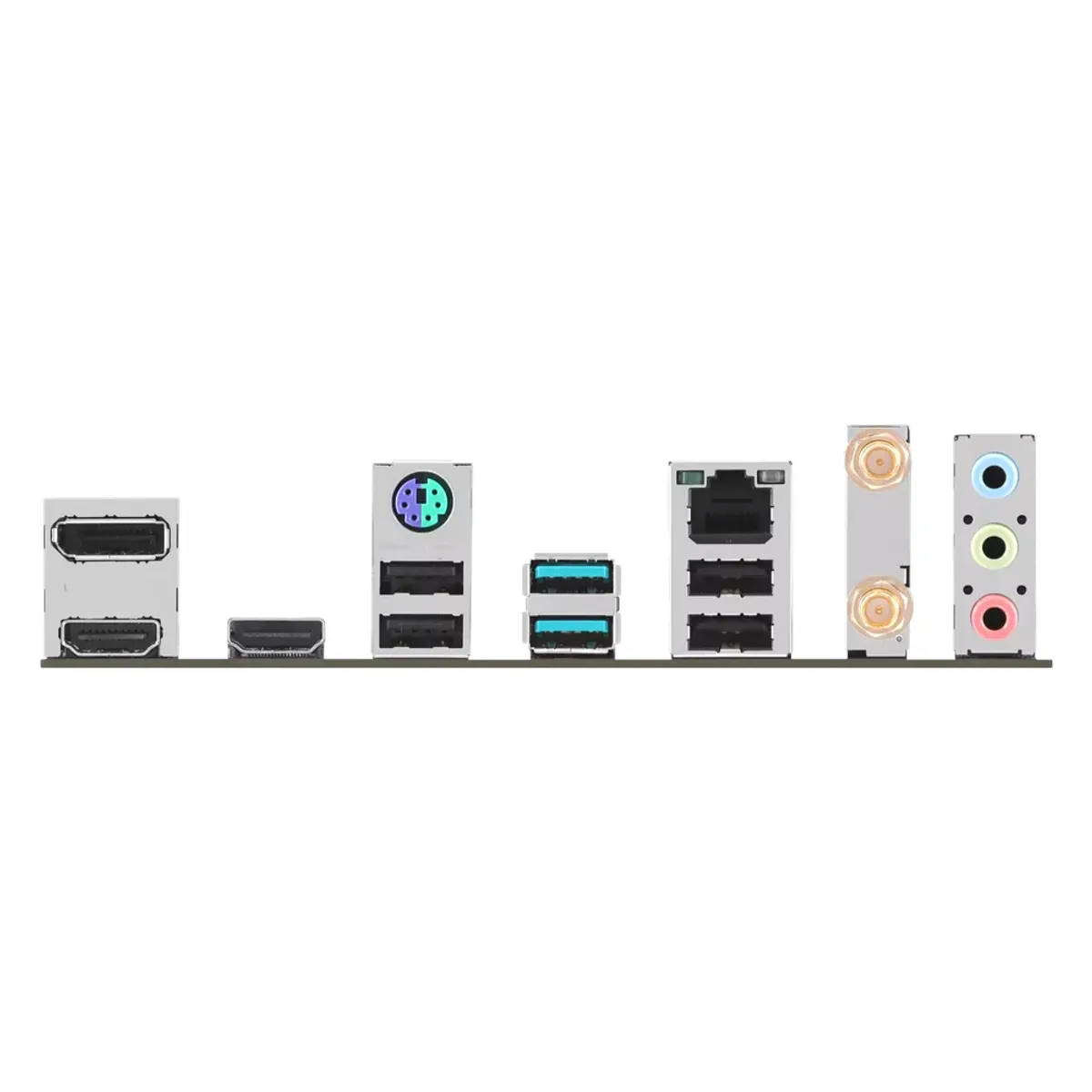

  1 x DisplayPort, 1 x HDMI™ port
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
• Form Factor
  mATX ( 24.4 cm x 24.4 cm )
• Warranty
  1 Year Warranty
