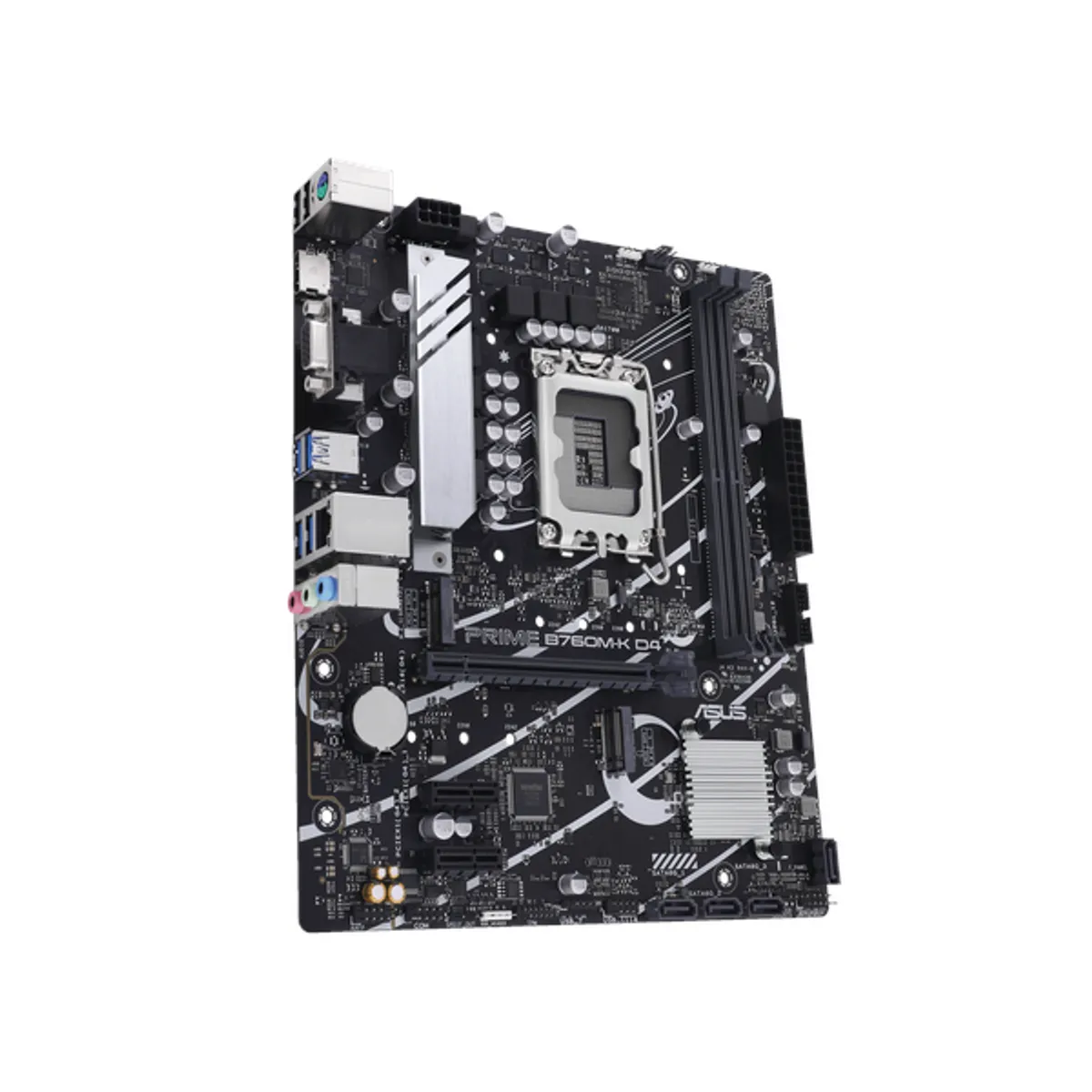

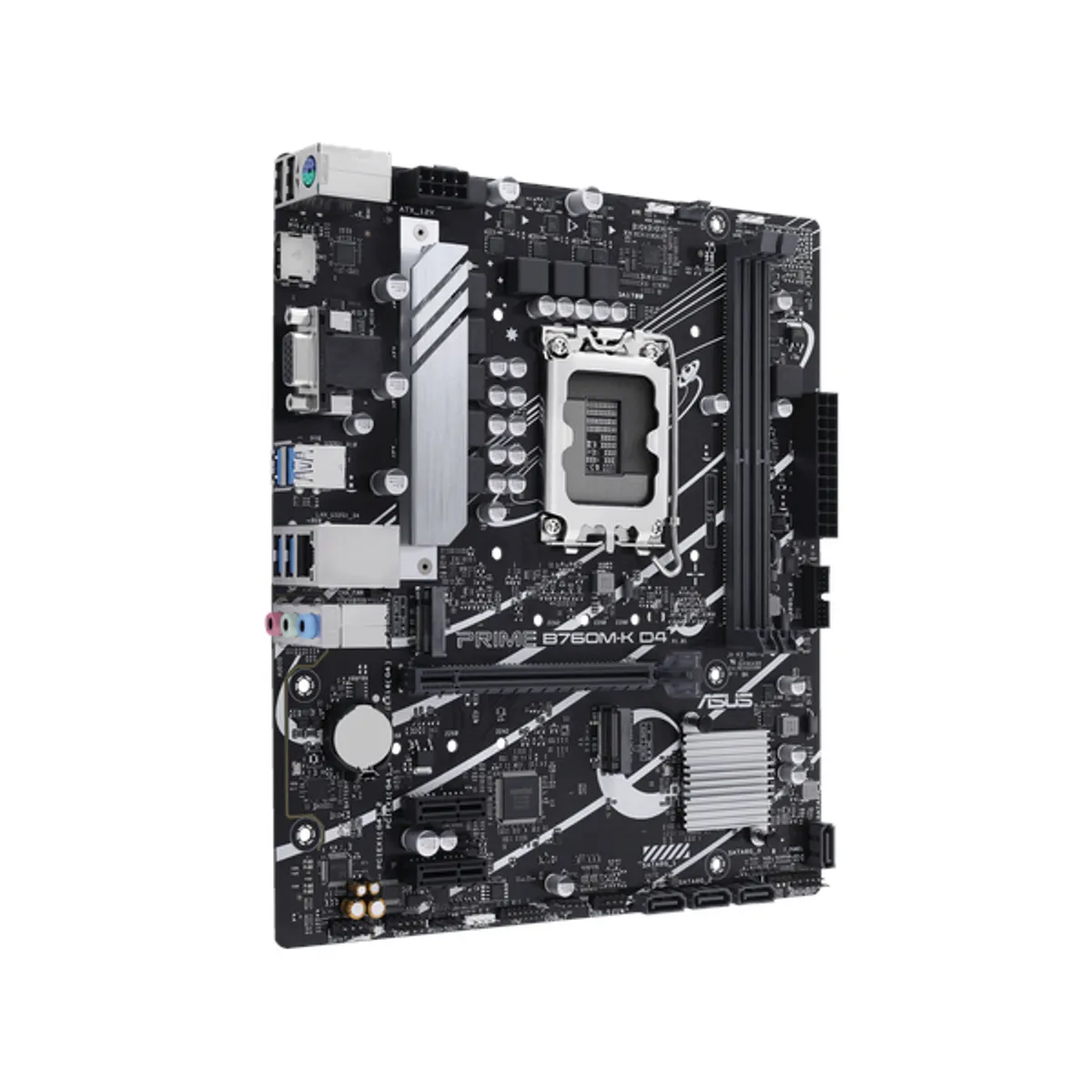

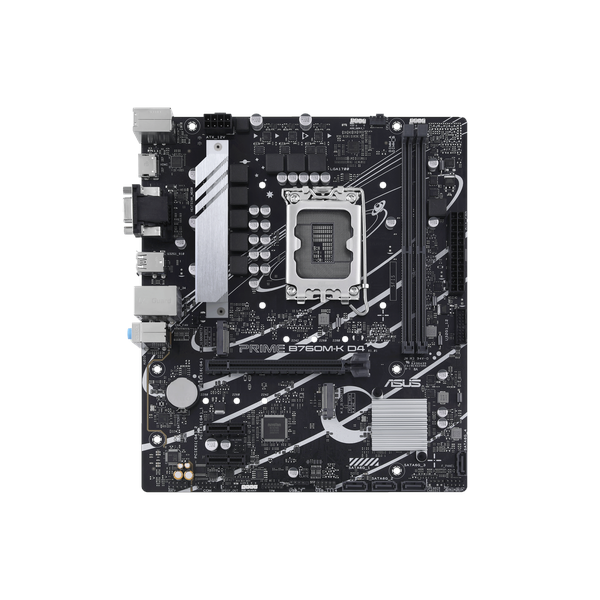

Asus PRIME B760M-K D4 Motherboard, LGA 1700 Socket, mATX Form Factor, DDR4 Ram, PCIe 4.0, USB 3.2 Gen 1, HDMI, VGA, Realtek 2.5Gb Ethernet, Asus 5X Protection III, Aura Sync RGB Lighting, 1 Year Warranty | 90MB1DS0-M1EAY0

• CPU
  Socket: LGA 1700, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Ethernet
  1 x Realtek 2.5Gb Ethernet
• USB
  Rear USB (Total 6 ports): 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A, Front USB (Total 5 ports): 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Chipset
  Intel® B760 Chipset
• Wireless
  N/A
• Memory slots Support
  2 x DIMM, Max. 64GB, DDR4, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 1 x 8-pin 12V, Storage: 2 x M.2 (Key M), 4 x SATA 6Gb/s, USB: 1 x USB 3.2 Gen 1 header (supports 2x USB 3.2 Gen 1), 2 x USB 2.0 headers (supports 3x USB 2.0), Misc: 2 x Addressable Gen 2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM, 1 x Front Audio (AAFP), 1 x S/PDIF Out, 1 x Speaker, 1 x SPI TPM (14-1 pin), 1 x System Panel (10-1 pin)
• Expansion Slots
  Expansion Slots: 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots, Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device

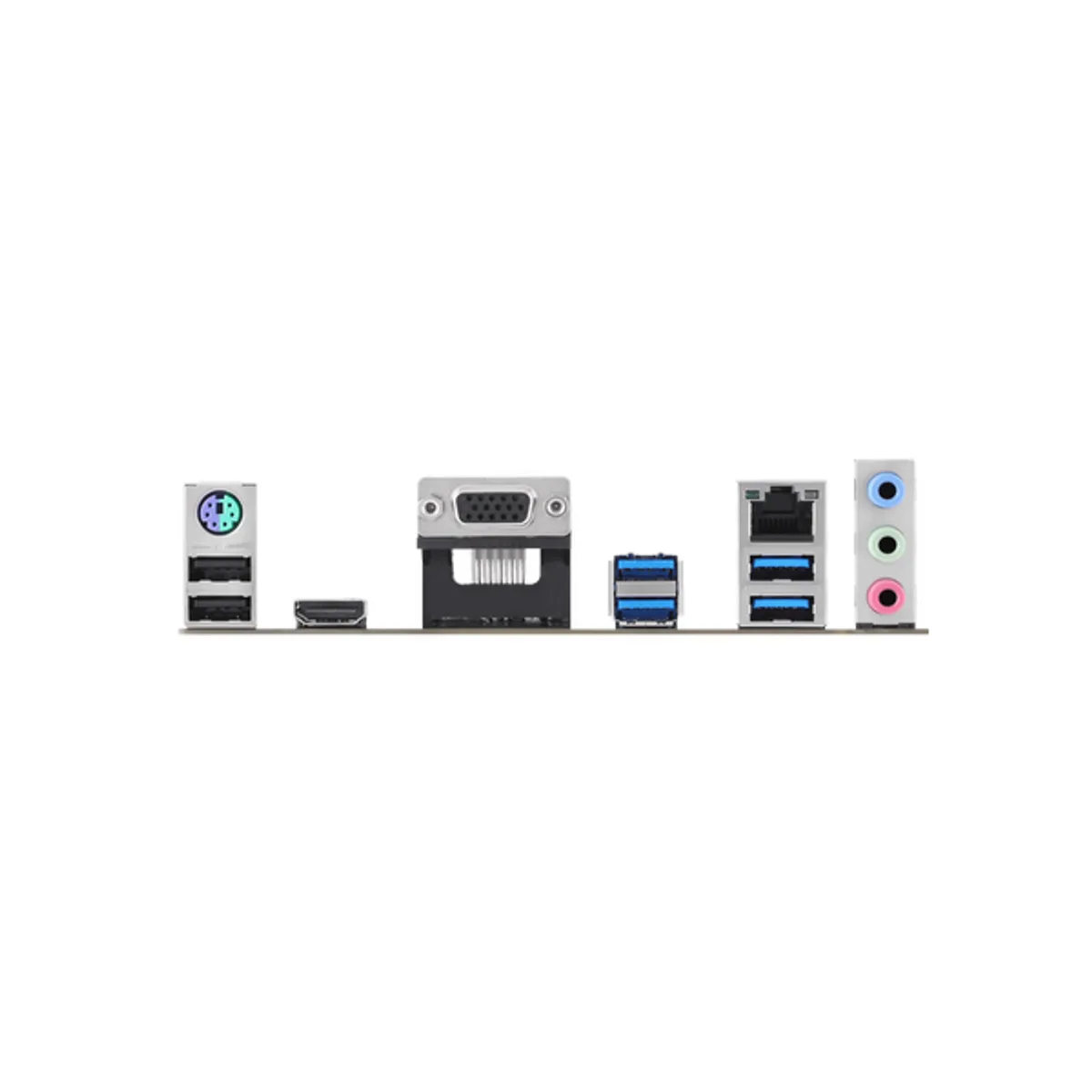

  1 x VGA port, 1 x HDMI™ port
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC, 3 x Audio jacks
• Form Factor
  mATX, 9.6 x 8.3 in
• Warranty
  1 Year Warranty
