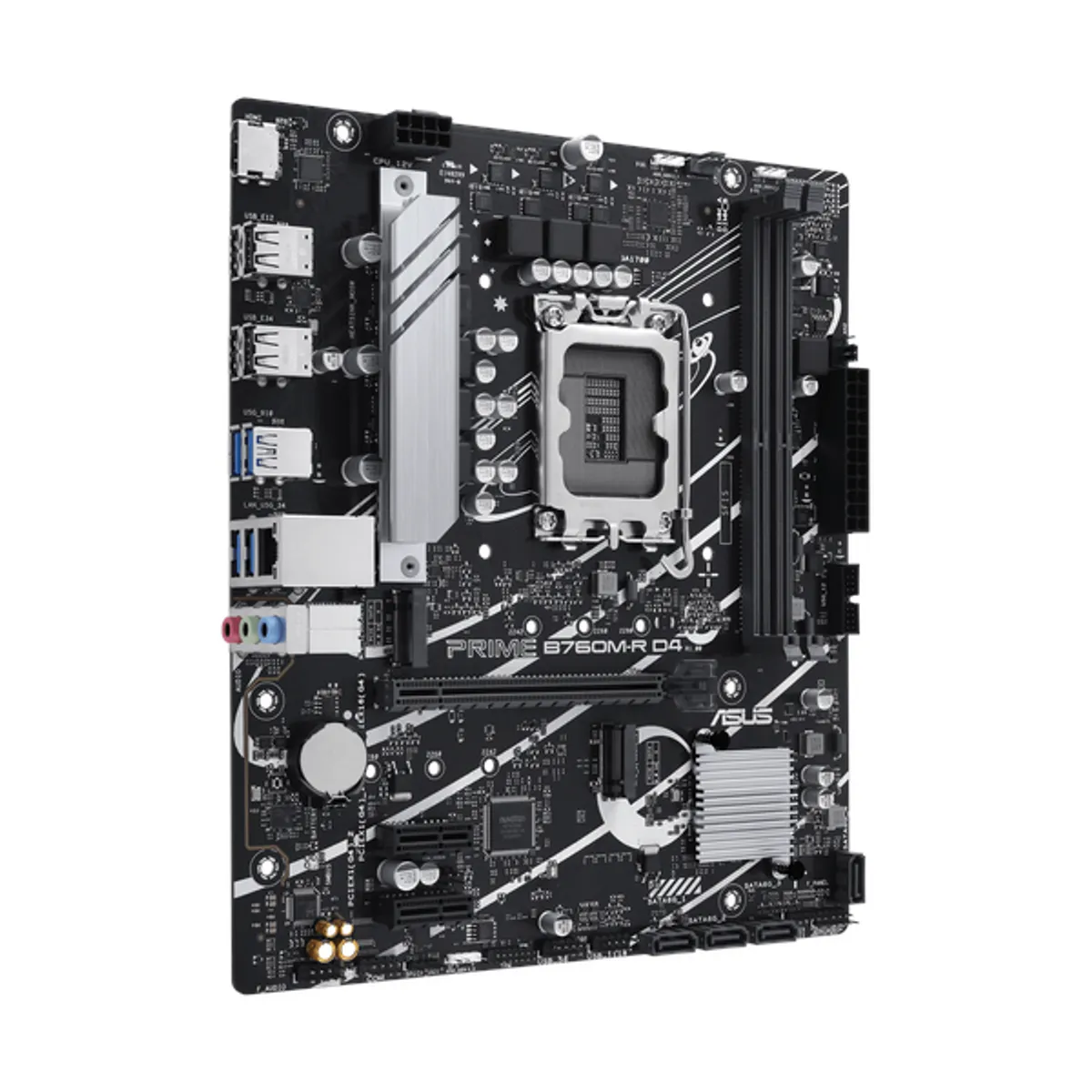

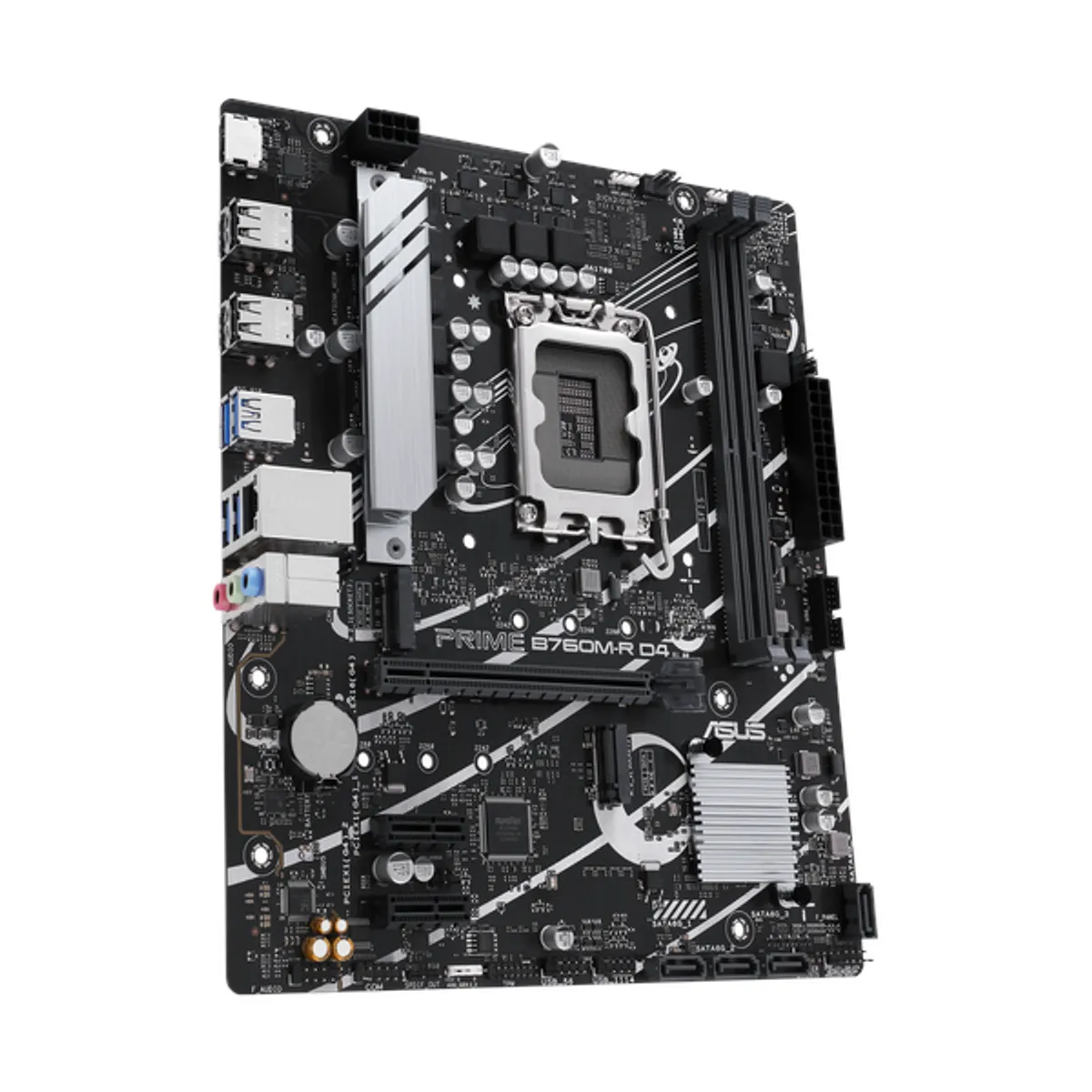

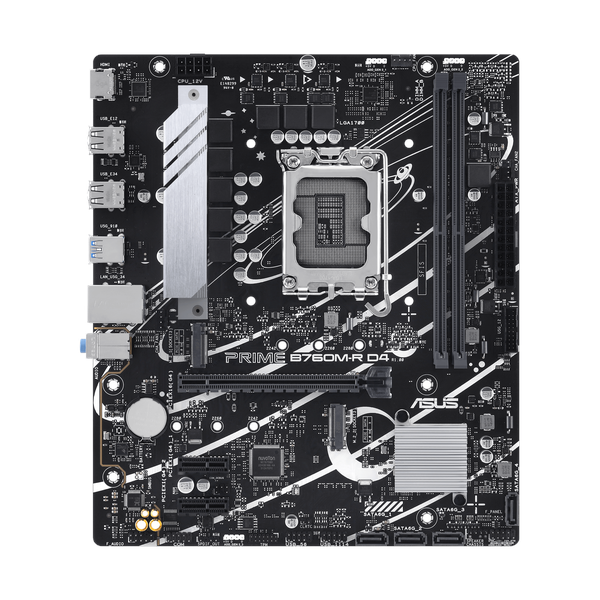

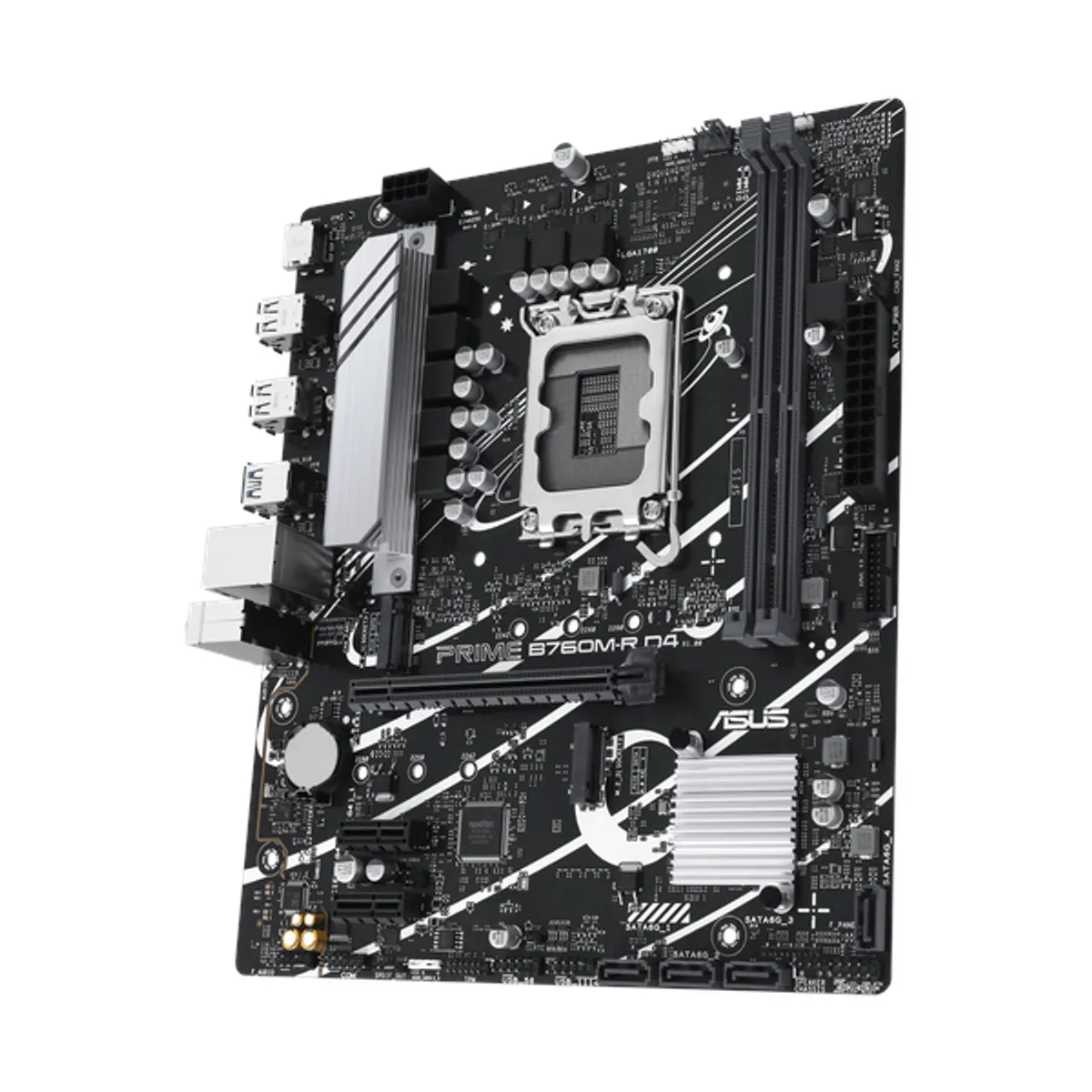

Asus PRIME B760M-R D4 Motherboard, LGA 1700 Socket, micro-ATX Form Factor, DDR4 Ram, PCIe 4.0, USB 5Gbps, HDMI 2.1, Realtek 2.5Gb Ethernet, Asus 5X Protection III, Aura Sync RGB Lighting, 1 Year Warranty | 90MB1HA0-M0EAY0

• CPU
  Socket: LGA 1700, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Ethernet
  1 x Realtek 2.5Gb Ethernet

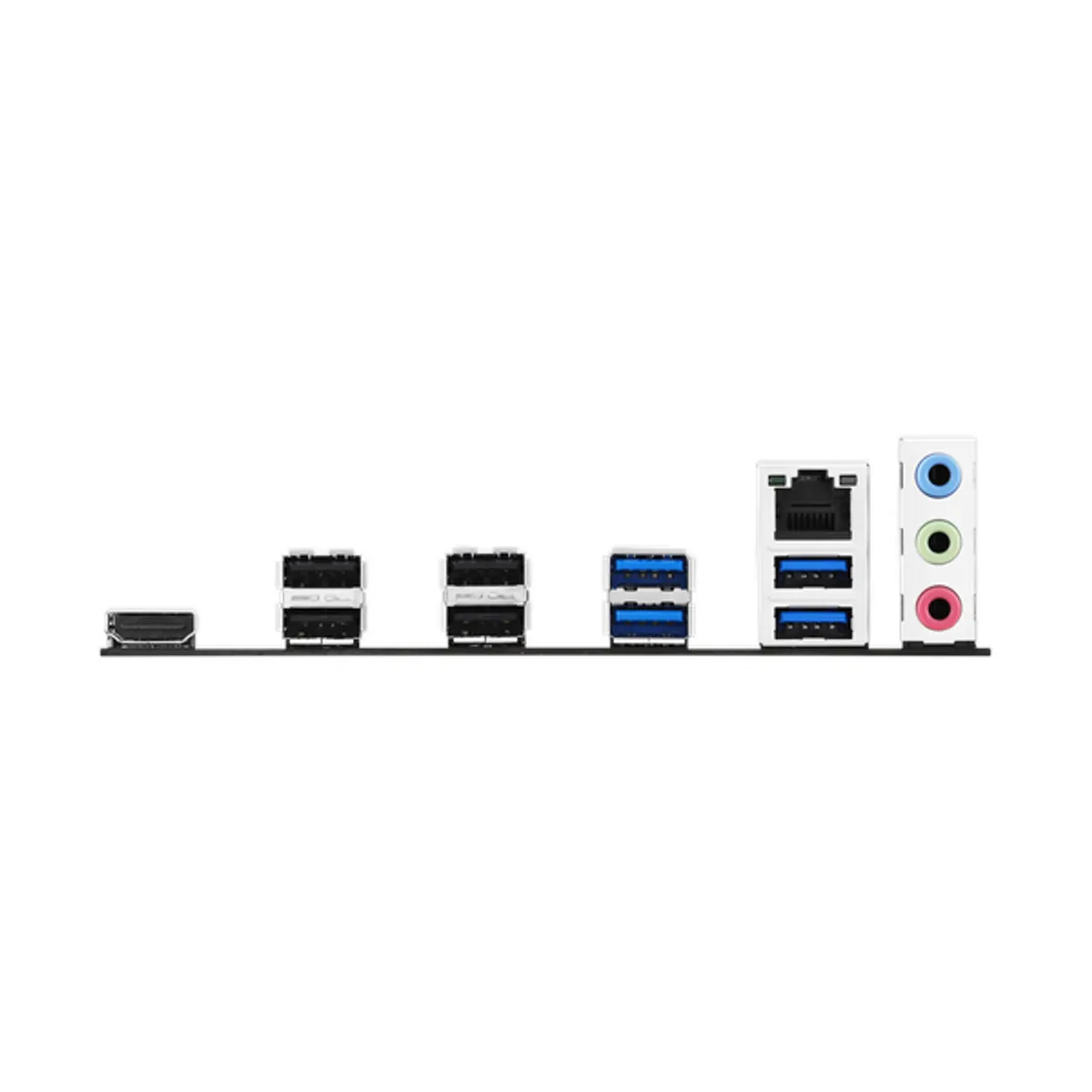

• USB
  Rear: 4 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), Front: 1 x USB 5Gbps header (supports 2x USB 5Gbps), 2 x USB 2.0 headers (supports 4x USB 2.0), Note: USB_E1–E4 ports share bandwidth
• Chipset
  Intel® B760 Chipset
• Wireless
  N/A
• Memory slots Support
  2 x DIMM slots, Max. 64GB, DDR4, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 2 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 1 x 8-pin 12V, Storage: 2 x M.2 (Key M), 4 x SATA 6Gb/s, USB: 1 x USB 5Gbps header (supports 2x USB 5Gbps), 2 x USB 2.0 headers (supports 4x USB 2.0), Misc: 3 x Addressable Gen 2, 1 x Clear CMOS, 1 x COM, 1 x Front Audio (F_AUDIO), 1 x S/PDIF Out, 1 x Speaker, 1 x SPI TPM (14-1 pin), 1 x System Panel (10-1 pin)
• Expansion Slots
  Expansion Slots: 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots, Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x HDMI 2.1
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC, 3 x Audio jacks
• Form Factor
  micro-ATX, 9.6 x 8.3 in
• Warranty
  1 Year Warranty
