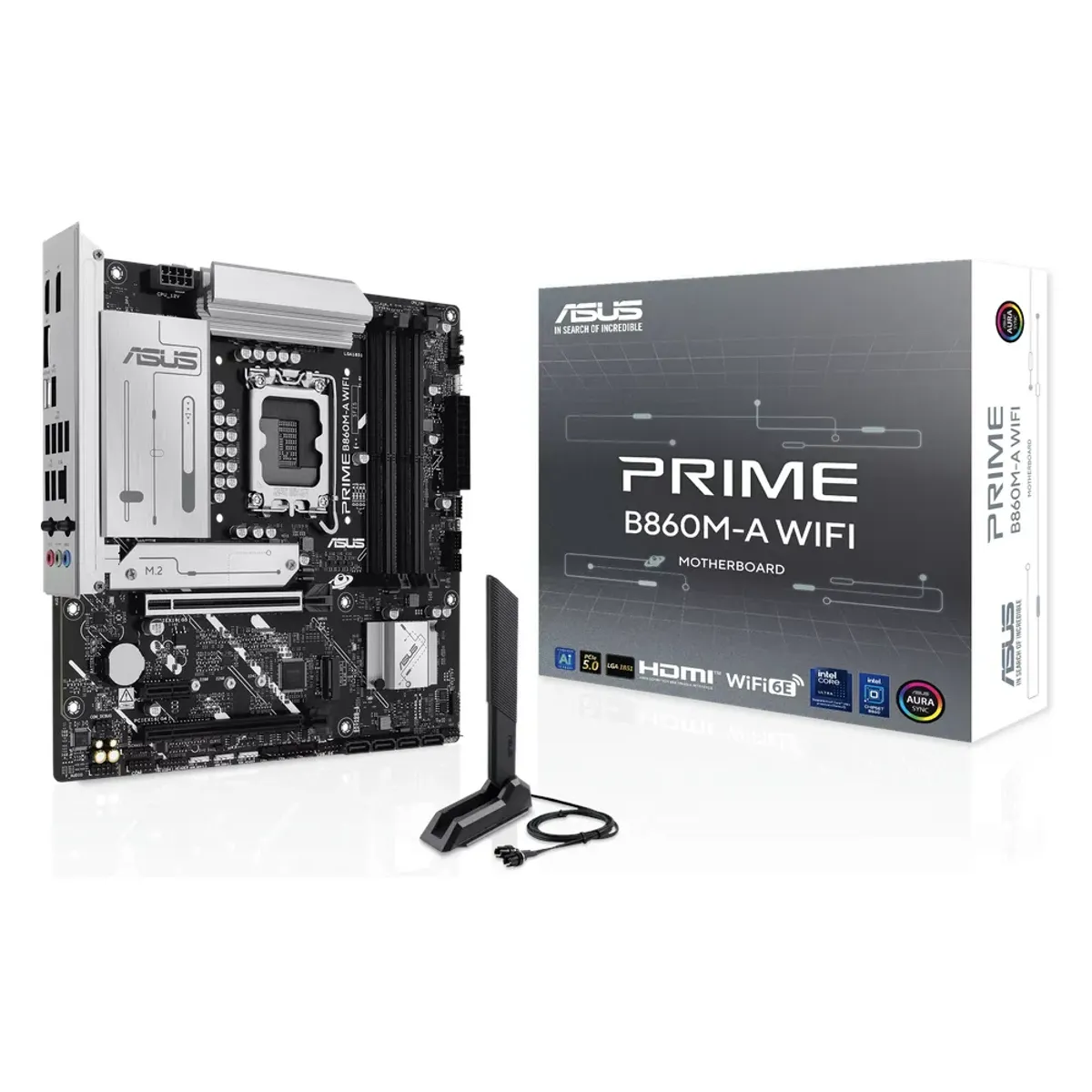

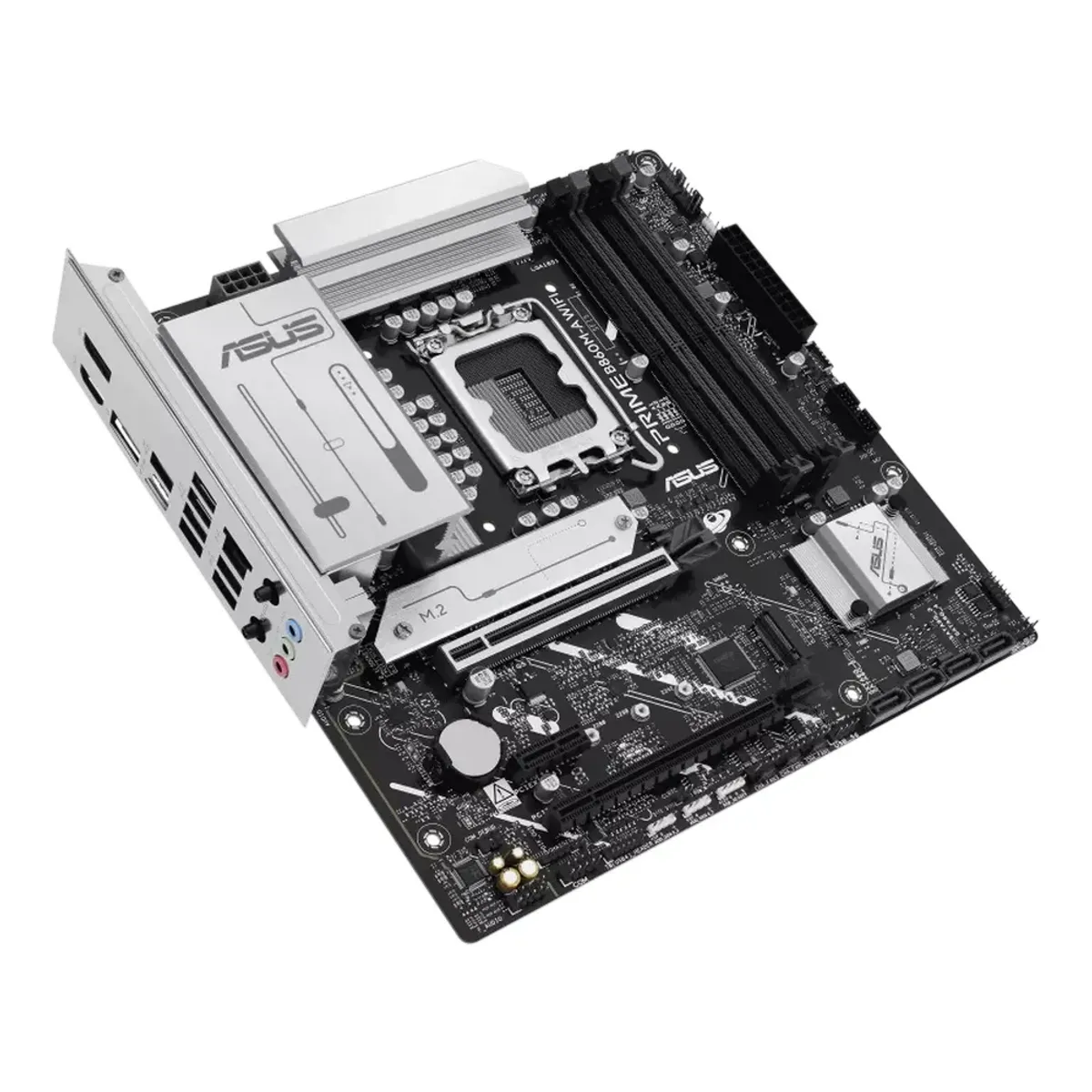

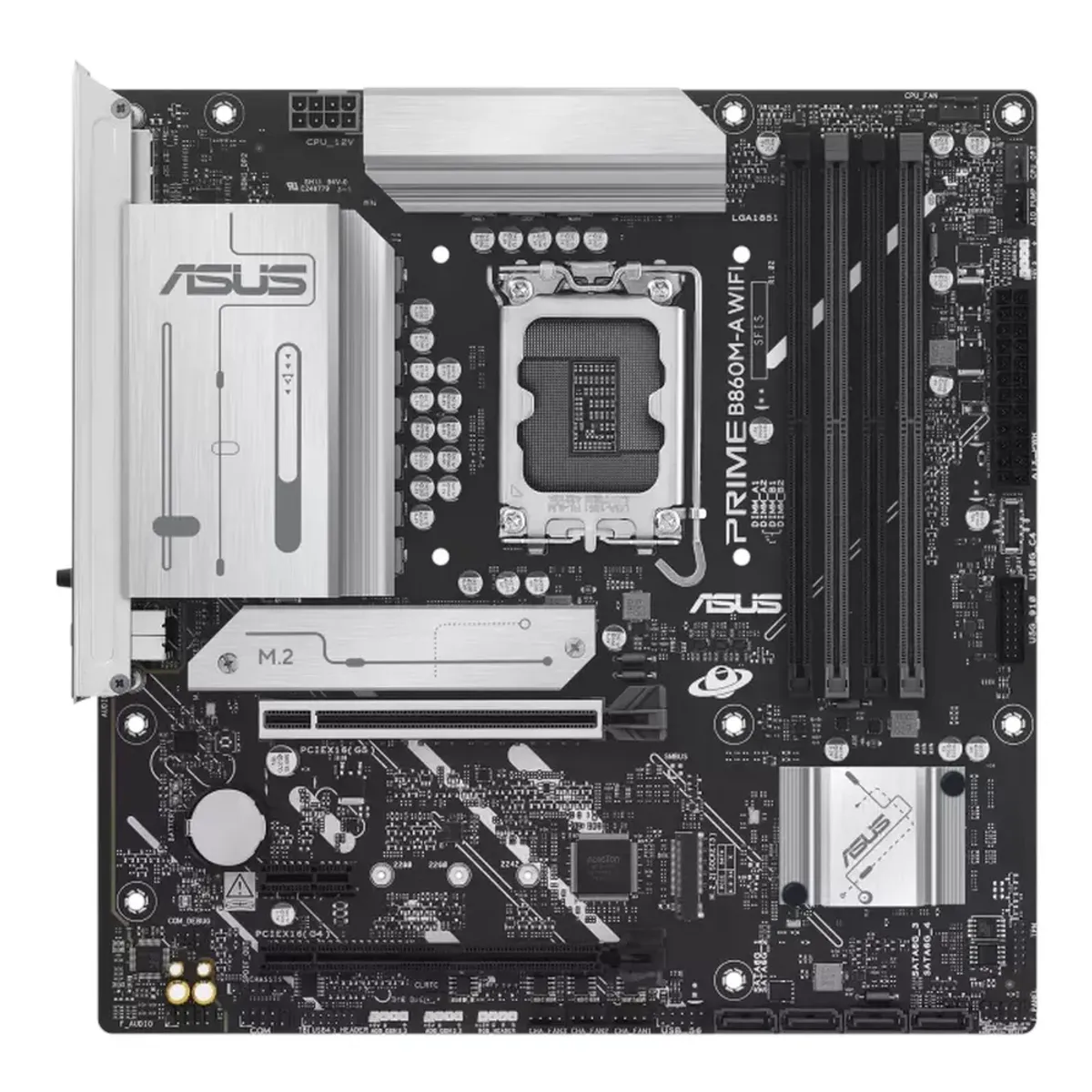

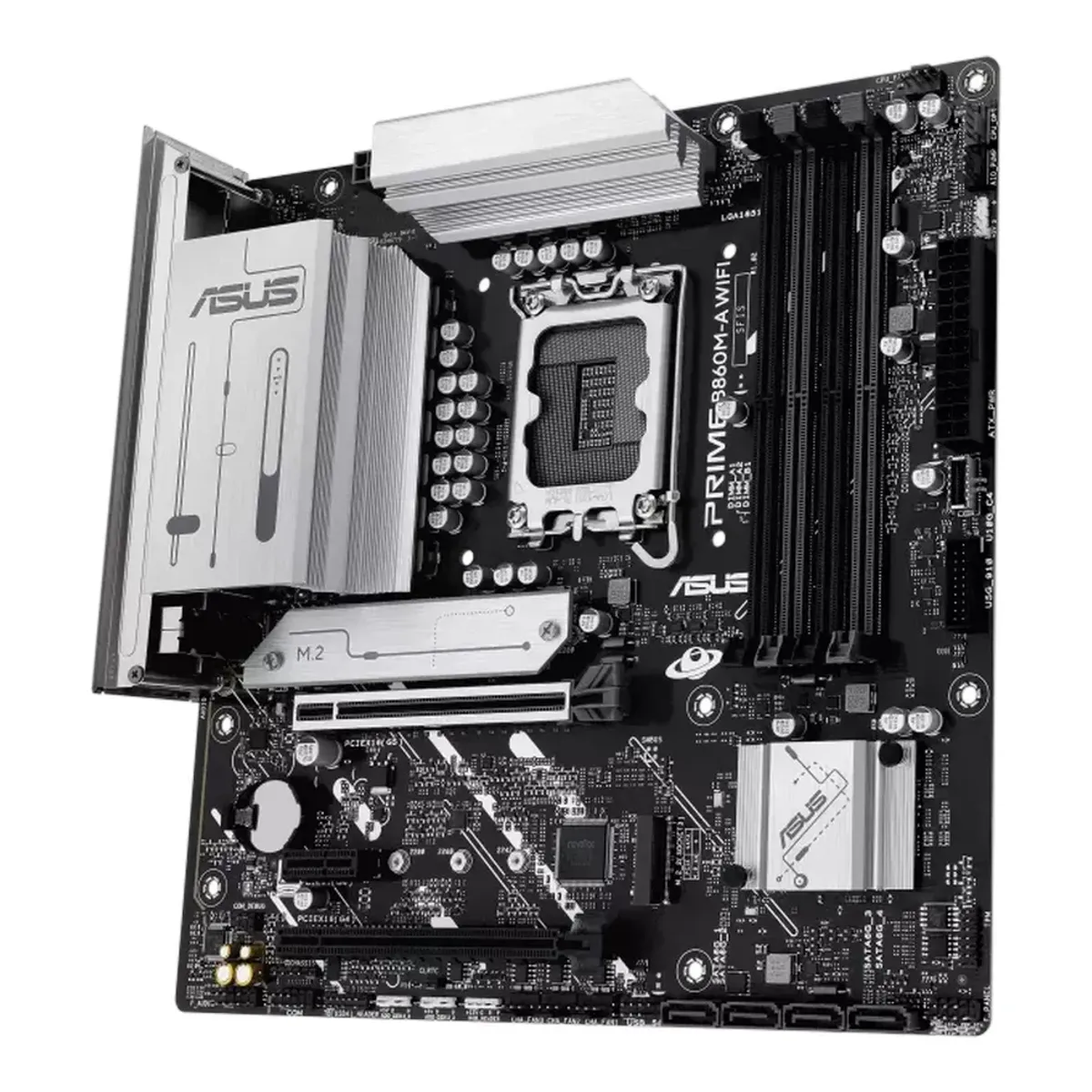

Asus PRIME B860M-A Gaming WiFi Motherboard, LGA1851 Socket, mATX Form Factor, DDR5 Ram, PCIe 5.0, USB 20Gbps, HDMI, DP, Realtek 2.5Gb Ethernet, Aura Sync, 1 Year Warranty | 90MB1JY0-M0EAY0

• CPU
  Support Intel® Core™ Ultra Processors (Series 2) , LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Ethernet
  1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
• USB
  1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode), 1 x USB 10Gbps port (1 x Type-A ), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x USB 10Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Chipset
  Intel® B860 Chipset
• Wireless
  Wi-Fi 6E (802.11ax), Bluetooth® v5.3
• Memory slots Support
  4 x DIMM slots, max. 256GB, DDR5, Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture
• Internal I/O Connectors
  1 x 4-pin CPU Fan Header, 1 x 4-pin CPU OPT Fan Header, 1 x 4-pin AIO Pump Header, 3 x 4-pin Chassis Fan Headers, 1 x 24-pin Main Power Connector, 1 x 8-pin +12V CPU Power Connector, 2 x M.2 Slots (Key M), 4 x SATA 6Gb/s Ports, 1 x USB 10Gbps Connector (supports USB Type-C), 2 x USB 5Gbps Ports (via 1 x header), 2 x USB 2.0 Ports (via 1 x header), 3 x Addressable Gen 2 Headers, 1 x Aura RGB Header, 1 x Clear CMOS Header, 1 x Chassis Intrusion Header, 1 x COM Port Header, 1 x Front Panel Audio Header (F_AUDIO), 1 x S/PDIF Out Header, 1 x SPI TPM Header (14-1 pin), 1 x 10-1 pin Front System Panel Header, 1 x Thunderbolt (USB4) Header
• Expansion Slots
  1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot, Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x DisplayPort, 1 x HDMI™ port, 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
• Form Factor
  mATX ( 24.4 cm x 24.4 cm )
• Warranty
  1 Year Warranty

No reviews
