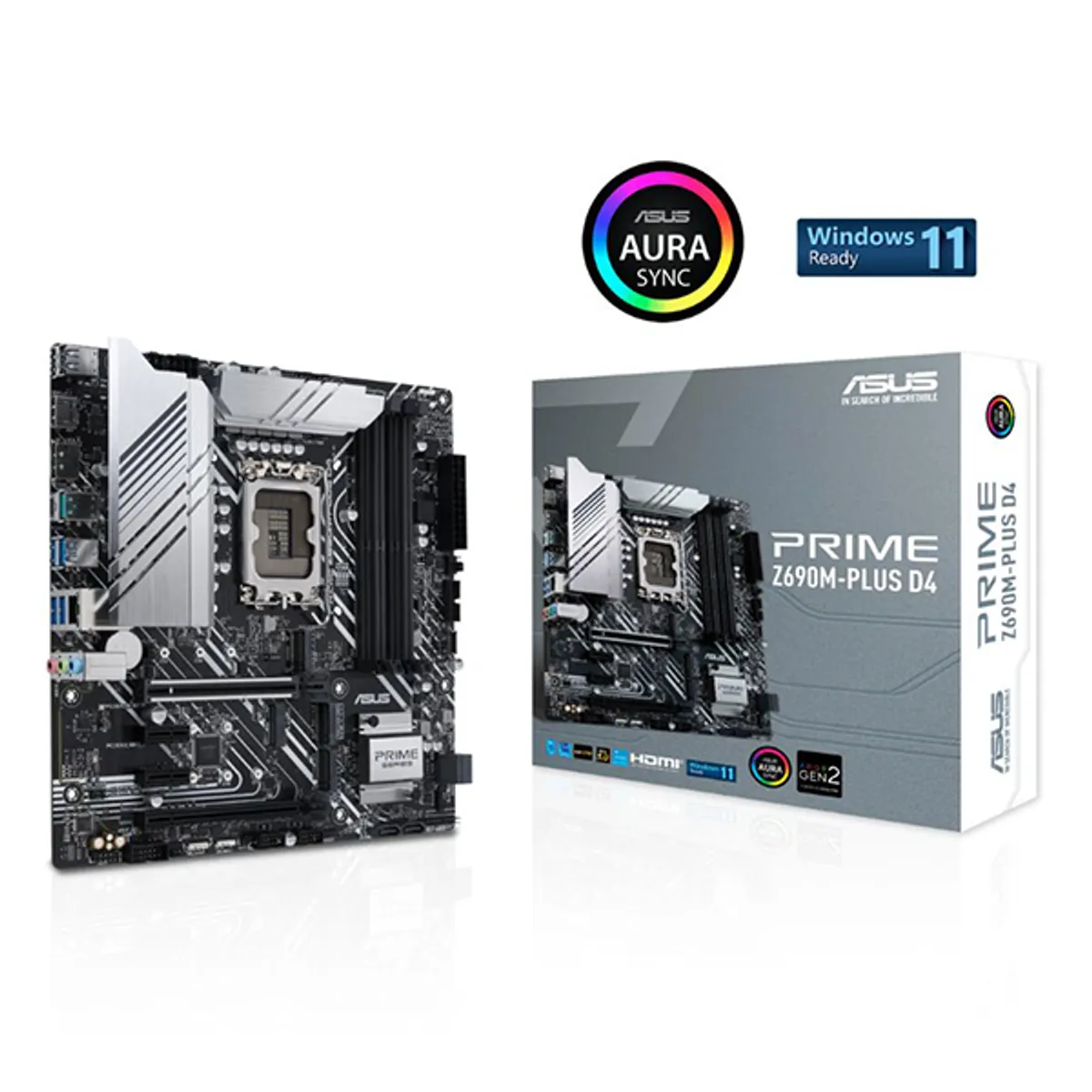

ASUS PRIME Z690M-PLUS D4 MOTHER BOARD | 90MB18Q0-M0EAY0

• Chipset
  Intel® Z690 Chipset
• Ethernet
  "M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately." Ethernet: 1 x Intel® 1Gb Ethernet
• Wireless
  "4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MT/s Non-ECC, Un-buffered Memory*" Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
• Memory slots Support

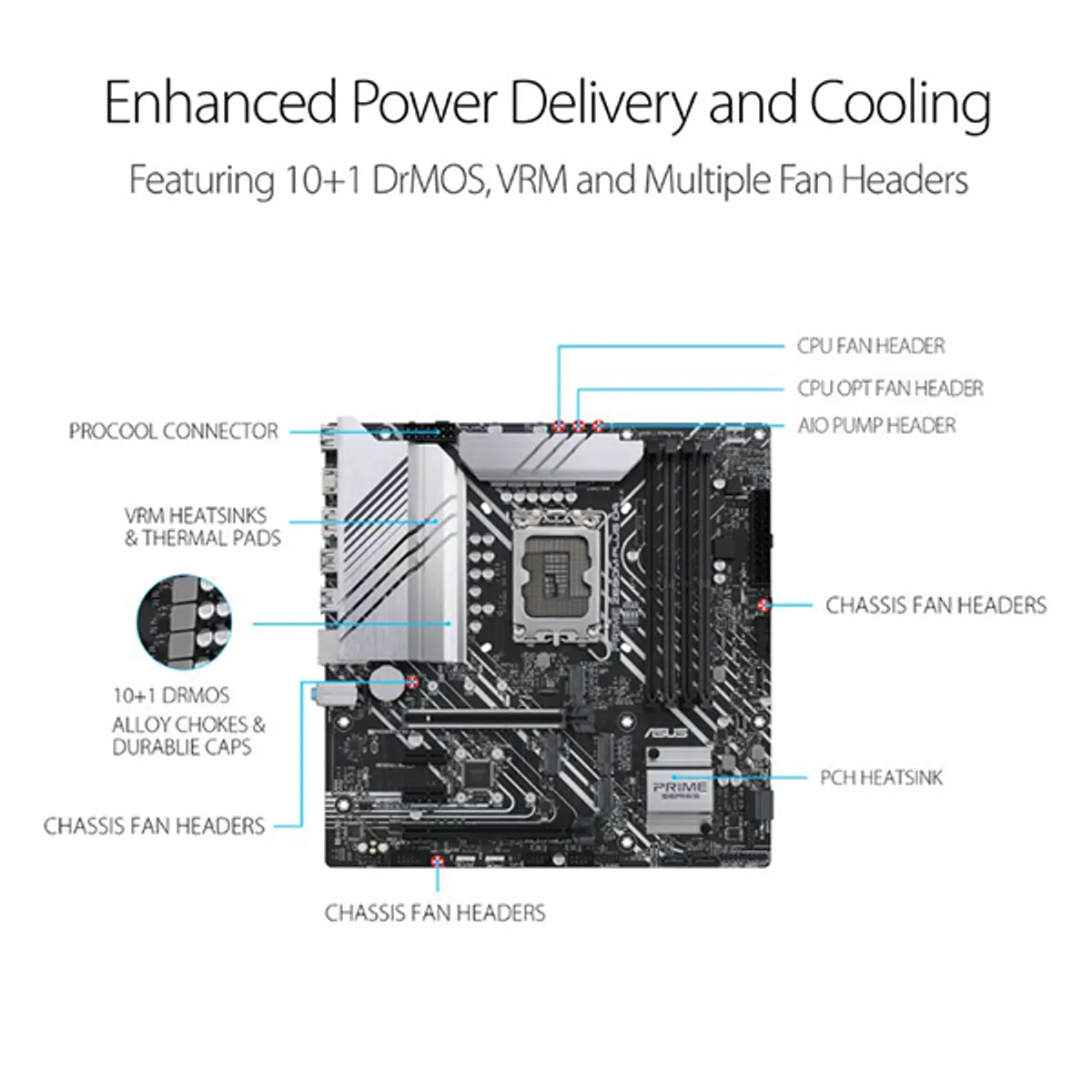

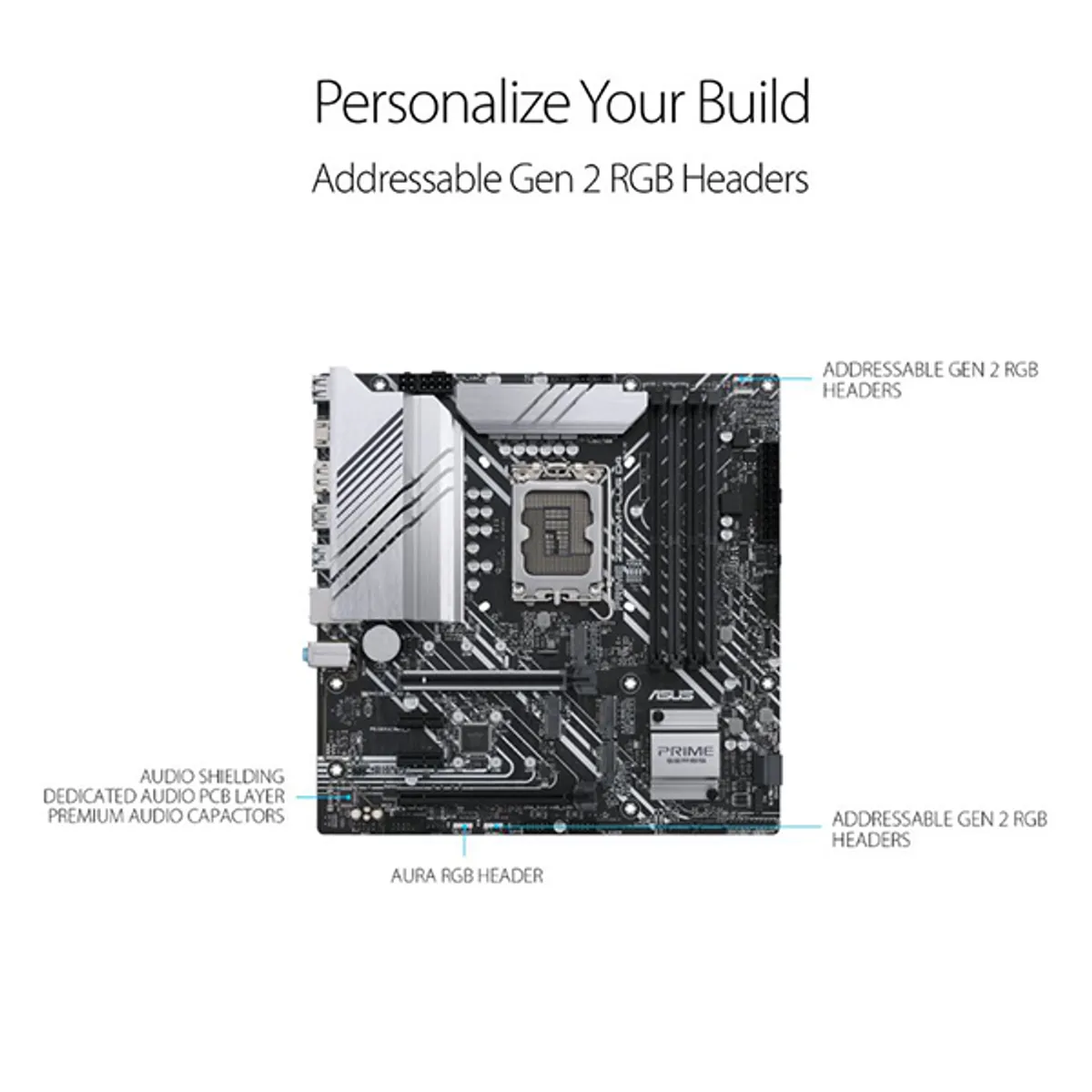

  Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin All In One Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
• Internal I/O Connectors
  1 x DisplayPort 1 x HDMI® port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support 4K@60Hz as specified in DisplayPort 1.4. Support 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  "Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Graphics Device
  mATX 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
