Asus Pro WS TRX50-SAGE WIFI Workstation Motherboard, sTR5 Socket, CEB Form Factor, DDR5 ECC Registered Ram, PCIe 5.0, Wi-Fi 7, Bluetooth v5.4, Marvell 10Gb & Intel 2.5Gb Ethernet, USB 20Gbps Type-C, 1 Year Warranty | 90MB1FZ0-M0EAY0

• CPU
  AMD Socket sTR5, Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
• Ethernet
  1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® I226-LM 2.5Gb Ethernet
• USB

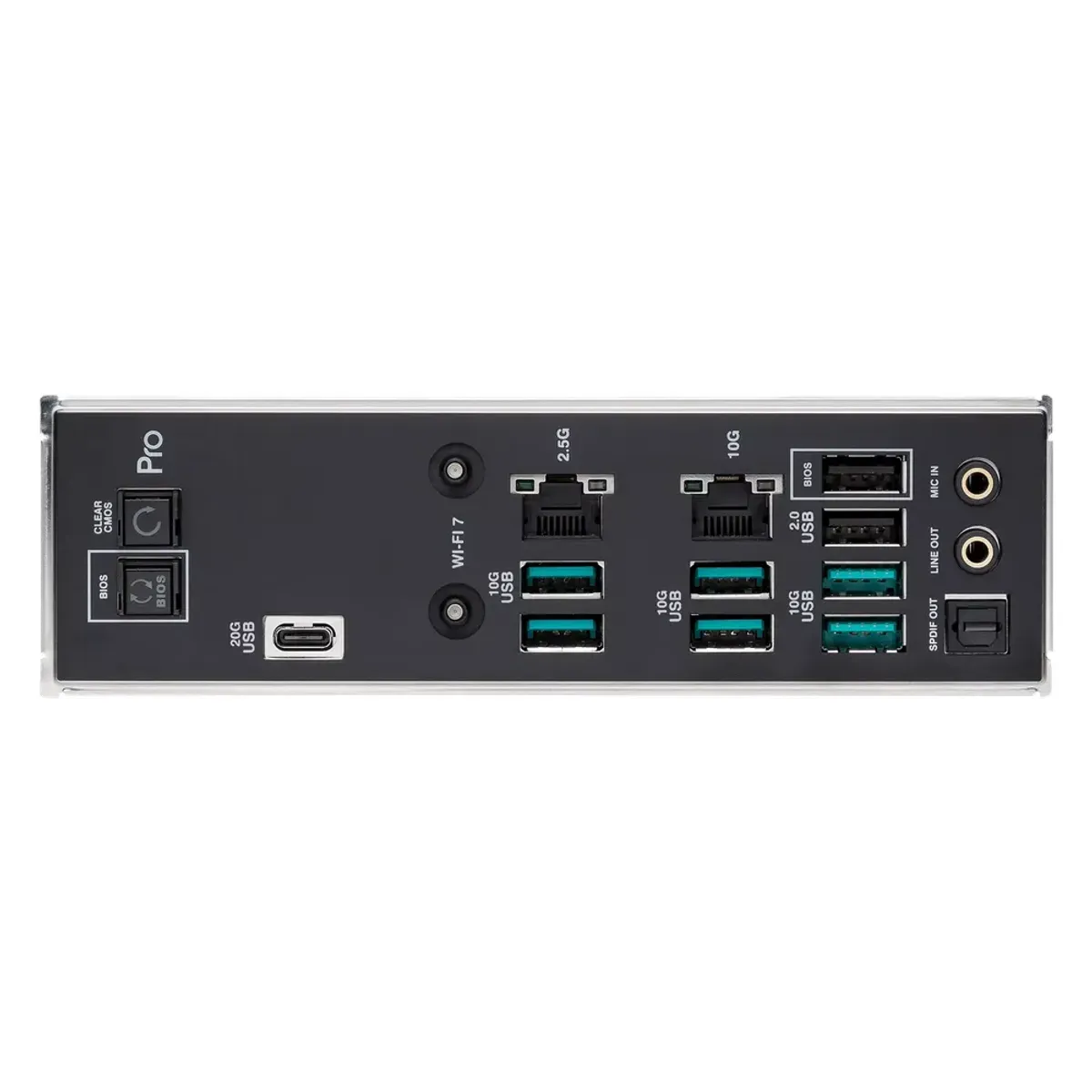

  Rear Ports: 1 x USB 20Gbps Type-C®, 6 x USB 10Gbps Type-A, 2 x USB 2.0 Type-A, Front/Internal Ports: 1 x USB 20Gbps Connector (Supports USB Type-C® with up to 27W PD/QC4+), 2 x USB 5Gbps (via 1 x header), 4 x USB 2.0 (via 2 x headers)
• Chipset
  AMD TRX50
• Wireless
  Wi-Fi 7 + Bluetooth® v5.4
• Memory slots Support
  4 x DIMM slots, DDR5, ECC Registered Memory, 4 Channel Memory Architecture
• Internal I/O Connectors
  1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x W_PUMP+ header, 4 x 4-pin Chassis Fan headers, 2 x 4-pin VRM Fan header (with VRM FAN onboard), 2 x 24-pin Main Power connectors, 2 x 8-pin +12V Power connectors, 2 x 8-pin PCIe to CPU power connectors, 1 x 6-pin PCIe Power connector, 1 x 8-pin PCIe Power connector, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x SlimSAS port, 1 x USB 20Gbps Connector (Supports USB Type-C®), 2 x USB 5Gbps (via 1 x header), 4 x USB 2.0 (via 2 x headers), 1 x BMC header, 1 x COM Port header, 1 x USB4 header, 1 x FlexKey button, 1 x Front panel audio header (F_AUDIO), 1 x Start button, 1 x Safe boot button, 1 x ReTry button, 1 x LN2 mode jumper, 1 x Slow mode switch, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header, 1 x Chassis intrusion header, 1 x Thermal Sensor header
• Expansion Slots
  2 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot(x8 mode), 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot(x4 mode), Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  N/A
• Sound
  Realtek ALC1220P Surround Sound High Definition Audio CODEC, Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Form Factor
  CEB, 12 inch x 11 inch
• Warranty
  1 Year Warranty
