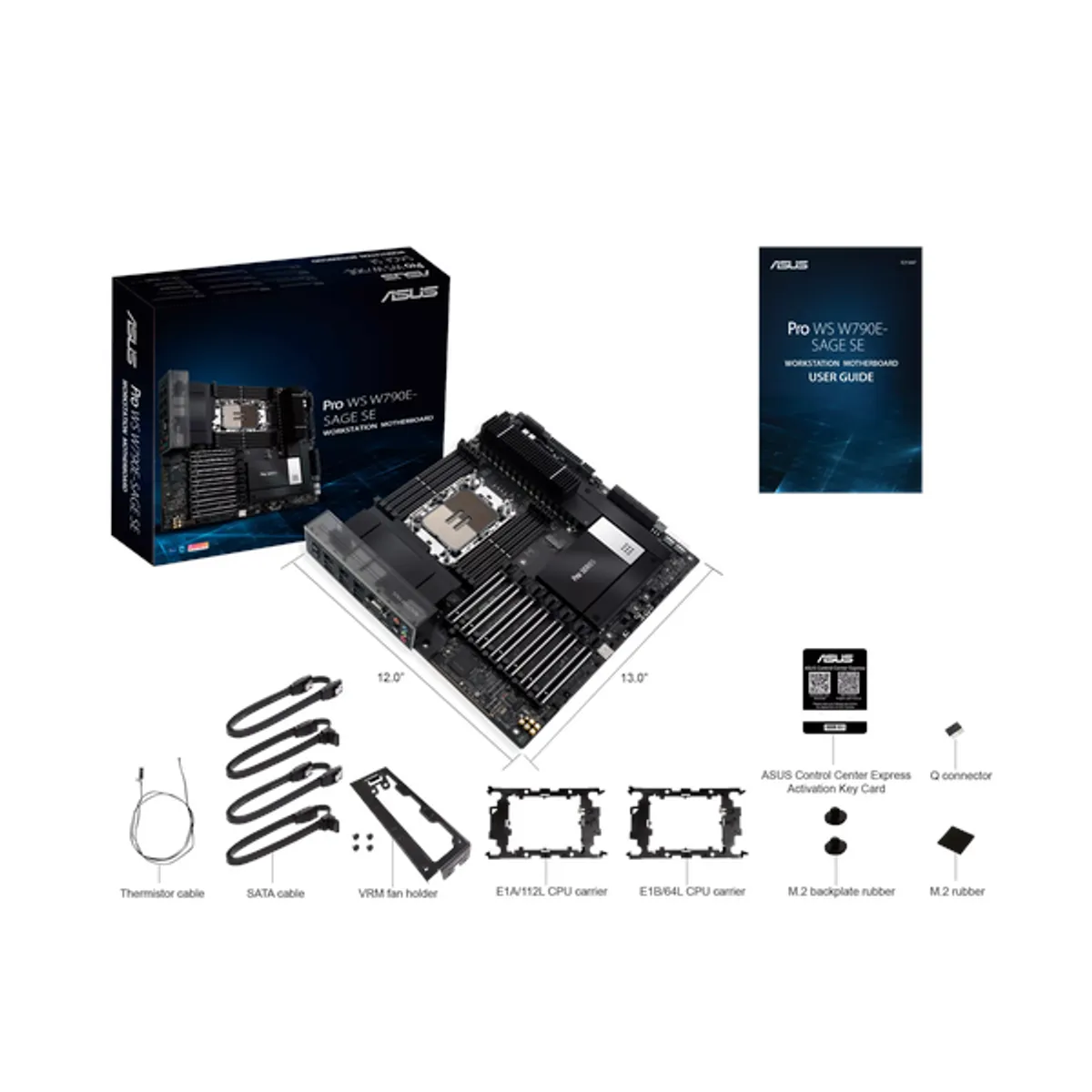

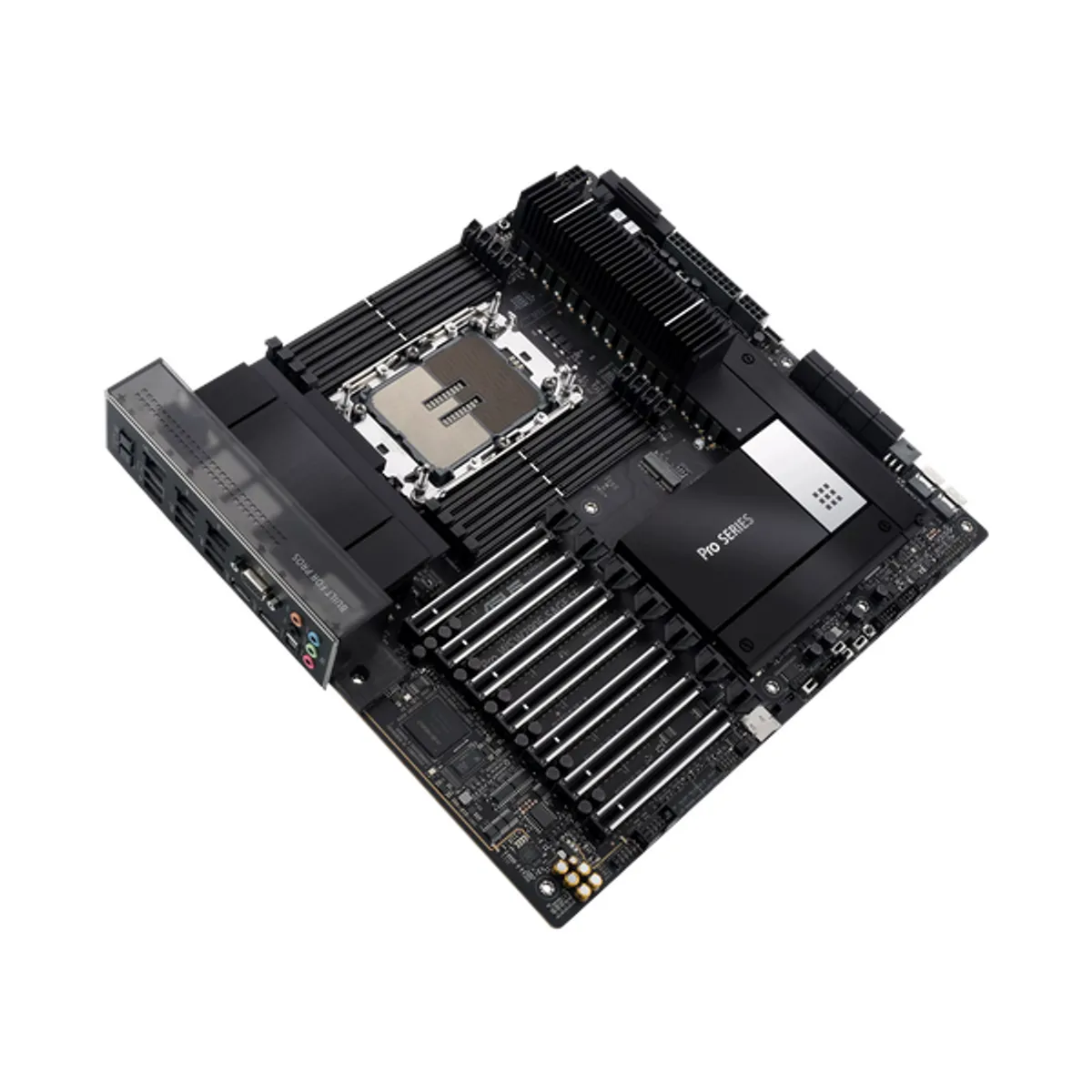

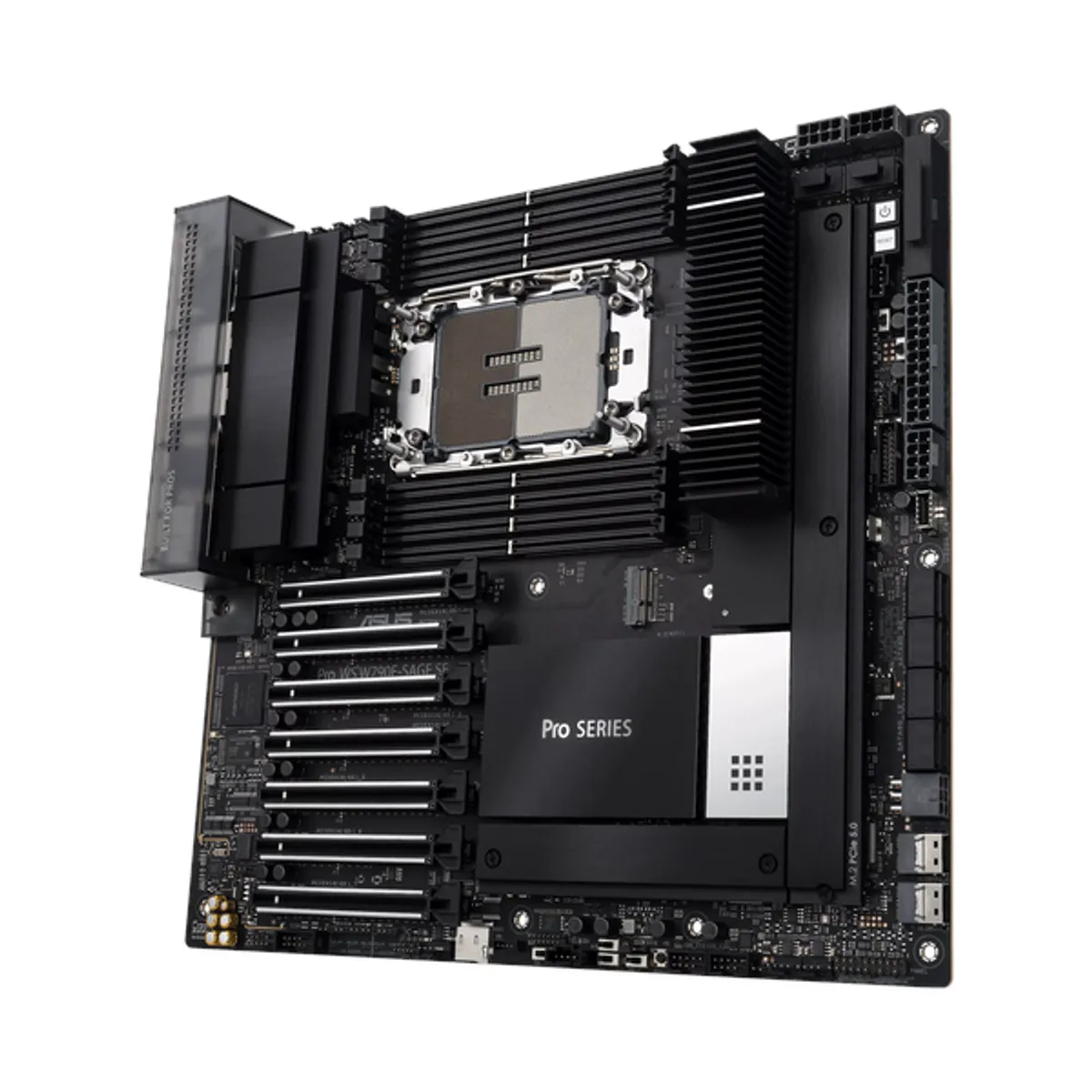

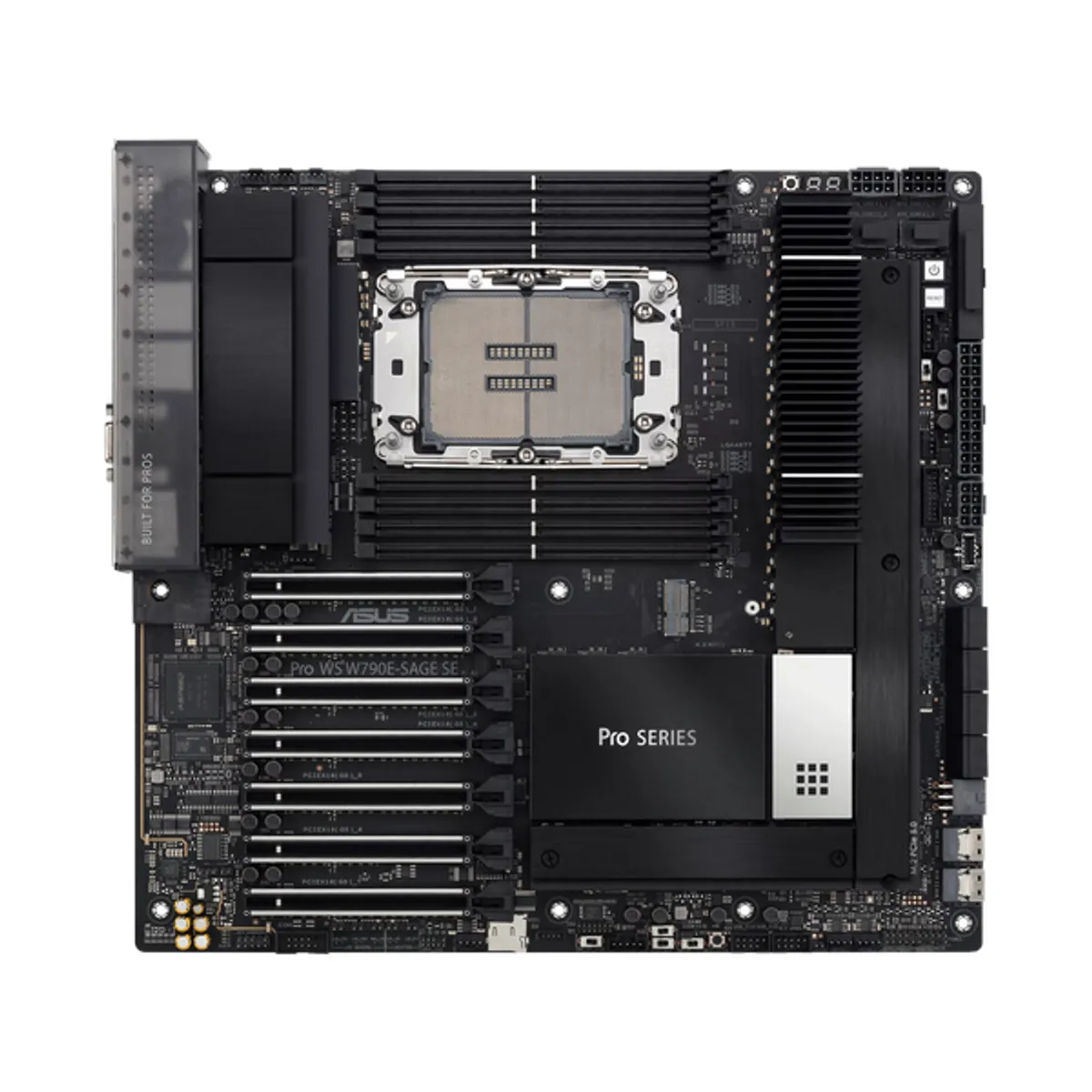

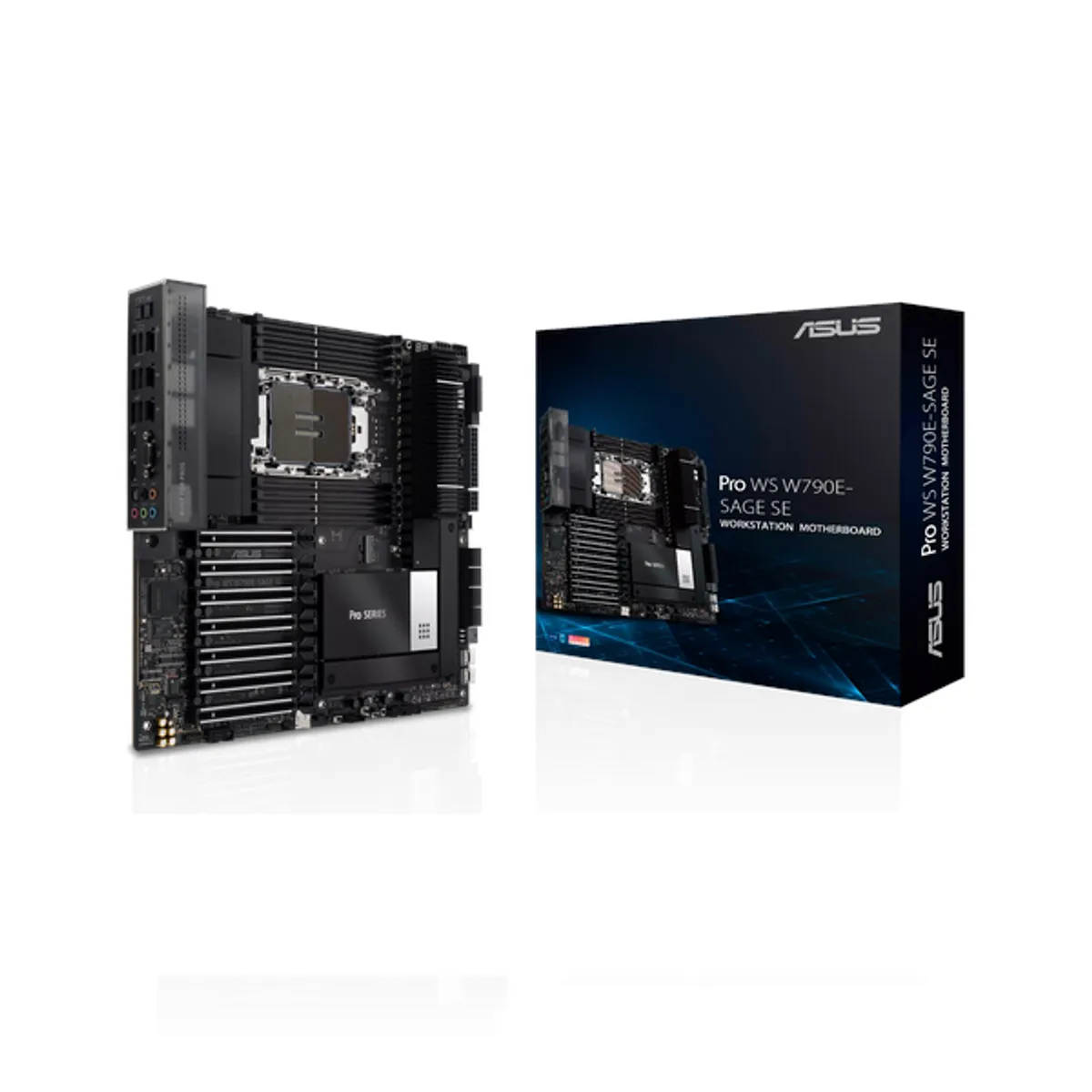

Asus Pro WS W790E-SAGE SE Workstation Motherboard, LGA 4677 Socket, EEB Form Factor, DDR5 Max: 2048GB Ram, PCIe 5.0 With SafeSlot Core+, USB 3.2 Gen 2, Intel Dual 10Gb + Realtek 1Gb Ethernet With Asus LANGuard, Asus 5X Protection III, 1 Year Warranty | 90MB1C20-M0EAY0

• CPU
  Socket: LGA 4677, Support Xeon® W-3400 and W-2400 Series Processors
• Ethernet
  1 x Intel® dual 10Gb Ethernet, 1 x Realtek 1Gb Ethernet, ASUS LANGuard
• USB

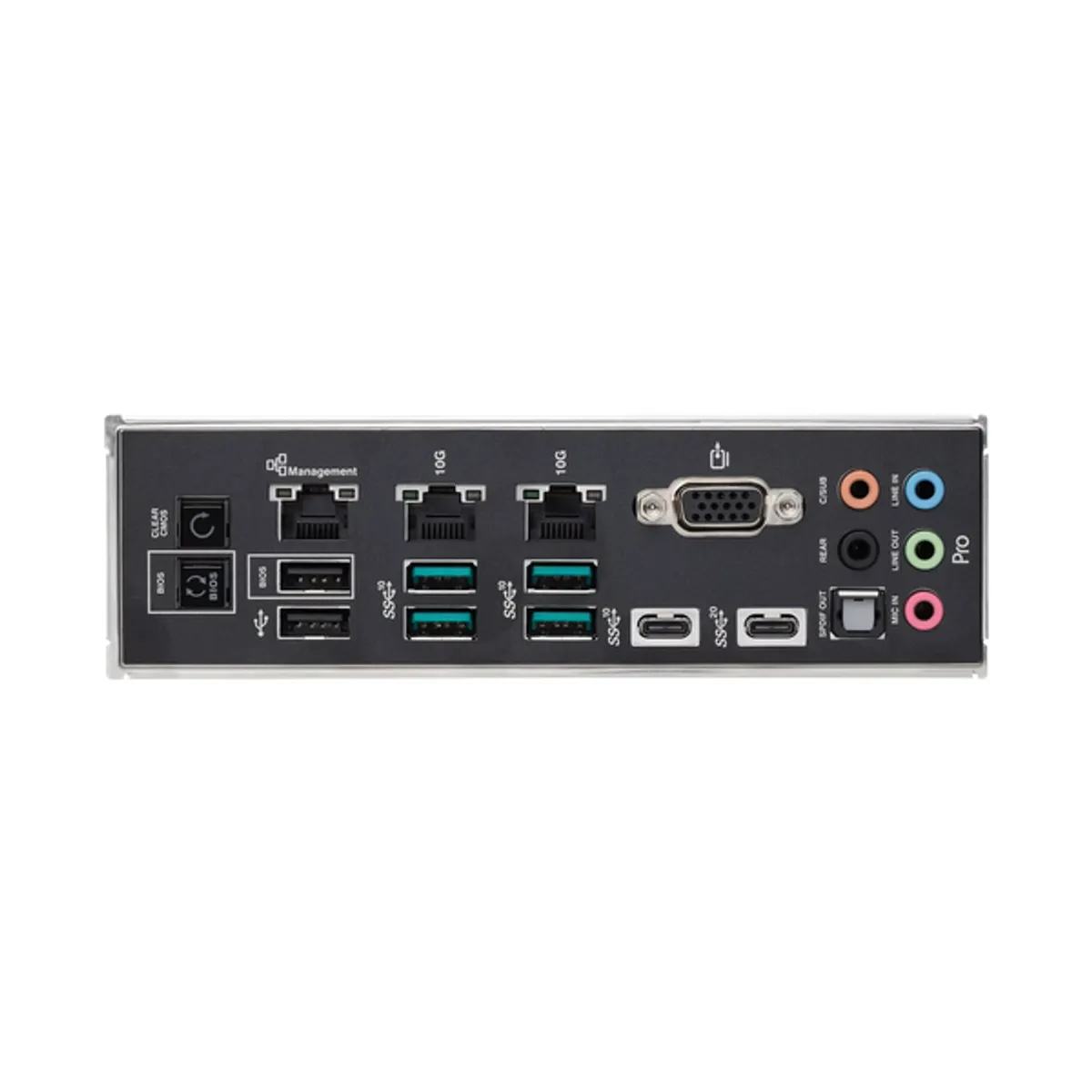

  Rear: 1 x USB 3.2 Gen 2x2 Type-C, 4 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 2.0 Type-A, Front: 1 x USB 3.2 Gen 2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header (supports 2 x USB 3.2 Gen 1), 2 x USB 2.0 headers (support 4 x USB 2.0)
• Chipset
  Intel® W790 Chipset
• Wireless
  N/A
• Memory slots Support
  8 x DIMM slots, Max. 2048GB, DDR5, 8-Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (4-pin), 4 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V, Storage: 3 x M.2 (Key M), 6 x SATA 6Gb/s, Misc: 3 x Addressable Gen2, 1 x Aura RGB, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM, 1 x Front Audio (F_AUDIO), 1 x S/PDIF Out, 1 x SPI TPM (14-1 pin), 1 x System Panel (10-1 pin), 1 x Thunderbolt (USB4) header
• Expansion Slots
  Expansion Slots: 7 x PCIe 5.0 slot(s) (at x16/x16/x16/x16/x16/x8/x16), 4 x PCIe 5.0 slot(s) (at x16/x16/x16/x16), Storage: 3 x M.2 slots, 2 x SlimSAS slots, 8 x SATA 6Gb/s ports
• Graphics Device
  1 x VGA port from AST2600
• Sound
  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, 5 x Audio jacks
• Form Factor
  EEB, 12 x 13 in
• Warranty
  1 Year Warranty
