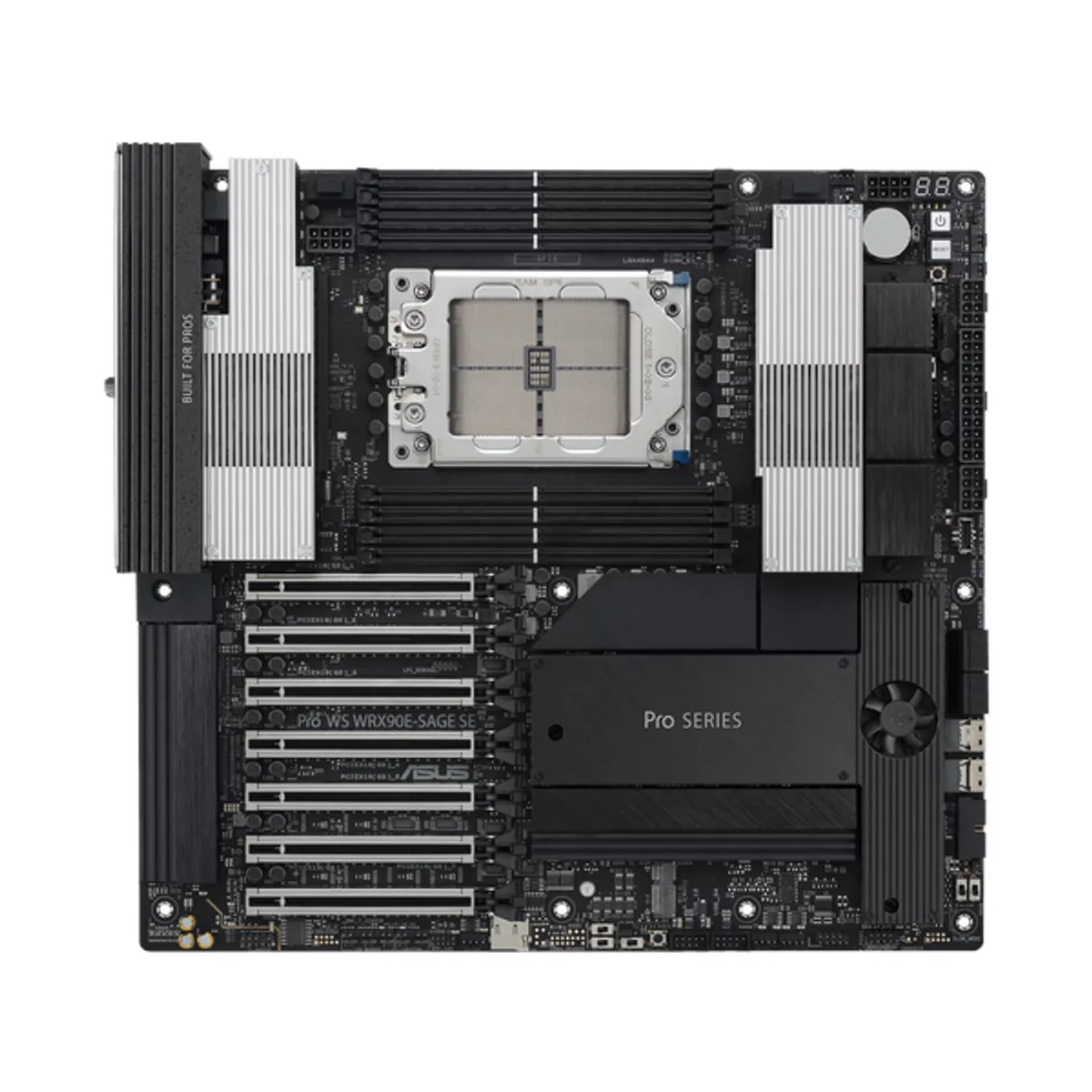

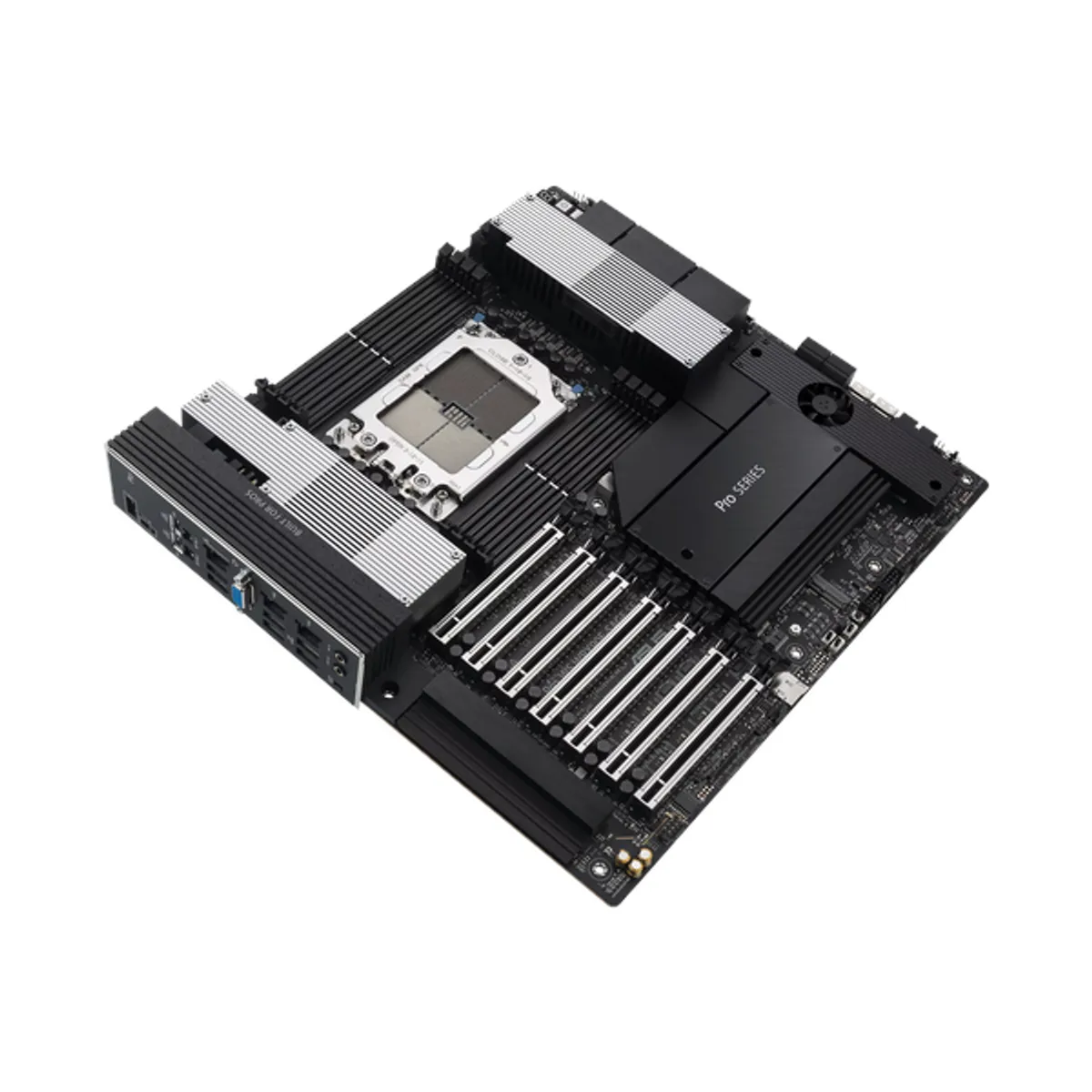

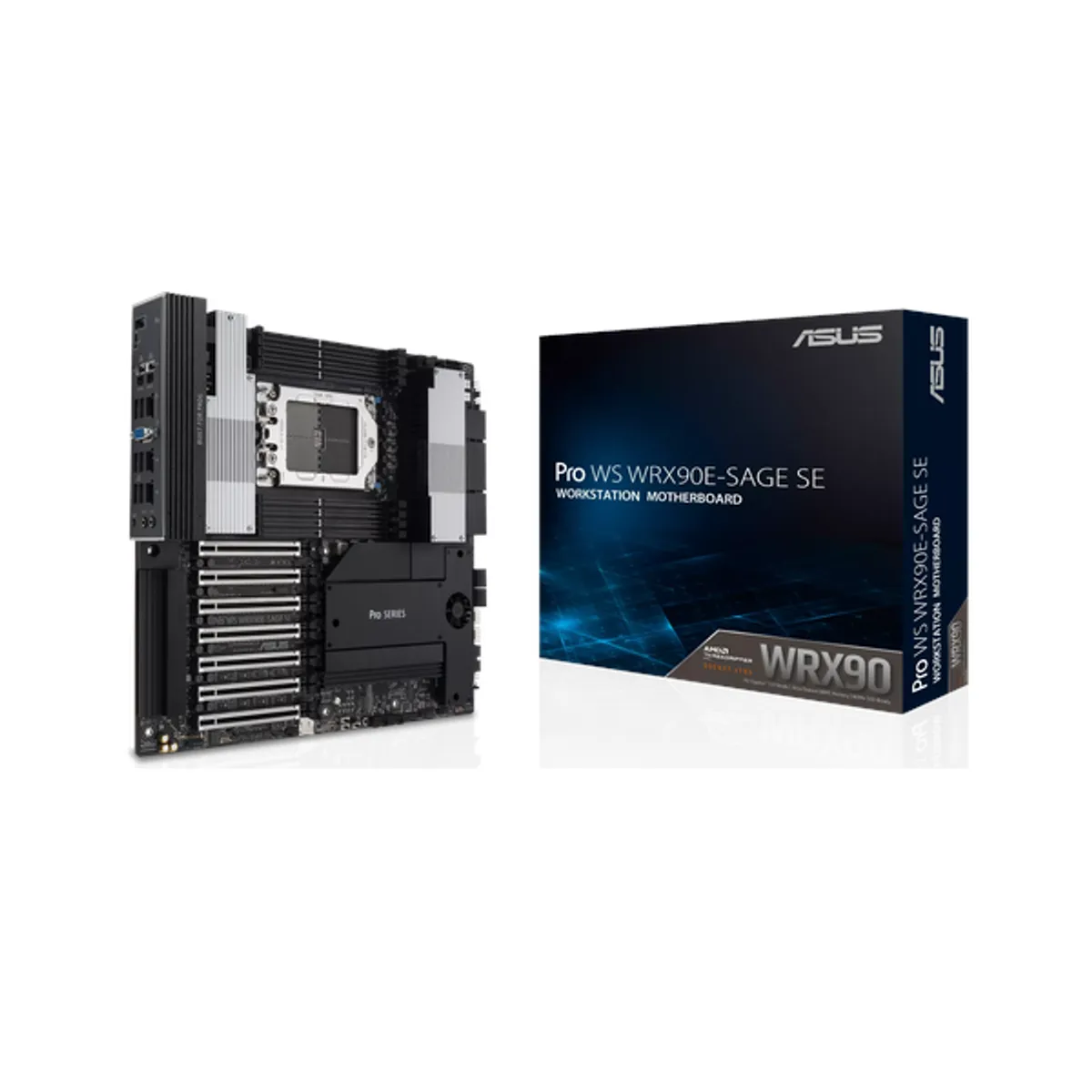

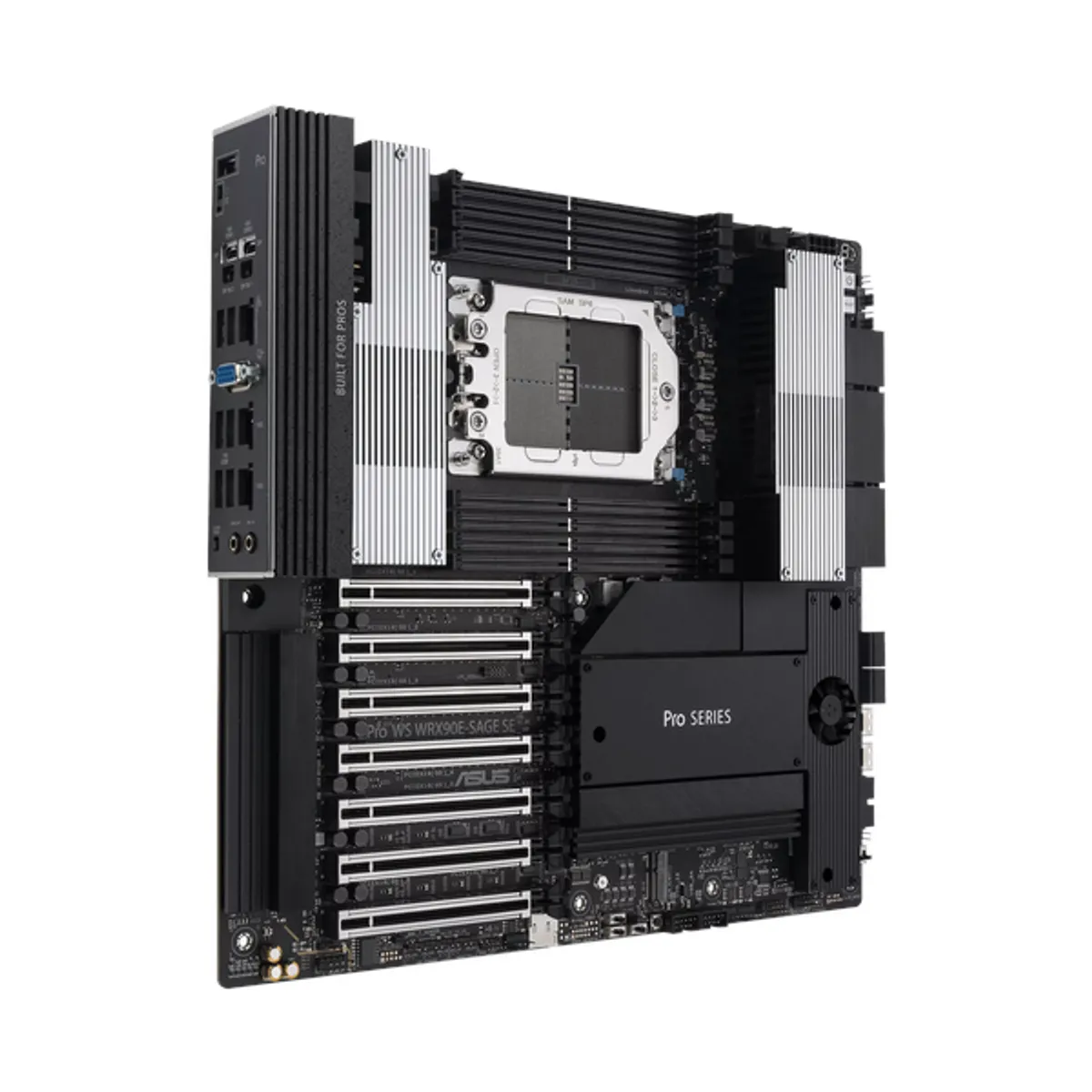

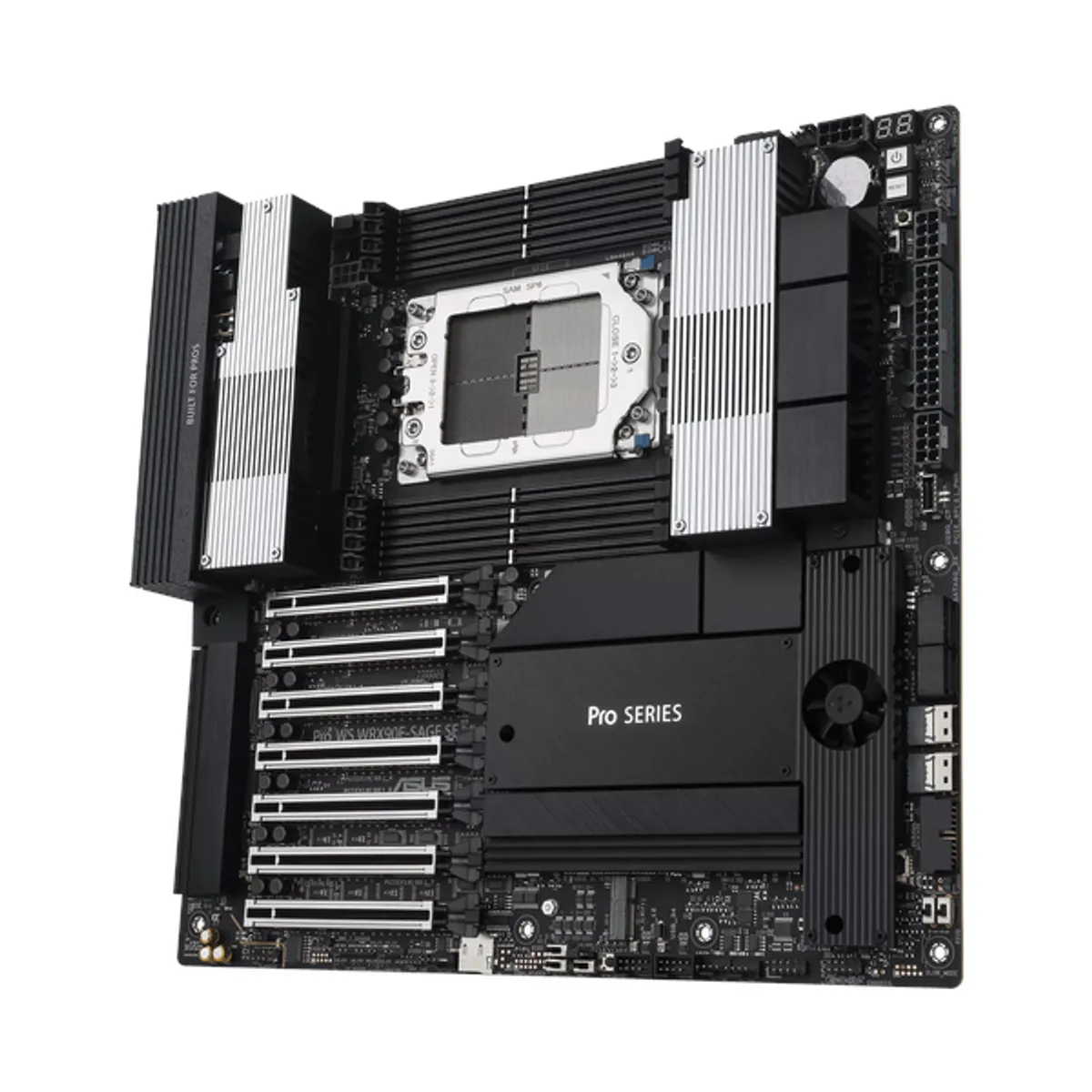

Asus Pro WS WRX90E-SAGE SE Workstation Motherboard, sTR5 Socket, EEB Form Factor, DDR5, PCIe 5.0 With SafeSlot Core+, USB4 40Gbps, Intel Dual 10Gb + Realtek 1Gb Ethernet With Asus LANGuard, Asus 5X Protection III, 1 Year Warranty | 90MB1FW0-M0EAY0

• CPU
  Socket: sTR5, Support Ryzen™ Threadripper™ PRO 7000 WX-Series
• Ethernet
  1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600), 1 x Intel® dual 10Gb Ethernet, ASUS LANGuard
• USB

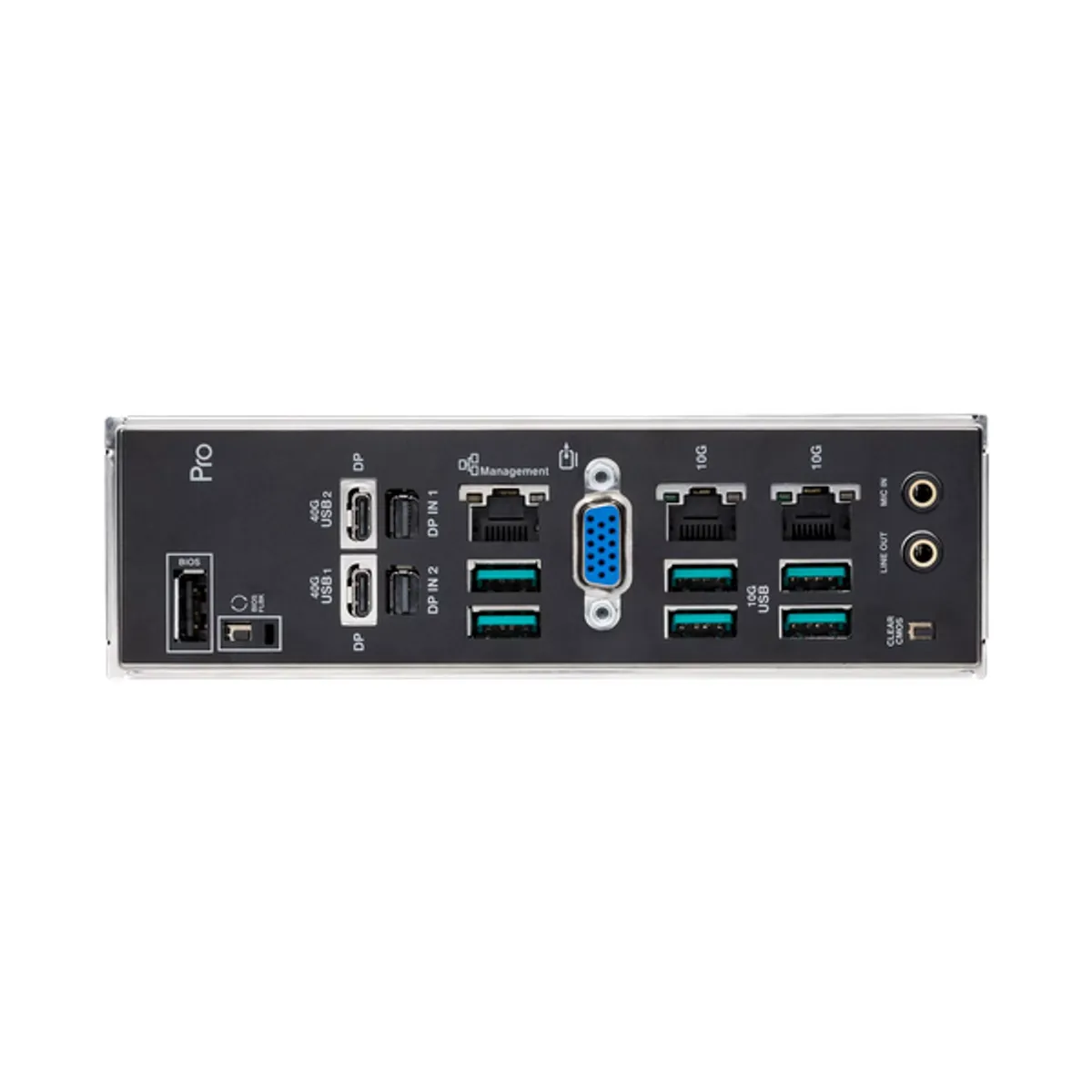

  Rear: 2 x USB4 40Gbps Type-C (via ASMedia ASM4242), 6 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A, Front: 1 x USB 20Gbps connector (supports USB Type-C), 1 x USB 5Gbps header (supports 2 x USB 5Gbps), 2 x USB 2.0 headers (support 4 x USB 2.0)
• Chipset
  AMD WRX90 Chipset
• Wireless
  N/A
• Memory slots Support
  8 x DIMM slots, DDR5, ECC Registered Memory, 8 Channel Memory Architecture
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (W_PUMP+), 5 x Chassis Fan (4-pin), 2 x VRM Fan (4-pin, with onboard fans), 1 x M.2 Fan (4-pin, with onboard fan), Power: 1 x 24-pin ATX, 2 x 8-pin 12V, 2 x 8-pin PCIe to CPU, 2 x 8-pin PCIe, Storage: 4 x M.2 (Key M), 4 x SATA 6Gb/s, 2 x SlimSAS, USB: 1 x USB 20Gbps connector (supports USB Type-C), 1 x USB 5Gbps header (supports 2 x USB 5Gbps), 2 x USB 2.0 headers (support 4 x USB 2.0), Misc: 1 x Chassis Intrusion, 1 x COM, 1 x FlexKey button, 1 x Front Audio (F_AUDIO), 1 x LN2 Mode Jumper, 1 x M.2 (Key E), 7 x ProbeIt Points, 1 x ReTry Button, 1 x RSVD Switch, 1 x Slow Mode Switch, 1 x Safe Boot Button, 1 x SPI TPM (14-1 pin), 1 x Start Button, 1 x System Panel (10-1 pin), 1 x Thermal Sensor
• Expansion Slots
  Expansion Slots: 6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot (x8 mode), Storage: 4 x M.2 slots, 2 x SlimSAS slots, 4 x SATA 6Gb/s ports
• Graphics Device
  N/A
• Sound
  Realtek ALC1220P Surround Sound High Definition Audio CODEC, 2 x Audio jacks
• Form Factor
  EEB, 12 x 13 in
• Warranty
  1 Year Warranty
