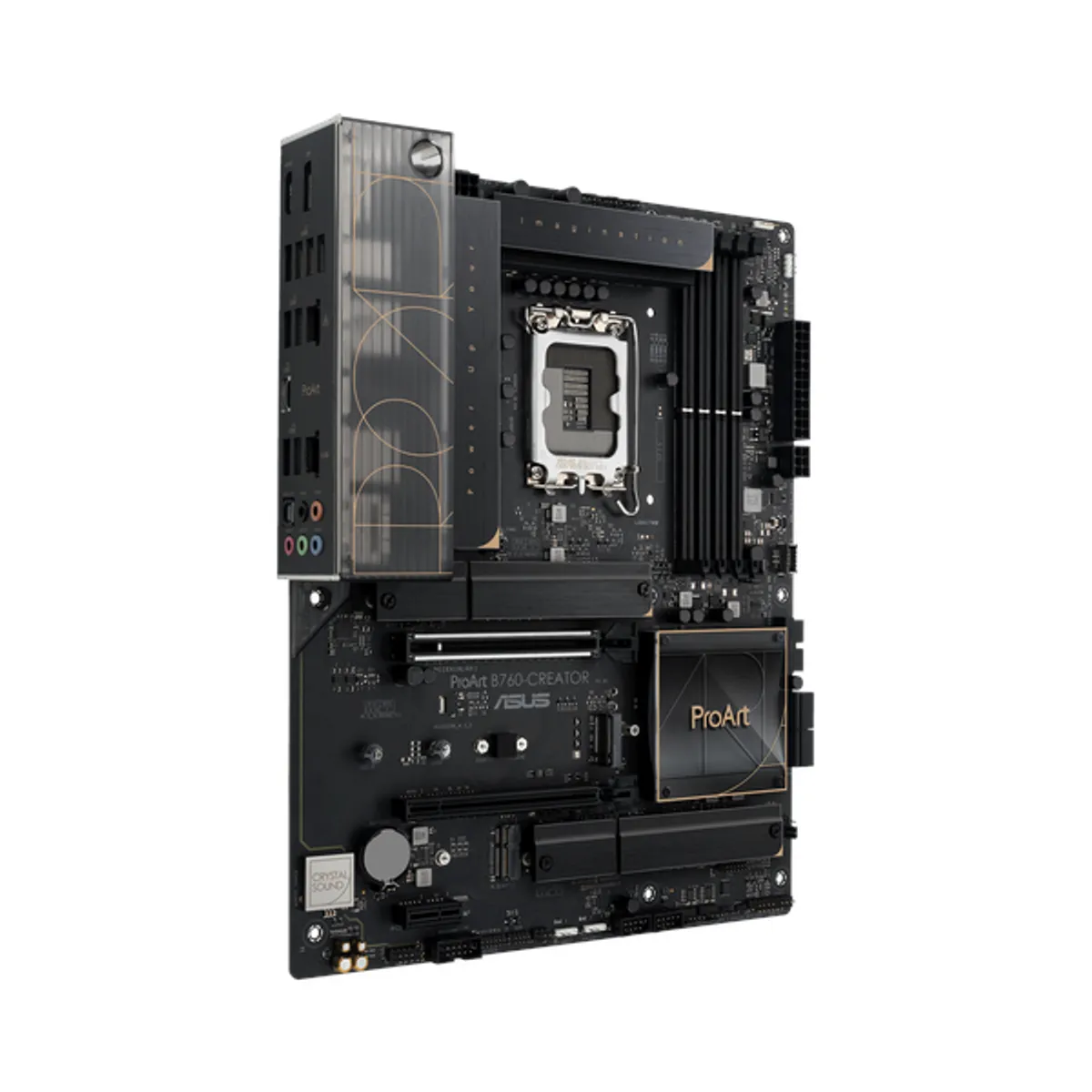

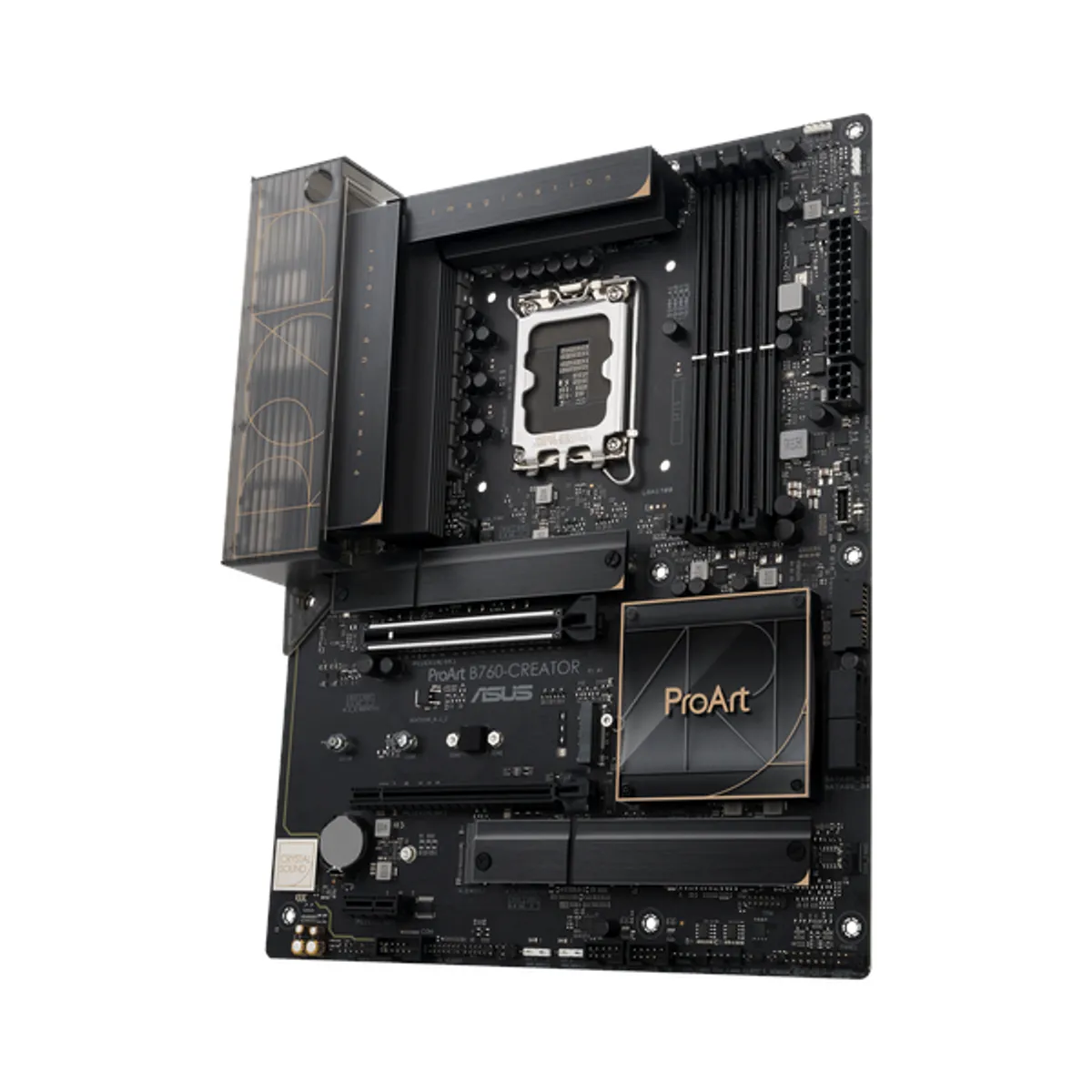

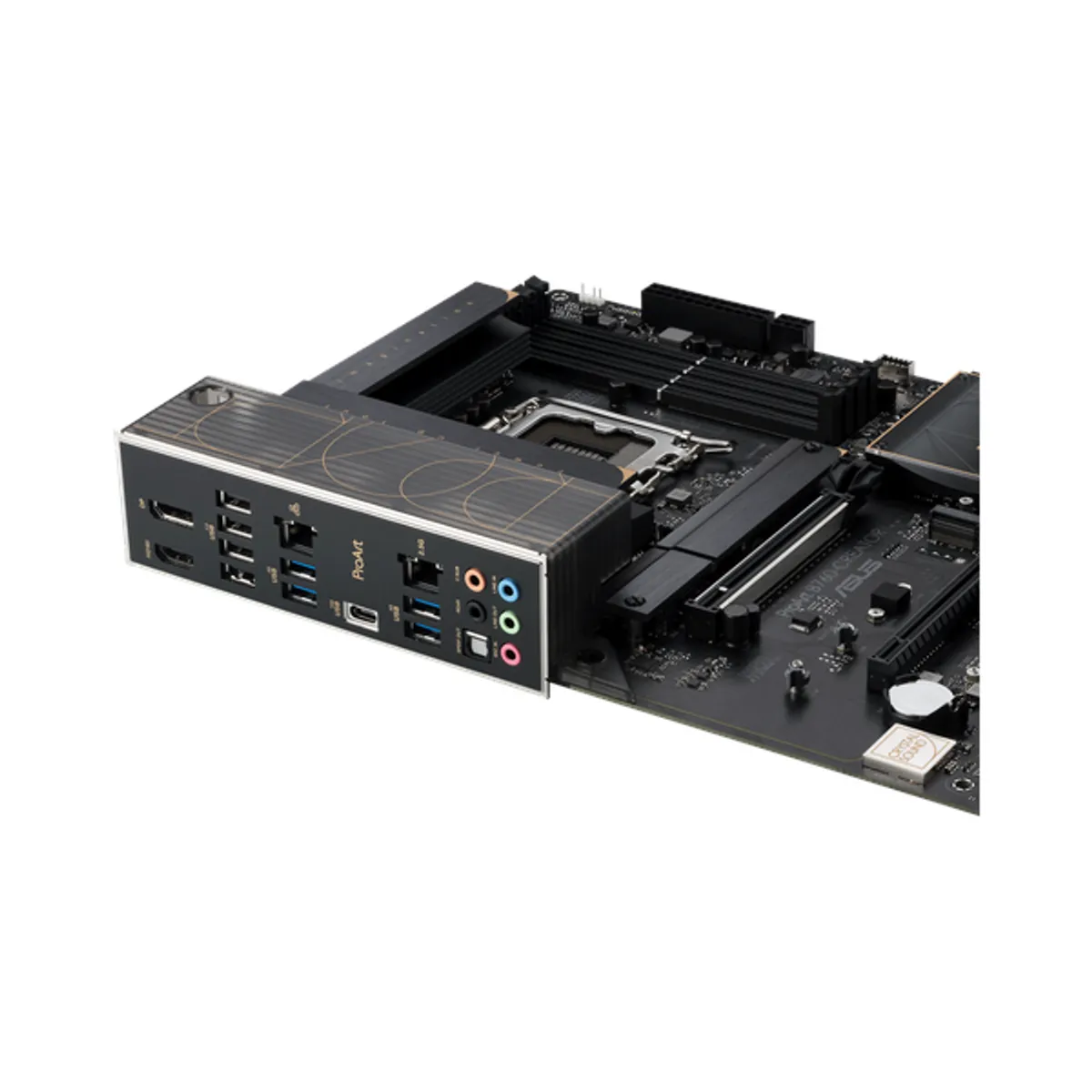

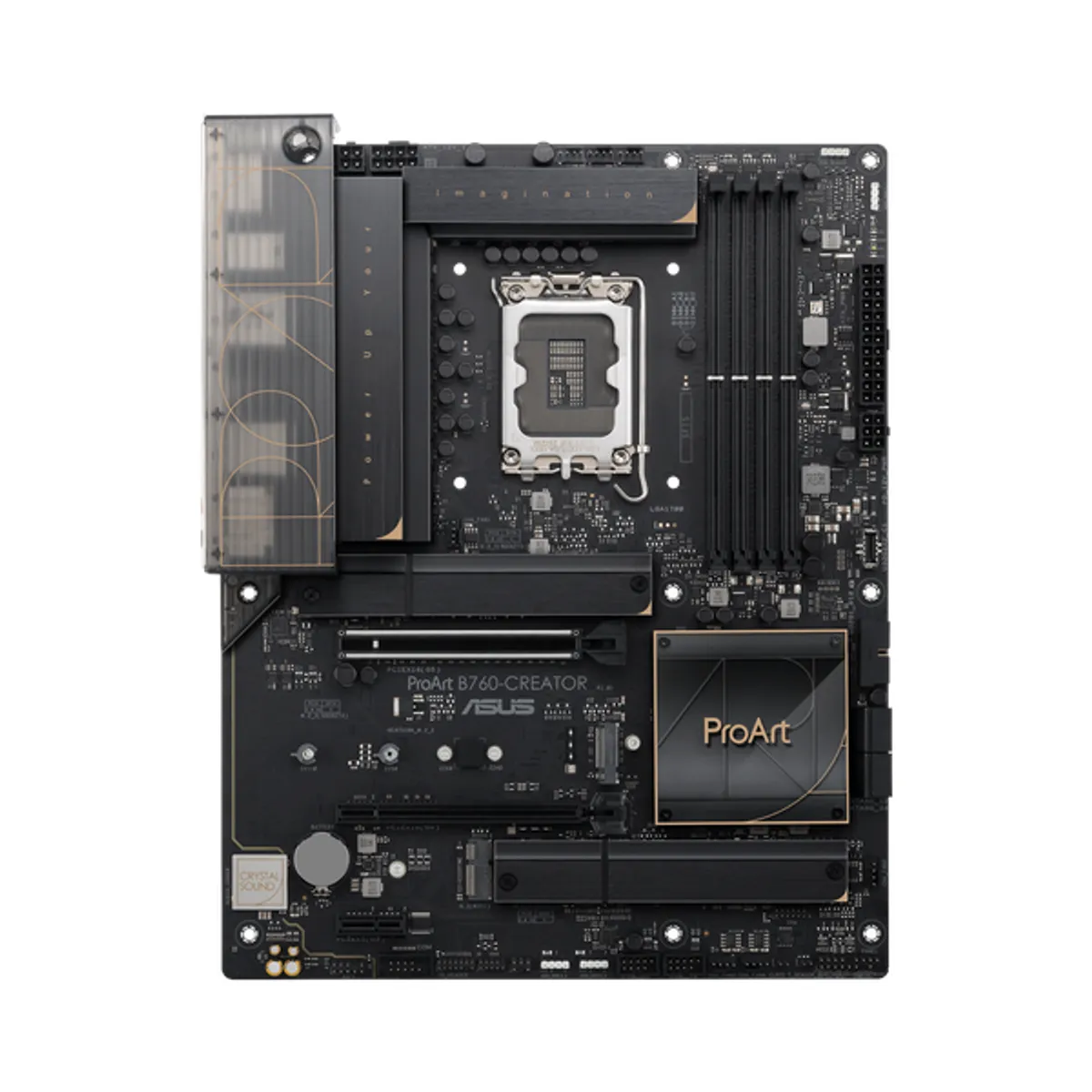

Asus ProArt B760-CREATOR Motherboard, LGA 1700 Socket, ATX Form Factor, DDR5 Ram, PCIe 5.0 With SafeSlot Core+, USB 20Gbps, HDMI, DisplayPort, Realtek 2.5Gb/Intel 1Gb Ethernet With Asus LANGuard, Aura Sync, 1 Year Warranty | 90MB1F20-M0EAY0

• CPU
  Socket: LGA 1700, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Ethernet
  1 x Realtek 2.5Gb Ethernet, 1 x Intel® 1Gb Ethernet, ASUS LANGuard

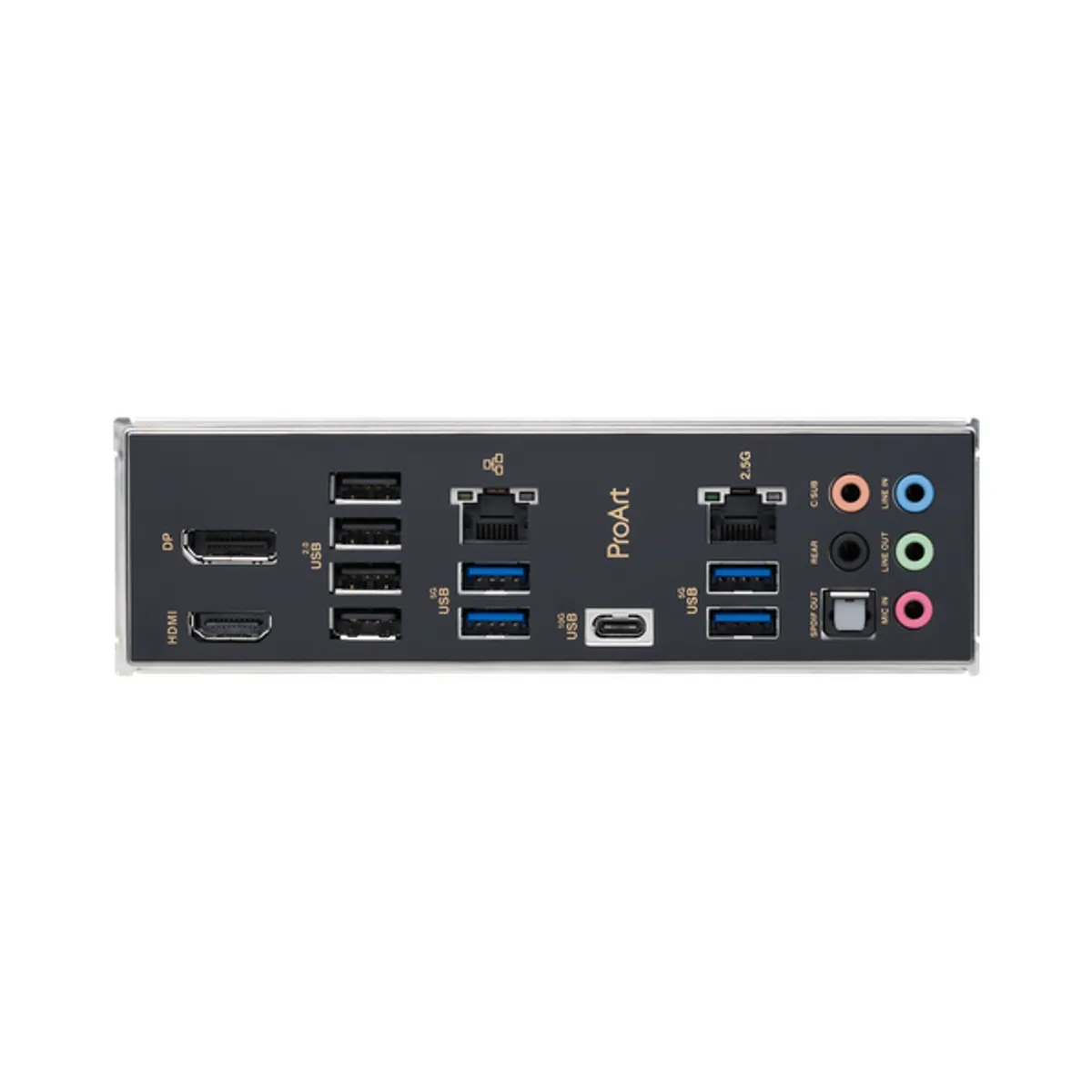

• USB
  Rear: 1 x USB 10Gbps Type-C, 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, Front: 1 x USB 20Gbps Type-C (supports 60W PD/QC4+), 1 x USB 5Gbps header (supports 2 x USB 5Gbps), 2 x USB 2.0 headers (support 4 x USB 2.0)
• Chipset
  Intel® B760 Chipset
• Wireless
  N/A
• Memory slots Support
  4 x DIMM, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (4-pin), 4 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V, 1 x 6-pin PD_12V, Storage: 3 x M.2 (Key M), 4 x SATA 6Gb/s, USB: 1 x USB 3.2 Gen 2x2 Type-C (20Gbps, supports 60W PD/QC4+), 1 x USB 3.2 Gen 1 header (supports 2 x USB 3.2 Gen 1), 2 x USB 2.0 headers (support 4 x USB 2.0), Misc: 3 x Addressable Gen 2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM, 1 x Front Audio (AAFP), 1 x M.2 (Key E), 1 x SPI TPM (14-1 pin), 1 x System Panel (20-5 pin), 1 x Thermal Sensor, 1 x Thunderbolt header
• Expansion Slots
  Expansion Slots: 1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot, Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x DisplayPort 1.4, 1 x HDMI™ 2.1
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC, 5 x Audio jacks
• Form Factor
  ATX, 12 x 9.6 in
• Warranty
  1 Year Warranty
