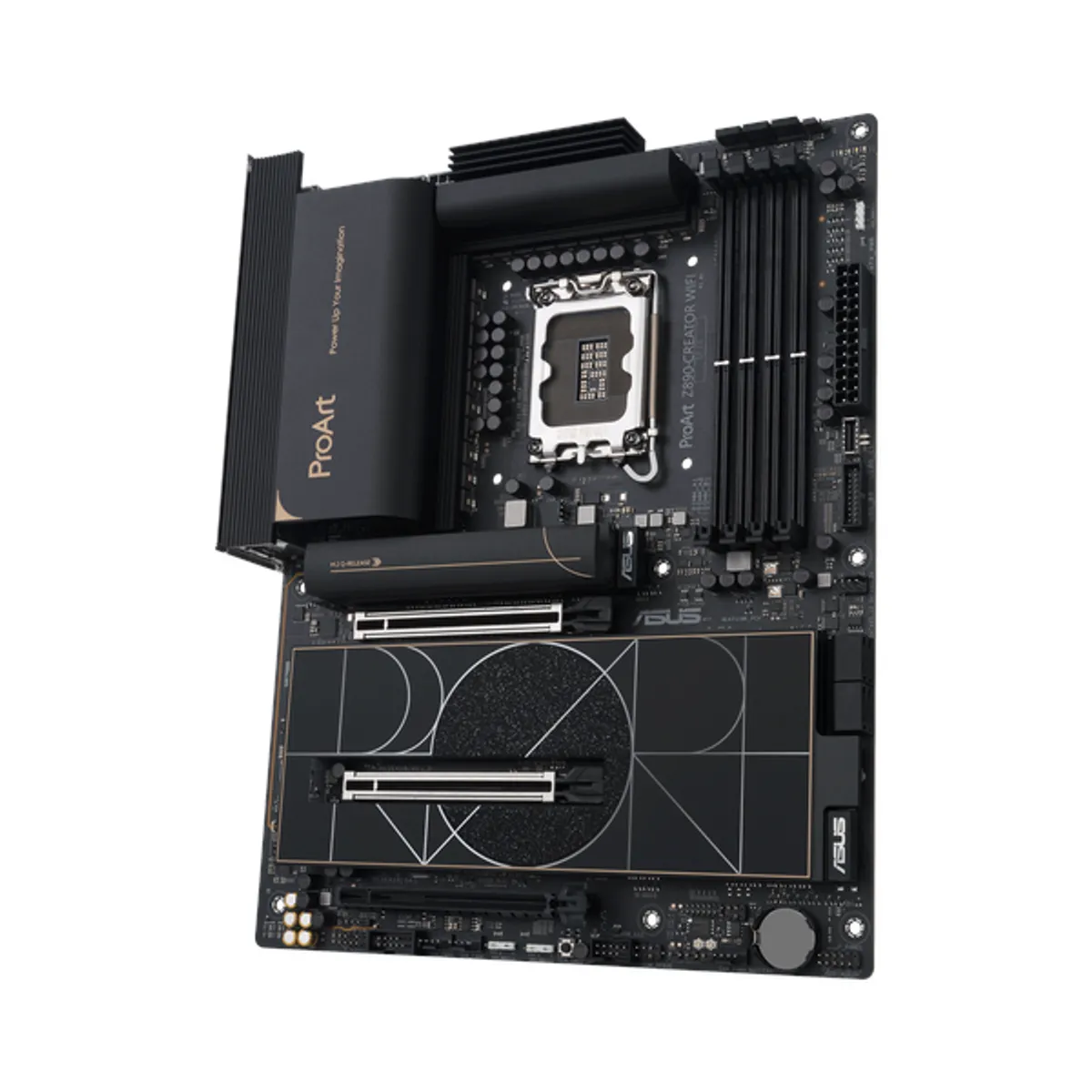

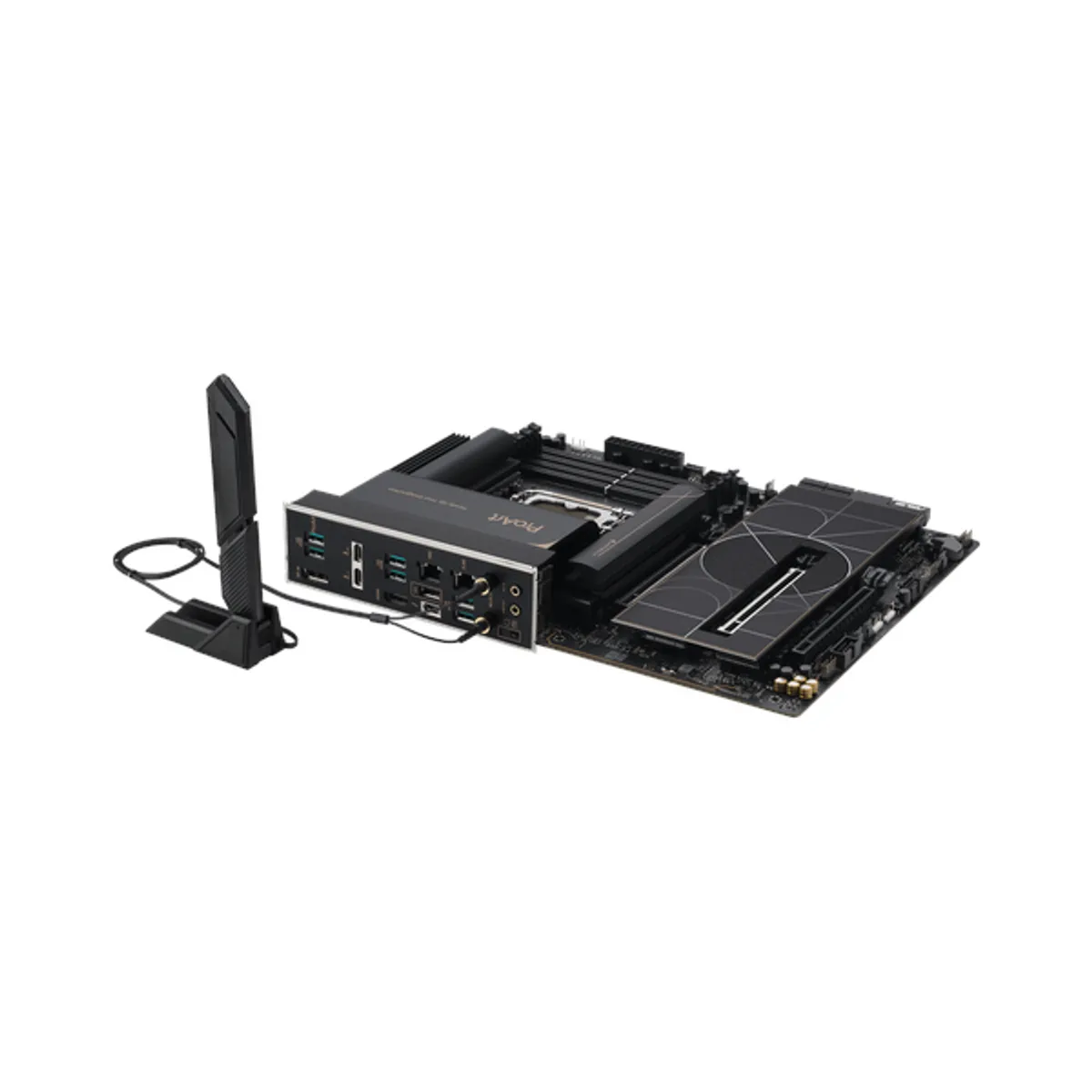

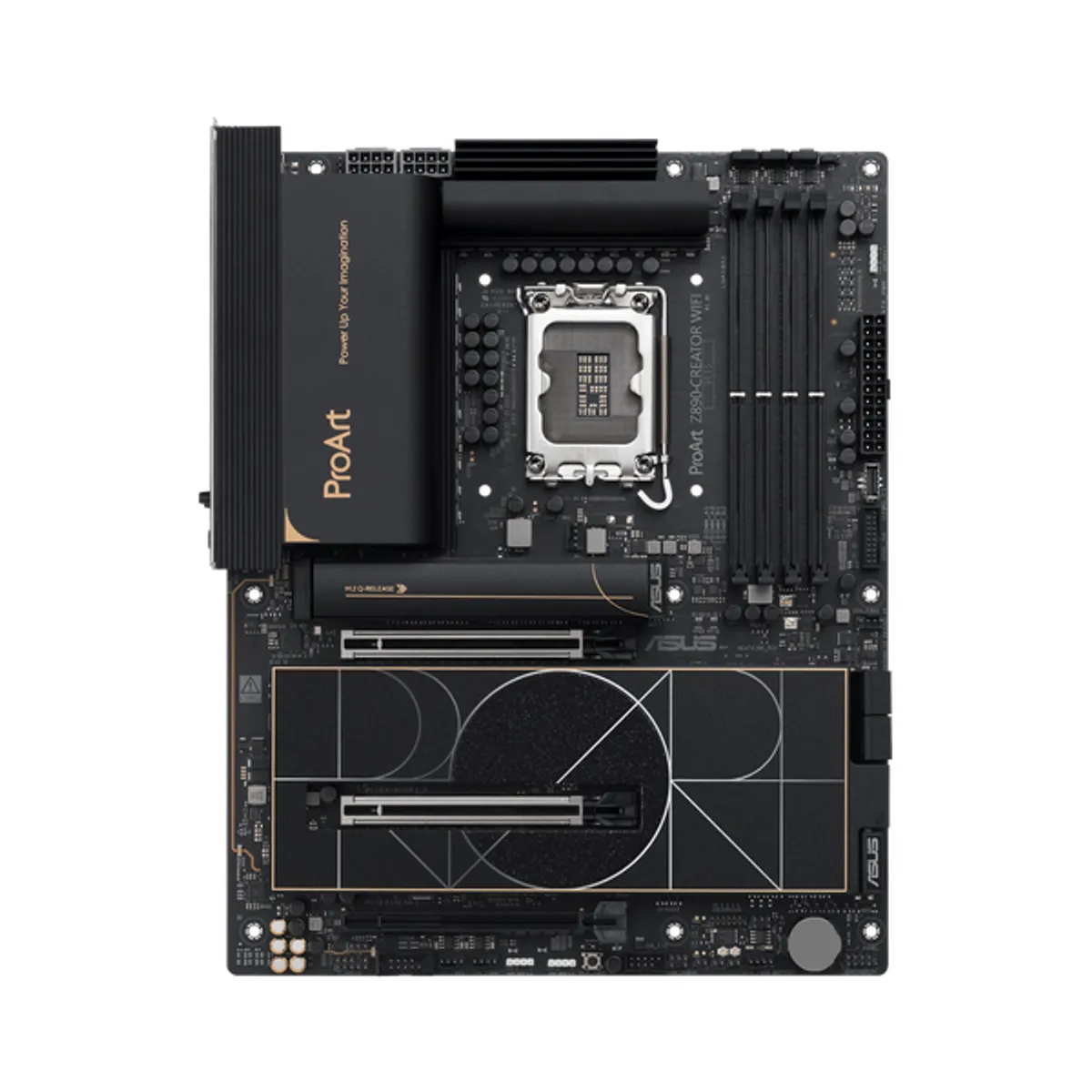

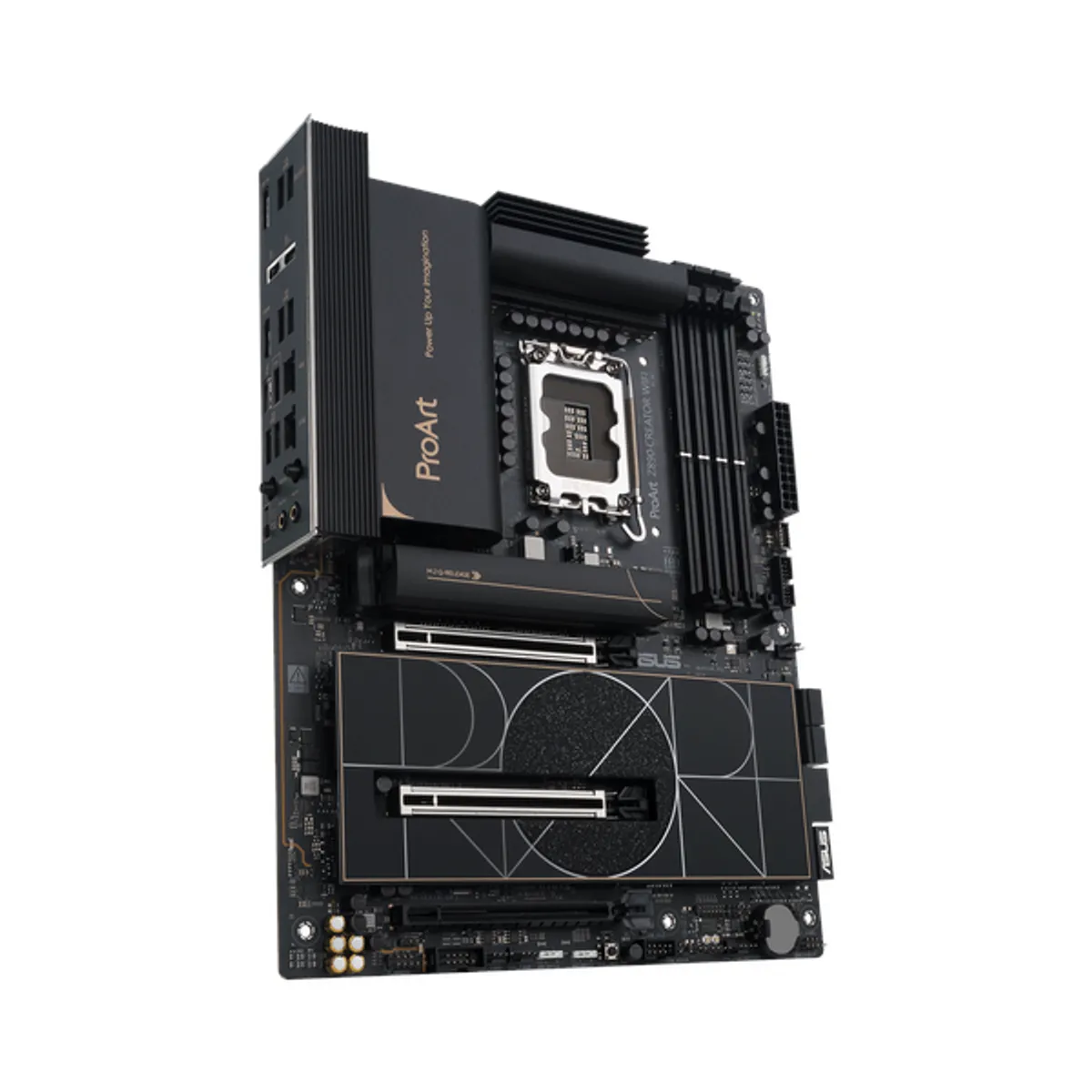

Asus ProArt Z890-CREATOR WiFi Motherboard, LGA 1851 Socket, ATX Form Factor, DDR5 Ram, PCIe 5.0 With SafeSlot Core+, Wi-Fi 7 & Bluetooth v5.4, USB 40Gbps, HDMI, Thunderbolt5, Marvell AQtion 10Gb/Intel 2.5Gb Ethernet With Asus LANGuard, Aura Sync, 1 Year Warranty | 90MB1JD0-M0EAY0

• CPU
  Socket: LGA 1851, Support Intel® Core™ Ultra Processors (Series 2)
• Ethernet
  1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
• USB

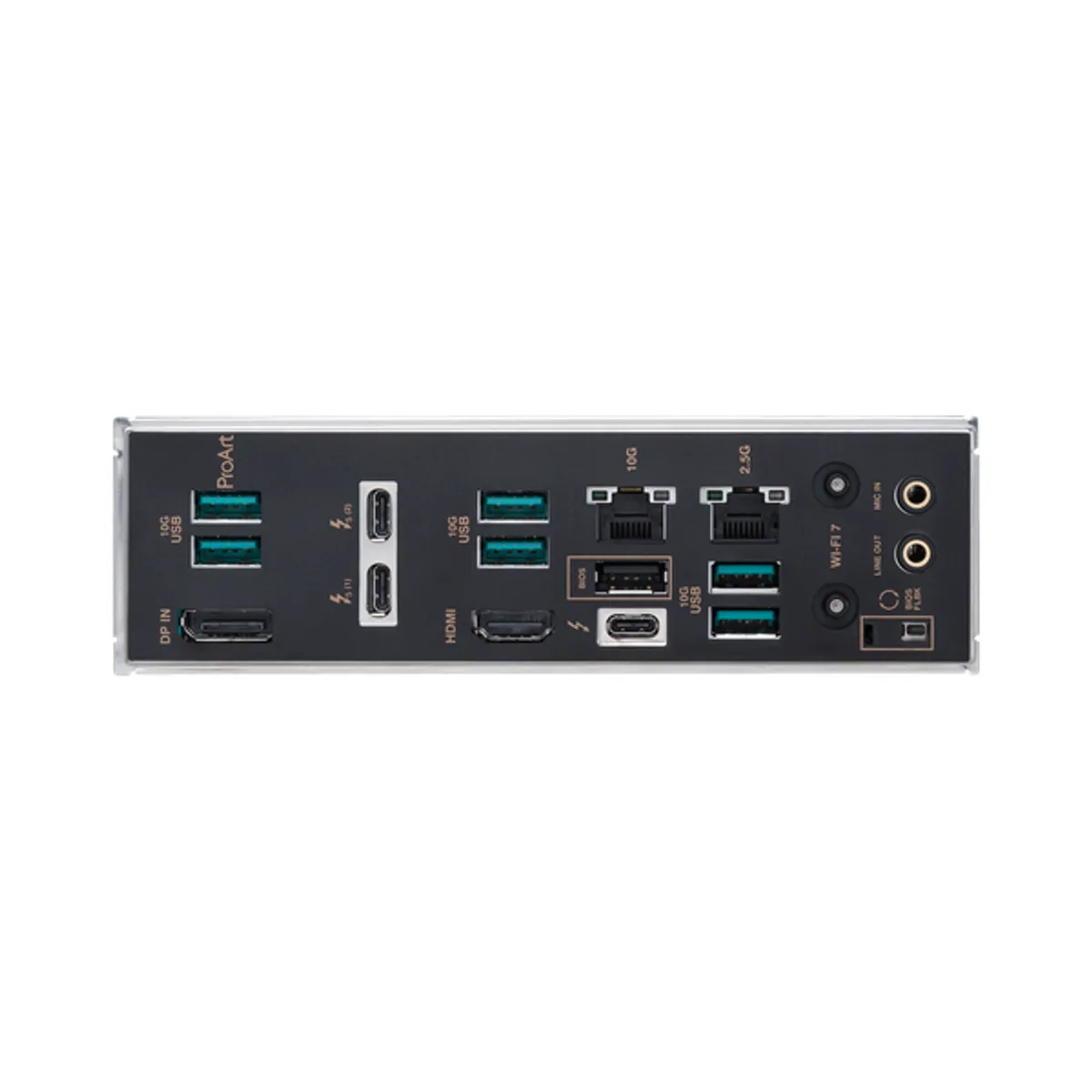

  Rear USB (Total 10 ports): 2 x Thunderbolt™ 5 (2 x USB Type-C®), 1 x USB4 / Thunderbolt™ (1 x USB Type-C®), 6 x USB 10Gbps (6 x Type-A), 1 x USB 2.0 (1 x Type-A), Front USB (Total 5 ports): 1 x USB 20Gbps (supports USB Type-C®), 1 x USB 5Gbps header (supports 2 x USB 5Gbps), 1 x USB 2.0 header (supports 2 x USB 2.0), USB Type-C® power delivery output: max. 5V/3A
• Chipset
  Intel® Z890 Chipset
• Wireless
  Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.4
• Memory slots Support
  4 x DIMM slots, max. 256GB, DDR5, Support up to 9066+MT/s (OC), Dual channel memory architecture, Supports Intel® Extreme Memory
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (4-pin), 5 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 2 x 8-pin 12V, Storage: 5 x M.2 (Key M), 4 x SATA 6Gb/s, USB: 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header (supports 2 x USB 5Gbps), 1 x USB 2.0 header (supports 2 x USB 2.0), Misc: 3 x Addressable Gen 2, 1 x Clear CMOS (button), 1 x COM, 1 x CPU Over Voltage jumper, 1 x Chassis Intrusion, 1 x Front Audio (F_AUDIO), 1 x SPI TPM (14-1 pin), 1 x System Panel (10-1 pin), 1 x Thermal Sensor
• Expansion Slots
  Expansion Slots: 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes), 1 x PCIe 4.0 x16 slot (supports x4 mode), Storage: 5 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x HDMI 2.1 port, 2 x Intel® Thunderbolt™ 5 ports
• Sound
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Form Factor
  ATX, 12 x 9.6 in
• Warranty
  1 Year Warranty
