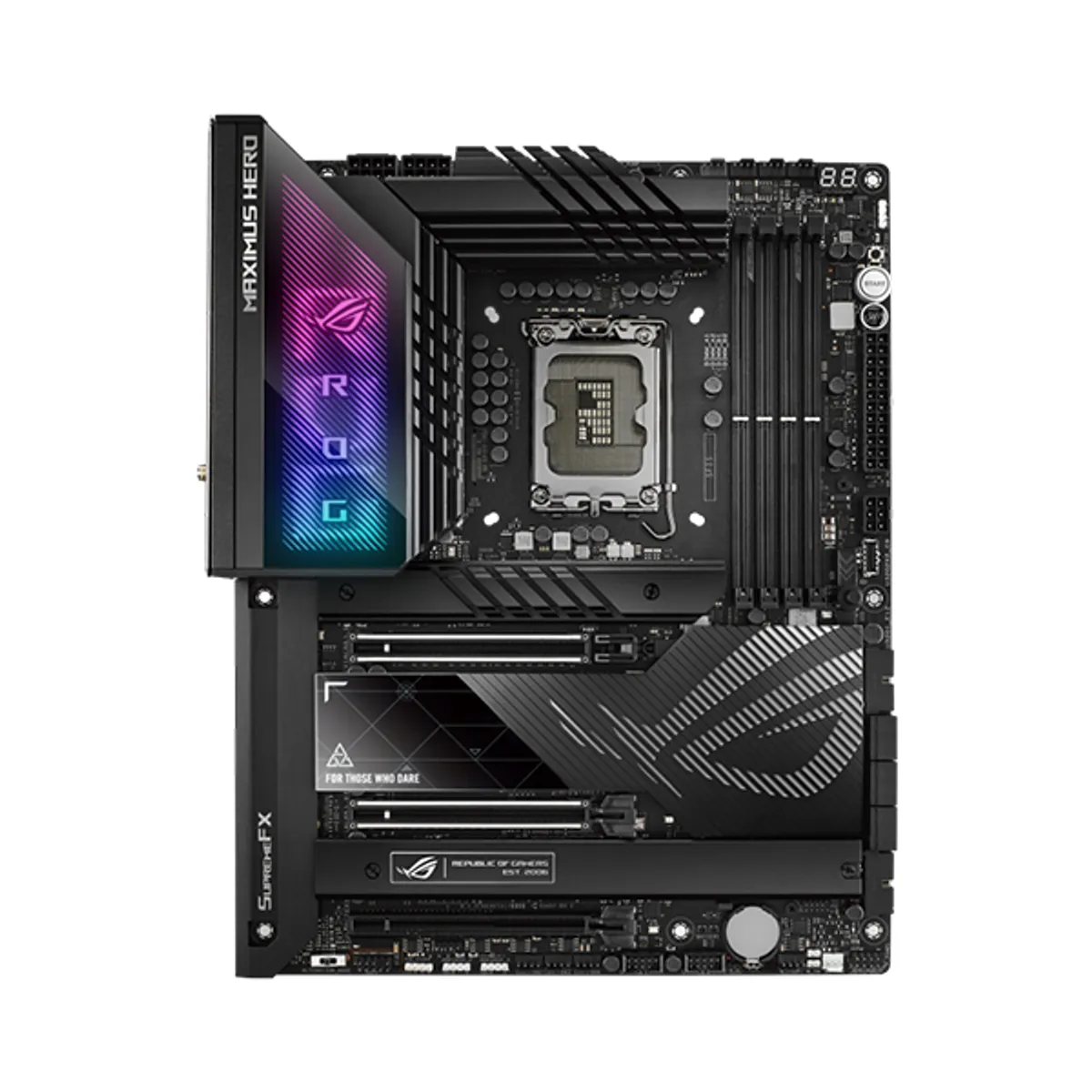

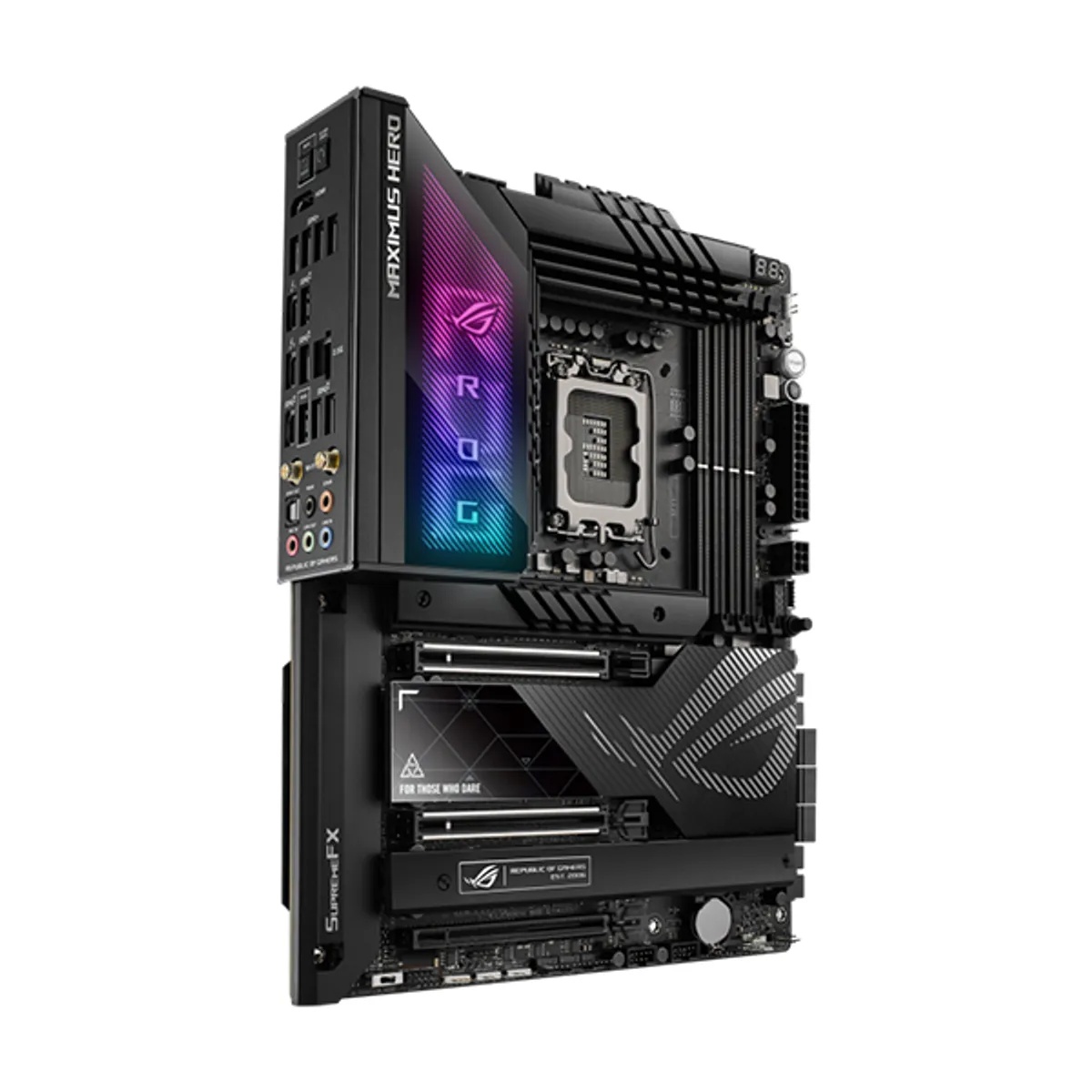

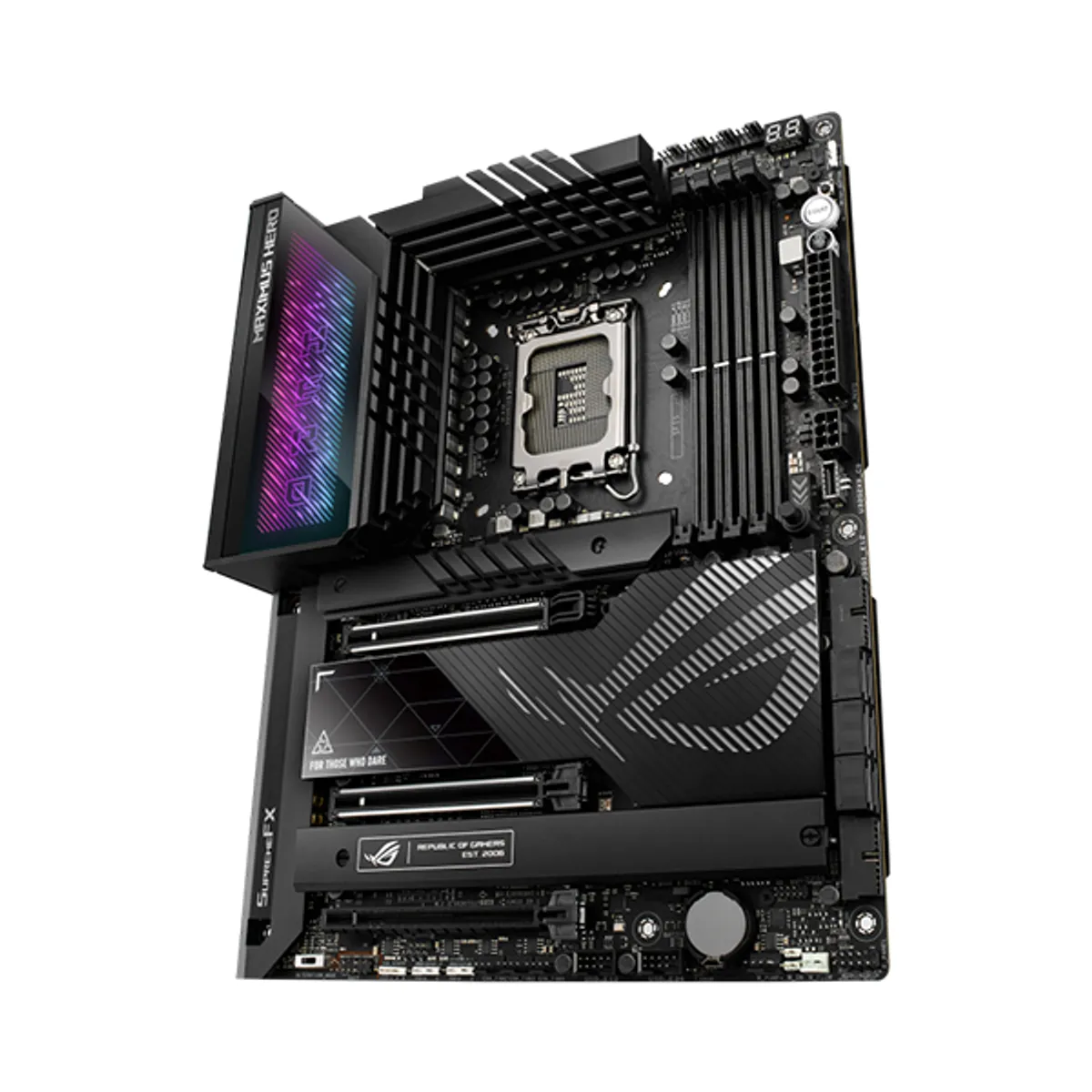

ASUS ROG MAXIMUS Z790 HERO MOTHER BOARD | 90MB1CI0-M0EAY0

• Chipset
  Intel® Z790 Chipset
• Ethernet
  1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
• Wireless
  Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band (WiFi 6E 6GHz regulatory may vary between countries.). Bluetooth® v5.3 (The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.)
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR5 7800+, (OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), (Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list./ Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function)
• Internal I/O Connectors
  Fan and Cooling related:- 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header; 1 x 2-pin Water In header; 1 x 2-pin Water Out header; 1 x 3-pin Water Flow header. Power related:- 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 1 x 6-pin PCIe Power connector. Storage related:- 3 x M.2 slots (Key M), 6 x SATA 6Gb/s ports. USB:- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®); 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous:- 3 x Addressable Gen 2 headers; 1 x AURA RGB header; 1 x FlexKey button; 1 x Front Panel Audio header (AAFP); 1 x Start button; 1 x ReTry button; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header; 1 x CPU Over Voltage jumper; 1 x Alternative PCIe Mode switch.
• Expansion Slots
  Intel® 13th & 12th Gen Processors (Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).). 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) -(When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.) Intel® Z790 Chipset, 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
• Graphics Device
  1 x HDMI® port (Support 4K@60Hz as specified in HDMI 2.1), 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs (VGA resolution support depends on processors' or graphic cards' resolution), (Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.)
• Sound
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082:- - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback". Audio Features:- - SupremeFX Shielding Technology; - ESS® ES9218 QUAD DAC; - Gold-plated audio jacks; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover
• Operating System
  Windows® 11, Windows® 10 64-bit
• Form Factor
  ATX Form Factor. 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Warranty
  2 Year Warranty
