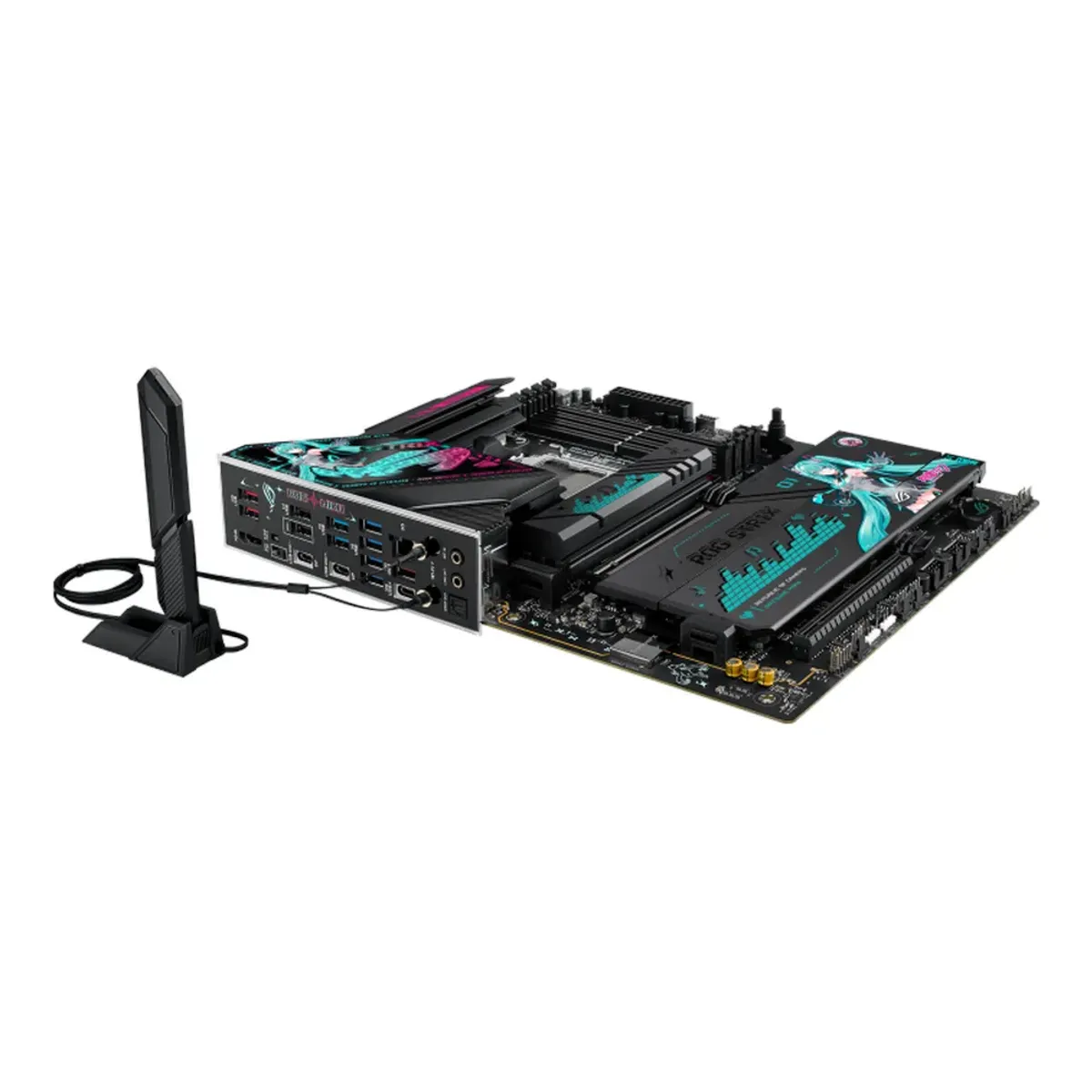

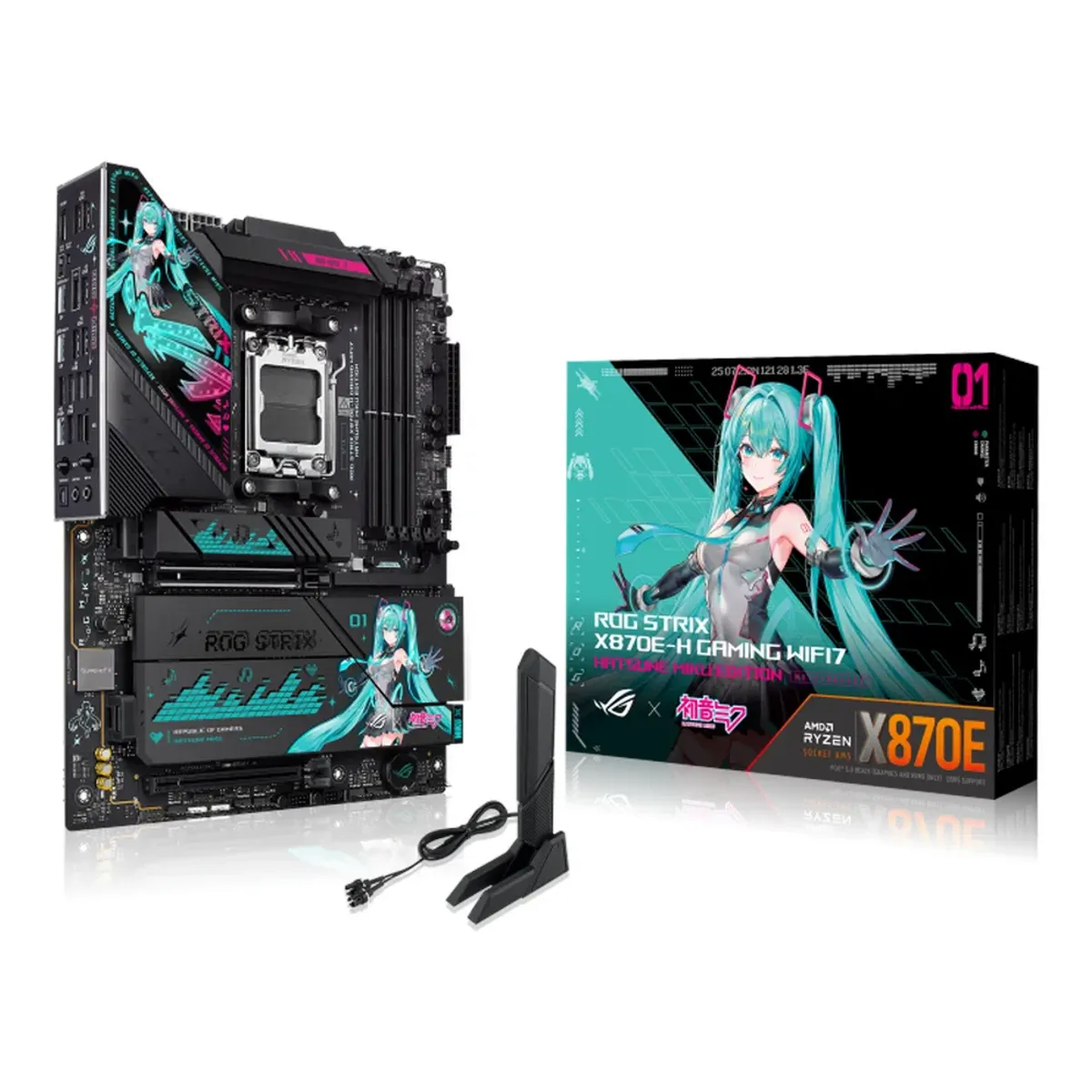

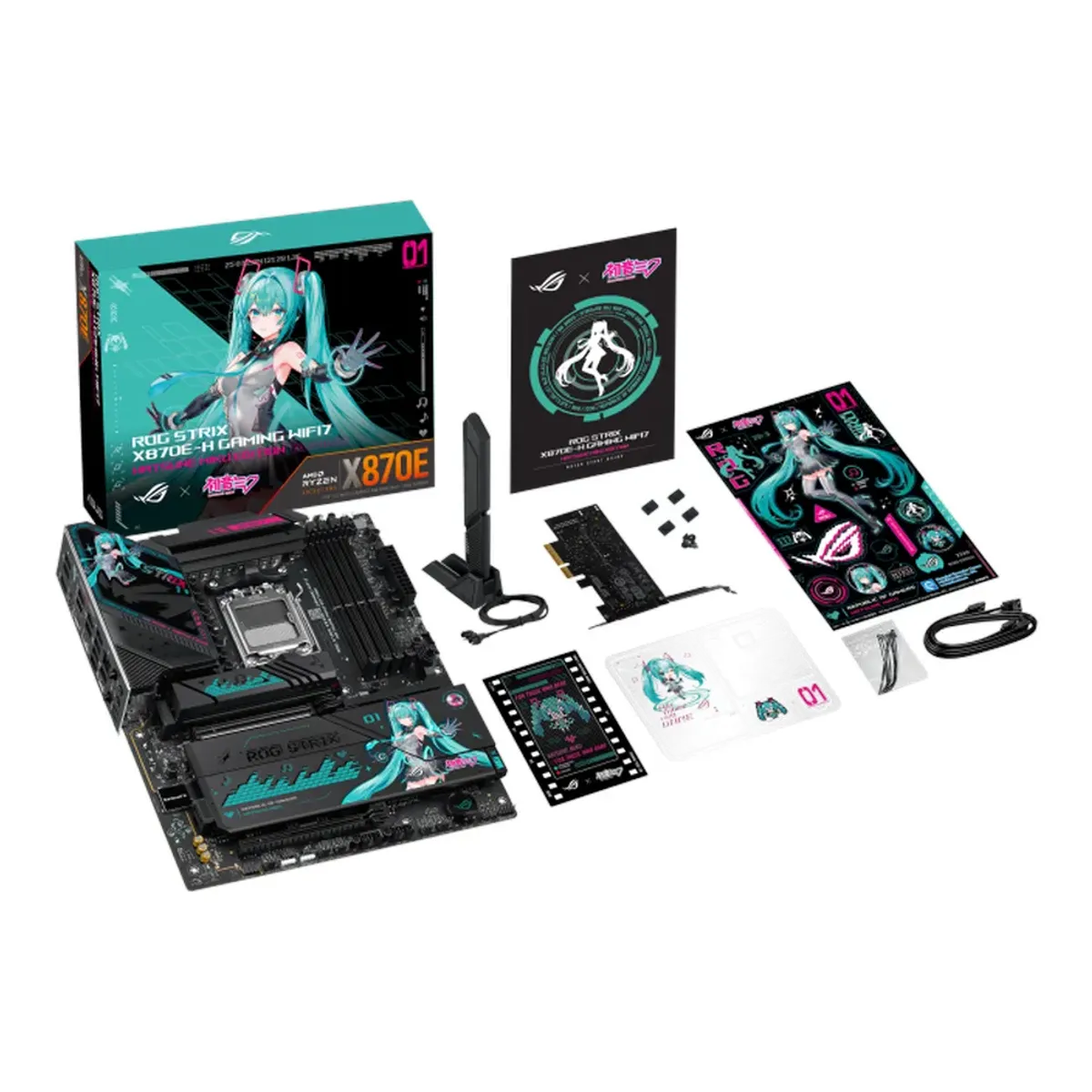

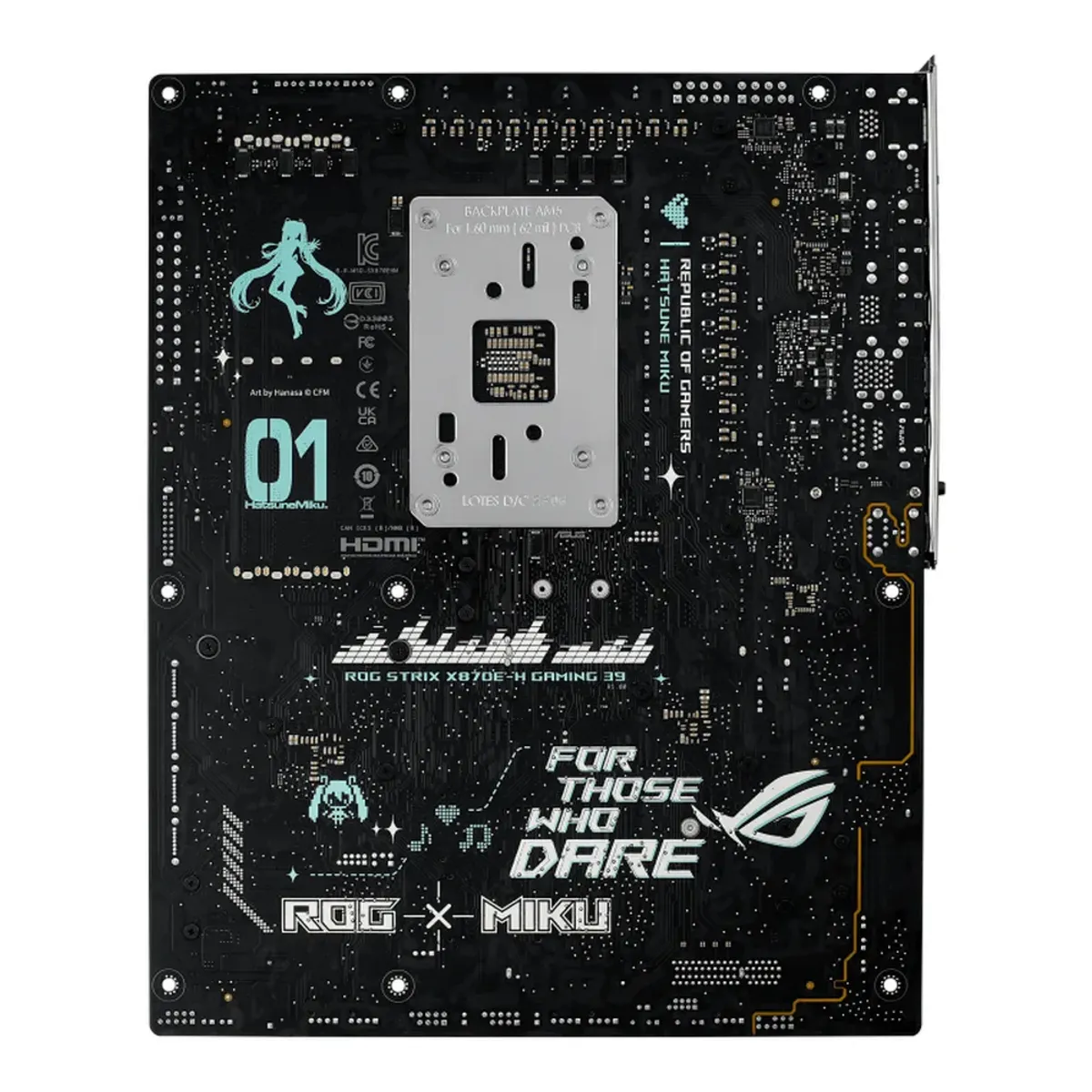

Asus ROG Strix X870E-H WIFI7 Hatsune Miku Edition Gaming Motherboard, AM5 Socket, ATX Form Factor, DDR5 Ram, PCIe 5.0, USB 40Gbps, HDMI, Thunderbolt, Realtek 5Gb Ethernet, Effortless AI Optimization, 1 Year Warranty | 90MB1MA0-M0EAY0

• CPU
  AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
• Ethernet
  1 x Realtek 5Gb Ethernet ASUS LANGuard
• USB
  2 x USB4 (40Gbps) ports (USB Type-C), 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge), 6 x USB 5Gbps ports (Type-A), 2 x USB 2.0 ports (Type-A)
• Chipset
  AMD X870E
• Wireless
  Wi-Fi 7 (MediaTek MT7925) + Bluetooth® v5.4
• Memory slots Support
  4 x DIMM slots, max. 256GB, DDR5, Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, Dual channel memory architecture
• Internal I/O Connectors

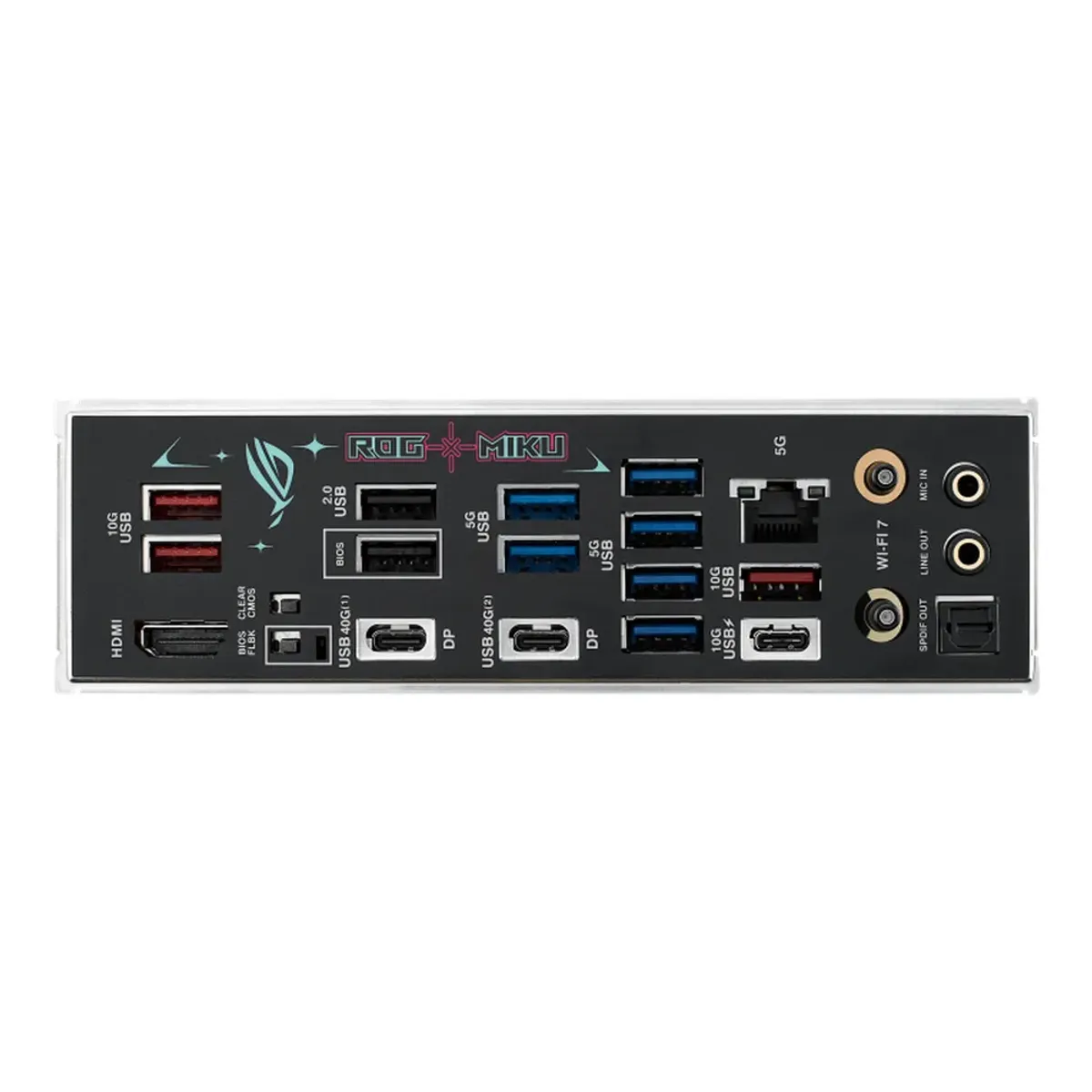

  Rear Ports: 2 x USB4 (40Gbps) ports (USB Type-C), 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge), 6 x USB 5Gbps ports (Type-A), 2 x USB 2.0 ports (Type-A), 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet, 2 x Audio Jacks, 1 x Optical S/PDIF Out Port, 1 x BIOS FlashBack Button, 1 x Clear CMOS Button, Front Ports: 1 x USB 20Gbps connector (supports USB Type-C), 2 x USB 5Gbps ports (via 1 x 5Gbps header), 4 x USB 2.0 ports (via 2 x 2.0 headers), Fan and Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, Storage: 4 x M.2 slots (Key M) , 4 x SATA 6Gb/s ports, USB: 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Chassis Intrusion header, 1 x CPU Over voltage jumper, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin Front Panel System header, 1 x Thermal Sensor header
• Expansion Slots
  Expansion Slots: 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode), Storage: 4 x M.2 slots, 4 x SATA 6Gb/s ports For Details Regarding Support Visit Asus Website
• Graphics Device
  1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
• Sound
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP , Rear optical S/PDIF out port, Premium audio capacitors, Audio cover
• Form Factor
  ATX Form Factor: 12 inch x 9.6 inch
• Warranty
  1 Year Warranty
