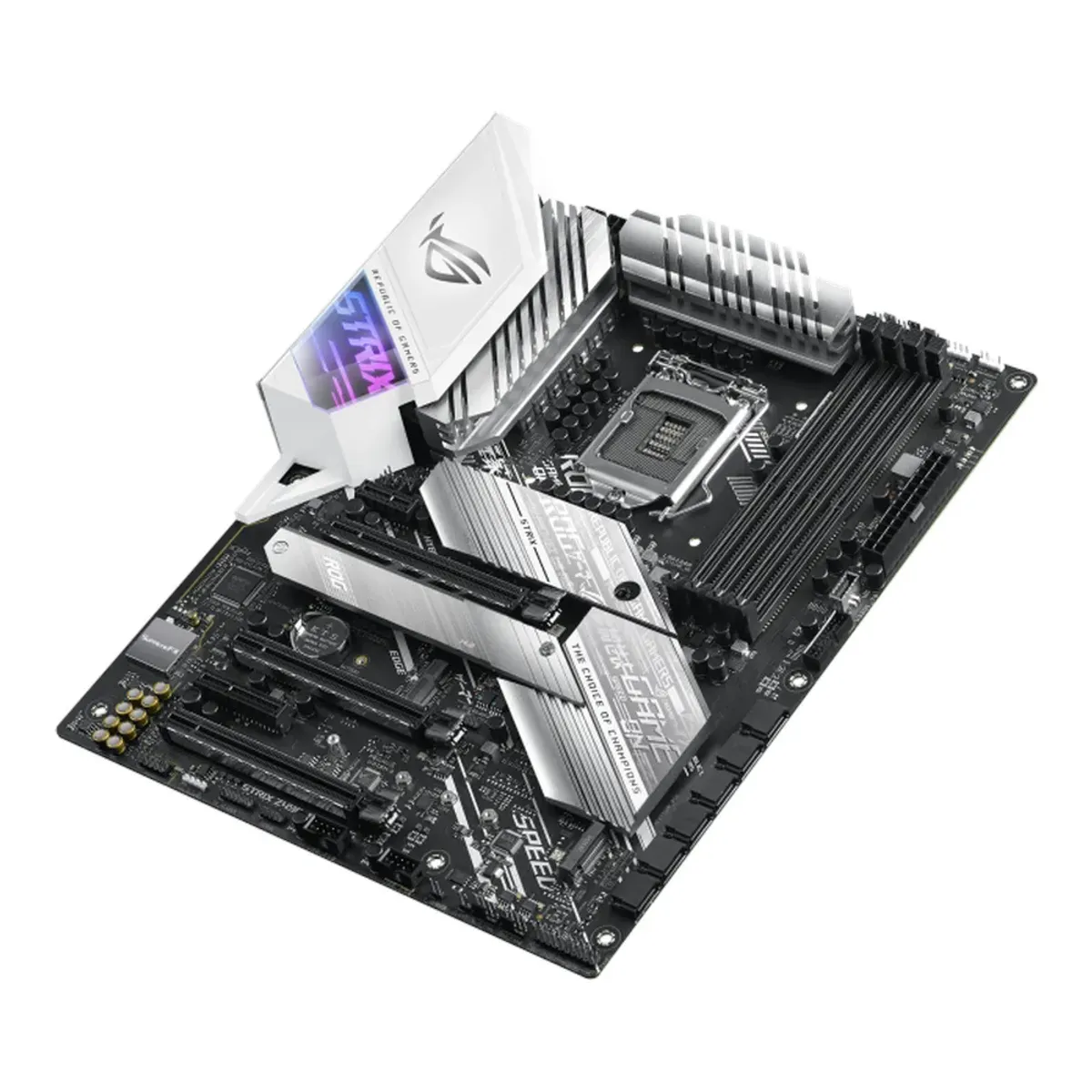

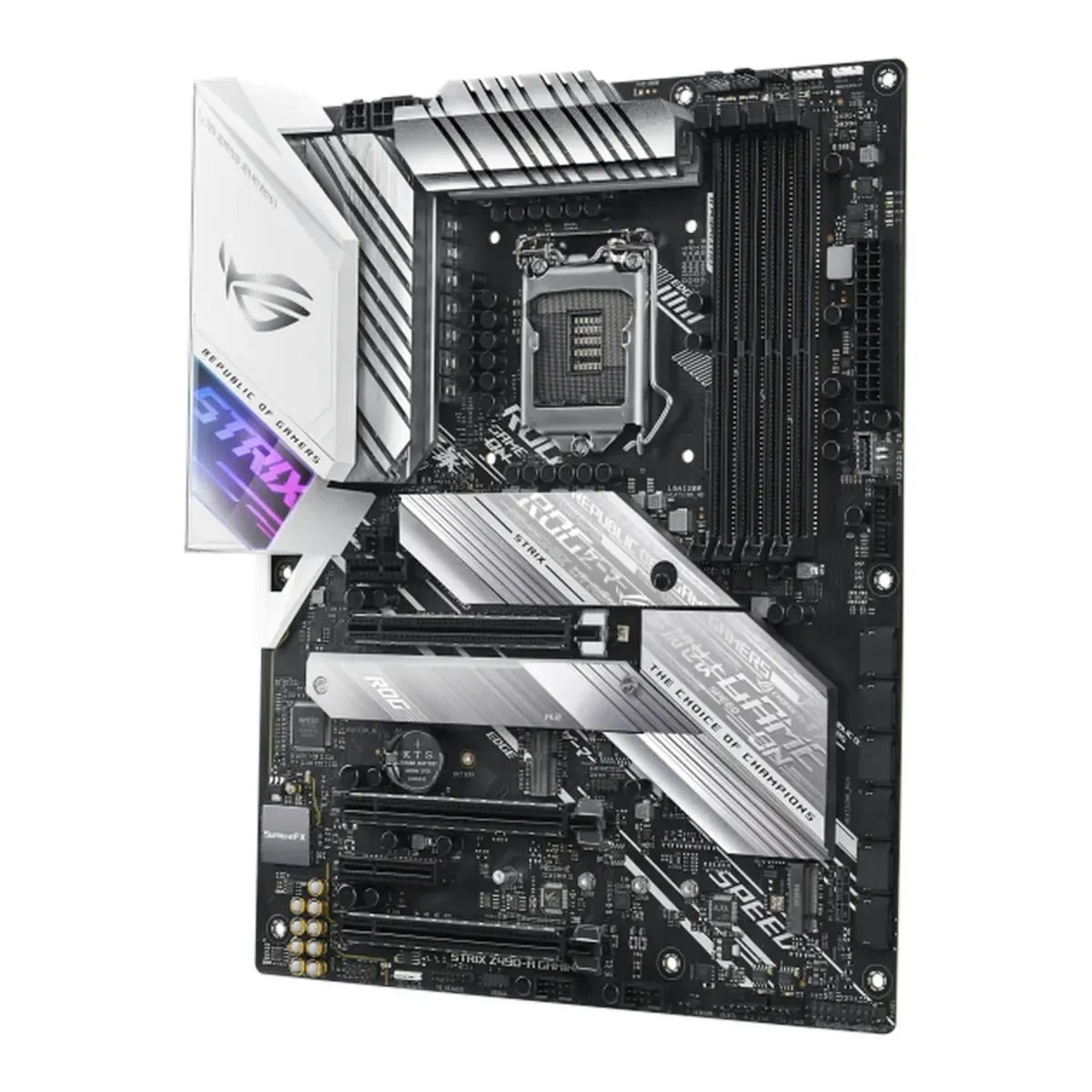

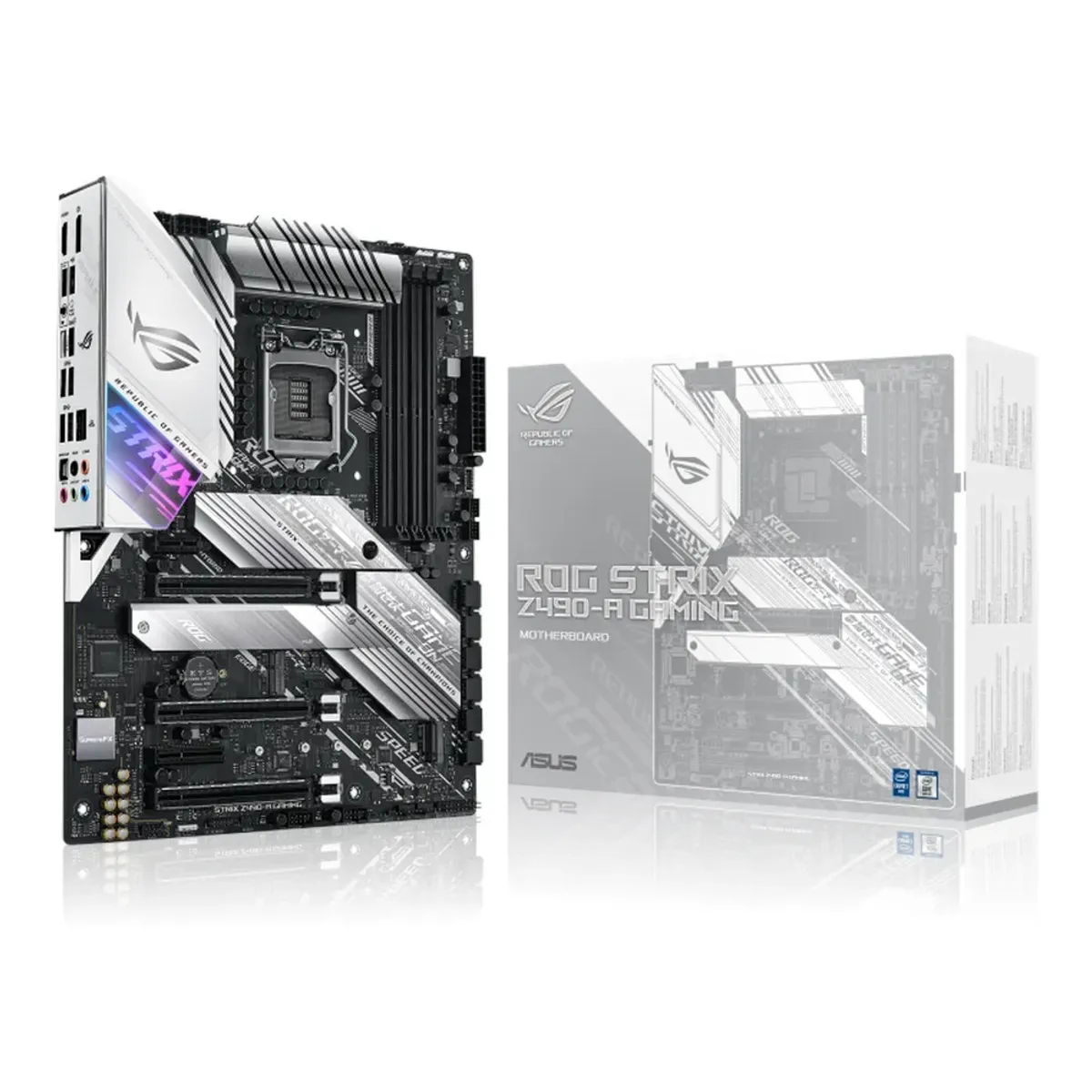

Asus ROG STRIX Z490-A GAMING Motherboard, LGA1200 Socket, ATX Form Factor, DDR4 Ram, PCIe 3.0, HDMI, DisplayPort, Intel 2.5Gb Ethernet With Asus LANGuard, ROG SupremeFX Audio, Aura Sync, 1 Year Warranty | 90MB12Y0-M0EAY0

• CPU
  Intel® Socket 1200, 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Ethernet
  Intel® I225-V 2.5Gb Ethernet ASUS LANGuard

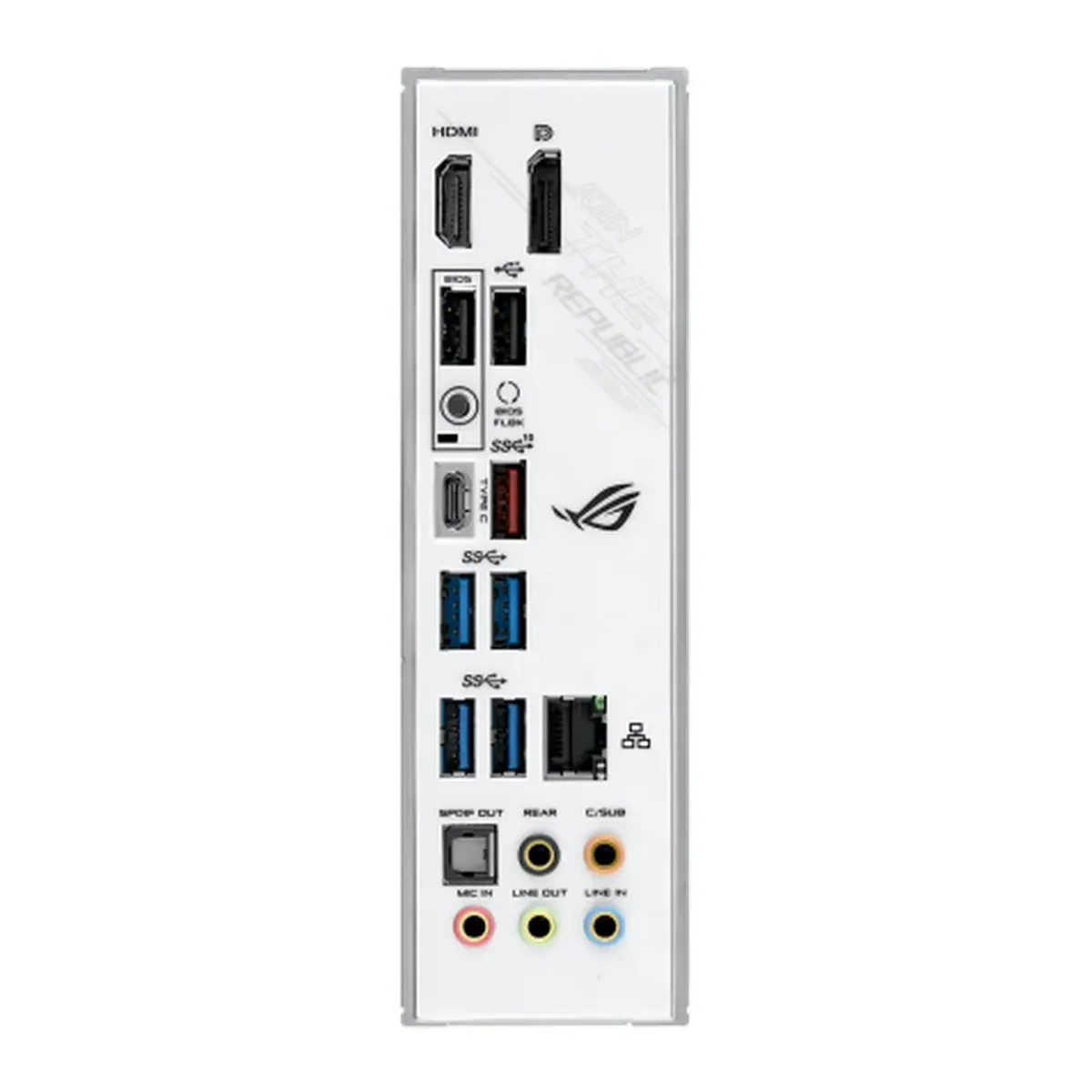

• USB
  Rear Ports: 2 x USB 3.2 Gen 2 (1 x Type-A + 1 x USB Type-C™), 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A, Front/Internal Ports: 1 x USB 3.2 Gen 1 Front Panel Connector, 2 x USB 3.2 Gen 1, 4 x USB 2.0
• Chipset
  Intel® Z490
• Wireless
  N/A
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR4 4800(OC), Dual Channel Memory Architecture
• Internal I/O Connectors
  1 x AAFP connector, 1 x M.2 Socket 1 (Key M, Type 2242/2260/2280/22110, SATA & PCIe modes), 1 x M.2 Socket 2 (Key M, Type 2242/2260/2280/22110, PCIe 3.0 x4 mode), 1 x M.2 Socket (Key E for Wi-Fi module), 1 x VRM_HS_FAN Header, 1 x M.2_FAN Connector, 1 x USB 3.2 Gen 1 Front Panel Type-C®, 2 x USB 3.2 Gen 1 (via 1 x header), 4 x USB 2.0 (via 2 x headers), 1 x CPU Fan connector, 1 x CPU OPT Fan connector, 2 x Chassis Fan connectors, 1 x AIO_PUMP connector, 1 x Thunderbolt header, 1 x Addressable RGB header, 2 x Aura RGB Strip headers, 6 x SATA 6Gb/s connectors, 1 x 24-pin EATX Power connector, 1 x 8-pin ATX 12V Power connector, 1 x 4-pin ATX 12V Power connector, 1 x System Panel (with inbuilt Chassis Intrusion), 1 x Thermal Sensor connector, 1 x CPU_OV Jumper, 1 x Clear CMOS jumper
• Expansion Slots
  3 x PCIe 3.0 x16 (x16 or x8+x4+x4), 1 x PCIe 3.0 x4 (max at x2 mode), 1 x PCIe 3.0 x1, Storage: 2 x M.2 slots, 6 x SATA 6Gb/s ports
• Graphics Device
  1 x HDMI™ port, 1 x DisplayPort 1.4
• Sound
  ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
• Form Factor
  ATX, 12 inch x 9.6 inch
• Warranty
  1 Year Warranty
