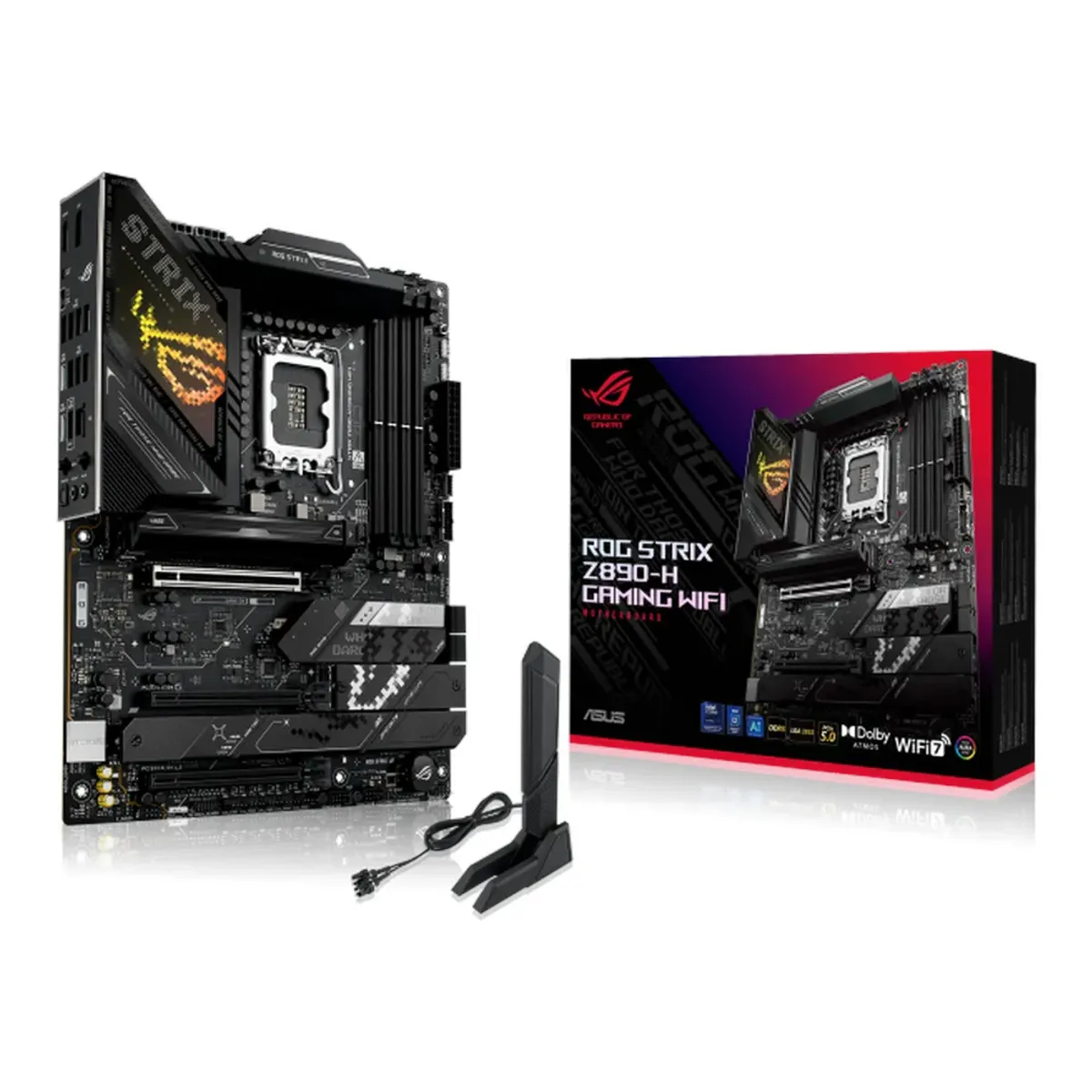

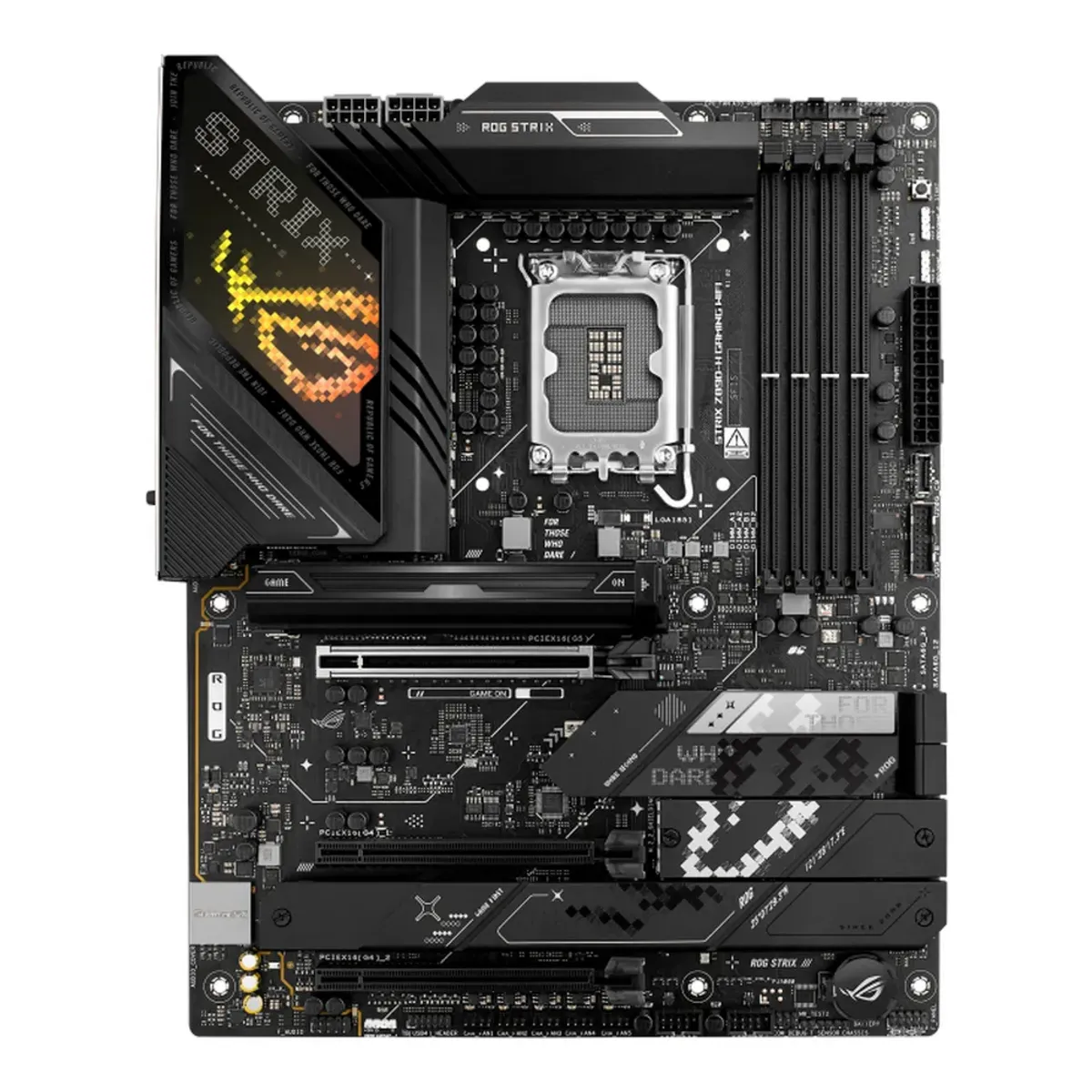

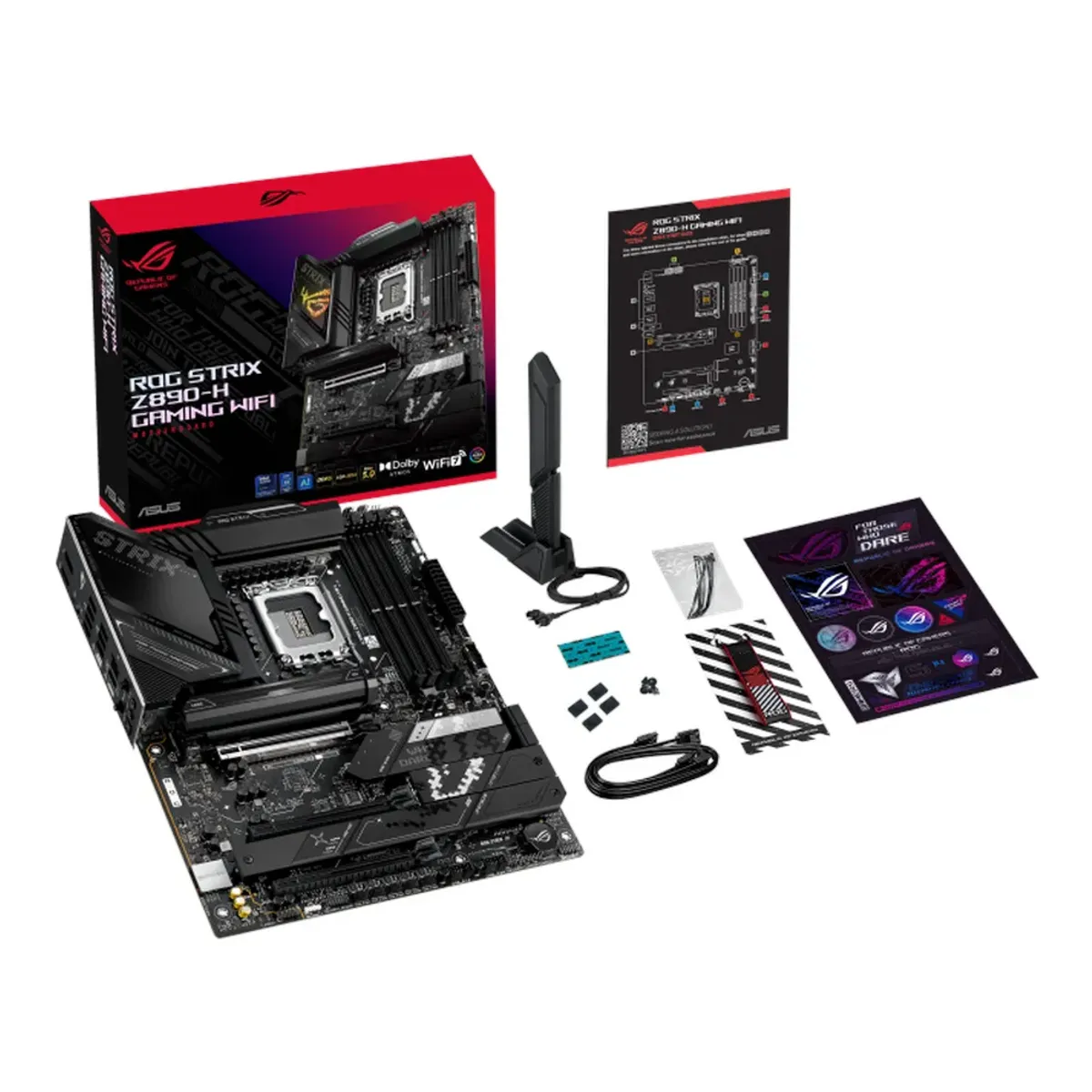

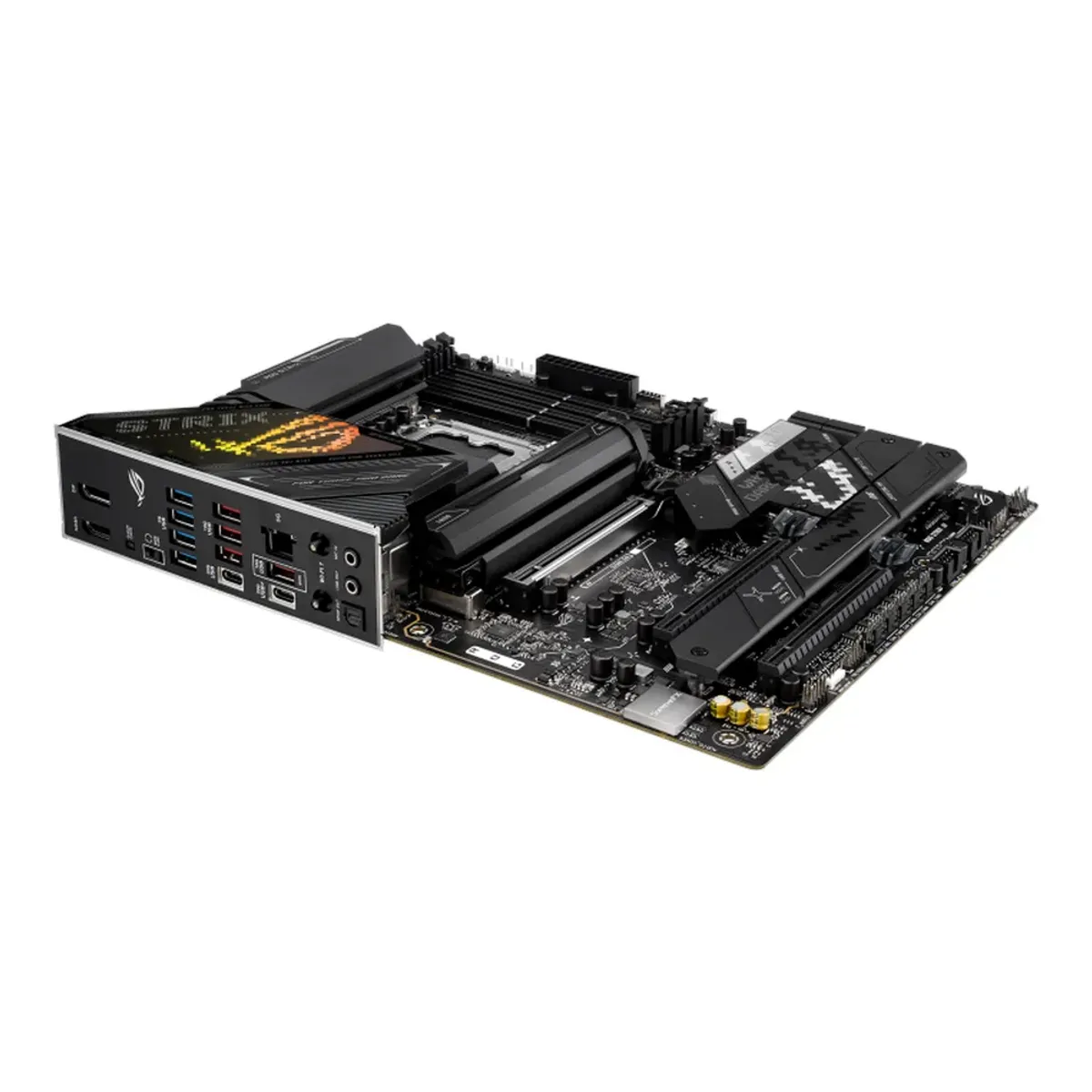

Asus ROG STRIX Z890-H WIFI Gaming Motherboard, LGA1851 Socket, ATX Form Factor, DDR5 Ram, PCIe 5.0, USB 20Gbps, HDMI, VGA, Wi-Fi 7, Bluetooth, Realtek 5Gb Ethernet, AI Networking II, Aura Sync, 1 Year Warranty | 90MB1K20-M0EAY0

• CPU
  Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Ethernet
  Realtek 5G Ethernet, ASUS LANGuard

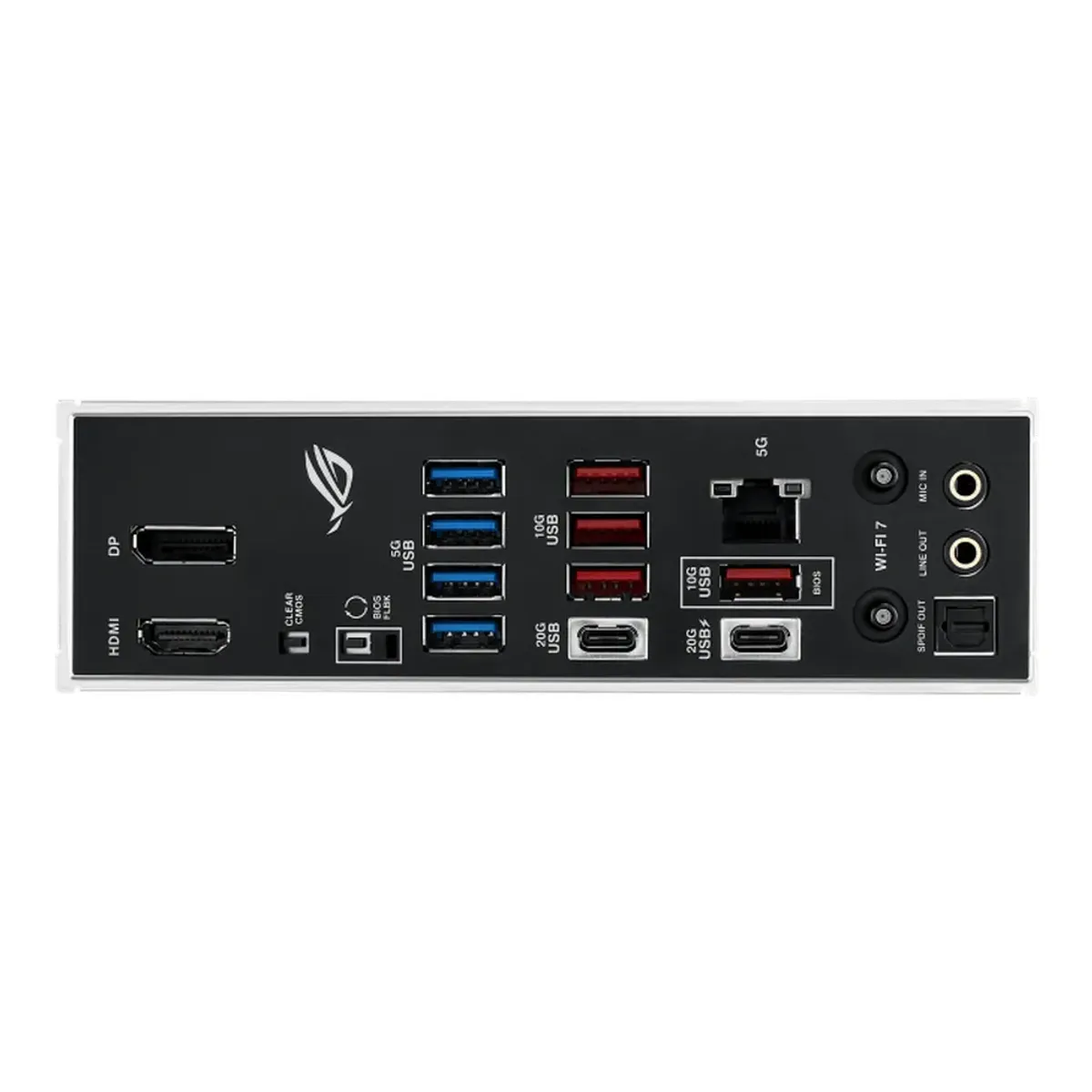

• USB
  2 x USB 20Gbps Type-C Ports, 1 x USB 20Gbps Type-C Connector (Front Panel Support), 4 x USB 10Gbps Type-A Ports (Rear), 6 x USB 5Gbps Type-A Ports (4 x Rear, 2 x via Header), 4 x USB 2.0 Type-A Ports (via Headers)
• Chipset
  Intel Z890 Chipset
• Wireless
  Wi-Fi 7, Bluetooth® v5.4, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Memory slots Support
  4 x DIMM slots, max. 256GB, DDR5, Support up to 9066+MT/s (OC), Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)
• Internal I/O Connectors
  1 x 4-pin CPU Fan Header, 1 x 4-pin CPU OPT Fan Header, 1 x 4-pin AIO Pump Header, 5 x 4-pin Chassis Fan Headers, 1 x 24-pin Main Power Connector, 2 x 8-pin +12V CPU Power Connectors, 4 x M.2 Slots (Key M), 4 x SATA 6Gb/s Ports, 1 x USB 20Gbps Type-C Connector (Front Panel Support), 1 x USB 5Gbps Header (Supports 2 additional USB 5Gbps ports), 2 x USB 2.0 Headers (Support 4 additional USB 2.0 ports), 3 x Addressable Gen 2 Headers, 1 x Chassis Intrusion Header, 1 x CPU Over Voltage Jumper, 1 x Front Panel Audio Header (F_AUDIO), 1 x Start Button, 1 x 10-1 pin Front System Panel Header, 1 x Thermal Sensor Header, 1 x Thunderbolt (USB4) Header
• Expansion Slots
  1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes), 2 x PCIe 4.0 x16 slots (supports x4 mode), Storage: 4 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x VGA, 1 x HDMI
• Sound
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Gold-plated audio jacks
• Form Factor
  ATX (30.5 x 24.4 cm)
• Warranty
  1 Year Warranty
