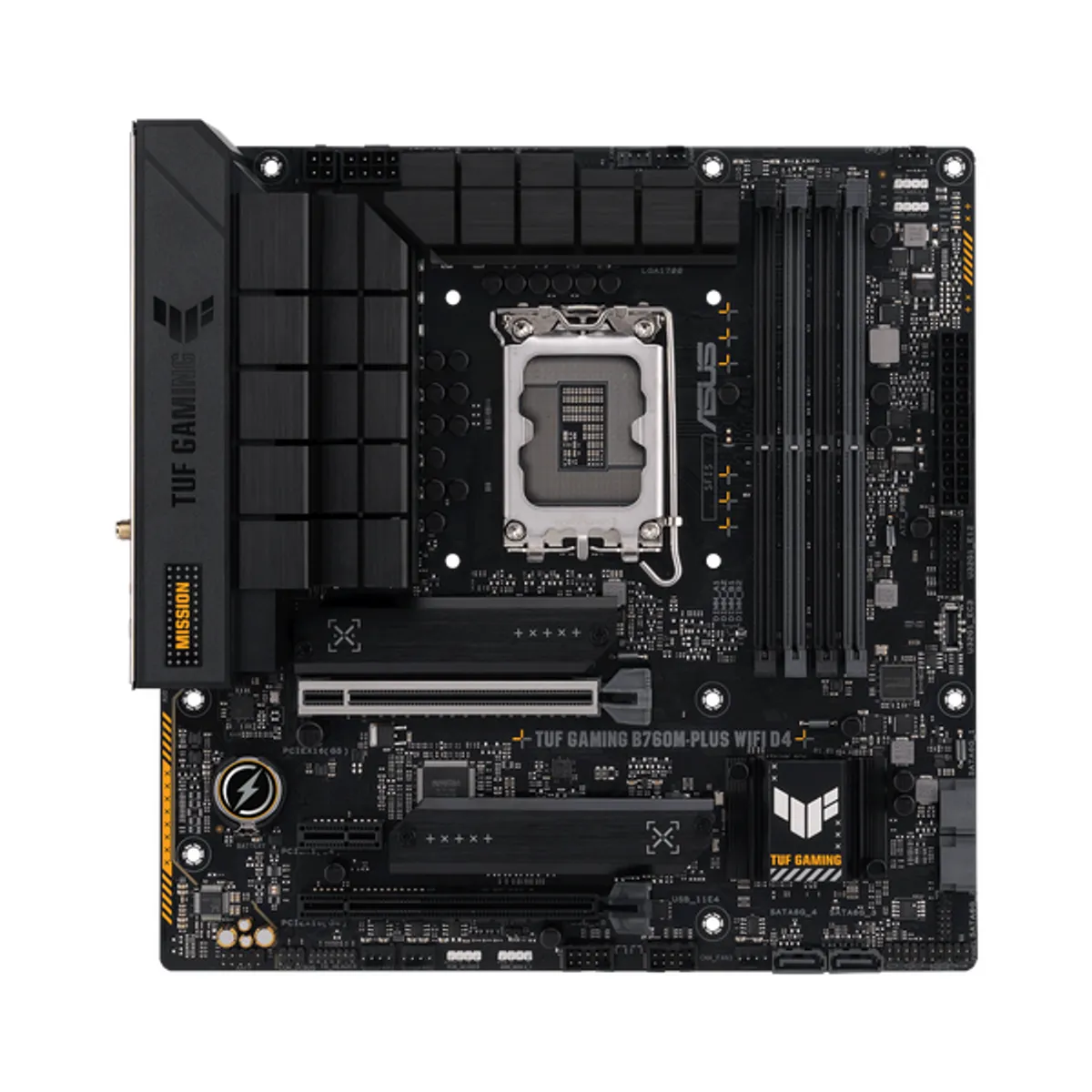

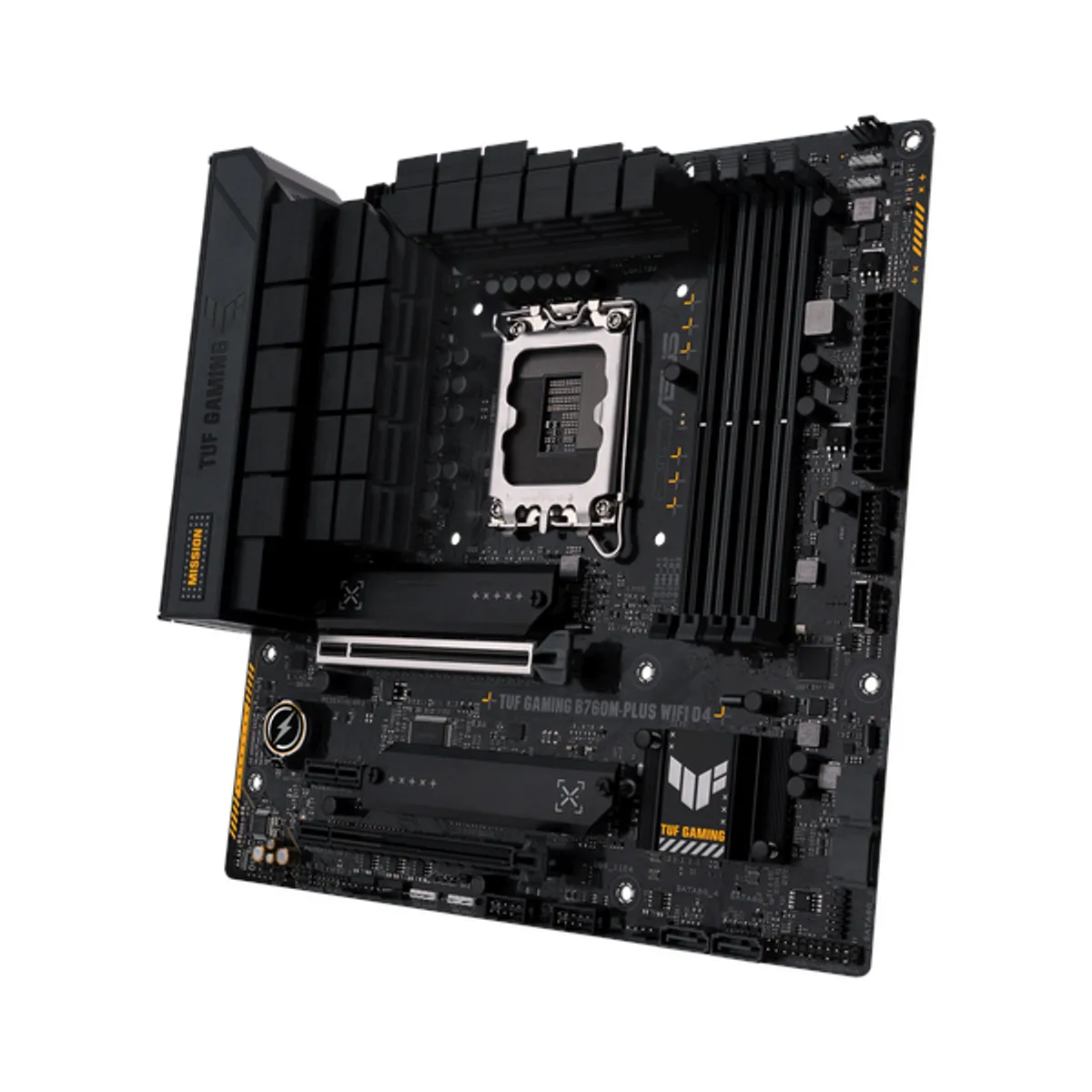

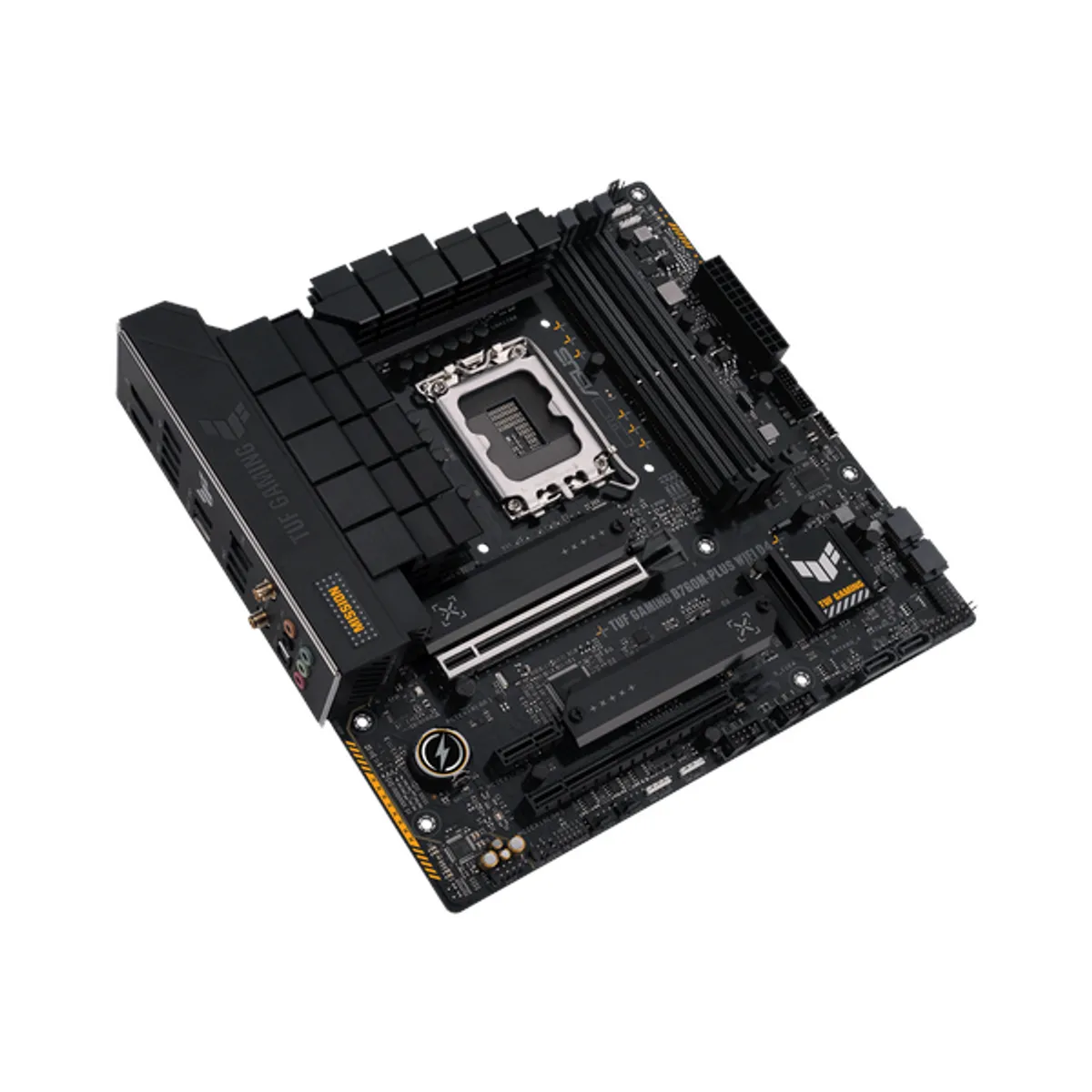

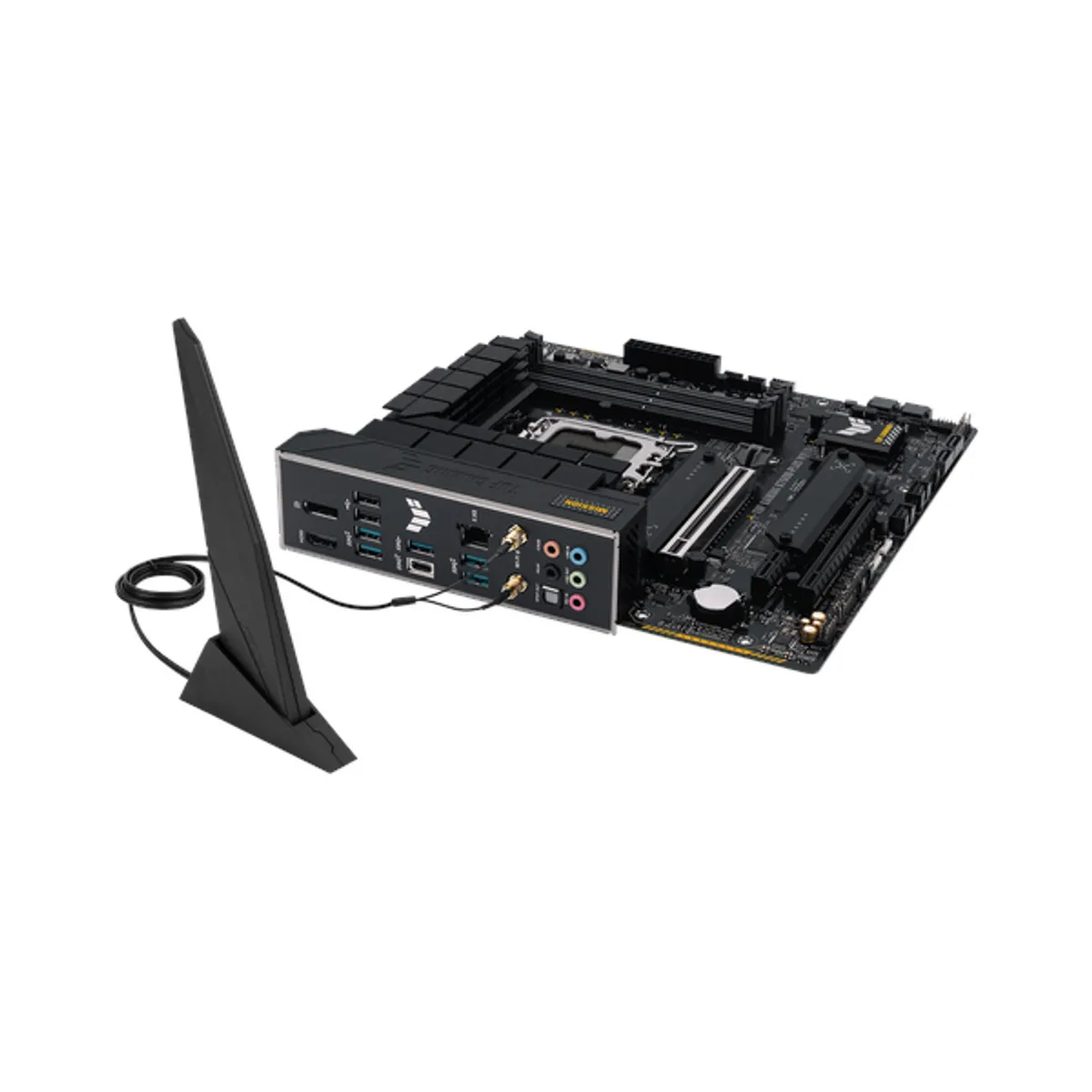

Asus TUF GAMING B760M-PLUS WiFi D4 Motherboard, LGA 1700 Socket, micro-ATX Form Factor, DDR4 Ram, PCIe 5.0 With SafeSlot Core+, Wi-Fi 6, Bluetooth v5.2, HDMI, DisplayPort, Realtek 2.5Gb Ethernet With TUF LANGuard, Aura Sync, 1 Year Warranty | 90MB1DG0-M0EAY0

• CPU
  Socket: LGA 1700, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Ethernet
  1 x Realtek 2.5Gb Ethernet, TUF LANGuard

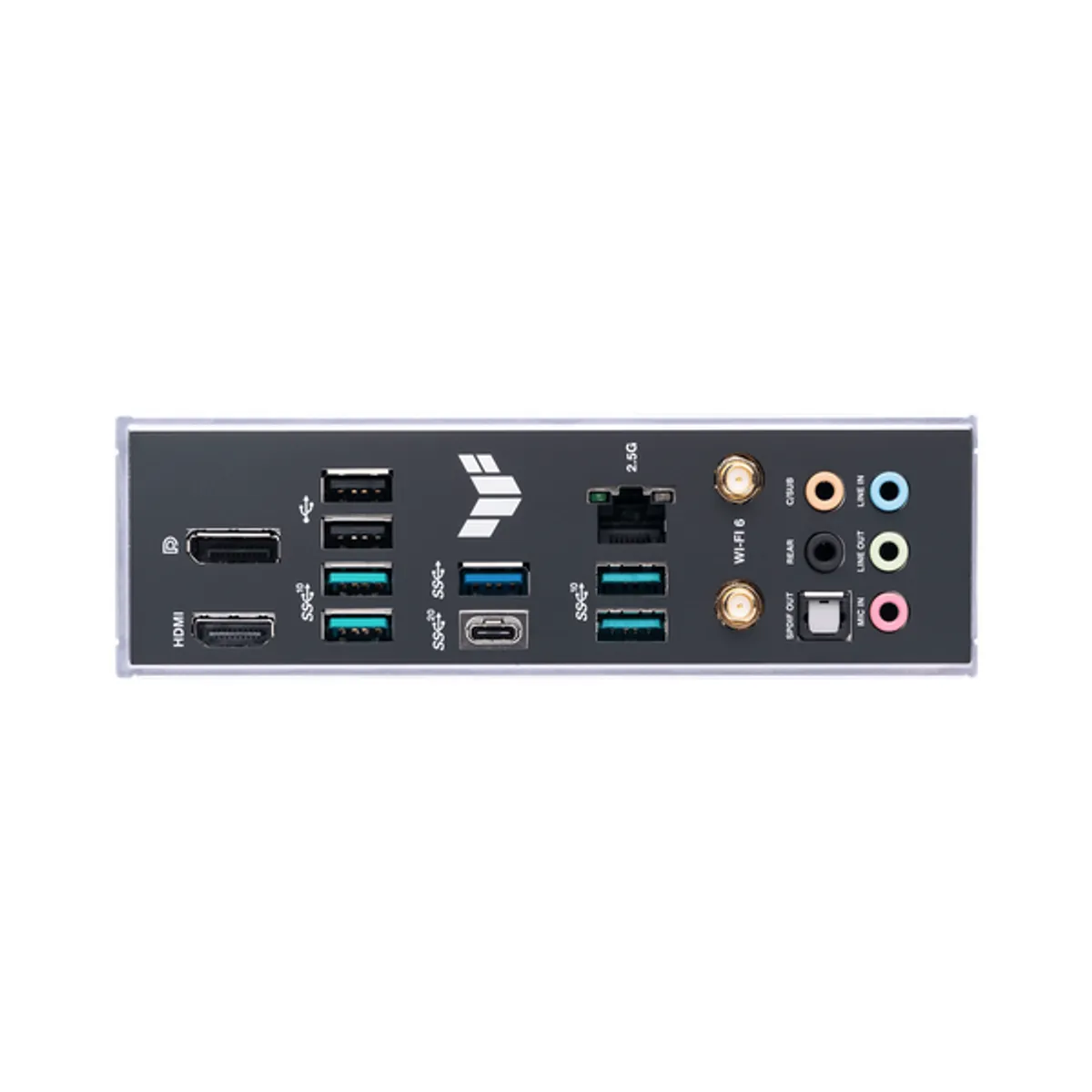

• USB
  Rear USB (Total 8 ports): 1 x USB 20Gbps port (1 x USB Type-C®), 4 x USB 10Gbps ports (4 x Type-A), 1 x USB 5Gbps port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports): 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header (support 2 additional USB 5Gbps ports), 2 x USB 2.0 headers (support 4 additional USB 2.0 ports), USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
• Chipset
  Intel® B760 Chipset
• Wireless
  Wi-Fi 6, Bluetooth v5.2
• Memory slots Support
  4 x DIMM, Max. 128GB, DDR4 5333(OC)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (4-pin), 3 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V, Storage: 2 x M.2 (Key M), 4 x SATA 6Gb/s, USB: 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header (support 2 x USB 5Gbps), 2 x USB 2.0 headers (support 4 x USB 2.0), Misc: 3 x Addressable Gen 2, 1 x Aura RGB, 1 x Clear CMOS, 1 x Front Audio (AAFP), 1 x System Panel (20-3 pin, with Chassis Intrude function), 1 x Thunderbolt™ (USB4®) header
• Expansion Slots
  Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot, Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x DisplayPort 1.4, 1 x HDMI® 2.1 port
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC
• Form Factor
  micro-ATX, 9.6 x 9.6 in
• Warranty
  1 Year Warranty
