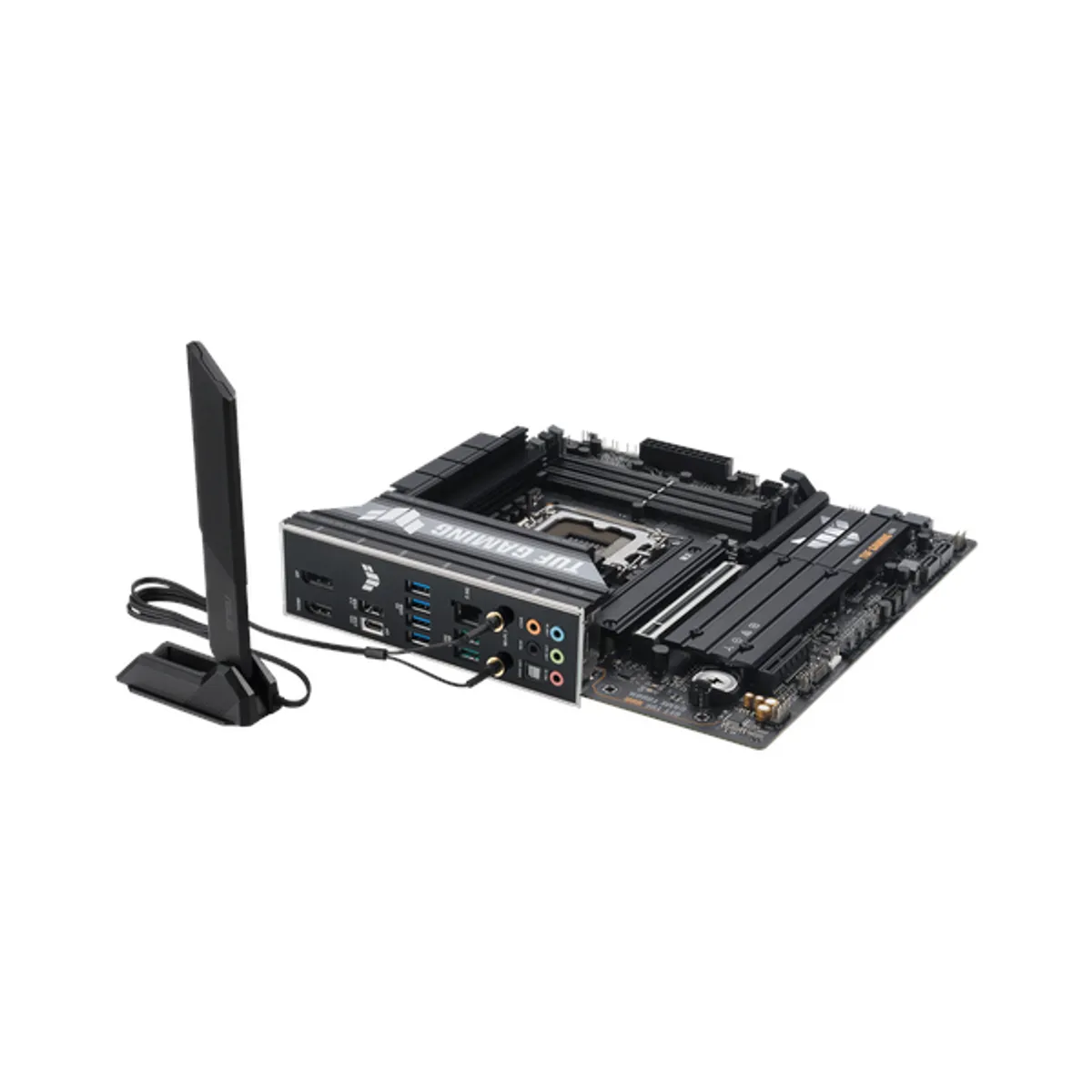

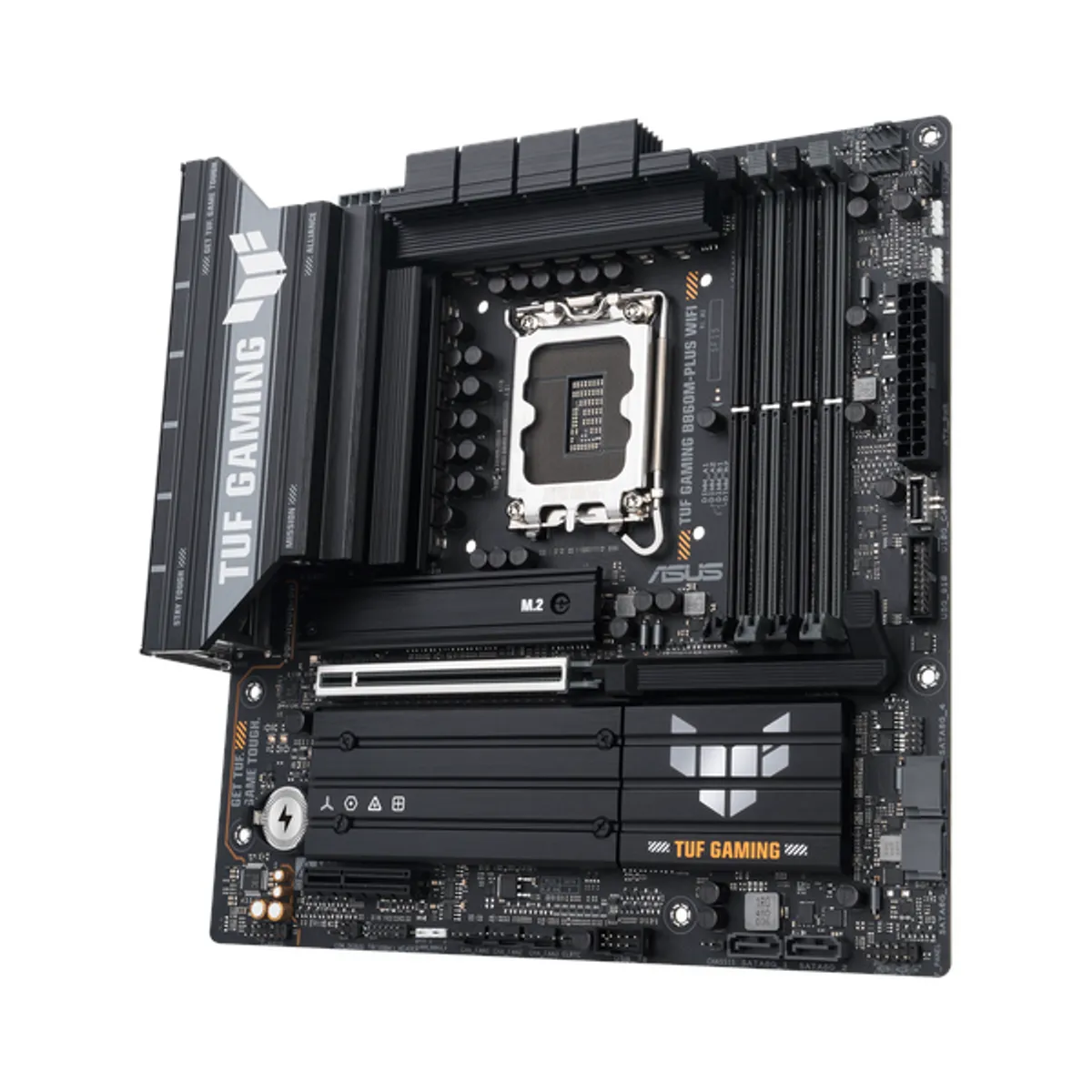

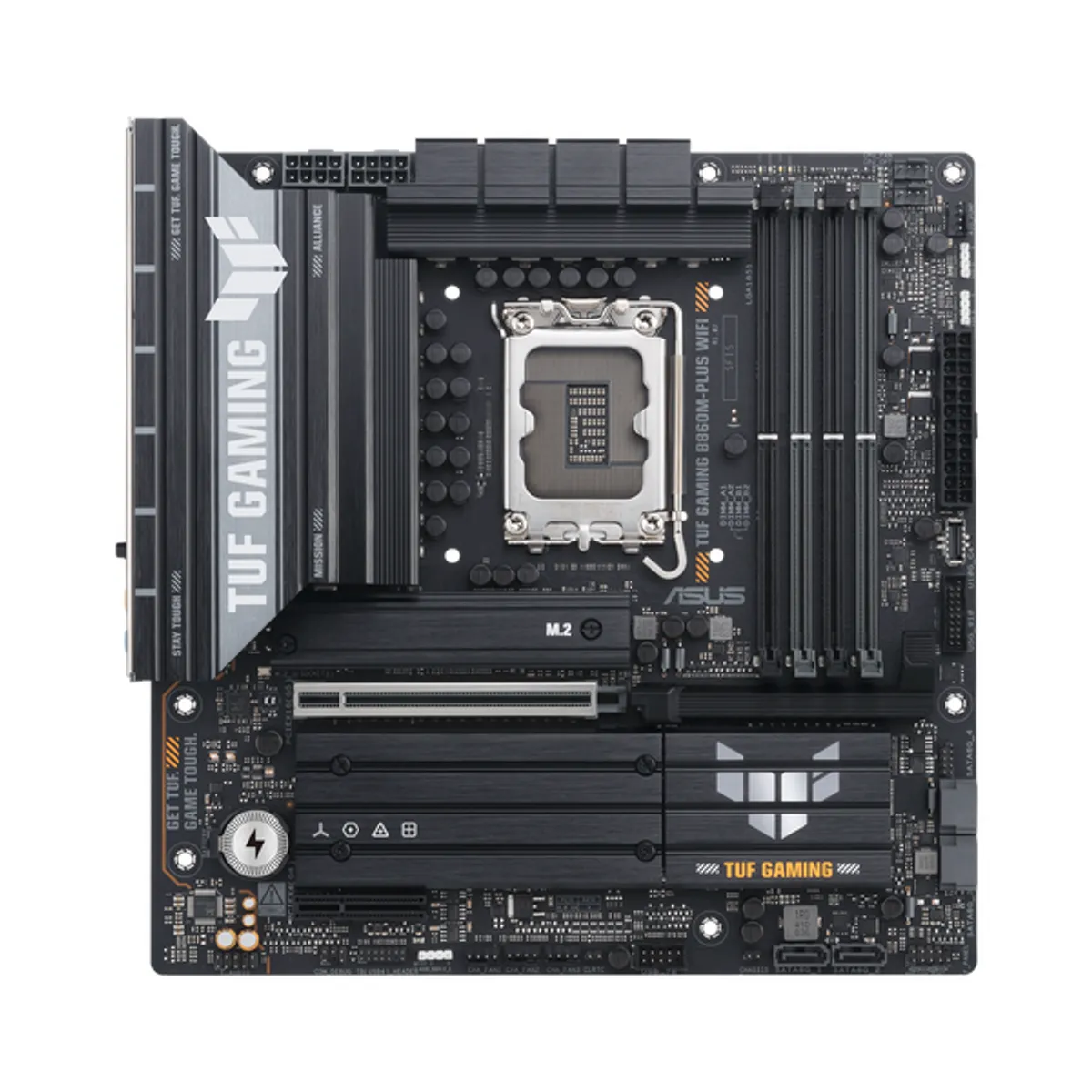

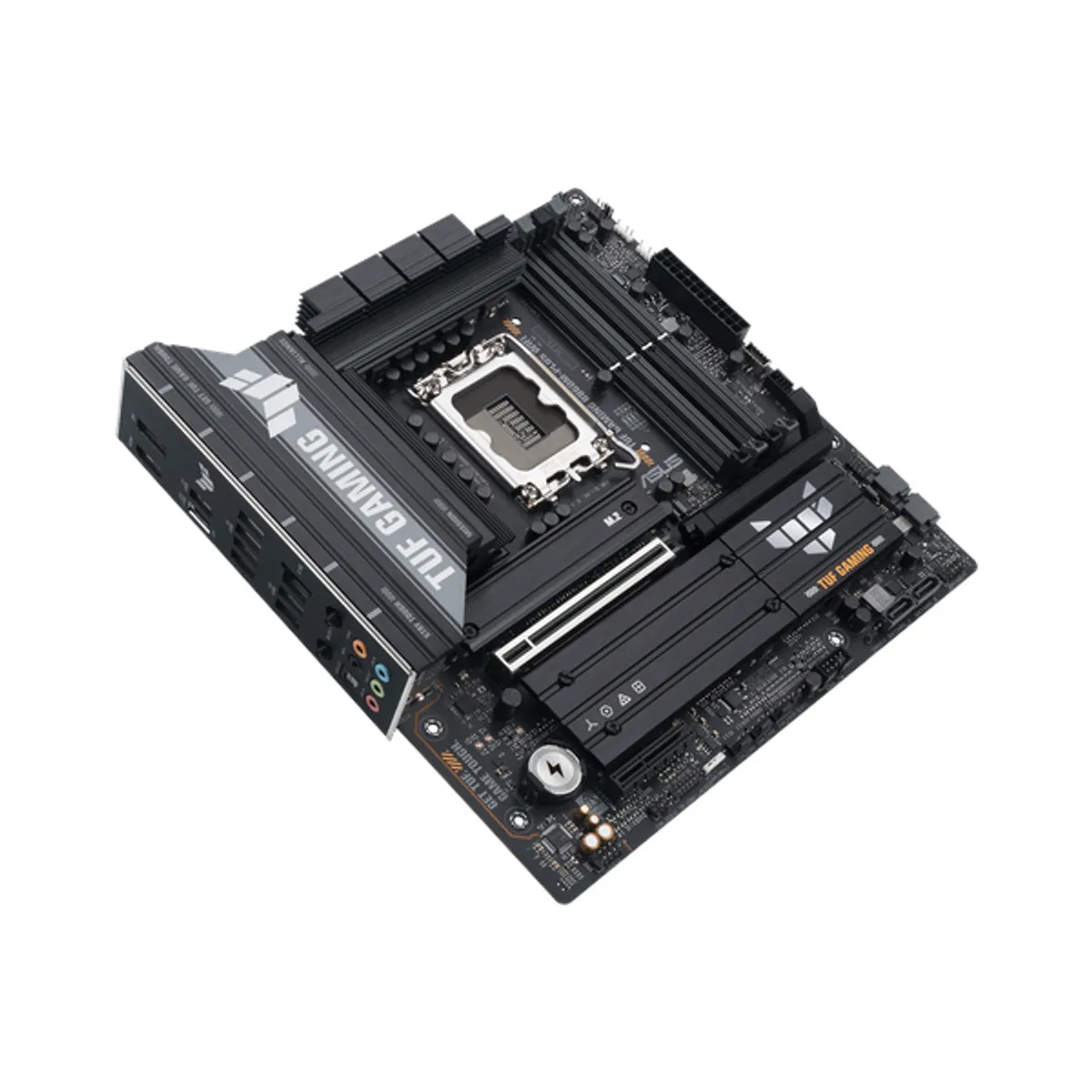

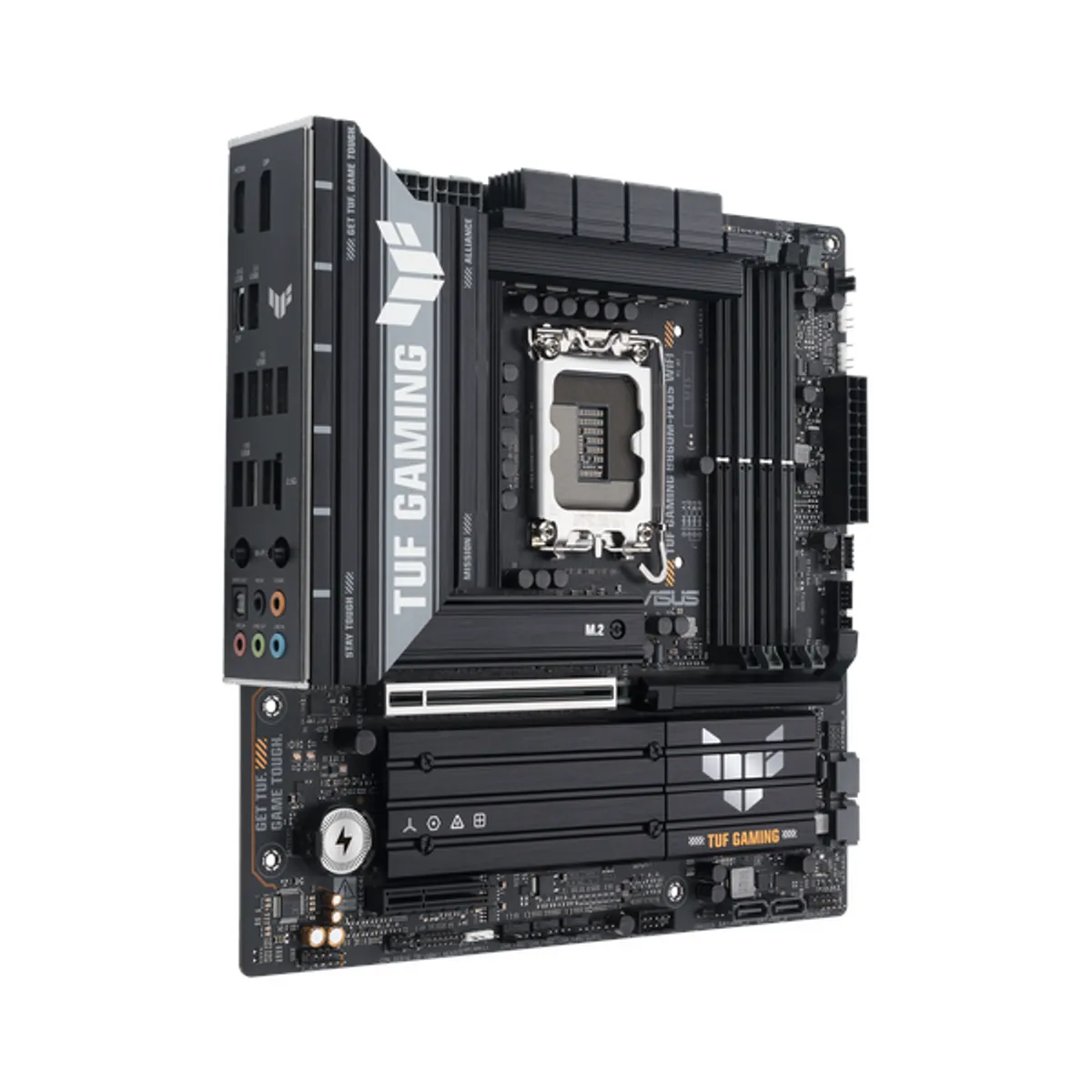

Asus TUF GAMING B860M-PLUS WiFi Motherboard, LGA 1851 Socket, micro-ATX Form Factor, DDR5 Ram, PCIe 5.0 With SafeSlot Core+, Wi-Fi 7, Bluetooth v5.4, HDMI, DisplayPort, Thunderbolt 4, Realtek 2.5Gb Ethernet With TUF LANGuard, Aura Sync, 1 Year Warranty | 90MB1JV0-M0EAY0

• CPU
  Socket: LGA 1851, Support Intel® Core™ Ultra Processors (Series 2)
• Ethernet
  1 x Realtek 2.5Gb Ethernet, TUF LANGuard
• USB

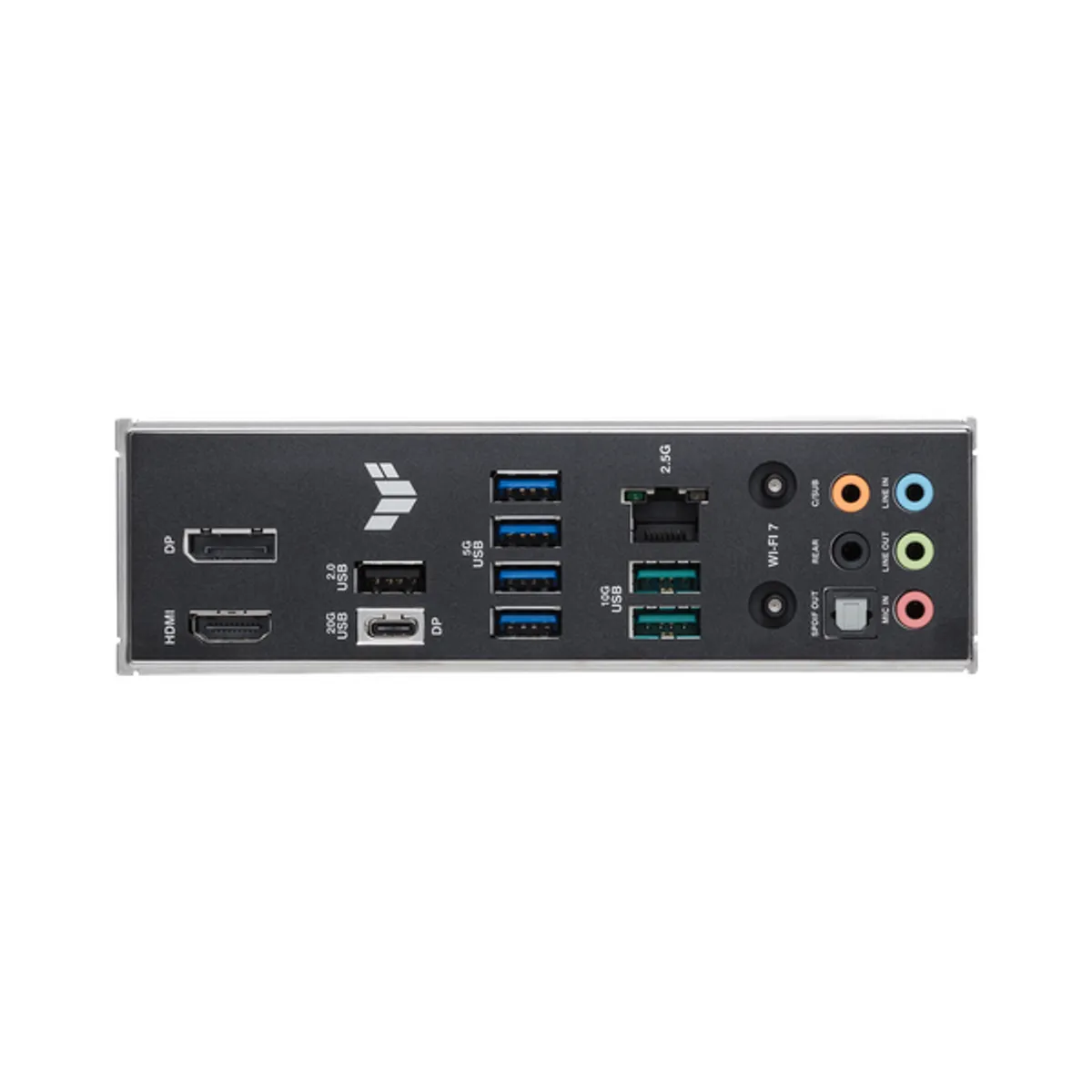

  Rear USB (Total 8 ports): 1 x USB 20Gbps port (1 x USB Type-C®), 2 x USB 10Gbps ports (2 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 1 x USB 2.0 port (1 x Type-A), Front USB (Total 5 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header (support 2 additional USB 5Gbps ports), 1 x USB 2.0 header (support 2 additional USB 2.0 ports), USB Type-C® power delivery output: max. 5V/3A
• Chipset
  Intel® B860 Chipset
• Wireless
  Wi-Fi 7, Bluetooth v5.4
• Memory slots Support
  4 x DIMM slots, max. 256GB, DDR5, Support up to 8800+MT/s (OC)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (4-pin), 3 x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 2 x 8-pin 12V, Storage: 3 x M.2 (Key M), 4 x SATA 6Gb/s, USB: 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header (support 2 x USB 5Gbps), 1 x USB 2.0 header (support 2 x USB 2.0), Misc: 3 x Addressable Gen 2, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x Front Audio (F_AUDIO), 1 x System Panel (10-1 pin), 1 x Thunderbolt™ (USB4®) header
• Expansion Slots
  Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot, Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x DisplayPort 1.4, 1 x HDMI™ 2.1 port, 1 x USB 20Gbps port (USB Type-C®)
• Sound
  Realtek 7.1 Surround Sound High Definition Audio CODEC
• Form Factor
  micro-ATX, 9.6 x 9.6 in
• Warranty
  1 Year Warranty
