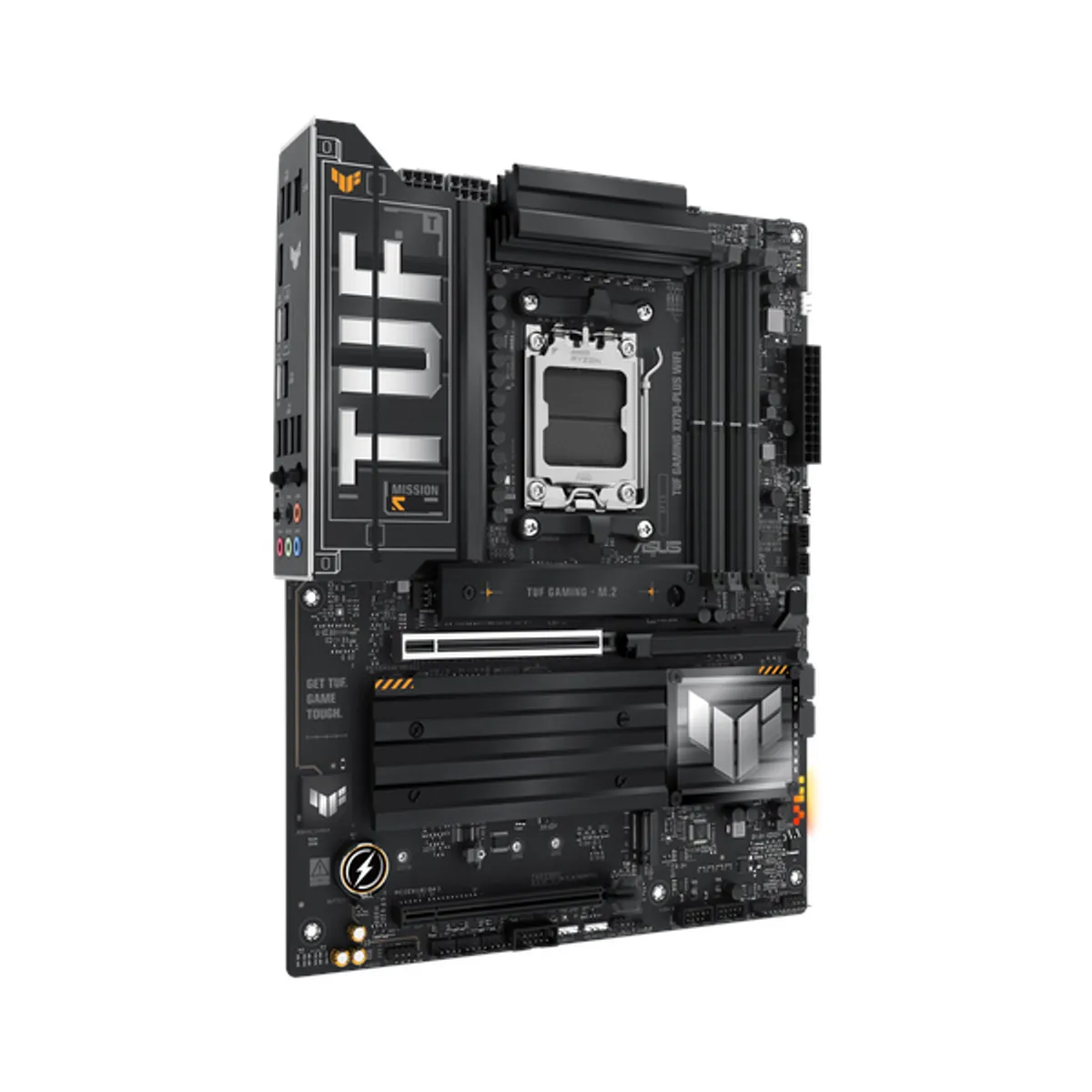

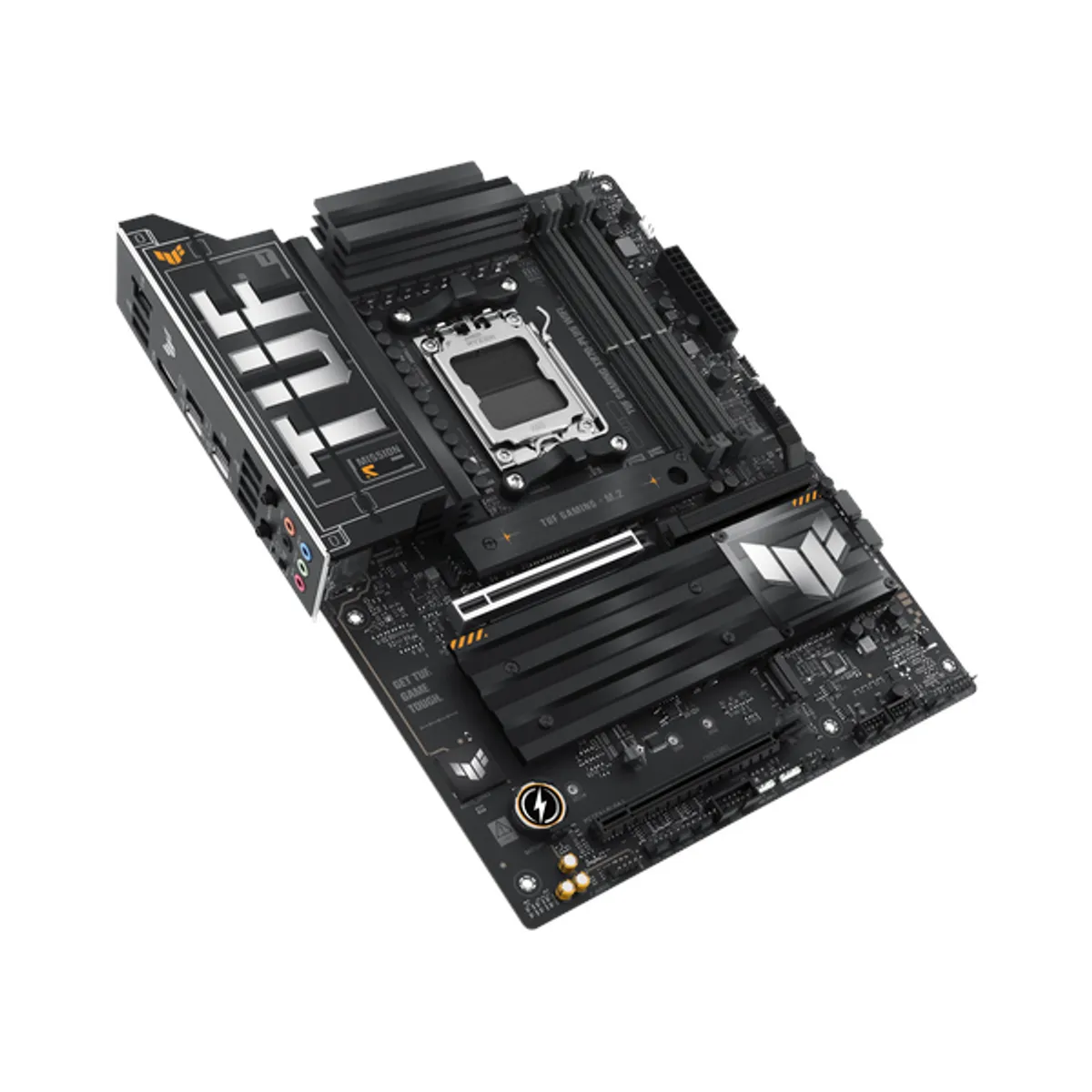

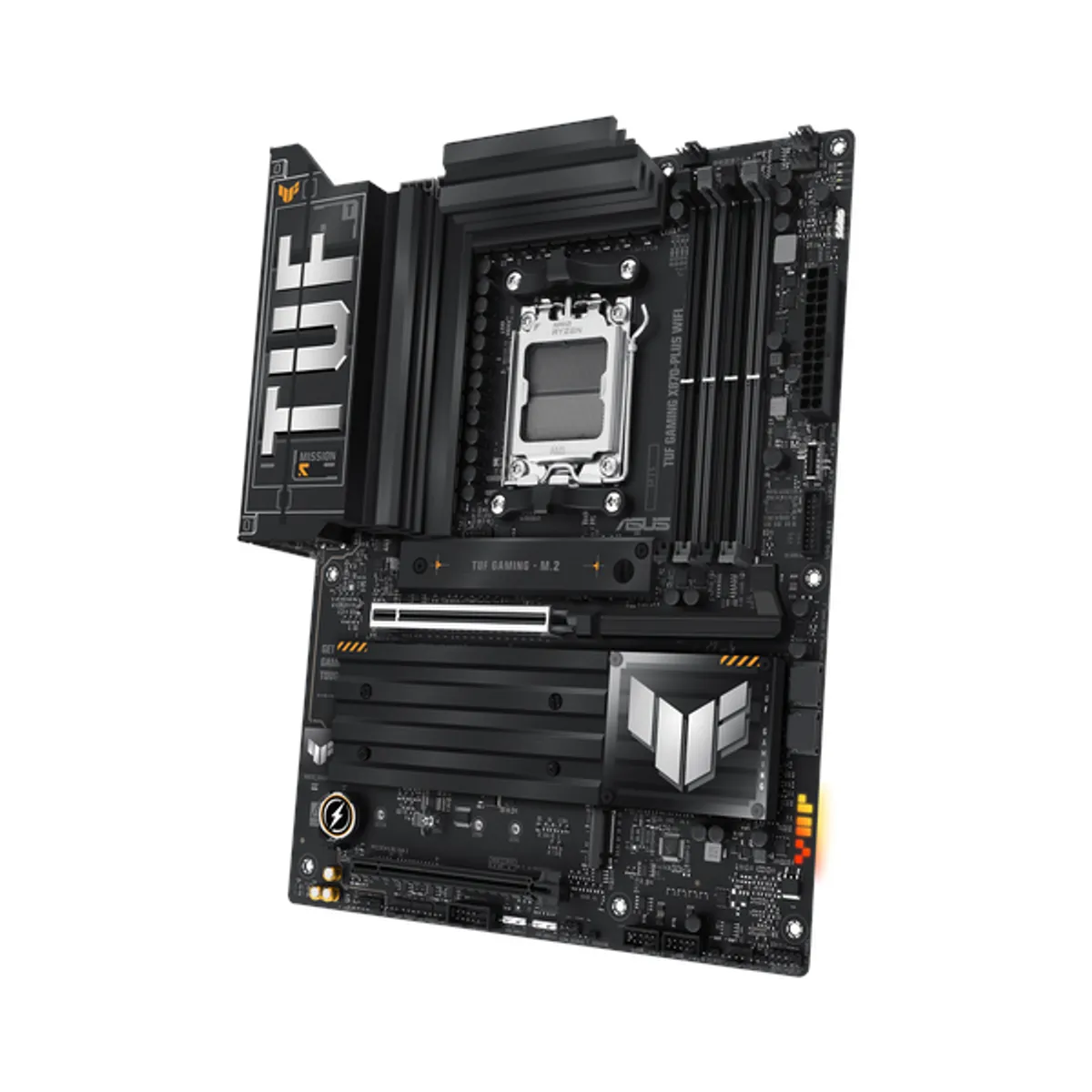

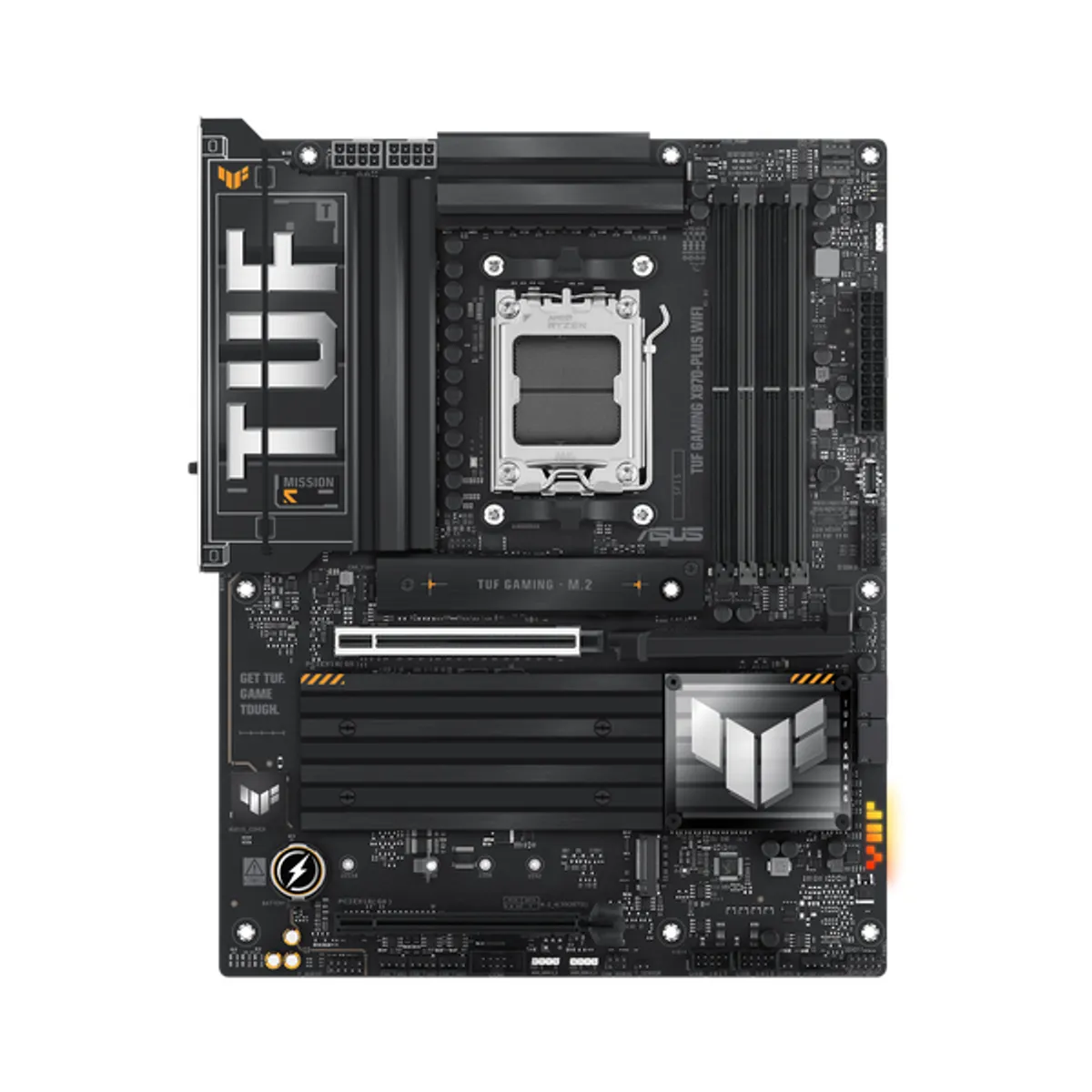

Asus TUF GAMING X870-PLUS WiFi Motherboard, AM5 Socket, ATX Form Factor, DDR5 Ram, PCIe 5.0 With SafeSlot Core+, Wi-Fi 7, Bluetooth v5.4, HDMI, Thunderbolt 4, Realtek 2.5Gb Ethernet With TUF LANGuard, Aura Sync, 1 Year Warranty | 90MB1IU0-M0EAY0

• CPU
  Socket: AM5, AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Ethernet
  1 x Realtek 2.5Gb Ethernet, TUF LANGuard
• USB
  Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 1 x USB 2.0 port (1 x Type-A), Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge), 1 x USB 5Gbps header (support 2 additional USB 5Gbps ports), 2 x USB 2.0 headers (support 4 additional USB 2.0 ports), USB Type-C® power delivery output: max. 5V/3A
• Chipset
  AMD X870 Chipset
• Wireless
  Wi-Fi 7, Bluetooth v5.4
• Memory slots Support
  4 x DIMM slots, max. 256GB, DDR5, Supports up to 8000+MT/s(OC)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (4-pin), 4 x Chassis Fan (4-pin), 1 x W_PUMP+, Power: 1 x 24-pin ATX, 2 x 8-pin 12V, Storage: 4 x M.2 (Key M), 2 x SATA 6Gb/s, USB: 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge), 1 x USB 5Gbps header (support 2 x USB 5Gbps), 2 x USB 2.0 headers (support 4 x USB 2.0), Misc: 3 x Addressable Gen 2, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM, 1 x Front Audio (F_AUDIO), 1 x System Panel (10-1 pin), 1 x Thermal Sensor
• Expansion Slots
  Expansion Slots: 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode), Storage: 4 x M.2 slots, 2 x SATA 6Gb/s ports
• Graphics Device
  1 x HDMI™ port, 2 x USB4® (40Gbps) ports
• Sound
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Form Factor
  ATX, 12 x 9.6 in
• Warranty
  1 Year Warranty
