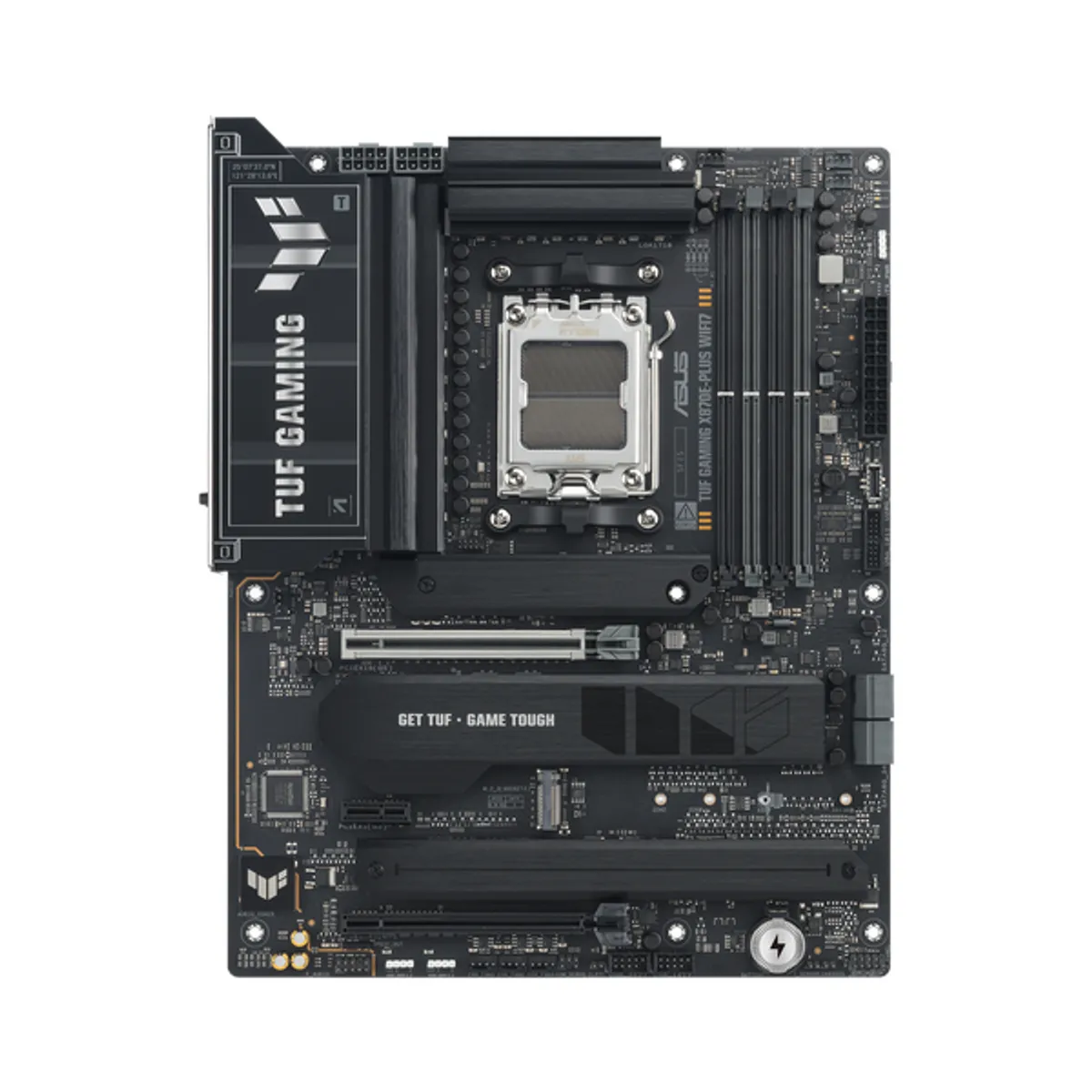

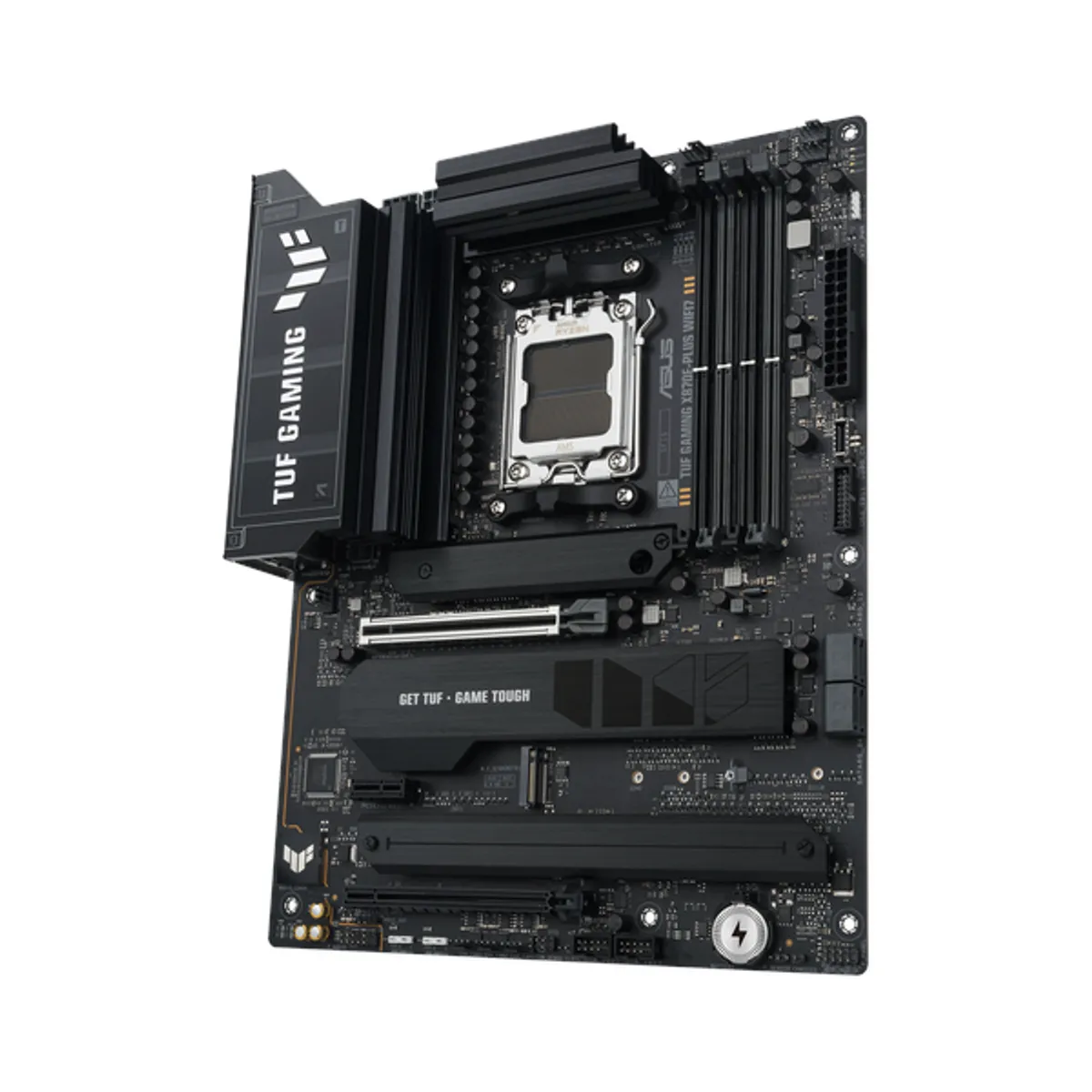

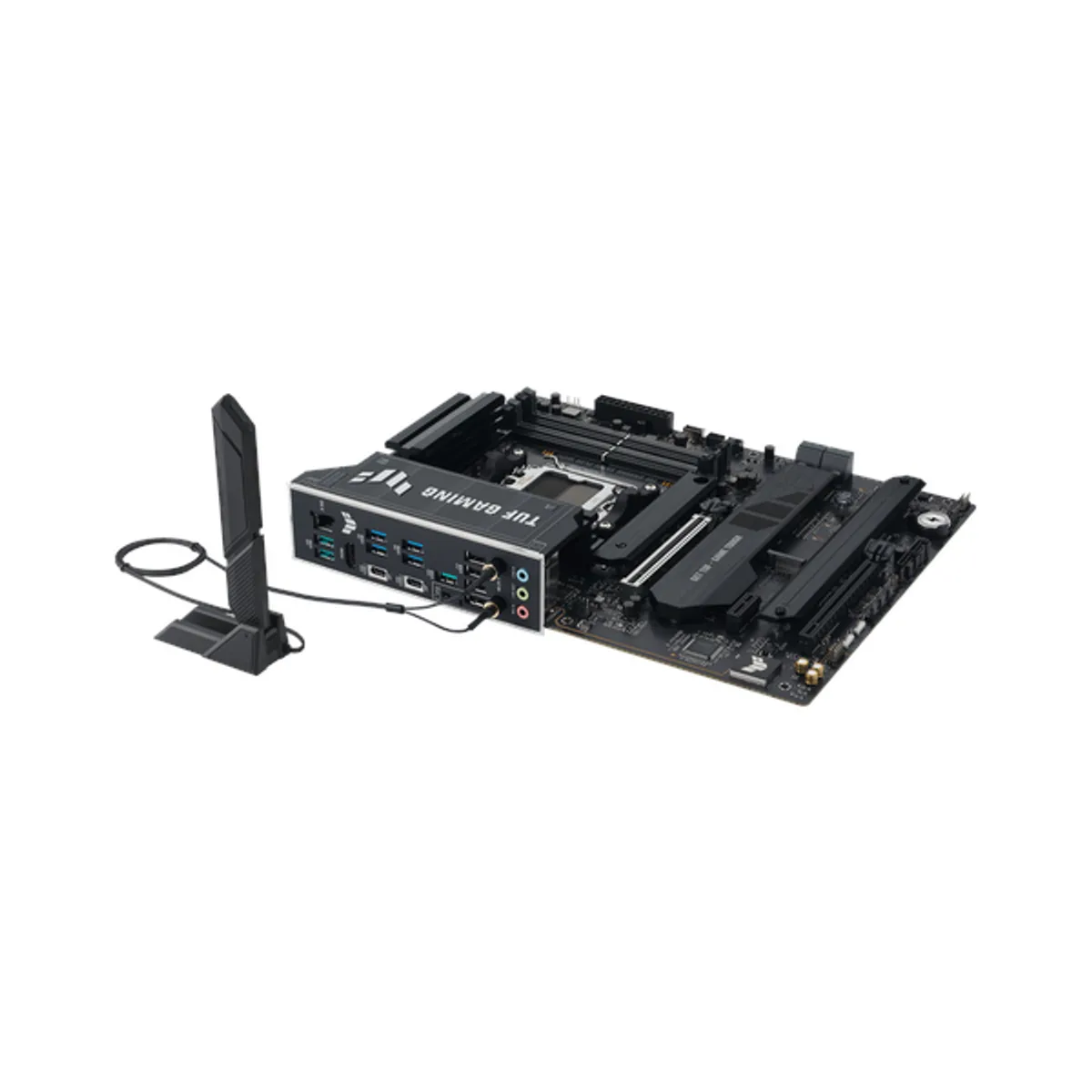

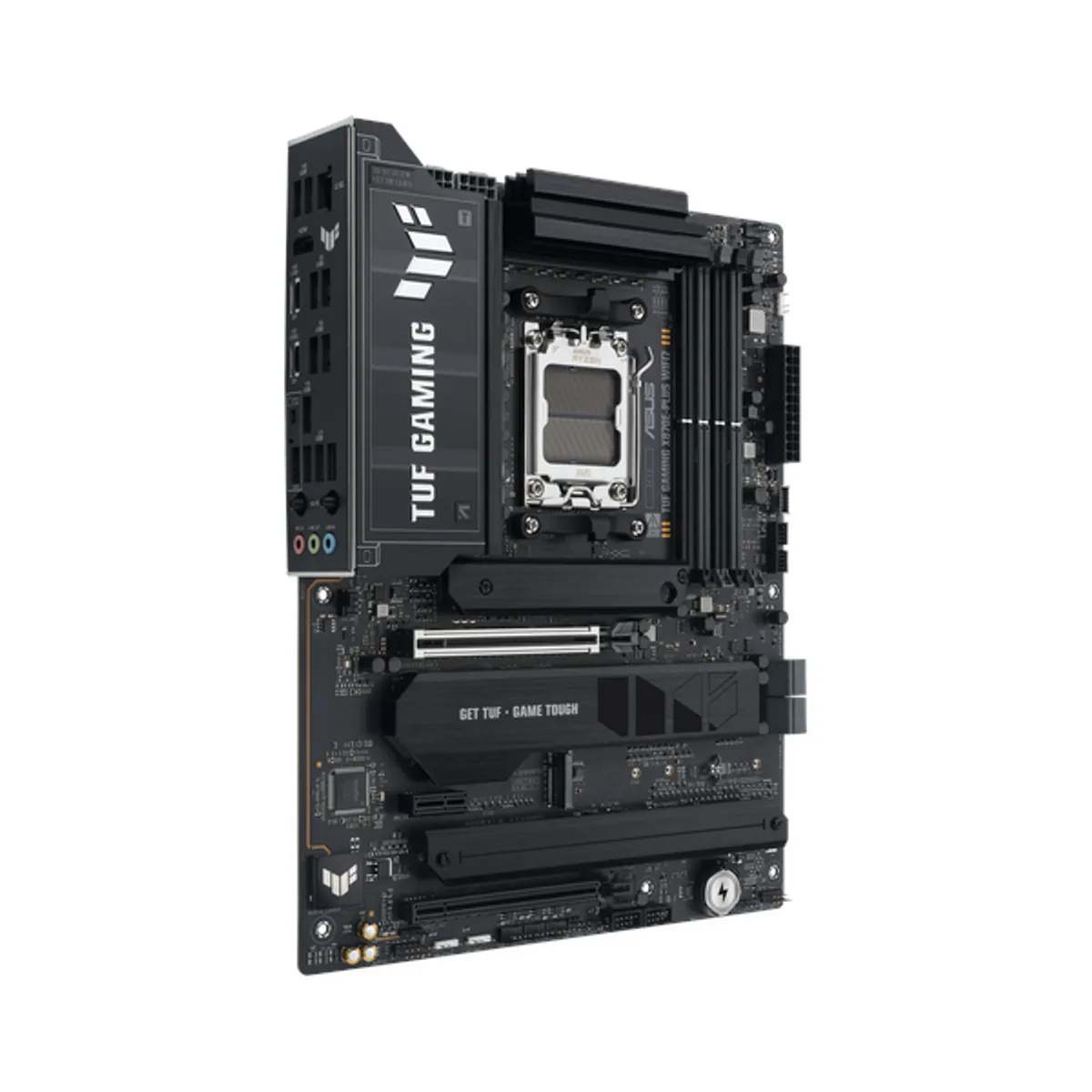

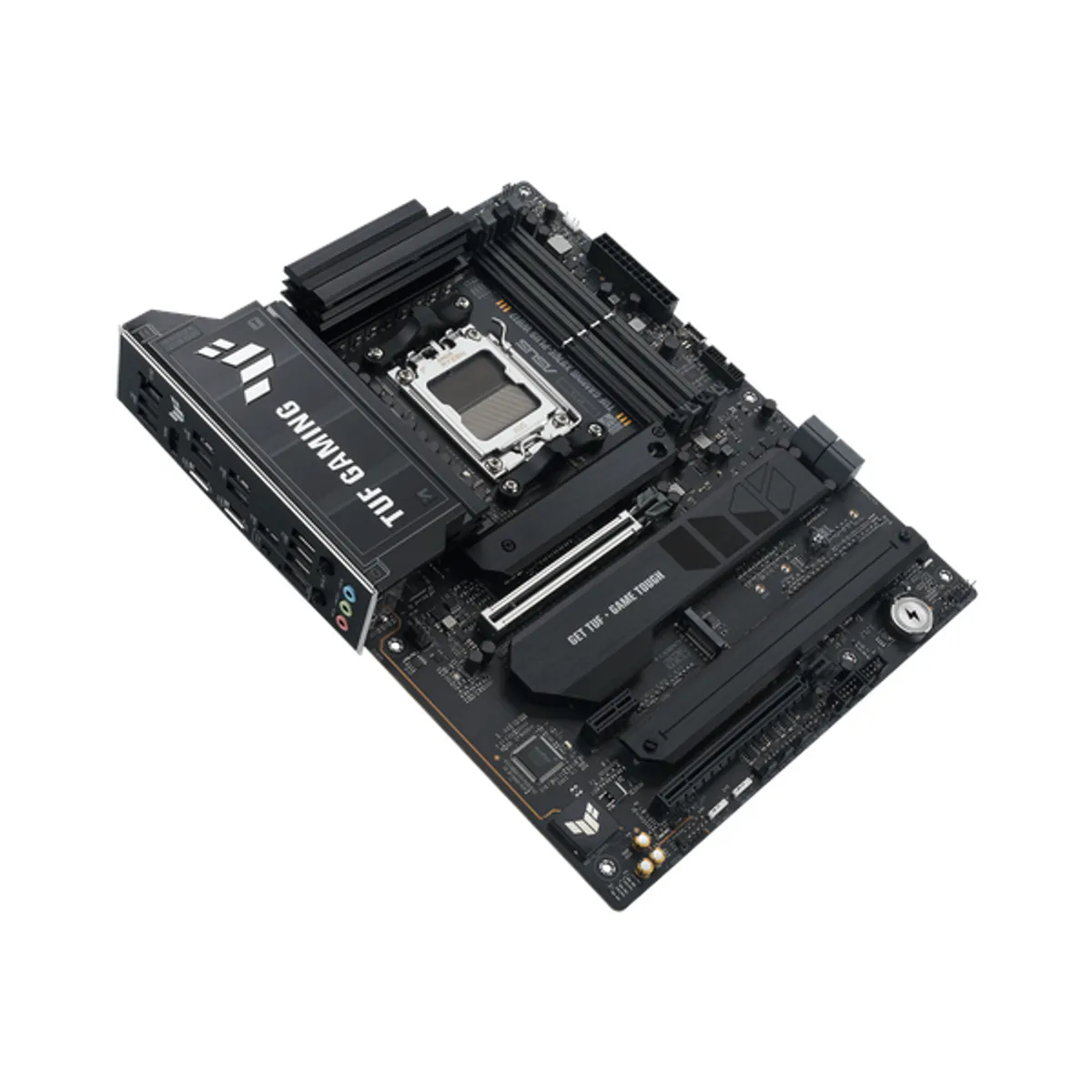

Asus TUF GAMING X870E-PLUS WiFi Motherboard, AM5 Socket, ATX Form Factor, DDR5 Ram, PCIe 5.0 With SafeSlot Core+, Wi-Fi 7, Bluetooth v5.4, HDMI, Thunderbolt 4, Realtek 2.5Gb Ethernet With TUF LANGuard, Aura Sync, 1 Year Warranty | 90MB1M70-M0EAY0

• CPU
  Socket: AM5, AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Ethernet
  Realtek 2.5Gb LAN, TUF LANGuard

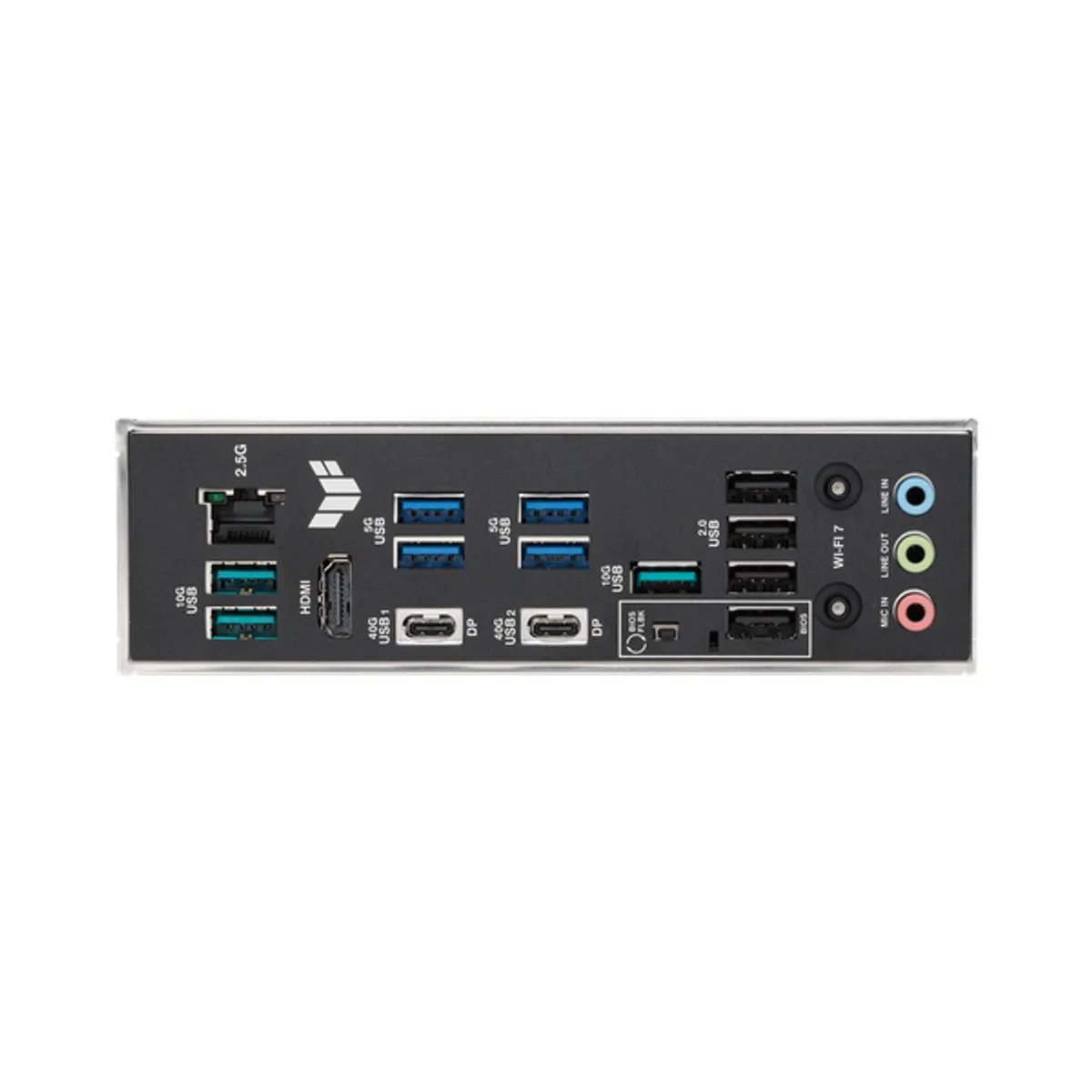

• USB
  Rear USB (Total 13 ports): 2 x USB4® 40Gbps ports (2 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports): 1 x USB 20Gbps connector (USB Type-C®, 30W PD), 1 x USB 5Gbps header (support 2 additional USB 5Gbps ports), 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Chipset
  AMD X870E Chipset
• Wireless
  Wi-Fi 7, Bluetooth v5.4
• Memory slots Support
  4×DIMM, up to 256GB DDR5, up to 8000+MT/s (OC)
• Internal I/O Connectors
  Cooling: 1 x CPU Fan (4-pin), 1 x AIO Pump (4-pin), X x Chassis Fan (4-pin), Power: 1 x 24-pin ATX, 2 x 8-pin 12V, Storage: X x M.2 (Key M), X x SATA 6Gb/s, USB: X x USB 20Gbps connector (supports USB Type-C®), X x USB 5Gbps headers (support X x USB 5Gbps), X x USB 2.0 headers (support X x USB 2.0), Misc: 1 x Clear CMOS, X x Addressable Gen 2 / RGB, 1 x Front Audio (F_AUDIO), 1 x Thermal Sensor
• Expansion Slots
  Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1, Storage: 4 x M.2 slots, 4 x SATA 6Gb/s ports
• Graphics Device
  1 x HDMI 2.1, 2 x USB4 Type-C (DisplayPort 1.4a)
• Sound
  Realtek ALC1220P 7.1 HD Audio, SNR 120dB playback
• Form Factor
  ATX, 12 x 9.6 in
• Warranty
  1 Year Warranty
