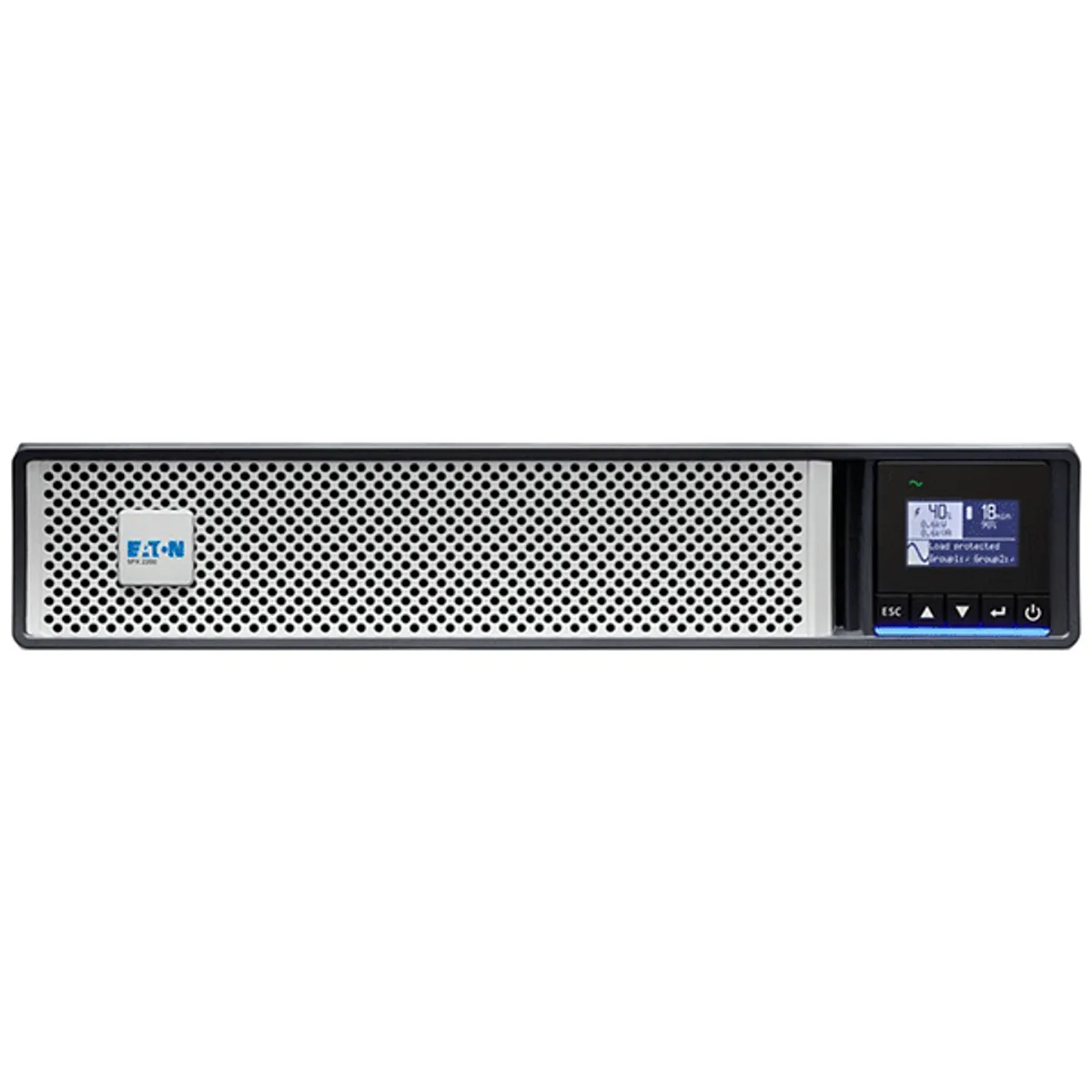

Eaton 5PX Gen2 UPS 2200VA | 5PX2200IRT2UG2

al ershad

tabby

Eaton 5PX Gen2 UPS 2200VA | 5PX2200IRT2UG2

Sku :
5PX2200IRT2UG2
Availability:
No-stock
Brand :EATON

AED 2900.00
AED 3600.00
19 % Off
Inclusive VAT

Lead-acid maintenance-free
Line-interactive
2200 VA

AED 2900.00
AED 3600.00
19 % Off
Inclusive VAT

Deliver to

tabby

Lead-acid maintenance-free
Line-interactive
2200 VA

Output
OUTPUT POWER FACTOR-1 OUTPUT VOLTAGE RANGE-230 V (+6%/-10%) OUTPUT WAVEFORM-Sine wave OUTPUT NOMINAL VOLTAGE- 230V default (200/208/220/230/240V)
Input
INPUT VOLTAGE RANGE- 160-294 V (adjustable to 150 V-294 V) INPUT FREQUENCY RANGE- 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Batteries & Runtime
BATTERY TYPE-Lead-acid maintenance-free BATTERY QUANTITY- 6 BATTERY RATING-12 V / 7 Ah
Communications & Management
USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote On/Off and Remote Power Off Mini-terminal block for output relay Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Dimension HxDxW
603 x 85.5 x 438 mm
Weight
28.2 kg
Warranty
1 Year Shop Warranty
