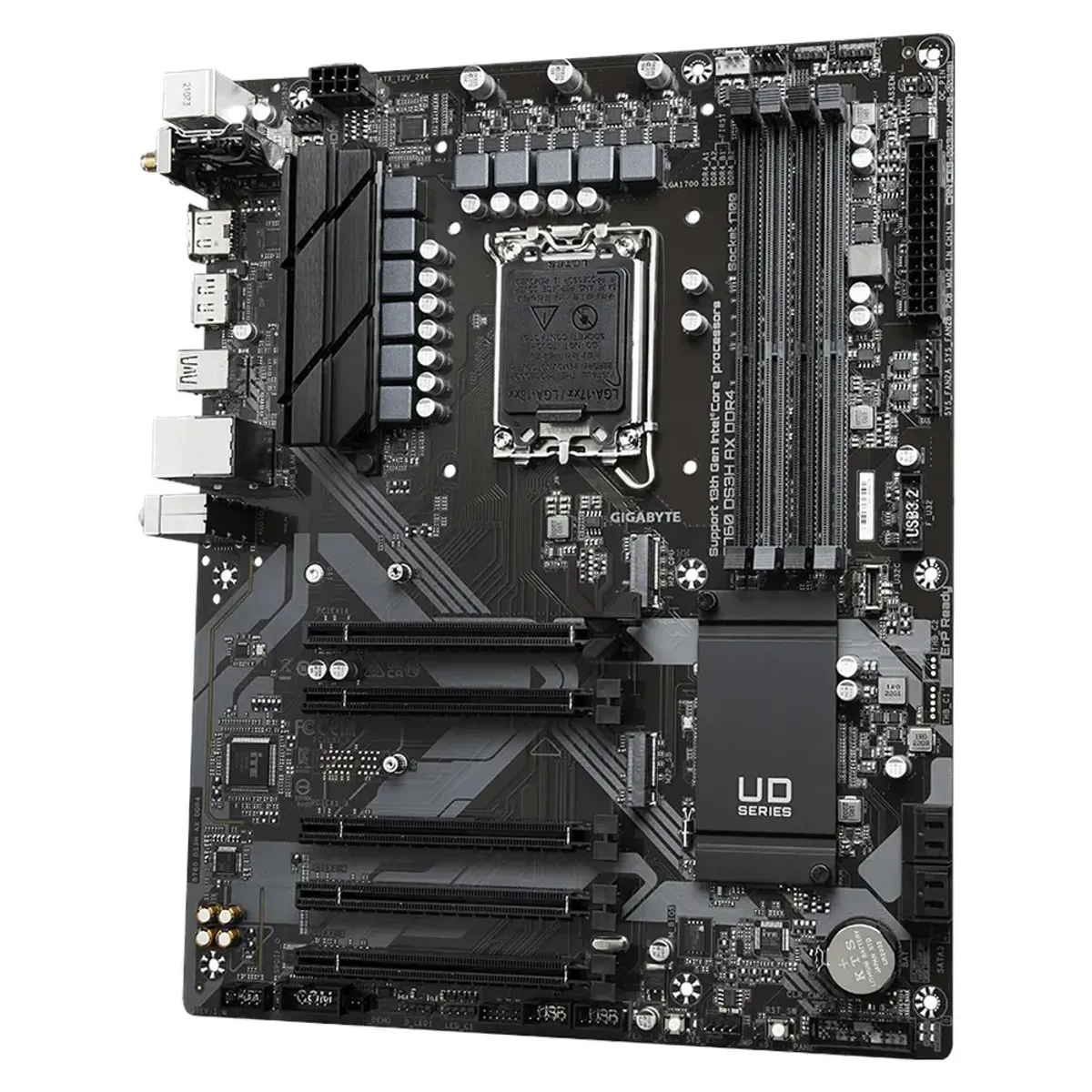

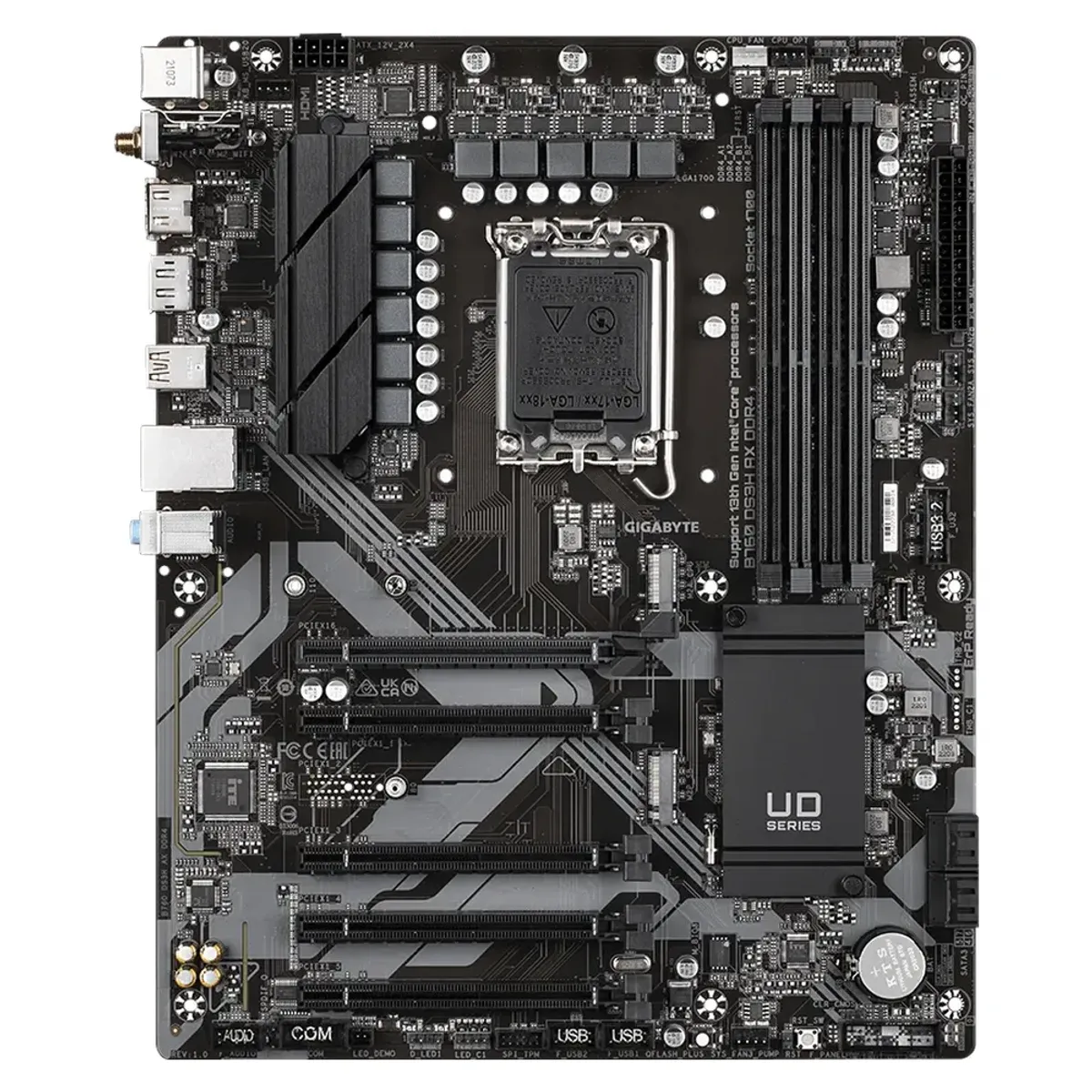

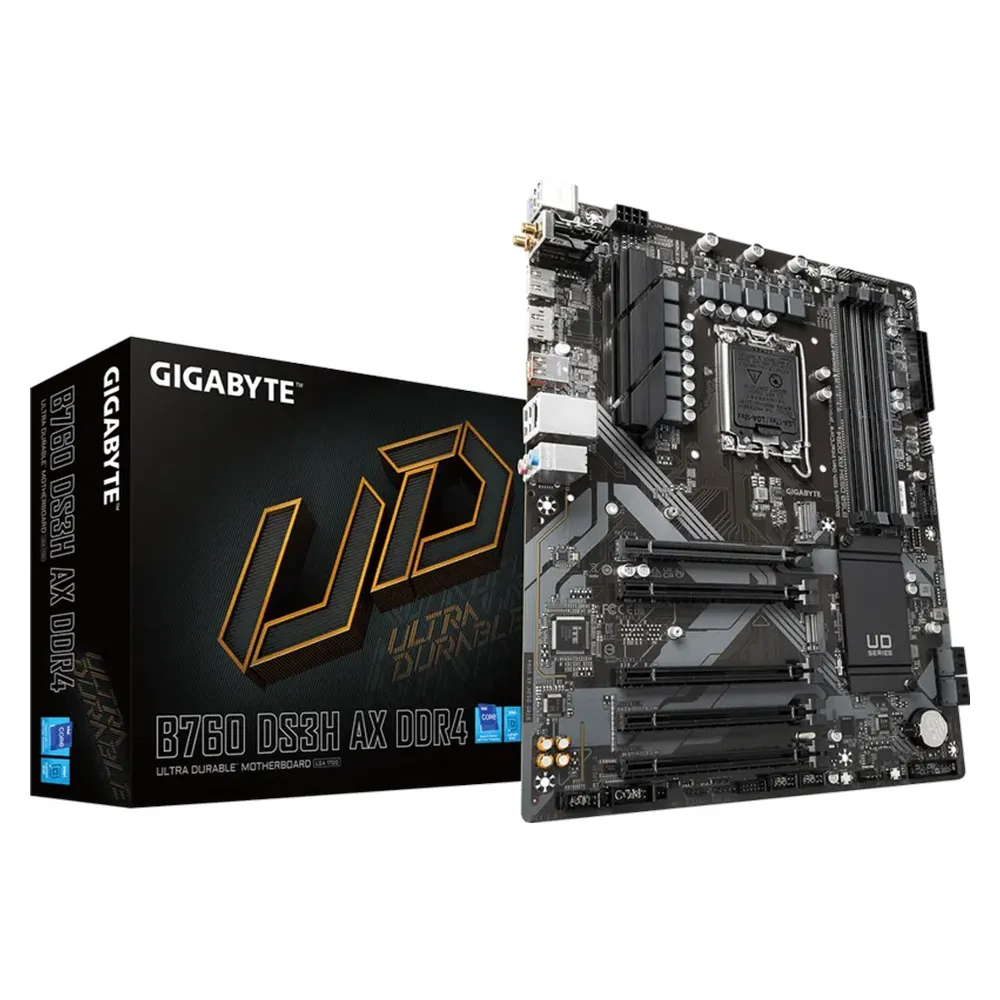

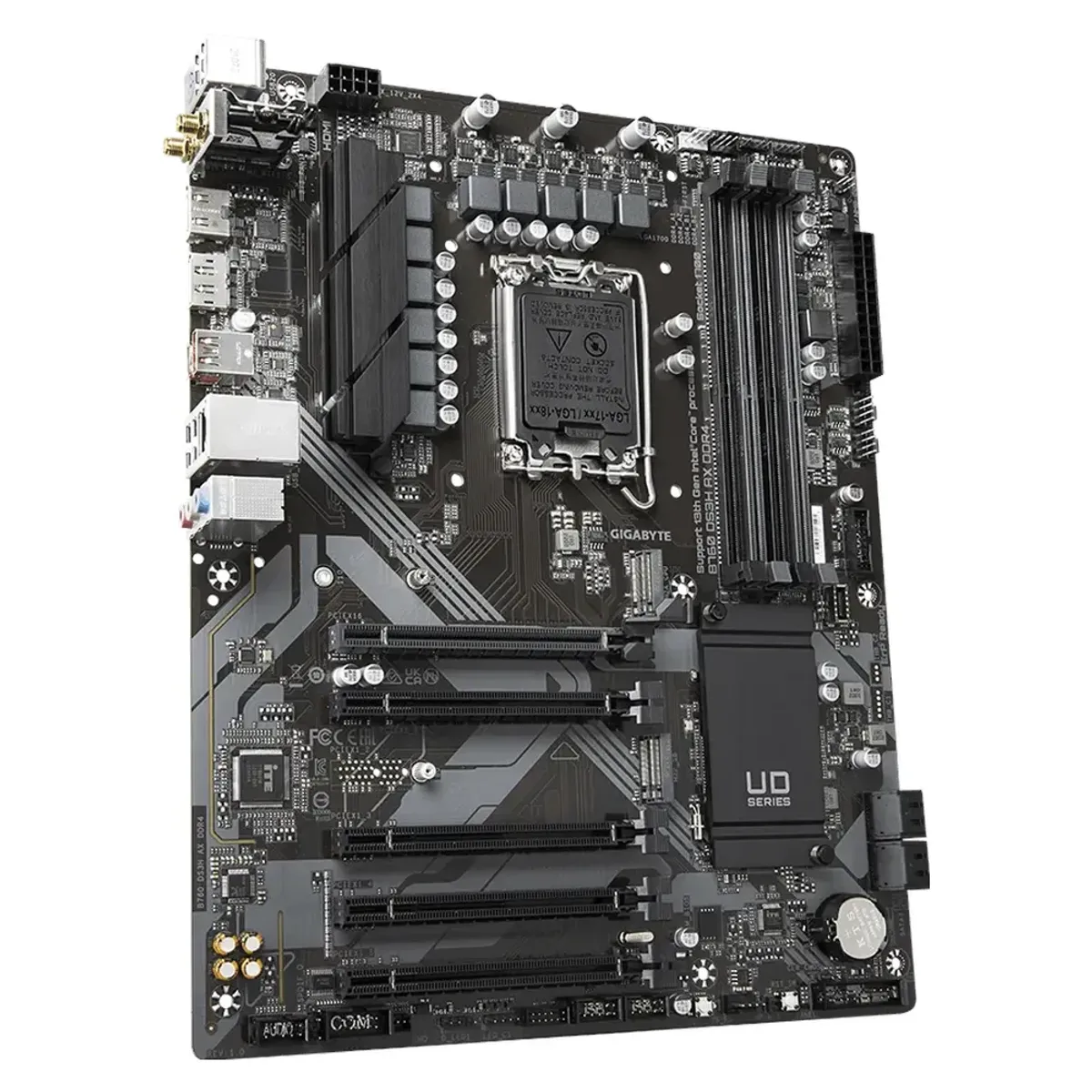

          Gigabyte B760 DS3H AX DDR4 Motherboard, LGA1700 Socket, ATX Form Factor, DDR4 Ram, PCIe 4.0, Wi-Fi 6E, Bluetooth v5.3, HDMI, DisplayPort, Realtek GbE Ethernet, USB 3.2 Gen 2x2 Type-C, 1 Year Warranty | B760-DS3H-AX-DDR4
          al ershad
          al ershad
          al ershad
          al ershad
          al ershad
          al ershad
          share

          Gigabyte B760 DS3H AX DDR4 Motherboard, LGA1700 Socket, ATX Form Factor, DDR4 Ram, PCIe 4.0, Wi-Fi 6E, Bluetooth v5.3, HDMI, DisplayPort, Realtek GbE Ethernet, USB 3.2 Gen 2x2 Type-C, 1 Year Warranty | B760-DS3H-AX-DDR4

          • B760-DS3H-AX-DDR4

          • No-stock

          • Gigabyte
          • AED 29.00
          • AED 49.00
          • 41 % Off
          • Inclusive VAT
          location pin
          tabby
          • Socket: LGA1700
          • Chipset: Intel B760
          • Processor Support: Intel 14th, 13th, and 12th Gen Core / Pentium / Celeron Processors
          • Ram: DDR4
          • Max Ram: 128GB
          • Wireless: Wi-Fi 6E, Bluetooth v5.3
          • Ethernet: Realtek GbE LAN
          • Form Factor: ATX
          • PCIe x 16: Gen 4.0
          • 1 Year Warranty
          • CPU
            LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
          • Ethernet
            Realtek® GbE LAN chip
          • USB

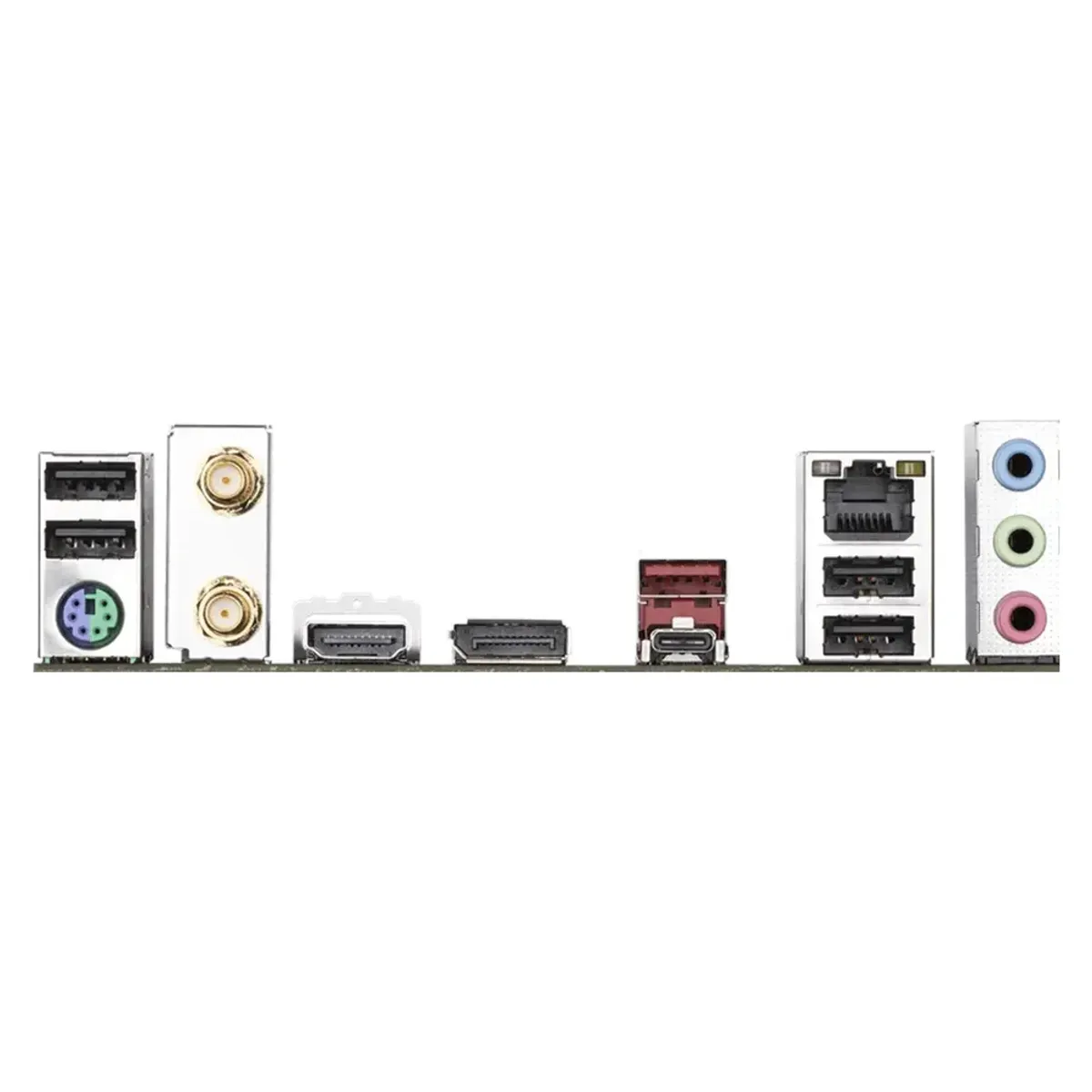

            1 x USB Type-C® (USB 3.2 Gen 2x2) [Back Panel], 1 x USB Type-C® (USB 3.2 Gen 2, via internal header), 1 x USB Type-C® (USB 3.2 Gen 1) [Back Panel], 1 x USB 3.2 Gen 2 Type-A (Red) [Back Panel], 1 x USB 3.2 Gen 1 Type-A [Back Panel], 2 x USB 3.2 Gen 1 (via 1 x internal header), 5 x USB 2.0/1.1 [Back Panel], 4 x USB 2.0/1.1 (via 2 x internal headers)
          • Chipset
            Intel® B760
          • Wireless
            Intel® Wi-Fi 6E AX211 + BLUETOOTH 5.3
          • Memory slots Support
            4 x DDR4 DIMM sockets supporting up to 128 GB
          • Internal I/O Connectors
            1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C® header (USB 3.2 Gen 1), 2 x USB 3.2 Gen 1 (via 1 x header), 4 x USB 2.0/1.1 (via 2 x headers), 1 x Trusted Platform Module header (GC-TPM2.0 SPI/SPI 2.0), 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper
          • Expansion Slots
            1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1, Storage: 1 x M.2 slots, 4 x SATA 6Gb/s ports
          • Graphics Device
            1 x DisplayPort, 1 x HDMI port
          • Sound
            Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
          • Form Factor
            ATX, 30.5 cm x 24.4 cm
          • Warranty
            1 Year Warranty
