          MSI A520M-A PRO Motherboard
          • Product
          al ershad
          al ershad
          al ershad
          al ershad
          al ershad
          share

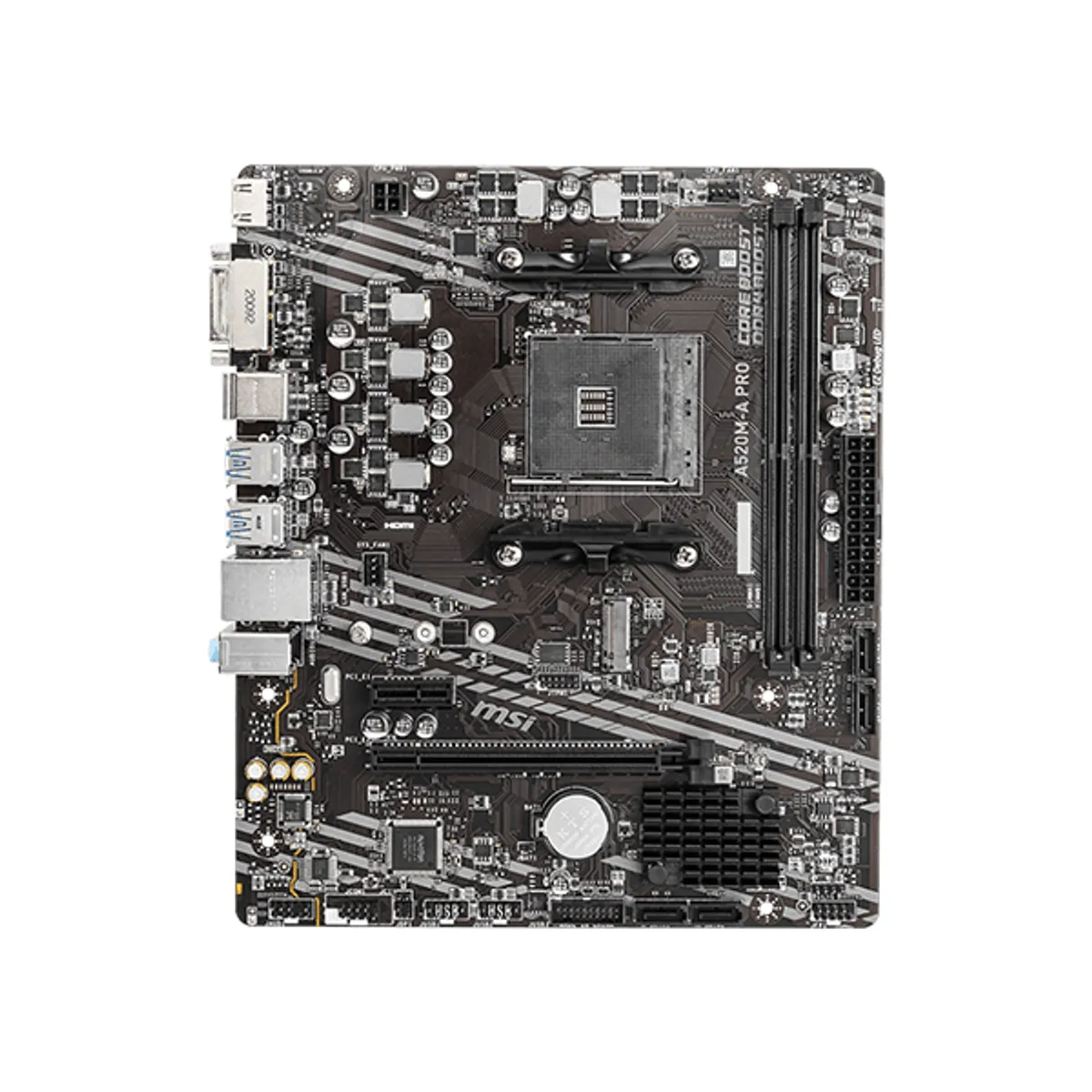

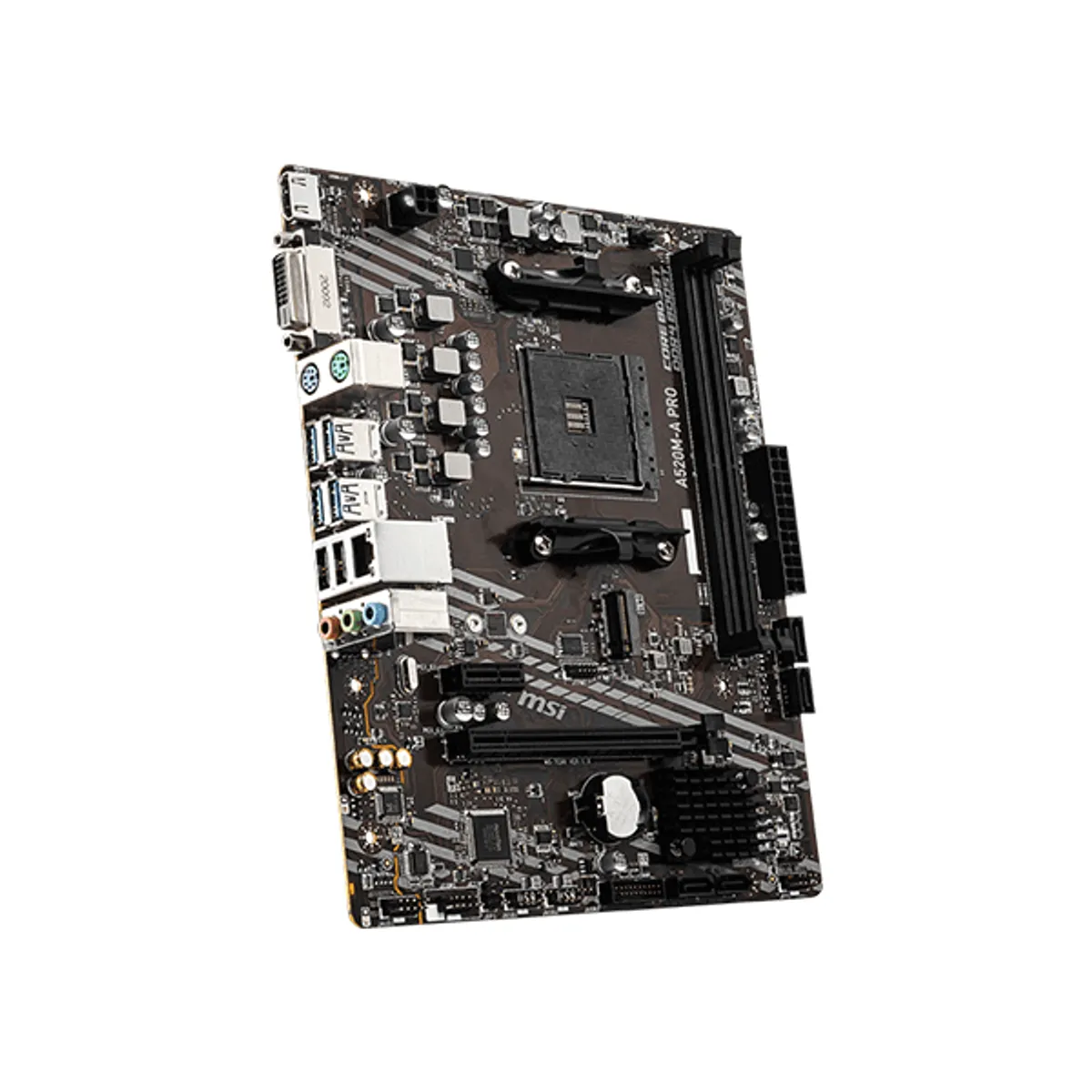

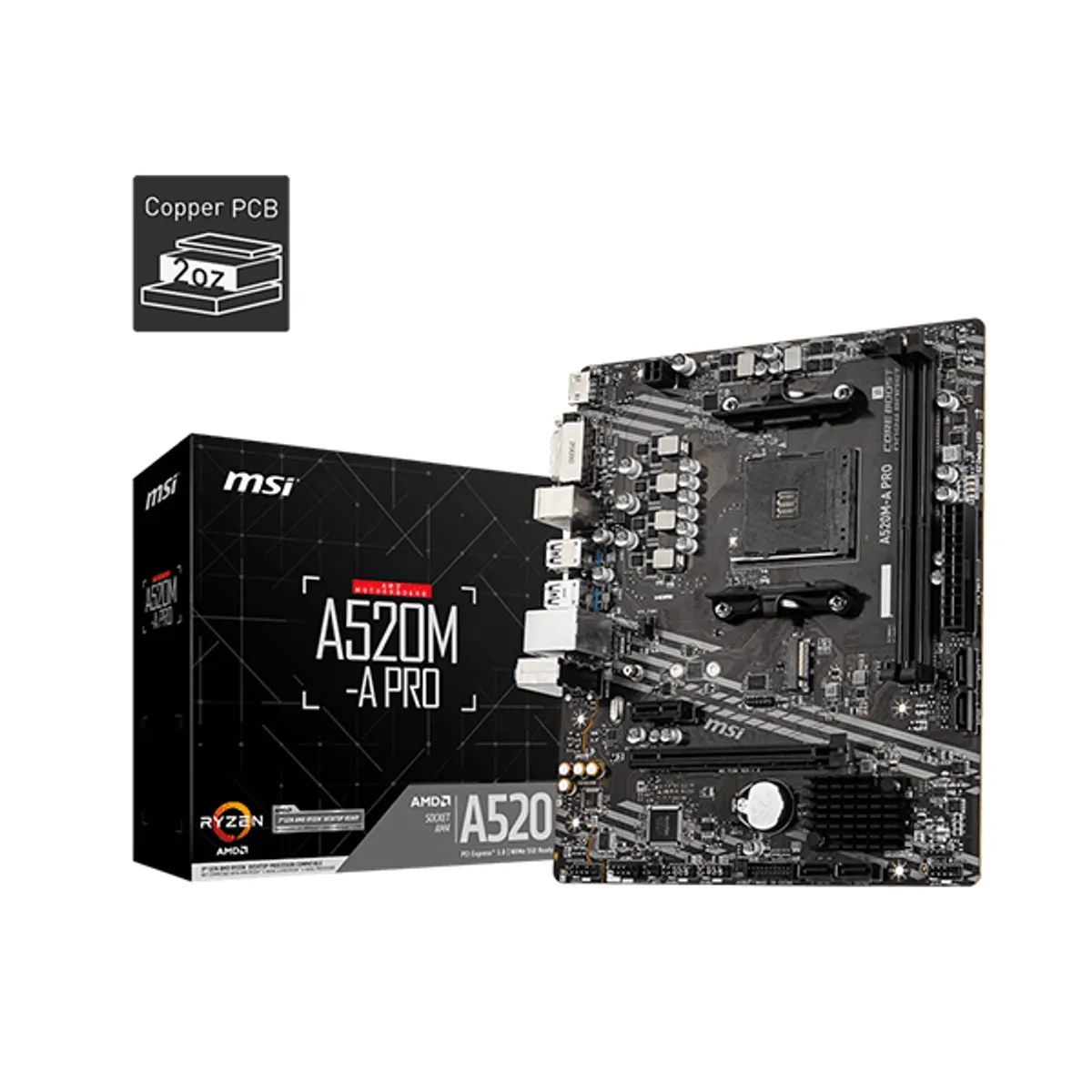

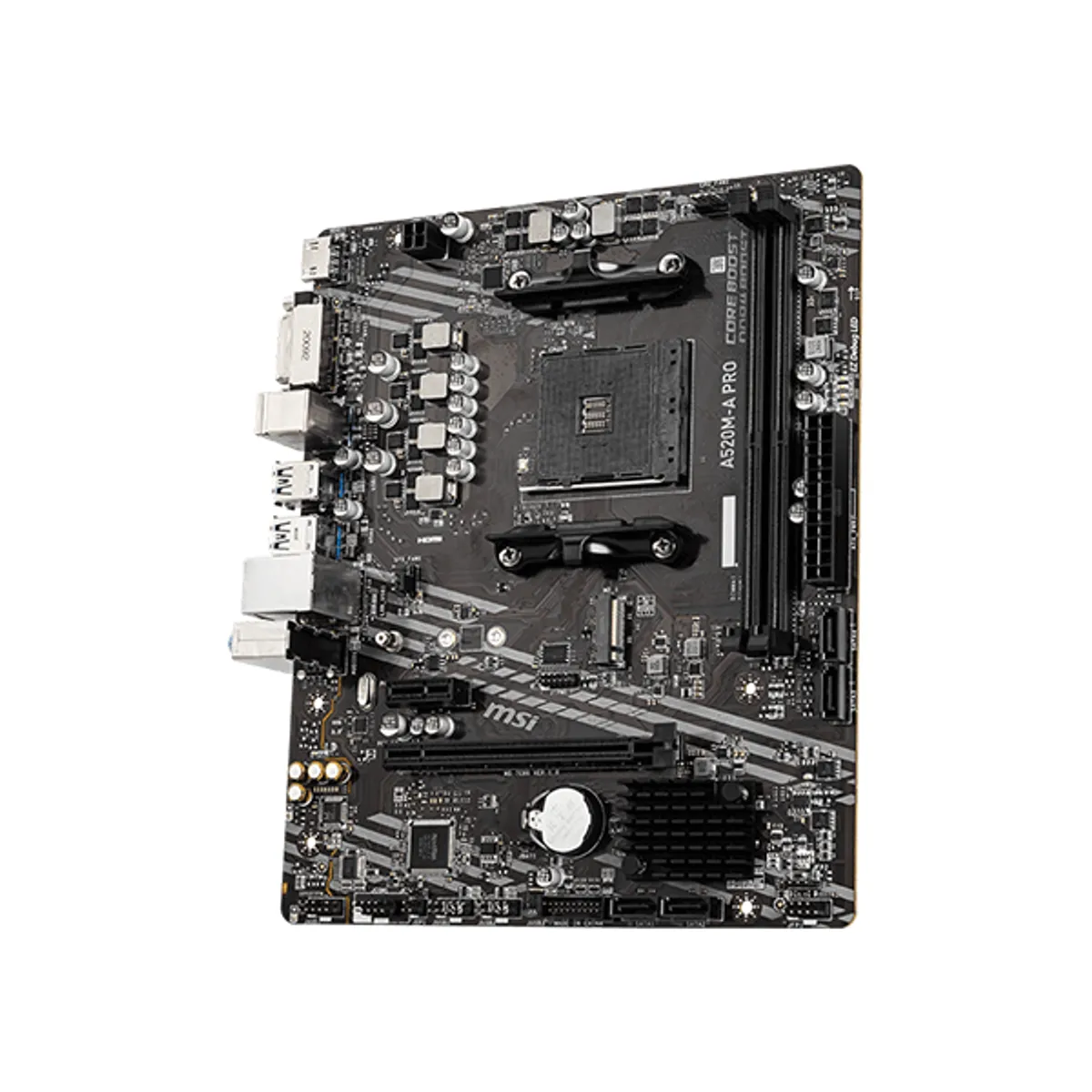

          MSI A520M-A PRO Motherboard

          • 911-7C96-031

          • No-stock

          • MSI
          • AED 260.00
          • AED 350.00
          • 26 % Off
          • Inclusive VAT
          location pin
          tabby
          • AMD Socket AM4
          • AMD® A520 Chipset
          • Form factor MATX
          • 2 x DDR4, Max. 64GB
          • Chipset
            AMD A520 Chipset
          • Ethernet
            1x Realtek® RTL8111H Gigabit LAN controller
          • Memory slots Support
            2x DDR4 memory slots, support up to 64GB:- Supports:- DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports:- DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory
          • Internal I/O Connectors
            1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 slots (M-Key) 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1 x 4-pin CPU fan connector; 1 x 4-pin system fan connectors; 1 x Front panel audio connector; 2x System panel connectors; 1 x Chassis Intrusion connector; 1 xTPM module connector; 1 x Clear CMOS jumper
          • Expansion Slots
            1x PCIe 3.0 x1 slot(The supported specification depends on installed processor.); 1x PCIe x16 slot

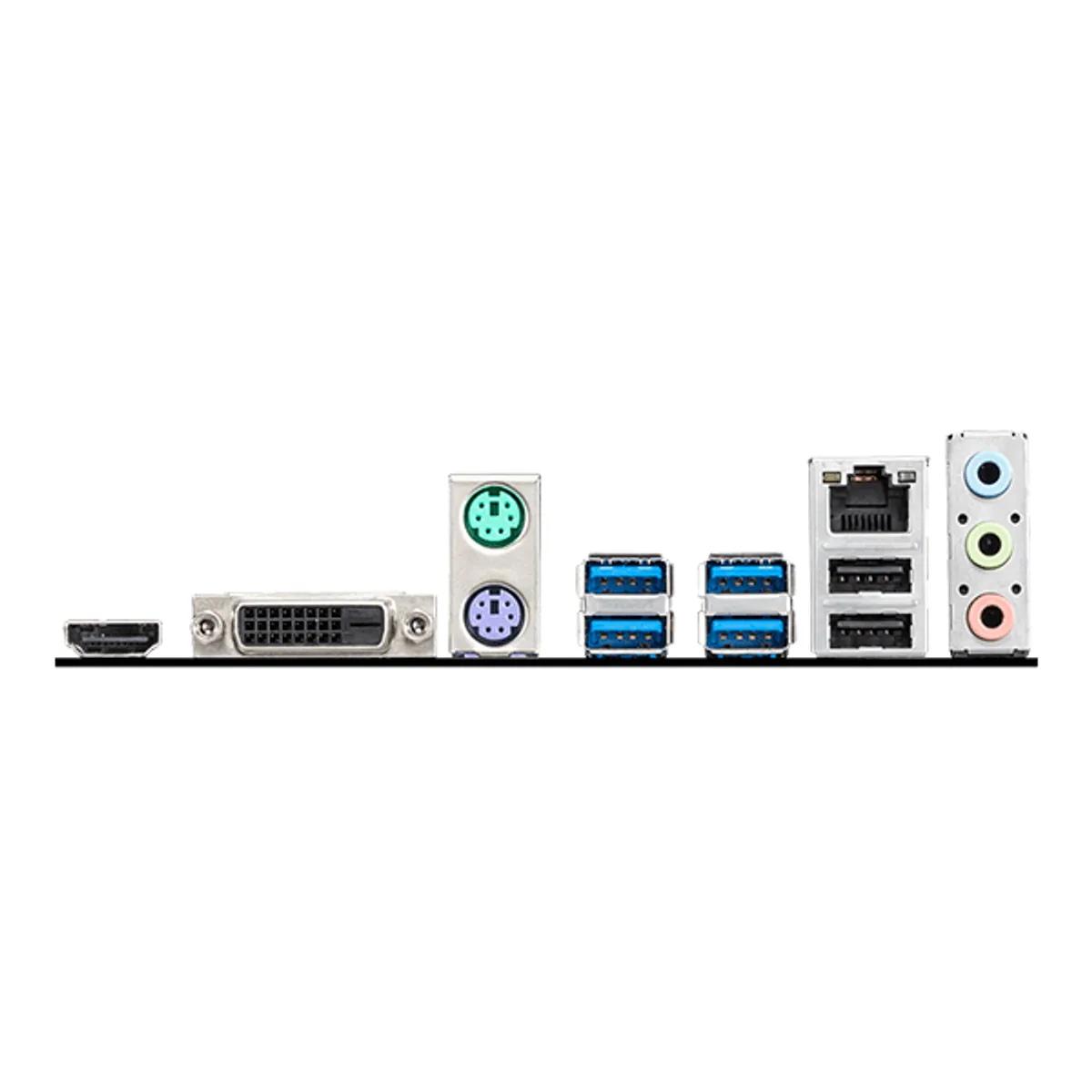

          • Graphics Device
            1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz(Available for the processor with integrated graphics/Graphics specifications may vary depending on the CPU installed), Support HDCP 1.4 & 2.3; 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz(Available for the processor with integrated graphics.); Maximum shared memory of 16 GB.
          • Sound
            Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio
          • Operating System
            Support for Windows® 10 64-bit
          • Form Factor
            MATX
          • Warranty
            1 Year Warranty
