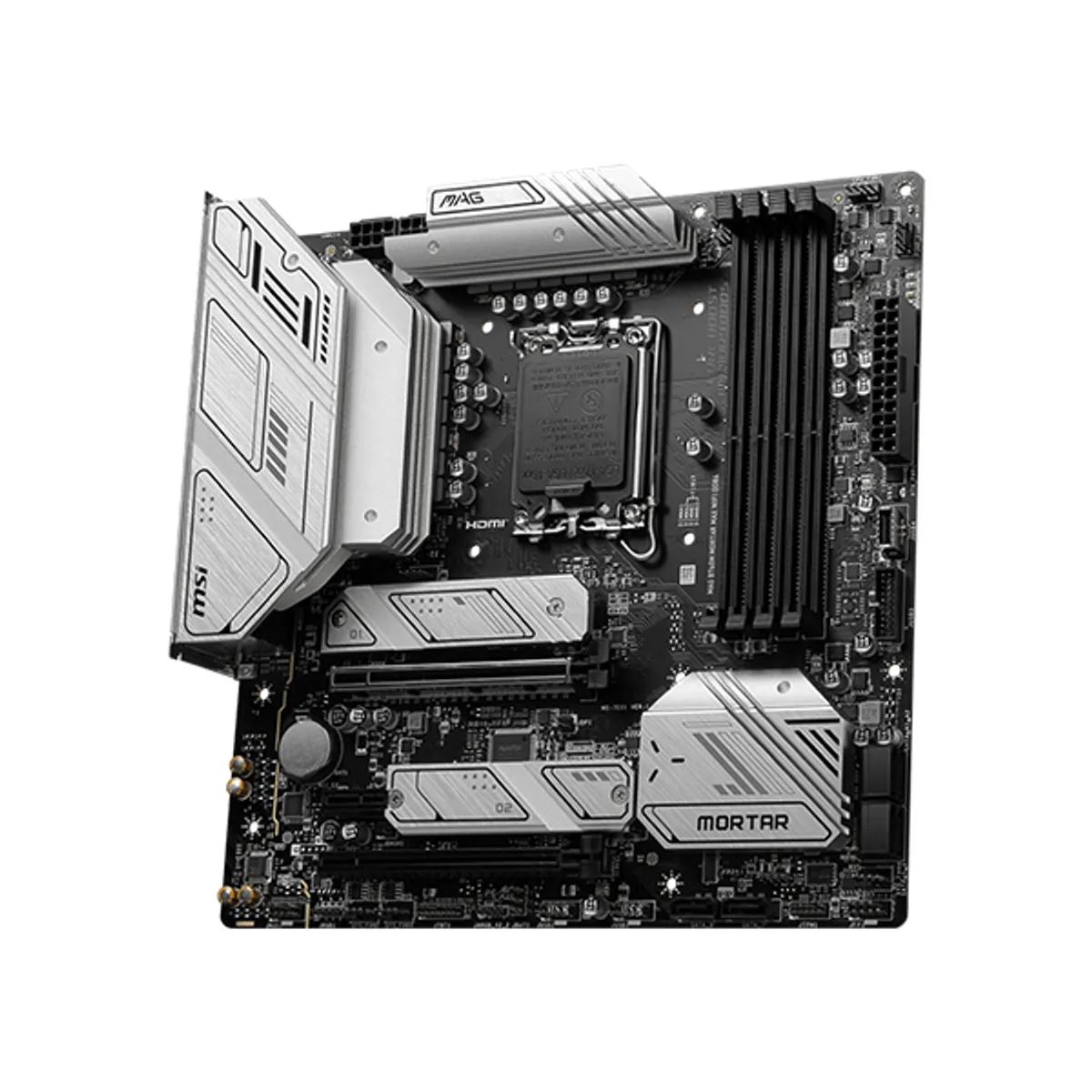

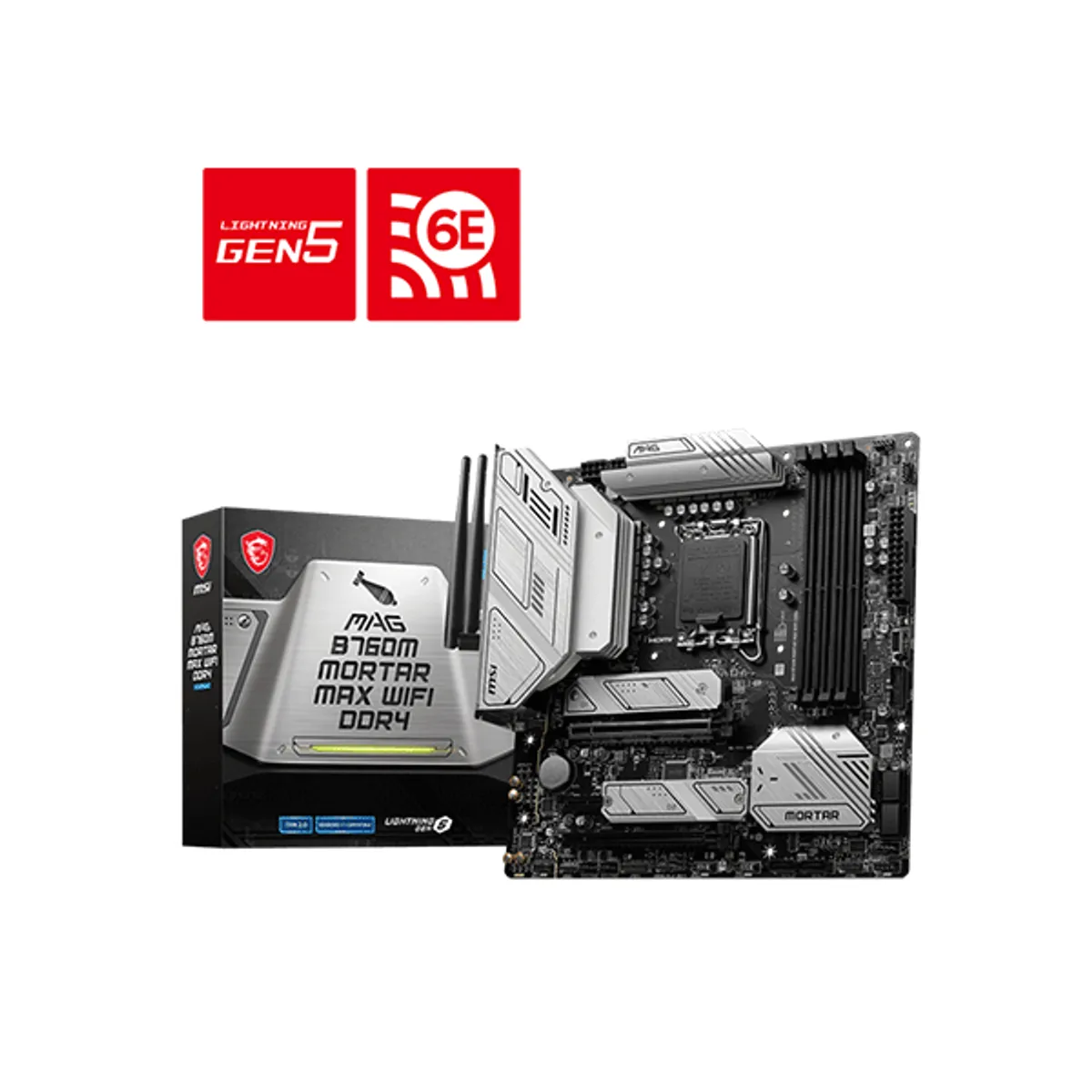

          MSI MAG B760M Mortar Max WiFi Intel LGA 1700 Motherboard| 911-7E01-015
          al ershad
          al ershad
          share

          MSI MAG B760M Mortar Max WiFi Intel LGA 1700 Motherboard| 911-7E01-015

          • 911-7E01-015

          • No-stock

          • MSI
          • AED 940.00
          • AED 1200.00
          • 22 % Off
          • Inclusive VAT
          location pin
          tabby
          • Socket LGA1700
          • ?INTEL B760 Chipset
          • Form factor mATX
          • 4x DDR4, Max. 128GB,
          • Chipset
            INTEL B760
          • Ethernet
            Realtek® 2.5Gbps LAN
          • Wireless
            Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA
          • Memory slots Support
            4x DDR4, Maximum Memory Capacity 128GB, Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC), Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile
          • Internal I/O Connectors
            1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports
          • Expansion Slots
            2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
          • Graphics Device
            1x HDMI™, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*, 1x DisplayPort, Support DP 1.4, maximum resolution of 8K 60Hz*
          • Sound
            Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
          • Operating System
            Support for Windows® 11 64-bit, Windows® 10 64-bit
          • Form Factor
            mATX 243.84mmx243.84mm
          • Warranty
            1 Year Warranty
