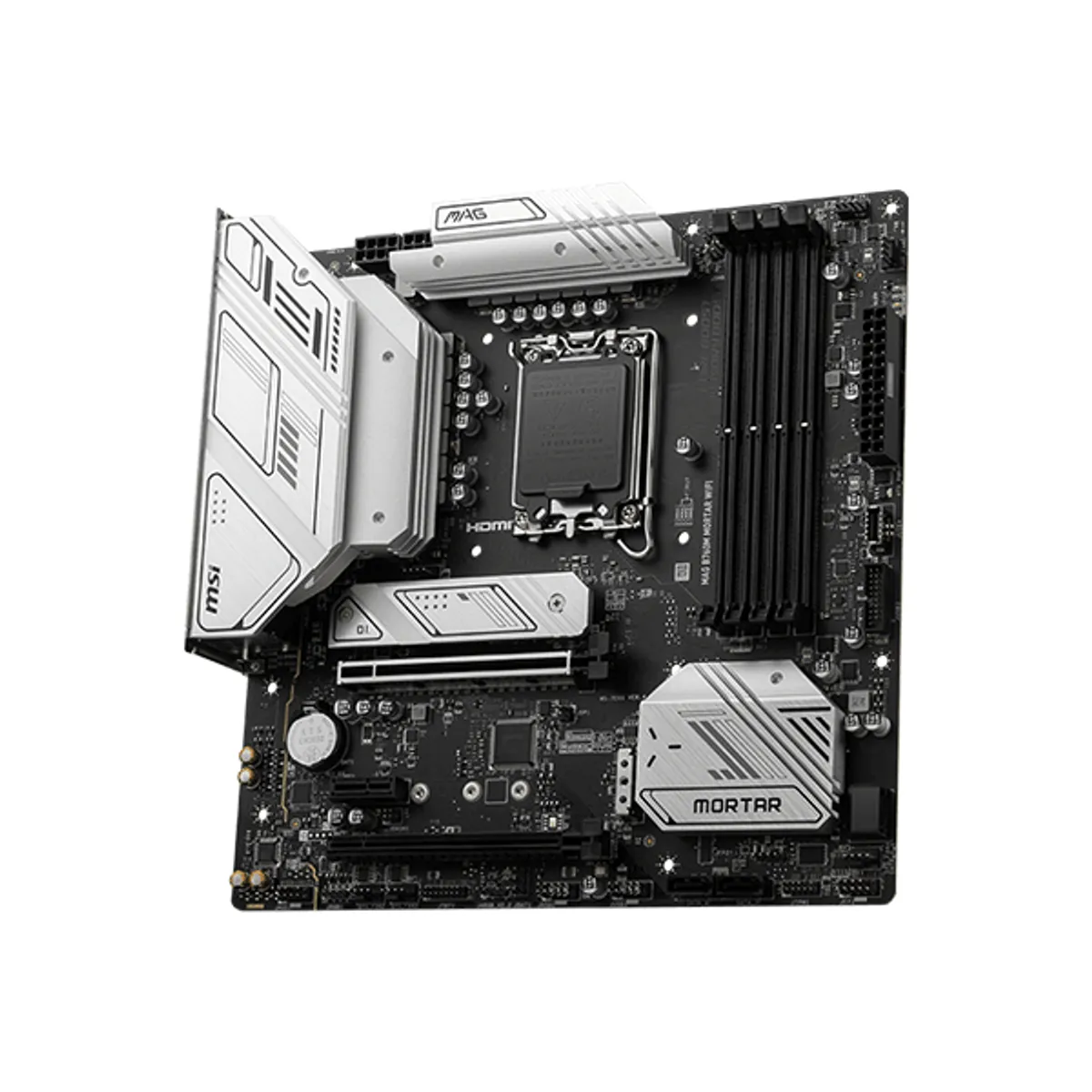

          MSI MAG B760M Mortar WiFi DDR5 Intel LGA 1700 Motherboard | 911-7E01-012

          • 911-7E01-012

          • No-stock

          • MSI
          • AED 825.00
          • AED 1100.00
          • 25 % Off
          • Inclusive VAT
          location pin
          tabby
          • Socket LGA1700
          • ?INTEL B760 Chipset
          • Form factor mATX
          • 4x DDR5, Max. 192GB,
          • Chipset
            INTEL B760
          • Ethernet
            Realtek® 2.5Gbps LAN
          • Wireless
            Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax
          • Memory slots Support
            4x DDR5, Maximum Memory Capacity 192GB, Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile
          • Internal I/O Connectors
            1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports
          • Expansion Slots
            2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
          • Graphics Device
            1x HDMI™, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*, 1x DisplayPort, Support DP 1.4, maximum resolution of 4K 60Hz*
          • Sound
            Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
          • Operating System
            Support for Windows® 11 64-bit, Windows® 10 64-bit
          • Form Factor
            mATX 243.84mmx243.84mm
          • Warranty
            1 Year Warranty
