BRILLIANT IMAGE QUALITY: 3600 ANSI Lumens high brightness and 20000:1 contrast deliver stunning display presentations
FAST TRANSMISSION, DUAL CONNECTIVITY: HDMI provides faster data transmission. Dual HDMI additionally offer multiplatform and expanded connectivity.
DETAILED INFOGRAPHIC: Exclusive Infographic Mode showcases the text and graphics in detail.
Display
Brightness (ANSI lumens) 3600
Native Resolution XGA (1024x768)
Native Aspect Ratio 4:3
Contrast Ratio (FOFO) 20000:1
Display Color 30 Bits (1, 07 billion colors)
Light Source Lamp
Light Source Life Economic 10000 hrs, LampSave 15000 hrs, Normal 5000 hrs, SmartEco 10000 hrs
Optical
Throw Ratio 1.96~2.15
Zoom Ratio 1.1x
Lens F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height) 110%
Keystone Adjustment 1D, Vertical ± 30 degrees

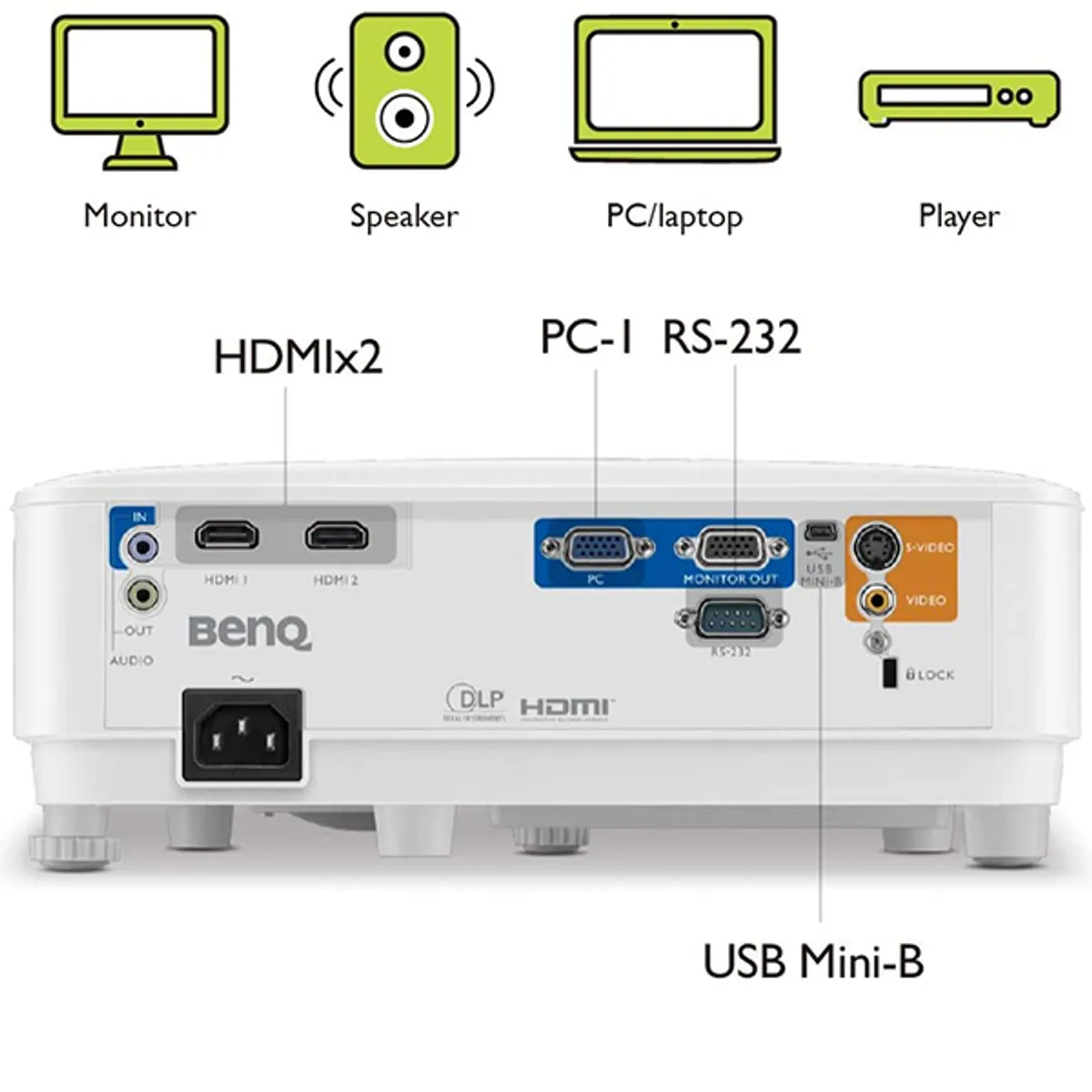

Compatibility/Connectivity
PC in (D-sub 15pin) 1
Monitor out (D-sub 15pin) 1
Composite Video in (RCA) 1
S-Video in (Mini DIN 4pin) 1
HDMI in 2, HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
USB Type Mini B 1
RS232 in (DB-9pin) 1
Audio
Audio in (3.5mm Mini Jack) 1
Audio out (3.5mm Mini Jack) 1
Advanced Features
VGA(D-sub 15pin) Cable (Standard), 1 (1.5m)
User Manual CD 1 (24L)
3D Glasses (Optional), Yes, DGD5
Quick Start Guide 1 (18L)
Warranty Card (by region) Yes
Universal Ceiling Mount (Optional), Yes, CMG3
Power Supply
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) ~270W
