Gigabyte  |  SKU: B760M-DS3H-AX-DDR4
25% off

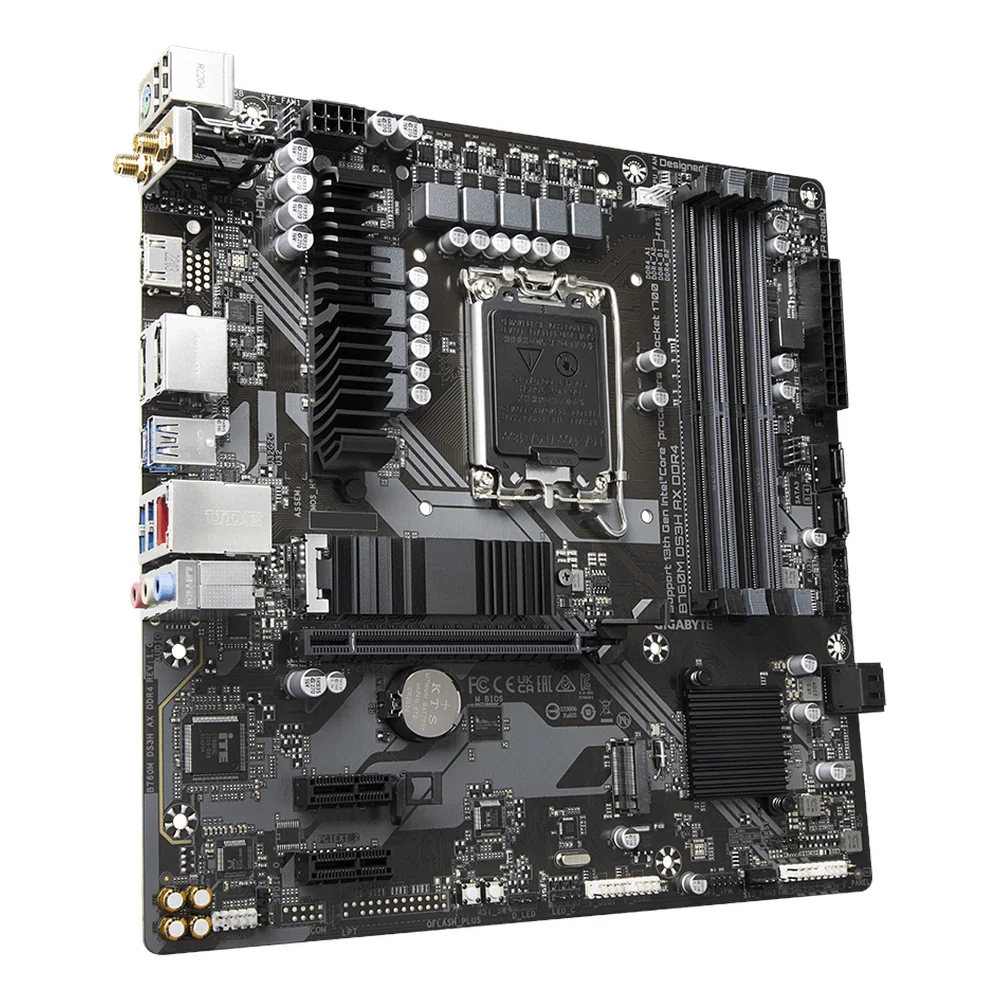

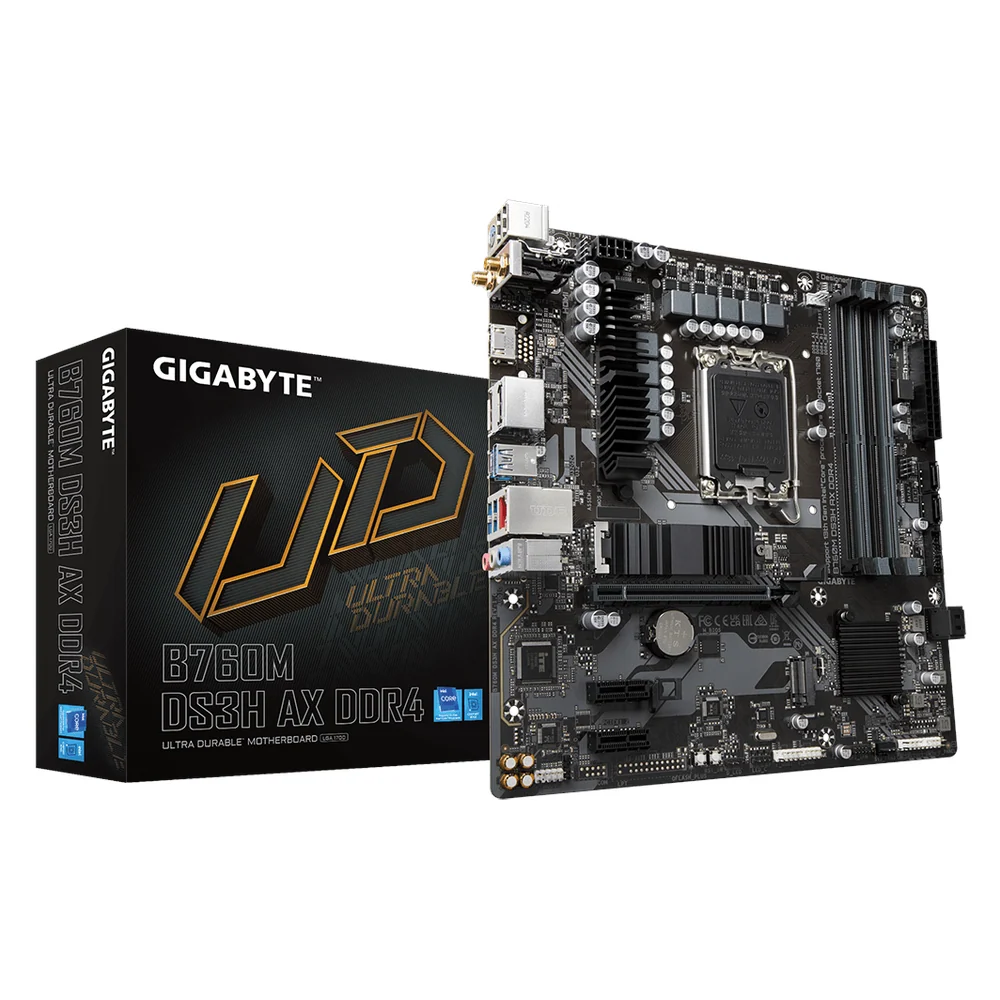

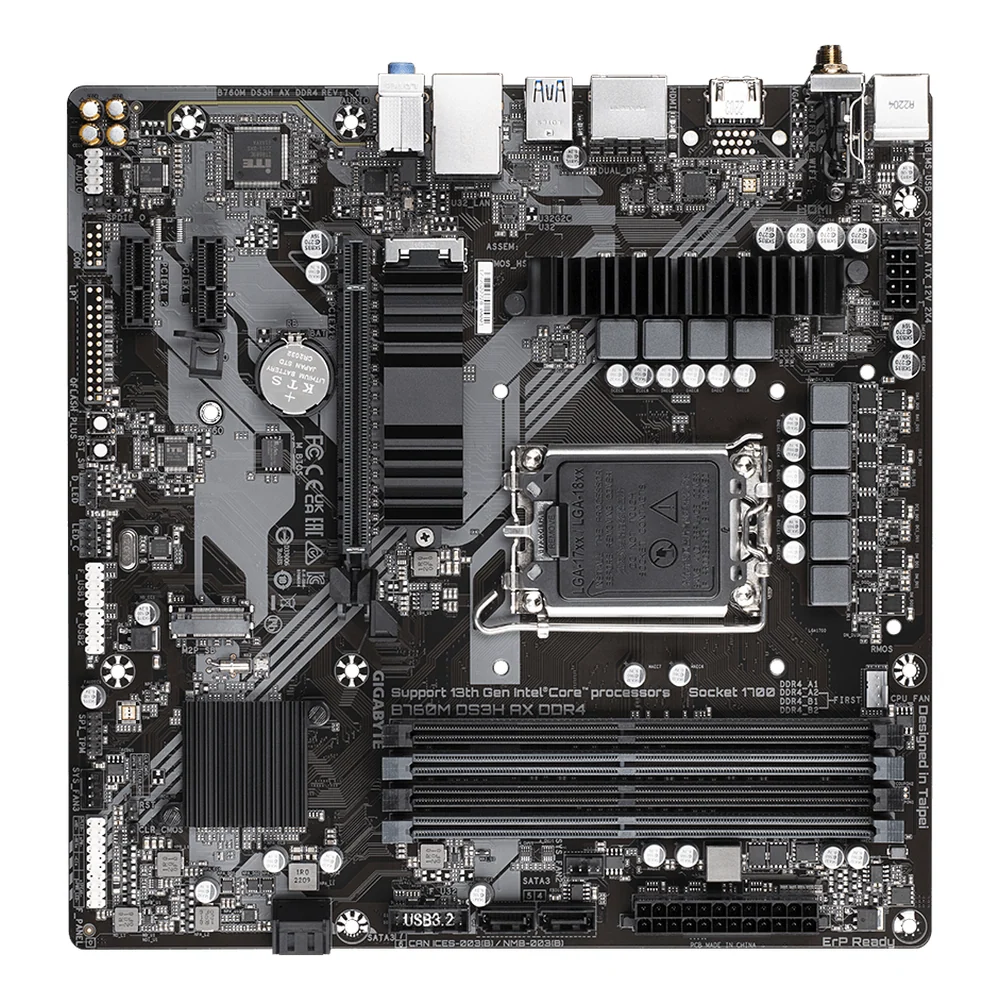

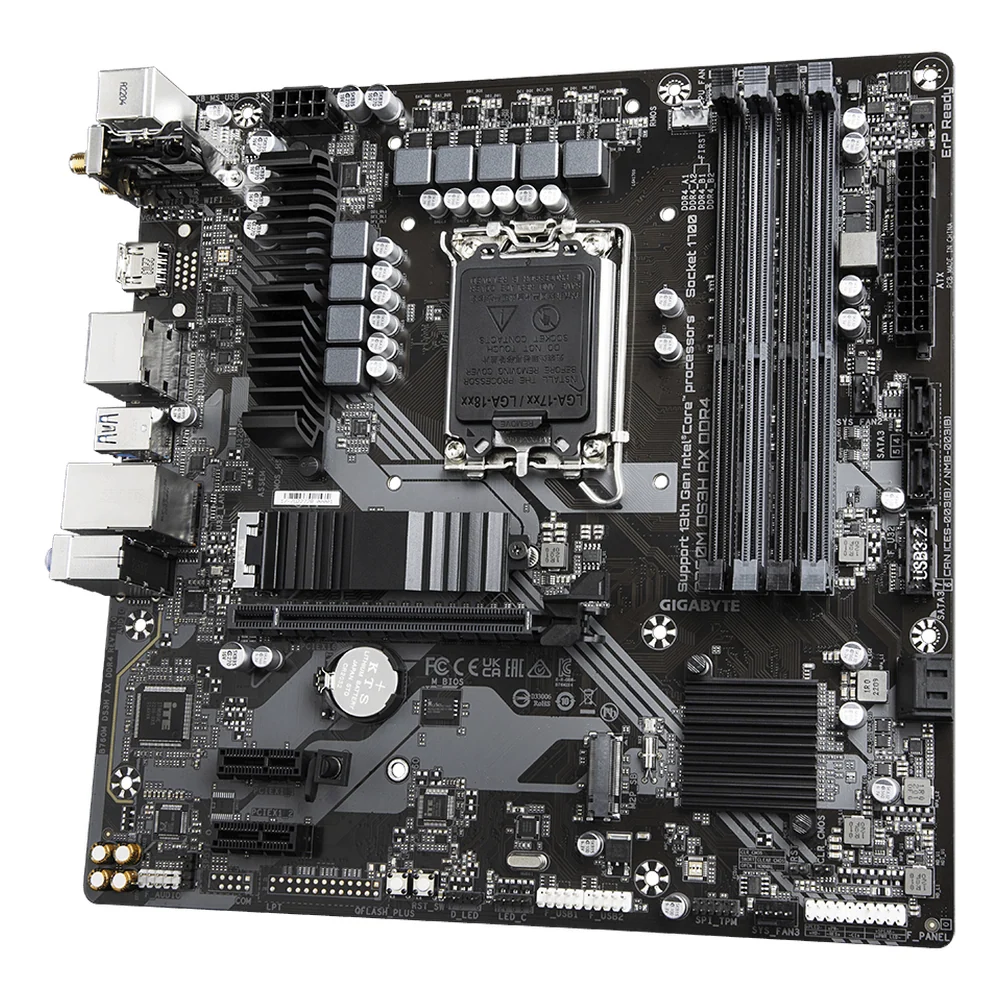

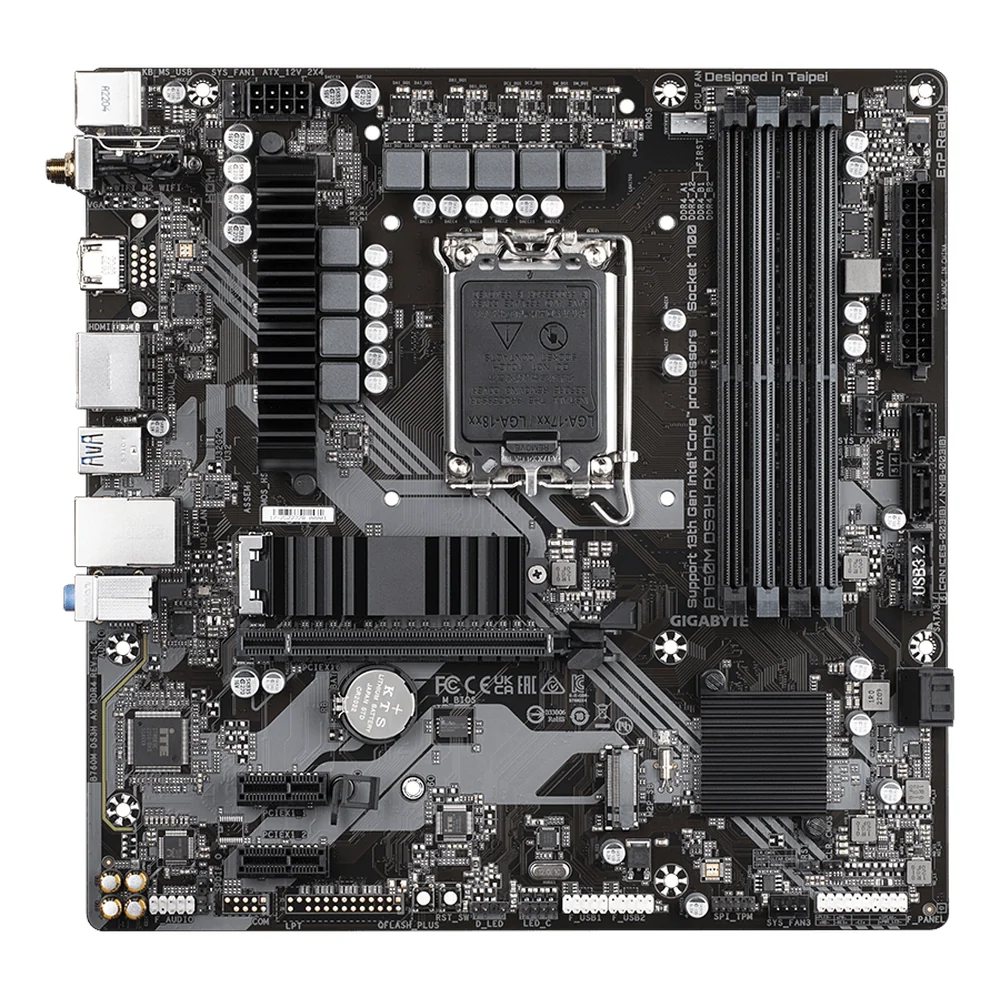

Gigabyte B760M DS3H AX DDR4 Micro ATX Motherboard, LGA1700 Socket, DDR4, Wi-Fi 6E, Realtek 2.5GbE LAN, HDMI, DisplayPort, 1 Year Warranty | B760M-DS3H-AX-DDR4

Sale price AED 589.00 Regular price AED 789.00
Inclusive VAT

  • Socket: LGA1700
  • Chipset: Intel B760 Express
  • Processor Support: 14th, 13th, and 12th Generation
  • Ram: DDR4
  • Max Ram: 128GB
  • Ethernet: Realtek 2.5GbE LAN chip
  • Wireless: Wi-Fi 6E + Bluetooth
  • Form Factor: Micro ATX
  • PCIe x 16: 1 x PCIe 4.0
  • 1 Year Warranty

Official Warranty

100% genuine products with official UAE warranty

Deliver to Dubai
FREE Delivery

Specifications

  • Wireless
    Wi-Fi 6E + BLUETOOTH 5.2+
  • Chipset
    Intel B760 Express
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header
    1 x S/PDIF Out header
    1 x Q-Flash Plus button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
  • Graphics Device
    1 x HDMI port
    1 x DisplayPort
  • Expansion Slots
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    Storage Interface:
    2 x M.2 connector
    4 x SATA 6Gb/s connectors
  • Memory Slots Support
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Sound
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
  • USB

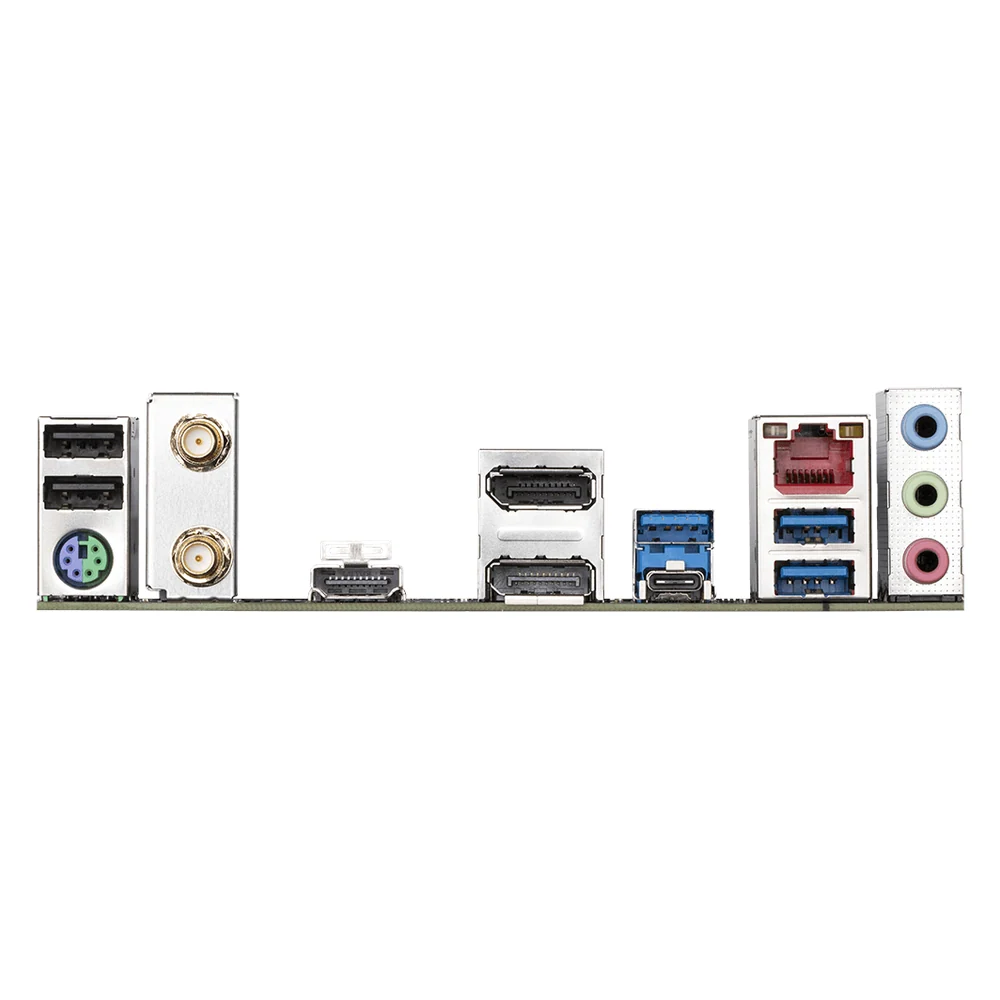

    Rear Ports:
    1 x USB 3.2 Gen 2 Type-C®,
    3 x USB 3.2 Gen 1 Type-A,
    2 x USB 2.0/1.1 Type-A
    Front / Internal Headers:
    1 x USB 3.2 Gen 1 Header (Supports 2 Ports),
    2 x USB 2.0/1.1 Headers (Supports 4 Ports)
  • Ethernet
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Dimension WxDxH
    24.4 x 24.4 cm
  • Form Factor
    Micro ATX
  • Warranty
    1 Year Warranty
