Gigabyte  |  SKU: B840M-H
15% off

Gigabyte B840M H Motherboard, Socket AM5, mATX Form Factor, DDR5 Ram, PCIe 4.0, HDMI, DisplayPort, Realtek GbE LAN, 1 Year Warranty | B840M-H

Sale price AED 409.00 Regular price AED 479.00
Inclusive VAT

  • Socket: AM5
  • Chipset: AMD B840
  • Processor Support: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Ram: DDR5
  • Max Ram: 128GB (2 x DIMMs)
  • Wireless: N/A
  • Ethernet: Realtek GbE LAN (1 Gbps)
  • Form Factor: Micro-ATX (mATX)
  • PCIe x 16: Gen 4.0
  • Special Features: Digital 5+2+2 Phases VRM Solution, PCIe EZ-Latch, X3D Turbo Mode, Smart Fan 6, Q-Flash Plus
  • 1 Year Warranty

Specifications

  • Wireless
    N/A
  • Chipset
    AMD B840
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    1 x reset jumper
    1 x Clear CMOS jumper
  • Graphics Device
    1 x DisplayPort
    1 x HDMI port
  • Expansion Slots
    1 x PCI Express x16 PCIe 4.0 x16 mode
    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Storage:
    1 x M.2 slots,
    4 x SATA 6Gb/s ports
  • Memory Slots Support
    2 x DDR5 DIMM sockets supporting up to 128 GB
    Dual channel memory architecture
  • Sound
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
  • USB

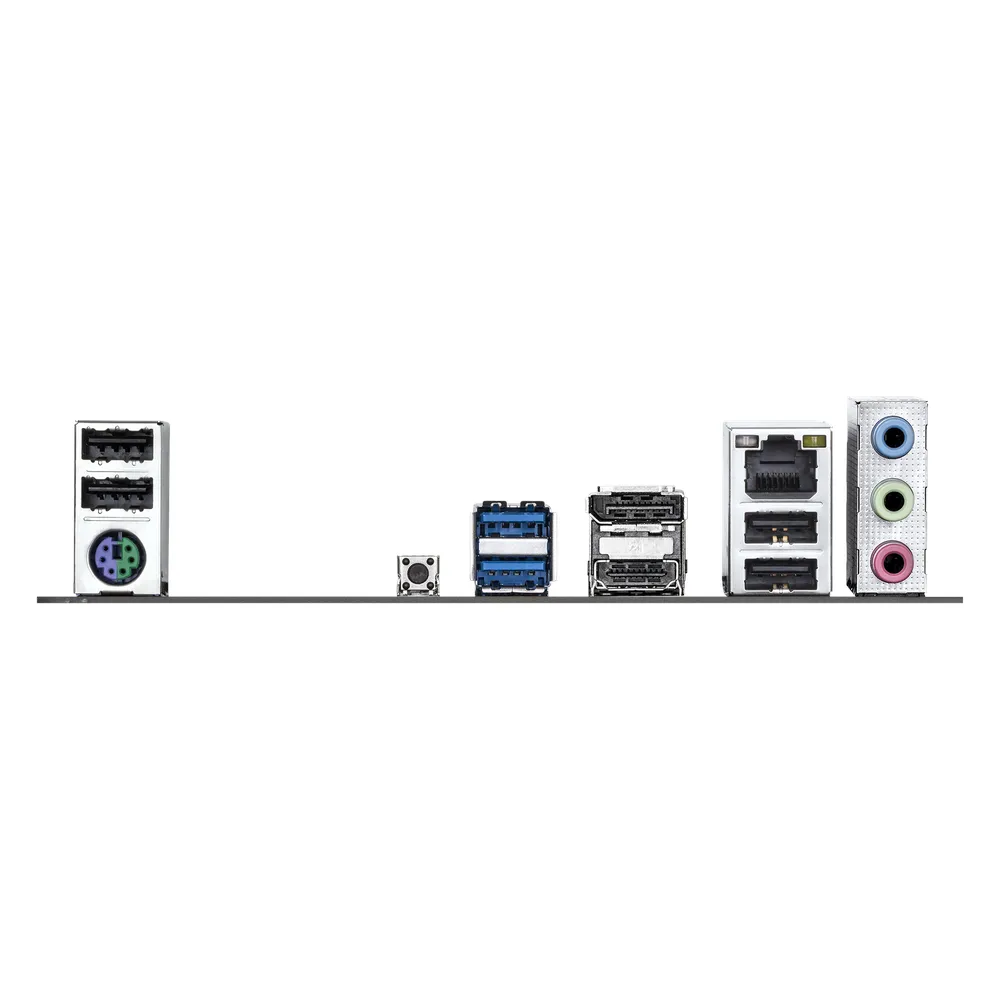

    Back Panel:
    2 x USB 3.2 Gen 1 (Type-A),
    4 x USB 2.0/1.1 (1 + 3 configuration)
    Internal Headers:
    1 x USB 3.2 Gen 1 (Supports 2 Ports),
    2 x USB 2.0/1.1 (Supports 4 Ports)
  • Ethernet
    Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
  • Form Factor
    ATX,
    23.0 cm x 22.5 cm
